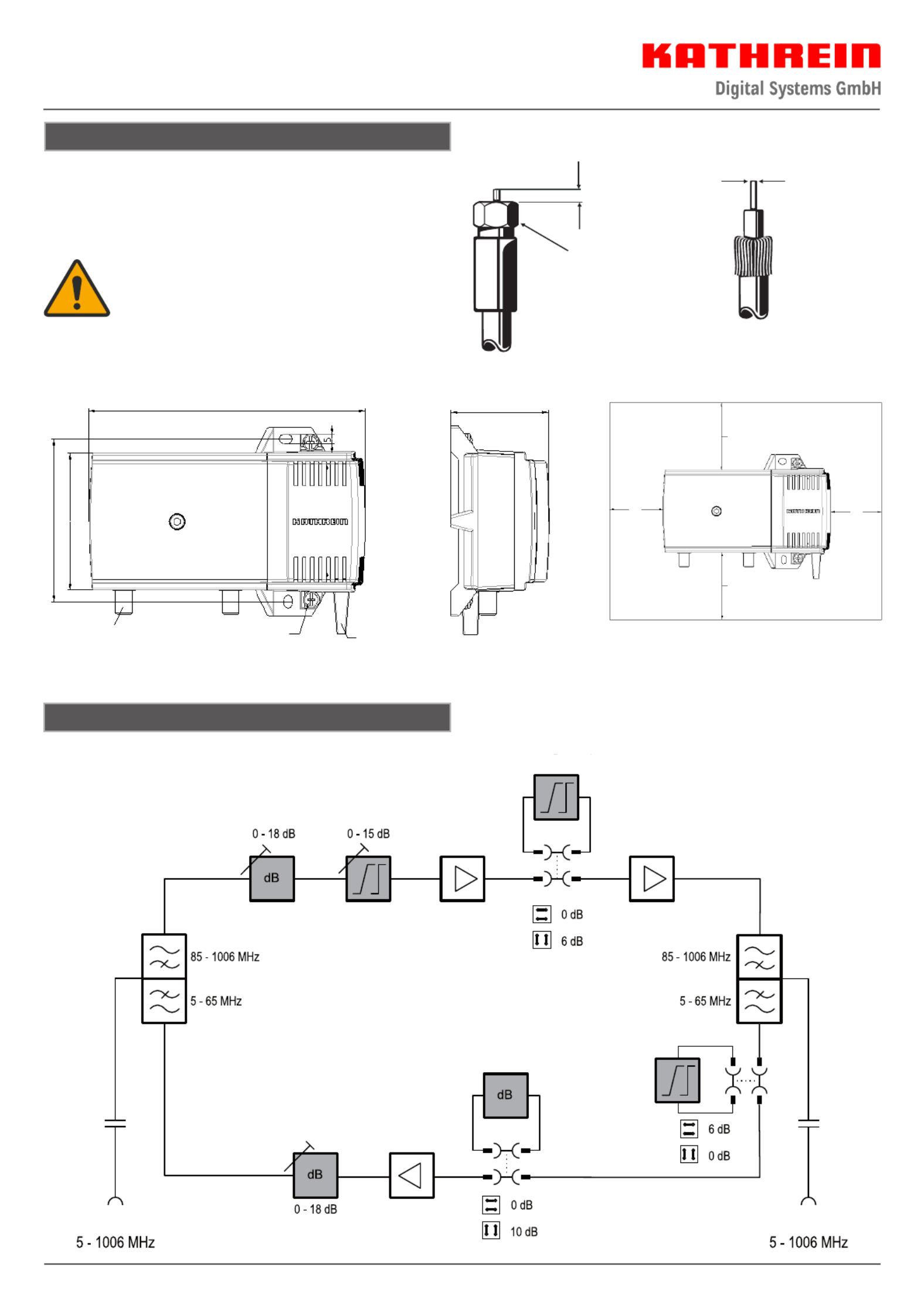

House connection amplifiers
Features
• The supply voltage of the amplifiers is 230 VAC which can be fatal if touched directly.
• The only reliable method of disconnecting the amplifiers from the mains is to unplug them.
• Do not touch live parts.
• The power plug must be easy to operate as the means of cutting power to the amplifier, so the wall outlet
must be close to the amplifier and easily accessible.
• The amplifiers may only be installed and deinstalled in the voltage-free condition.
• Do not operate the amplifiers without the factory-fitted protective cover over the power supply unit. The
cover must be closed.
• No liquid-filled items may be placed on top of the amplifiers.
• The amplifiers are not to be exposed to dripping or splashing water.
• Ambient temperature range -20 to +55°C
Basic safety precautions
• Installation must be carried out by authorised specialist sta.
• Unplug from the mains before installation.
• Described amplifiers are exclusively for installation of HFC networks up to 1,006 MHz.
• Any other use or failure to comply with these instructions will void the warranty or guarantee.
• The amplifiers may only be installed in dry areas indoors. Do not install on or against highly combustible
materials.
• The amplifiers must be earthed when installed (Cu, minimally 4 mm²).
• The safety regulations set out in the current EN 60728-11 and EN 60065 standards must be complied with.
■House connection amplifiers for modern HFC networks
up to 1 GHz
■Integrated high-eciency switched-mode power
supply unit
■Unit including forward path amplifier, return path
amplifier, diplexer, actuators and power supply unit
■Die-cast housing with F-type connectors
■LED to indicate operational mode
■Interstage equaliser switchable with bridging plugs
(6 dB pre-emphasis)
■Integrated variable attenuator (forward and return
path; delivery condition return path: max. attenuation)
■Integrated adjustable equaliser (forward path)
■Integrated return path 5-65 MHz active
■Conform to: EN 60728-11, EN 50083-2 and EN 60065
■For indoor installation
The amplifiers comply with the
EMC directive 2004/108/EC and
Low-Voltage Directive 2006/95/EC
applicable at the time of shipping.
VOS 20/RA-1G 20910031
VOS 29/RA-1G 20910032
Produkt Specifikationer
Mærke: | Kathrein |
Kategori: | TV signal forstærker |
Model: | VOS 20/RA-1G |
Vægt: | 800 g |
Produktfarve: | Silver,White |
Opbevaringstemperatur (T-T): | -20 - 55 °C |
Strømforbrug (typisk): | 4.5 W |
Dimensioner (BxDxH): | 155 x 105 x 54 mm |
Frekvensområde: | 85 - 1006 Mhz |
Beskyttelsesklasse: | II |
Indgangsspænding: | 230 V |
Stik: | F |
Indgangsfrekvens: | 50 - 60 Hz |
Porte, antal: | 2 |
Frekvensområde (returvej): | 5 - 65 Mhz |
Støjtal: | 6 dB |
