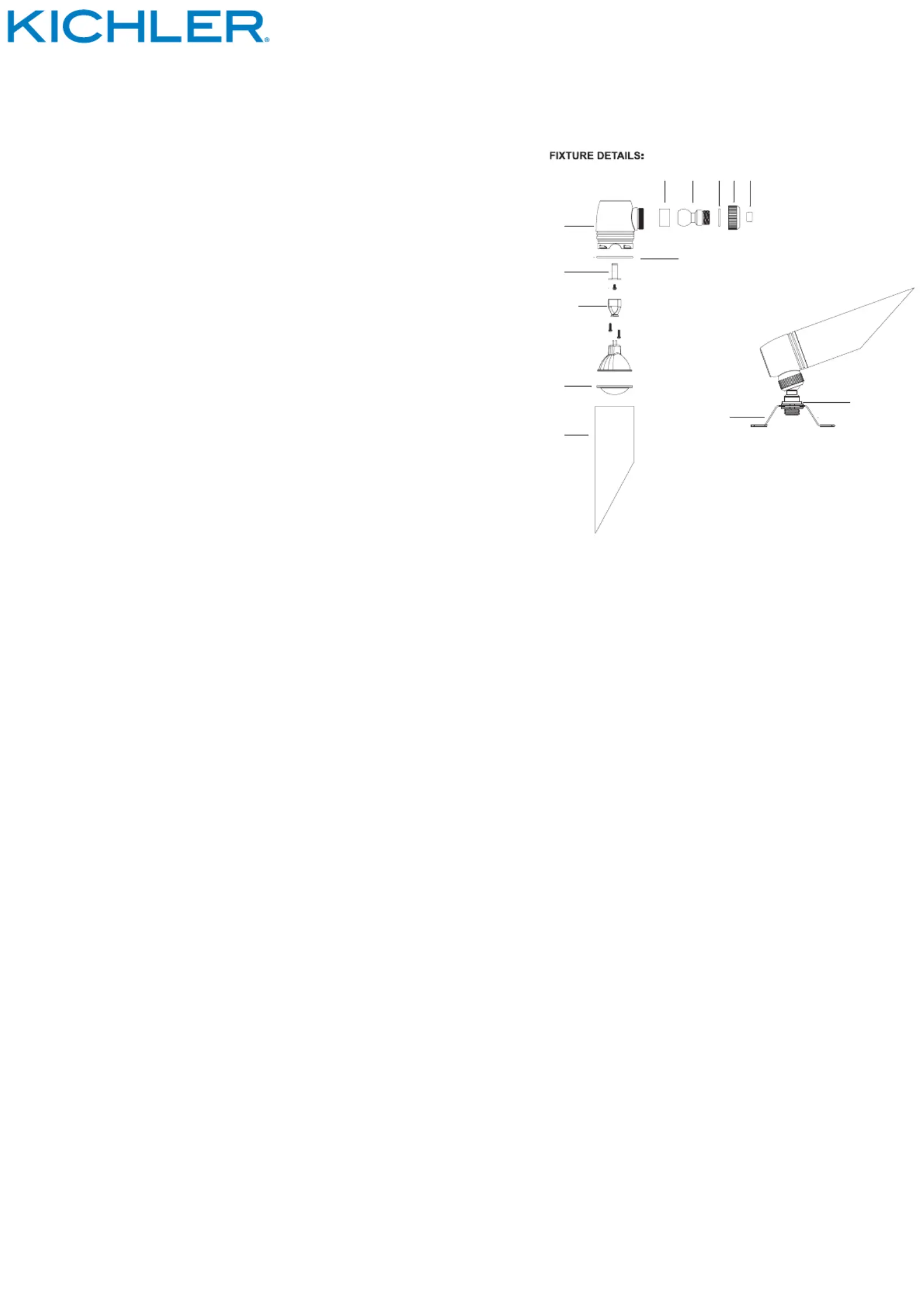

MR16 DOWNLIGHT WITH COWL LONG
MODEL # 15486CBR
INSTRUCTIONS PERTAINING TO A RISK OF FIRE,OR INJURY TO PERSONS
IMPORTANT SAFETY INSTRUCTIONS
Lighted lamp is HOT!
WARNING — To reduce the risk of FIRE OR INJURY TO PERSONS.
2)
SAFETY INSTRUCTIONS
READ THIS FIRST
KEEP THESE INSTRUCTIONS
This fixture is intended for installation in accordance with the National Electric
Code (NEC) and Local code specifications. Failure to adhere to these codes and
instructions may result in serious injury and/or property damage and will void the
warranty.
1) WARNING: This fixture is not to be installed within 10 feet (3M) of a pool, spa or
fountain.
This fixture is to be used only with a power unit (transformer) rated a maximum of
300 W (25 AMPS) 15 volts per circuit.
3) The #18 ga. fixture wire is not intended for direct burial or direct connection to
transformer.
4) Direct burial rated wire is to be buried a minimum of 6” (152mm) beneath the
surface of the ground. If additional Direct Burial wire is needed, contactNOTE:
your local Kichler® landscape distributor.
• 8 GA wire can be purchased in length of 250’ (76 M), 15503-BK.
•10 GA wire can be purchased in length of 250’ (76 M), 15504-BK.
•12 GA wire can be purchased in lengths of 100’ (30 M), 15501-BK; 250’ (76 M),
15502-BK; 500’ (152M), 15505-BK; and 1000’ (304 M), 15506-BK.
5) Fixture shall not use a tungsten halogen lamp unless the fixture is marked for
use with such lamps.
6) Wiring connections must be made with approved/listed wire connection device(s)
suitable for the application. Do not exceed manufacturers’ wiring combination
specifications for size and quantity of conductors.
1
2
3
5
4
6
7 8 10 11 9
12
13
1.
Cowl 2.Lens 3. Socket with clips . Socket bracket4
5 6 7 8. O-ring . Body . Cord grip . Sw9 10. O-ring .
Coupling 1 . Cord grip 1 . Lock nut 1 . Tree Bracket1 2 3
CAUTION
WHEN INSTALLING KICHLER LANDSCAPE LIGHTING (LINE VOLTAGE OR LOW VOLTAGE), CARE SHOULD BE TAKEN TO KEEP CLEAR OF POTENTIALL Y COMBUSTIBLE
MATERIALS.
WHEN MAINTAINING THE FIXTURES, BE SURE TO REMOVE LEAVES, PINE NEEDLES, OR ANY DEBRIS THAT HAS ACCUMULATED ON THE GRASS CLIPPINGS, MULCH,
LIGHT BULB, LENS, OR BODY OF THE FIXTURE.
ASSEMBLY AND INSTALLATION
1. TURN OFF POWER
2. Determine desired location for mounting fixture.
3. At desired location, install the tree bracketsurface / with appropriate hardware (not included) (Hanger / stand-off style bolts
recommended for optimum tree health.)
4. Feed wire through tree bracket engagement and install luminaire by tightening the lock nut. Aim luminaire in desiredsurface /
direction.
5. Install cowl onto accent light housing. Cowl is installed with clockwise quarter-turn twist.
6. Adjust the swivel to desired angle.
7. e nutsMake wire connections using approved wir (not supplied).
For warranty information please visit: http://www.landscapelighting.com/portal/warranty_page
Para informacion de la garantia por favor visite: www.landscapelighting.com/portal/warranty_page
Date Issued: 4/27/17 IS- -
15486US
Weʼre here to help 844-542-4537
Hrs: M-F 8am to 6:30pm EST
1) urn off / unplug and allow to cool before replacing lamp.T
2) Lamp gets HOT quickly!
3) Do not touch hot lens or cowl.
4) Do not touch lamp or fixture if warm.
5) Do not look directly at lamp when on.
6) Keep lamp away from combustible materials.
7) Use only with wattage and lamp marked on fixture.
8) Do not touch the inner glass envelope of the lamp at any time. Use a soft cloth. Oil
from skin may damage lamp.
9) Do not operate the fixture with a damaged or missing lens.
