P/N 10092676P1-01 Rev C • September 2012

The TouchPoint™ Lock is a pushbutton access control device that permits authorized entry into cabinets, drawers or other locking enclosures.

The TouchPoint Lock is easy to install on a variety of cabinets or enclosures and is intended for both indoor and outdoor applications.

The TouchPoint Lock can be ordered as a single component, or with optional mounting hardware including mounting brackets for sheet

metal or thick panels, 90° or 180° stop cams, a straight cam (1-1/8” length), or offset cam (1-5/8” length, 5/16” offset). The variations

depend on the type of cabinet or enclosure to which the lock is mounted.

TouchPoint™ Lock

Mounting Instructions

Tools Needed/Recommended:

• Drill

• Hole saw (For Top Mount Option)

• Router (For Flush Mount Options)

• File

• Philips screwdriver

• T15 Torx driver

• Pen or pencil

I. Mounting Options:

The TouchPoint Lock can be oriented vertically or horizontally to permit a wide range

of locking options.

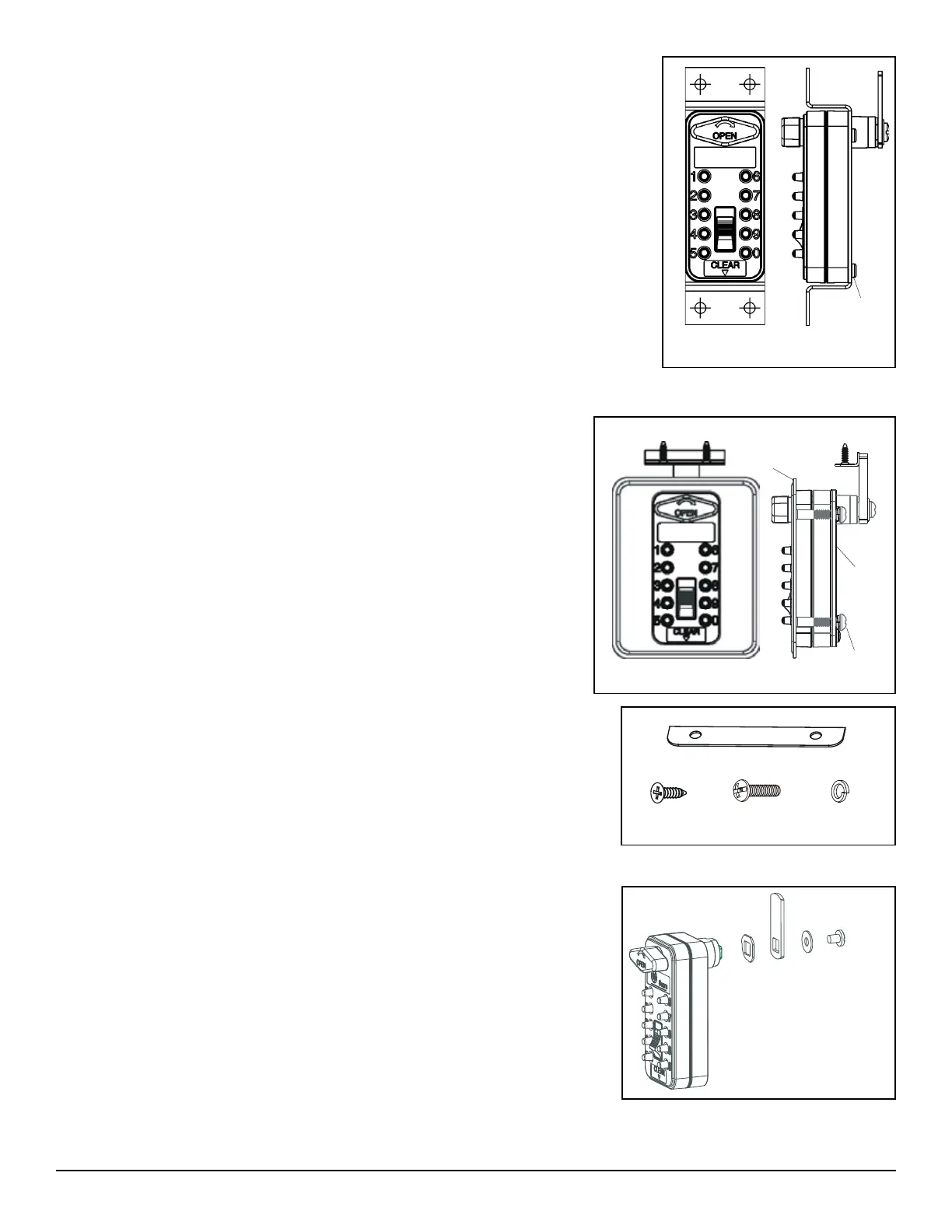

The TouchPoint Lock has three mounting options: top mount, ush mount with a

sheet metal bracket, and ush mount with a thick panel bracket. In the top mount

option, the back face of the Lock housing is mounted on the front face of the cabi-

net or enclosure. In the two ush mount options, the front face of the Lock housing

is aligned ush with the front face of the cabinet or enclosure, secured by a bracket

inside a hole cut into the cabinet surface.

In each of these options, the lock is secured to the panel or bracket through the use

of thread rolling.

screws into bosses on the Lock housing. Any mounting scheme should be designed

so that the mounting fasteners cannot be removed or tampered with when the Lock

is mounted and the cabinet or enclosure is closed and locked.

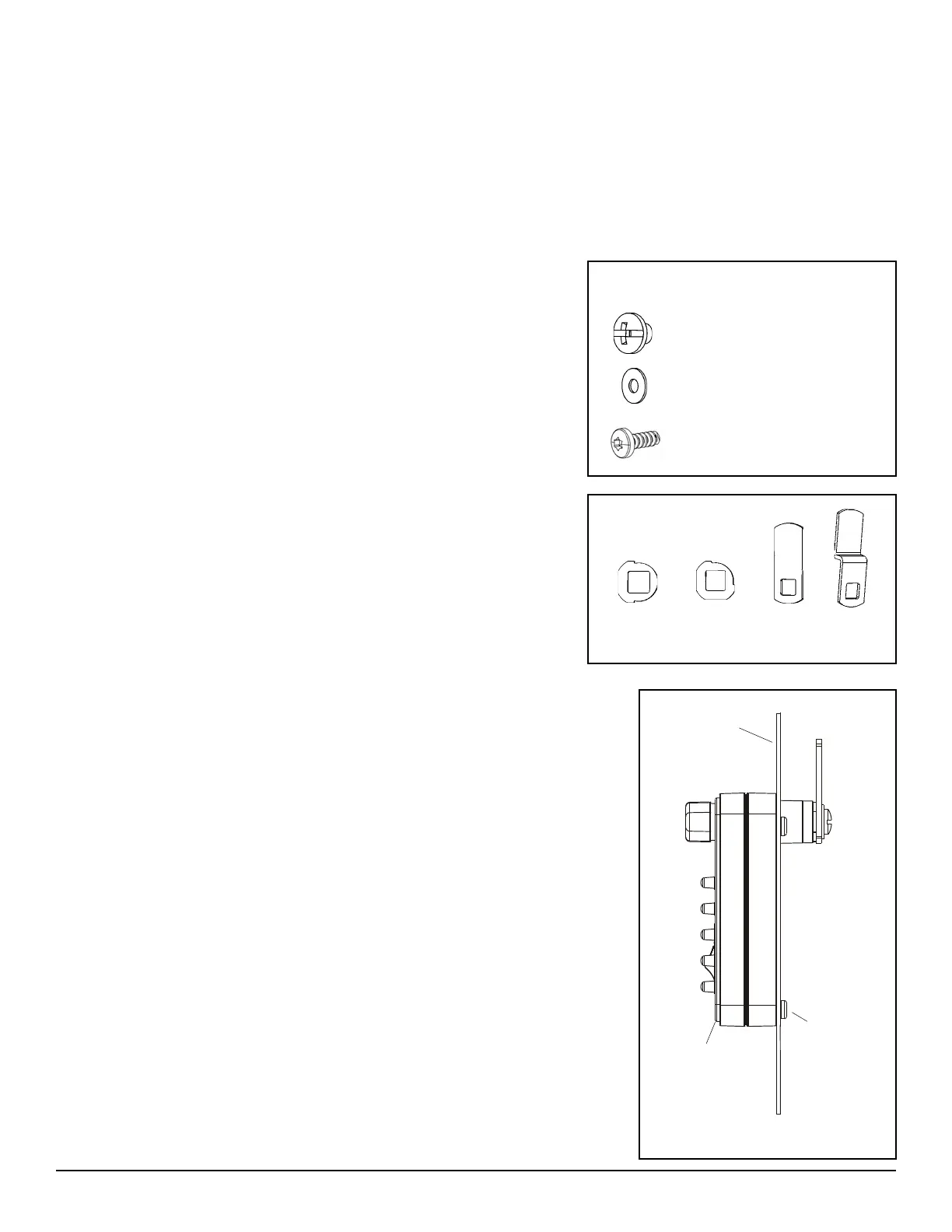

#10-24 x 1/4” Cam Screw,

combination drive (1)

180° Stop

Washer

90° Stop

Washer

Straight

Cam

Offset

Cam

Available

Hardware

#10 Round at washer (1)

Standard Hardware Provided

II. Mounting Instructions

Option A - Top Mount

(For use on panels of 1/8” thickness or less)

1. If the cabinet has an existing lock, remove the existing lock cylinder. If the open-

ing is too small for the protrusion on the back of theTouchPoint lock, use a le to

round out the lock tail hole.

2. If the cabinet does not have an existing lock, use Template A to determine the

dimensions and hole locations.

4. Position the Lock over the holes and install the four body screws through the back

of the cabinet and into the Lock body. Do not exceed 15 in-lb. of torque.

Note: The screws are designed to cut threads into the Lock body as they are installed.

5. Proceed to Cam Installation (Section III).

Cabinet

Body Screw (4)

Top Mount - Side View

Lock Body

#6-32 x 5/16” Body Screw,

T15 torx drive (4)
