Korg Nu:Tekt HA-KIT Manual
Korg
Hi-Fi system
Nu:Tekt HA-KIT
Læs nedenfor 📖 manual på dansk for Korg Nu:Tekt HA-KIT (2 sider) i kategorien Hi-Fi system. Denne guide var nyttig for 29 personer og blev bedømt med 4.5 stjerner i gennemsnit af 2 brugere
Side 1/2
E J 1
HA-KIT

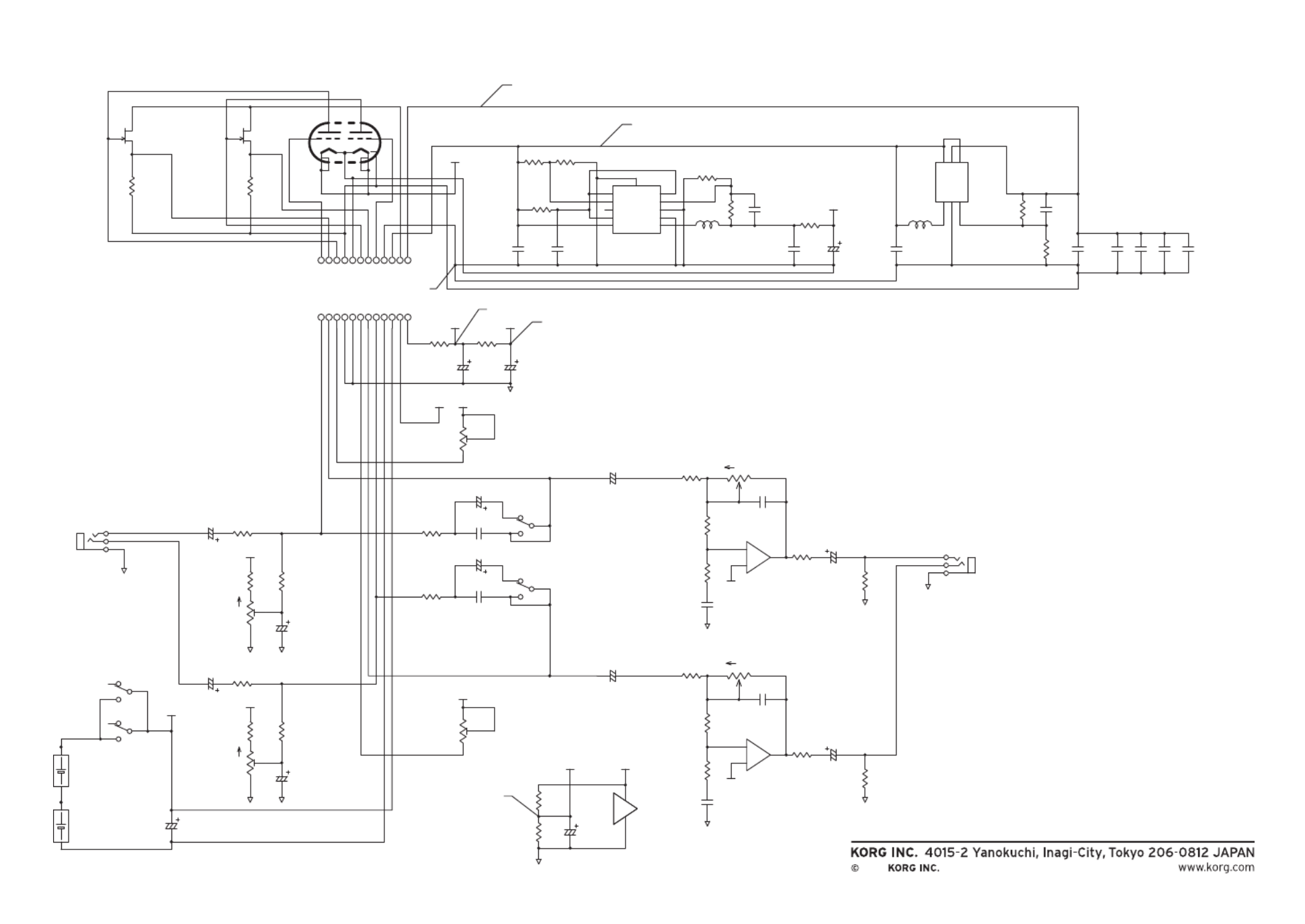

CIRCUIT DIAGRAM
回路図
List of mounted parts
Main circuit board
Part
number
Circuit
number
Part
name
Rating
Quantity
1
IC1 Operational amplifier NJM4580 1
MUSES01 1
2
IC1S Operational amplifier
socket 8pin DIP 1
3
C10, C14 Chip ceramic capacitor 10PF CH 2
4
C27, C28 Chip ceramic capacitor 0.0022μF B 2
5
C16, C17 Film capacitor 0.012μF FILM 2
6
C8, C11, C12,
C15, C23
Electrolytic capacitor 10μF/25V 5
7
C9, C13 Non-polar capacitor 10 F/25V BPμ2
8
C21, C22 Electrolytic capacitor 47μF/16V 2
9
C26 Electrolytic capacitor 100μF/35V 1
10
C19, C20 Electrolytic capacitor 220μF/25V 2
11
C24 Electrolytic capacitor 220μF/6.3V 1
12
C18 Electrolytic capacitor OPEN --
13
R16 Chip resistor 0 1
14
R29, R30 Chip resistor 10 1/4W 2
15
R32 Chip resistor 1K 1
16
R35, R36 Chip resistor 24.7K
17
R6, R7,
R21, R24,
R26, R28
Chip resistor 10K 6
18
R8, R9 Chip resistor 222K
19
R10, R12,
R17, R18 Chip resistor 447K
20
R14, R15,
R20, R23 Chip resistor 100K 4
21
BATT1
Battery box BATTERY BOX 1
22
“+” side electrode 2
23
“-” side electrode 2
24
CN2 Connector B12B-ZR 1
25
PH1, PH2 Stereo mini phone jack PJ-321 2
26
SW2 Slide switch MK-22D10-G2 1
27
SW1 Toggle switch 2UD1-T1 1
28
VR6, VR7 Trimmer Potentiometer 10K B 2
29
VR1 Volume 100K A 1
30
VR4, VR5 Trimmer Potentiometer 200K B 2
31
Hex spacers M2, L=3mm 2
32
Hex spacers M2, L=16mm 4
33
Internal tooth lock
washers M2 4
34
Screws M2x5 2
35
Harness 1
Nutube circuit board
Part
number
Circuit
number
Part
name
Rating
Quantity
36
IC3 Voltage regulator TLV61046A 1
37
IC2 Voltage regulator TPS62510 1
38
Q1, Q2 J-FET 2SK209 2
39
C4 Chip ceramic capacitor 22PF CH 1
40
C5 Chip F Bceramic capacitor 0.001μ1
41
C3 Chip F Bceramic capacitor 0.1μ1
42
C6 Chip F Bceramic capacitor 4.7μ1
43
C7 Chip F Bceramic capacitor 4.7μ1
44
C1, C2 Chip F Bceramic capacitor 22μ2
45
C25 Chip F/2.5VElectrolytic capacitor 390μ1
46
C29, C30,
C31, C32 Chip 10 F Bceramic capacitor μ--
47
R33 Chip resistor 0 1
48
R1 Chip resistor 1 1
49
R31 Chip resistor 6.2 1
50
R11, R13 Chip resistor 10K 2
51
R3, R5 Chip resistor 262K
52
R2 Chip resistor 120K 1
53
R4 Chip resistor 2M 1
54
R34 Chip resistor OPEN 1
55
L1 Chip inductor 2.2 Hμ1
56
L2 Chip inductor 10 Hμ1
57
CN1 Connector S12B-ZR 1
58
V1 Nutube (vacuum tube) Nutube 6P1 1
59
Nutube rubber CR Rubber 1t, 16x32 1
60
Circuit board cushion PORON 7t, 8x19
1
61
Cushion N1 Sponge 1t, 5x40 2
62
Cushion N2 Sponge 1t, 5x15 2
* Parts highlighted in gray are already mounted.
* のパーツは、マウント済のパーツです。
※ 同梱される部品の形状、サイズが写真と異なる場合があります。
Note: The shapes and sizes of parts included in the kit may differ from this photo.
