MEGATRON®
LED Floodlight – MEGATRON ispot ®
Series name
Model Number
Wattage
Voltage
Frequency
IP Rating
®
MT68020
9W
220–240V~
50/60 Hz
IP65
®
MT68021
18W
220–240V~
50/60 Hz
IP65
®
MT68022
27W
220–240V~
50/60 Hz
IP65
®
MT68023
47W
220–240V~
50/60 Hz
IP65
TECHNICAL SPECIFICATION
Instruction Manual
ATTENTION:
• Instant start is allowed.
• Designed for indoor and outdoor
applications.
• The operating temperature of the
luminaire is -25˚C to +45˚C.
CAUTIONS:
• Read the entire manual carefully before installation and operation.
• Installation or replacement should be performed only by licensed and qualified electricians.
• DO NOT disassemble the inner part of the luminaire. Doing so may result in luminaire damage or malfunction.
• Switch OFF the power source before installation, replacement and cleaning!
• Wearing gloves during installation is recommended to ensure the luminaire is kept in the best condition.
• Before replacement of the luminaire, turn it off and allow it to cool down. Heat-resistant gloves are mandatory when
handling the luminaire.
• The minimum safety distance from the illuminated object is 1,0m.
• The manufacturer accepts no liability for any damage resulting from the misuse of the luminaire or from when it is used
with inappropriate equipment.
• Consult your dealer if you have any enquiries.
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
Important warning for drilling in walls: before drilling, make sure that there are no gas and water pipes or power lines behind or near the drilling spots.
Drilling and mounting should be performed only by qualified personnel. Be sure to pay attention to the condition and material of the walls, as the supplied mounting
material is not suitable for all wall types. Please inquire about recommended screws and raw plugs for your wall type and wall condition. The manufacturer accepts
no liability for improper wall raw plug mounting and the herefrom resulting damages.
•
•
Correct disposal of this product:
This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle it responsibly, to promote the sustainable reuse of material resources. To return your device, please use the
return and collection systems, or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
IDV GmbH | Birkenweiherstraße 2 | D-63505 Langenselbold | Germany | www.megatron-licht.eu
GB

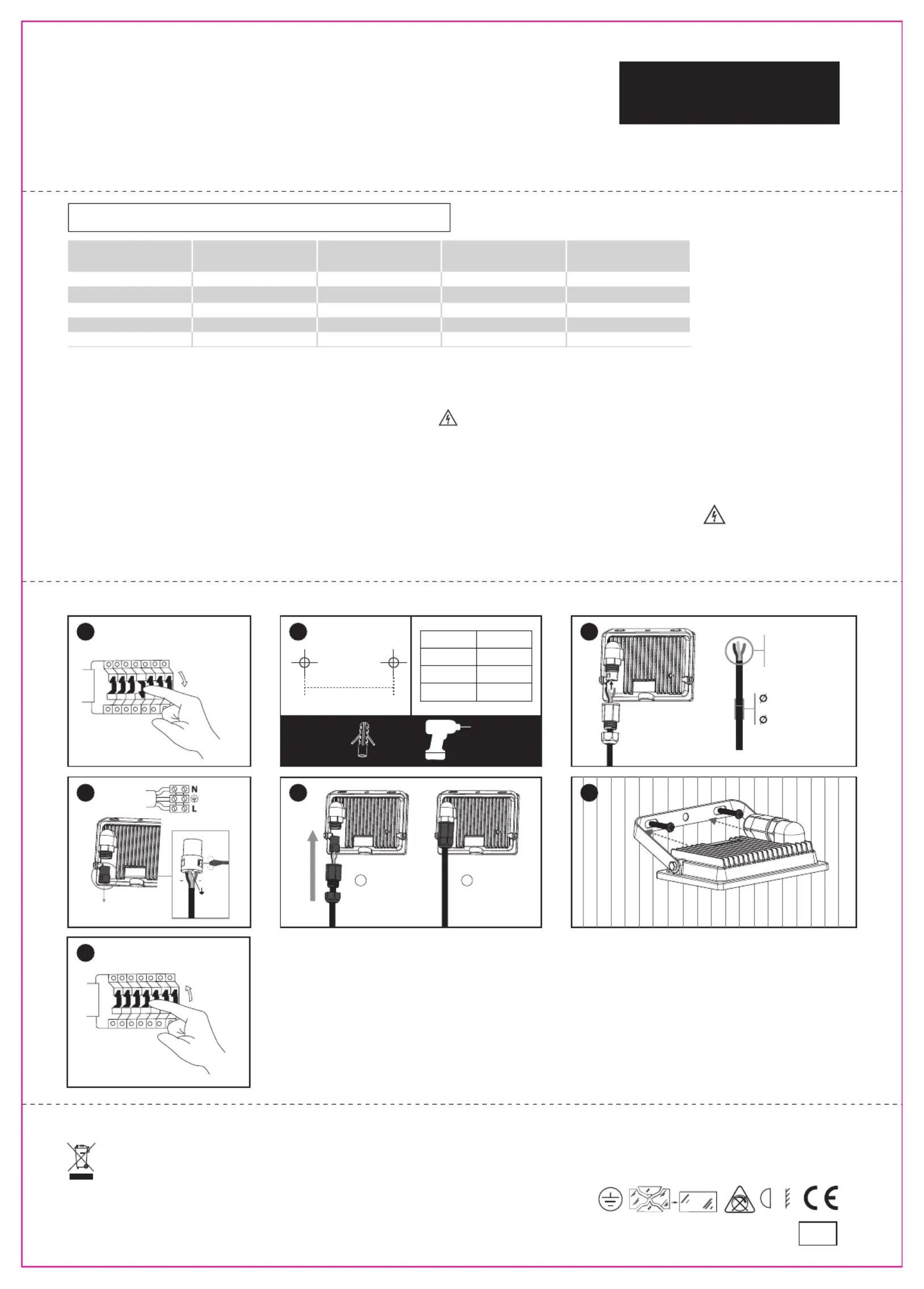

INSTALLATION:
OFF
1.
7.
5.
2. 3.
ON
2
H07RN-F 3x0. 75mm
2
H07RN-F 3x1. 0mm
or
to
7.5m m
9.5m m/10m m
4.
N L
Brown
Ye eenllow/Gr
Blue
1 2
A
X2
9W A=45mm
18W A=5 0mm
27W A=70mm
47W A=90mm
6.
1) Turn OFF the power.
2) Use the wall bracket as a template, in order to mark and drill the appropriate fixing holes on the wall.
Secure the bracket with suitable fixings ( not supplied) on the wall.
3) Loosen the cable gland of the fast connector on the back of the luminaire.
4) Pass the power cable through the cable gland and connect the cable to the terminal block.
5) Fix the cable gland and close the fast connector. Make sure when fixing the cable, that a high tightness is achieved.
The screws and fast connector should be installed properly, to ensure the IP protection of the luminaire.
6) Screw the luminaire on the wall
7) Turn ON the power.
----
1,0m
