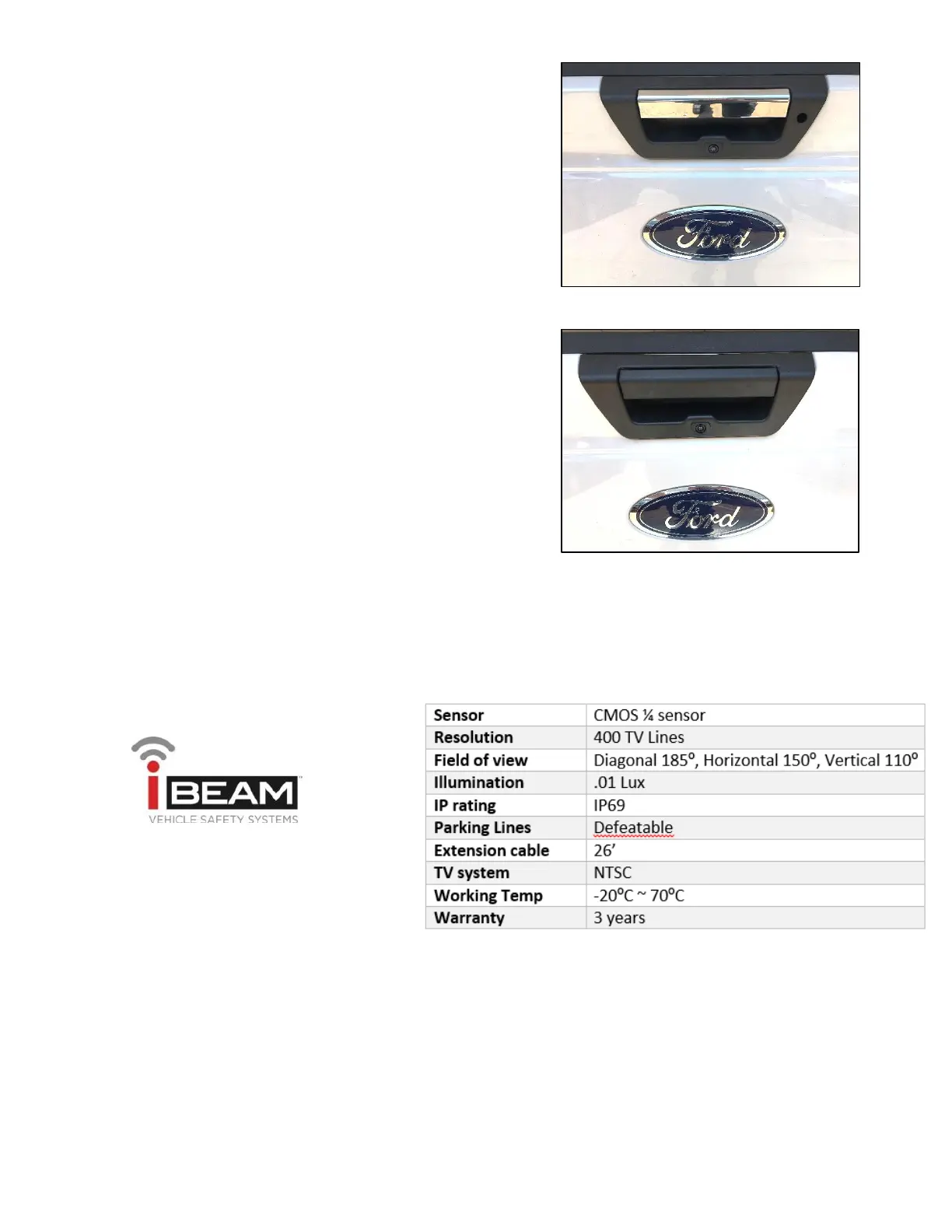

REV. 05/21/2018
TE-FDH/TE-FD (CMOS) HC
FORD F150 (20 -15 2017)
Replacement Tailgate Handle
with Camera
Removal and Installation
Instructions
Tools Needed: ratchet, socket. 10mm
1. Start by lowering the tailgate and slide
tailgate step out. (Fig. A)
NOTE: For models without tailgate step,
lower tailgate then remove (8) 10mm nuts.
Lift off access panel and set aside.
2. Now that you have access to the handle
assembly, unclip latch rod, and remove (2)
10mm nuts. (Fig. B)
3. Gently remove handle by lifting the handle
from the outside and slowly working it out.
(Fig. C)
4. Now that the handle is out of the tailgate,
you will have to swap the locking mechanism
out of the old handle to the new one.
5. Next, remove taillight and splice the red
power wire from the camera’s harness into
the reverse light’s 12v positive wire. This will
trigger the camera to turn on when vehicle is
placed in reverse. Attach the black ground
wire to a metal non-painted surface.
6. Wires can now be fully routed from the
tailgate to the cab of the truck and to a video
source . The Yellow RCA, securing every 16”
will plug into the input of your video source;
the Red wire goes to the rear camera input
trigger wire on your video source.
NOTE: Test to make sure video is working
before securing new handle.

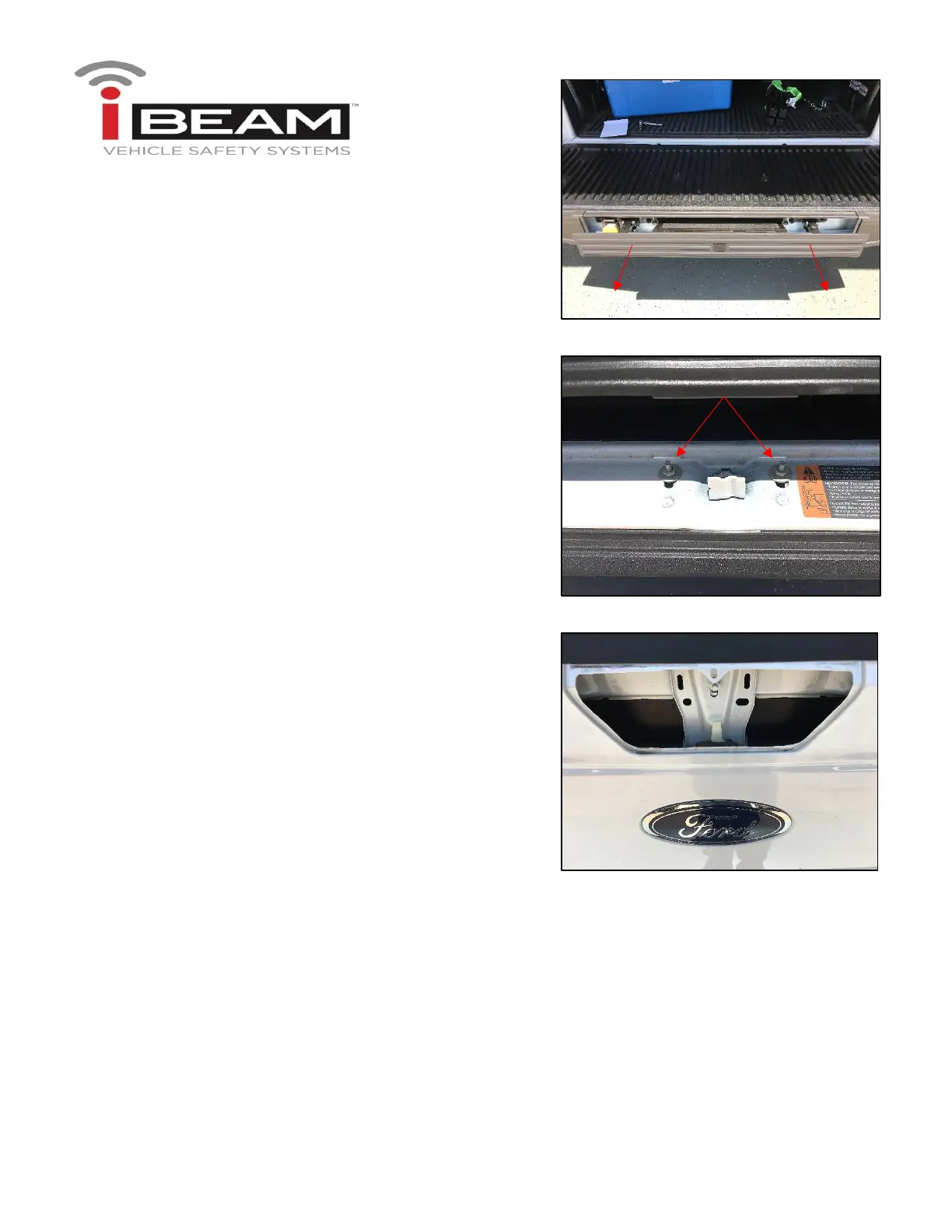

Fig. A
Fig. B
Fig. C
