Side 1/1
+
―
T400mAL250V
FR
S.W.
SR
FL
CEN
SL
FR
SR
CEN
FL
SL
AUDIO AUDIO INPU T O U T PUT
BASS
ON
OFF
FUSE AC IN
User's Manual
Inside Package:
Subwoofer Speaker 1 pc
Satellite Speaker 5 pcs
Audio Cable 3 pcs
Line control 1 pc
User's Manual 1 pc
Features:
* Real 5.1 channel support AC-3,DTS,THX.
* 5.1 sound channel conversion design.
* Professionally designed built-in amplifier ,subwoofer and satellite speaker
designed.
* 5'' professionally enhanced subwoofer driver.
* Outside heat sink designed.
* Dynamic bass boost, low distortion.
* The system can be connected to TV, VCD, DVD, CD and any other Audio
output equipments.
Connection instruction:

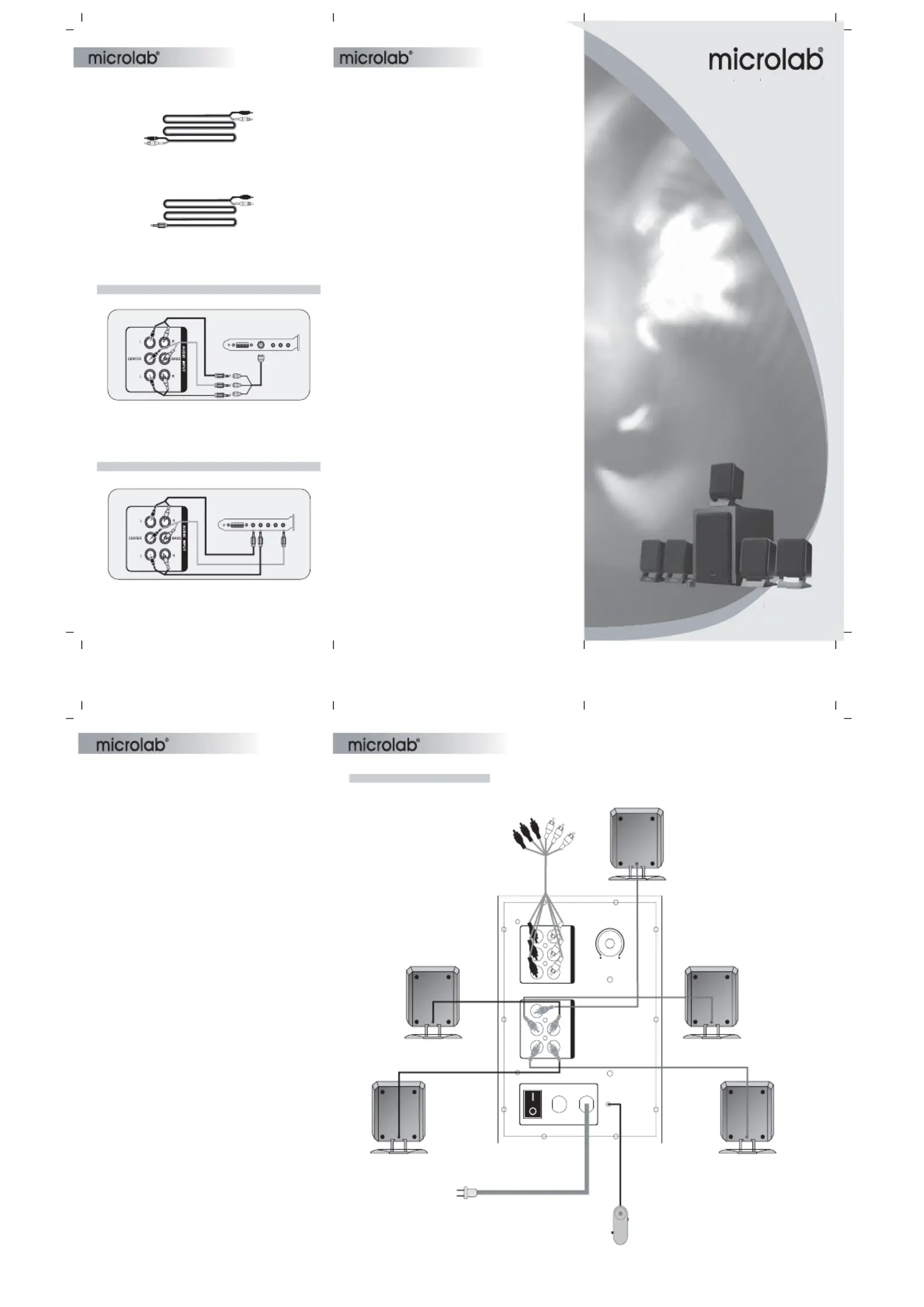

1. (As diagram 1)
Connect satellite's cable to appropriate "Audio output" jacks on the
woofer's rear panel.
2. Connect one end of the audio cable which have 6 quincunx plugs to
appropriate audio output on DVD, the other end of the cable to appropriate
"audio input" on the woofer's rear panel.
3. When connect to computer 5.1 channel sound card, Please refer to
picture 2&3 to connect.
4. Make sure all connection are correct, then connect the power cord to AC
outlet.
* Please refer to sound card instruction when connect 5.1 channel sound
card.
（ ）As diagram 2 Computer 5.1 channel sound card connection diagram 1
（ ）As diagram 3 Computer 5.1 channel sound card connection diagram 2
（As diagram 1 connection diagram 1）speaker
DVD AUDIO CABLE
SOUND CARD CABLE
Usage:
1. Turn the BASS volume knob on the back of the woofer and the master
VOLUME knob on the line control to minumum level,then turn on the
switch.
2. Play a music program by adjusting the volume and bass control to your
demanding level.
specification
*Amplifier specification:
Power Output 7Wx5+14W RMS
Frequency Response 35Hz-20KHz
Sensitivity 300mV
Harmonic Distortion <0.3% 1W 1KHz
S/N >70dB
Separation >45dB
*Speaker unit: Subwoofer 4"
Satellite 2.5"x5 magnetic shielded
* Signal Input: RCAx6
* Signal Output : RCAx5
Caution:
1. Do not exposed to dripping or splashing.
2. Do not placed any objects filled with water over the apparatus.
3. Do not block the ventilation holes.
4. For indoor use only.
5. When using high output signal, please don't turn the volume to
maximum to avoid distortion or failure.
6. In case of long time not using, please plug off the power plug.
To DVD player or computer 5.1
channel sound card
CENTER
SR
FR
SL
FL
80-m1113-97-0001-01 2007-03-27 出
80-m1113-97-0001-01 2007-03-27 出
Line control
MULTIMEDIA SPEAKER SYSTEM
U
ser's Manua
l
MUL
TIMEDIA
SPEAKER SYSTEM
A
