I-00033 Rev L
HOLE
FACING
DOWN
NOTE: If two sets of mounting holes
are present, use the lower holes.
3) Install male hinge to the enclosure.
(FIGURE C)
4) Install screws using a #2
Phillips driver. Install
decorative cap.
(FIGURE D)
NOTE: Hinge post ships with washer
preinstalled. If the washer has
come off during shipping, it
must be reinstalled.
6) Install the door.
(FIGURE F)
5) Install female hinge to the door
using provided hex key.
(FIGURE E)
Hex Key (Provided)
#2 Phillips Driver
TOOLS REQUIRED
1) Determine door swing in order to
know what side to install hinges.
(FIGURE A) 2) Knock out cover plate (if installed)
and discard. (FIGURE B)

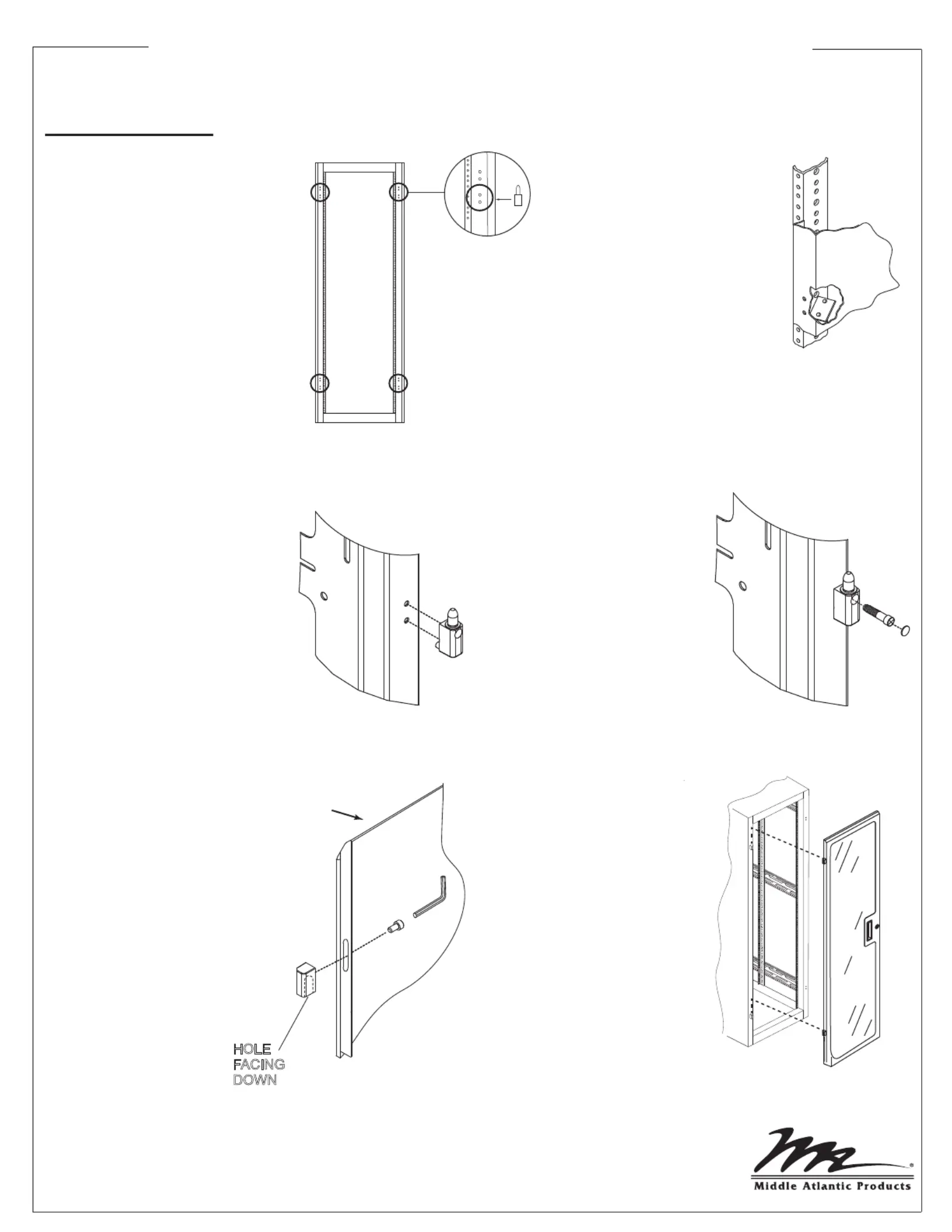

FIGURE A
FIGURE B
FIGURE C
TOP OF DOOR
FIGURE D
FIGURE E FIGURE F
