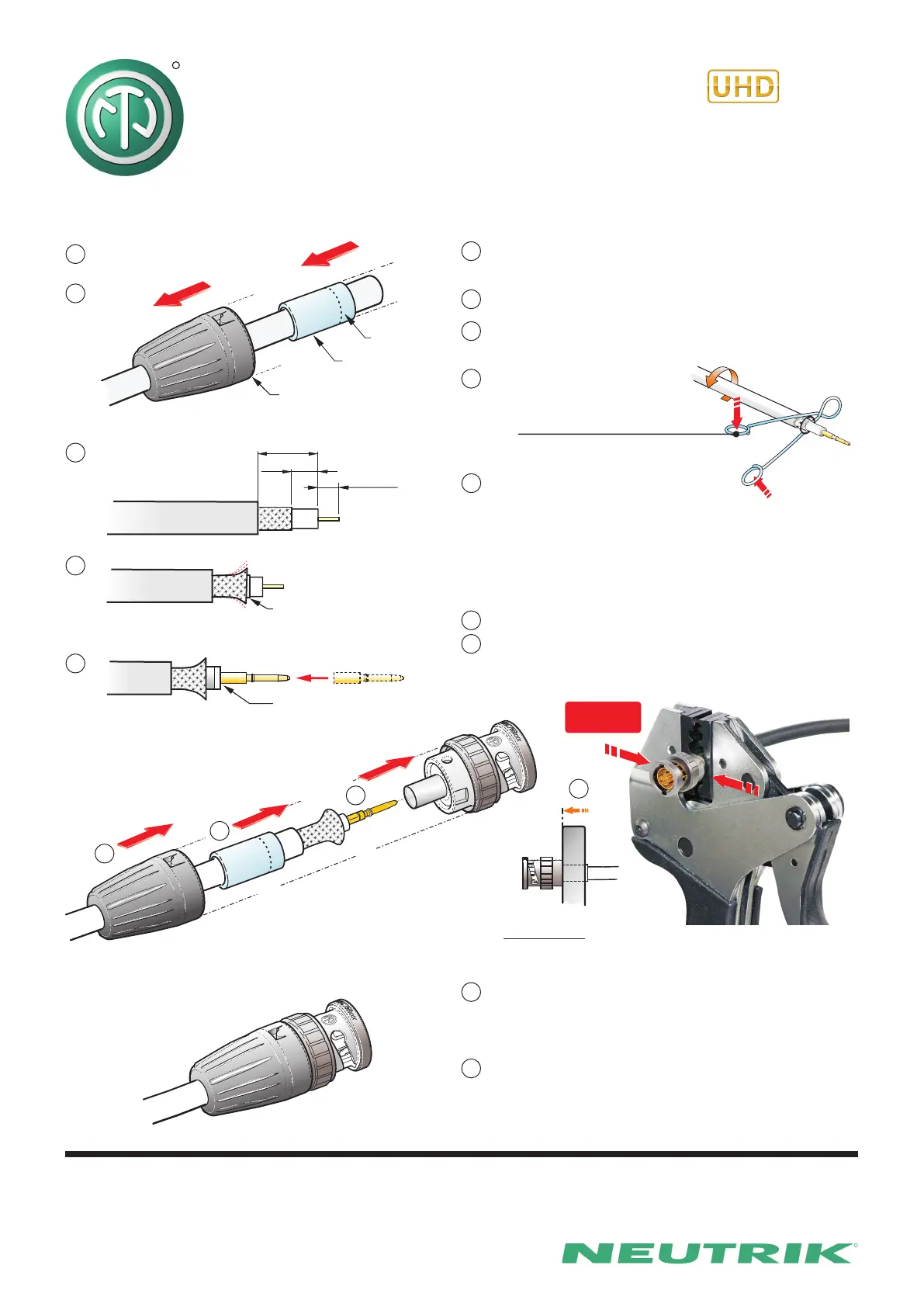

Side 1/1
Slide the boot onto the cable
- Position the labeling to the cabelend
Slide the crimp ferrule onto the cable
Spread the braided shield
(It`s easily with the NEUTRIK
“SHIELD-SPREADING-TOOL”!)
Crimp the pin
- position the pin on the center conductor
- Crimp the pin with the tool
(For best crimping-results it is recommended to use the
original Neutrik crimp tool HX-R-BNC with appropriate
crimp die)
- Straighten the pin if misaligned.
Insert the cable into the connector body
Slide the crimp ferrule over the shield to the
front and push the cable to it`s end position
until you hear a snap noise.
Crimp the ferrule with the tool
(For best crimping-results it is recommended to use the
original Neutrik tool - HX-R-BNC with the corresponding
insert)
Snap the boot onto the connector body
Prepare cable as shown
- Use an adjustable coaxial cable stripper
®
A
A
B
C
D
D
E
E
F
G
H
I
B
C
Pin flush to the insulator
Please note:
Position the connector body
Flush with the die face.
H
Don't damage the foil!
(if existing)
rear UHD BN CTWI ST
75 Cable Connector Crimp version W
AS SEMBLY INSTRUCTION
Assembled Connector
[ ]
C: 4 .16”
[ ]
B:5 .197”
[ ]
A: 12 .473”
R
Draft. Nr.: BDA 398 Update: 15.04.2015
I I Data subject to change w ithout prior notice. 2015 NEUTRIK . ALL RIGHTS RESERVED. NEUTRIK a re regi ster ed trademark.
® ®
©
www.neutrik.com
NEUTRIK AG LI T: F: +423 / 237 24 24 +423 /232 53 93
NEUTRIK USA Inc. USA T: F: +1 704 / 972 3050 +1 704 / 438 9202
( )
NEUTRIK UK Ltd. UK T: F: +44 1983 / 811 441 +44 1983/ 811 439
NEUTRIK Vertriebs GmbH DE/ NL / AT/DK T: F: +49 8131 / 280 890 +49 8131 /280 830
NEUTRIK France FR T: F: +33 1 /4131 6750 +33 1 /4131 0511
NEUTRIK Tokyo Ltd. JP T: F: +81 3/3663 4733 +81 3/ 3663 4796
NEUTRIK Hong Kong Ltd. T: F: HK +852 /2687 6055 +852/2687 6052
NEUTRIK India Pvt. Ltd. IND T: F: +91 /982 05 43 424 +91 /22 26163 540
R
F
G
H
I
X
Boot
Crimp ferrule
X
Labeling
4K8K
8K
8K
8K
CRIMP
OPERATION!
