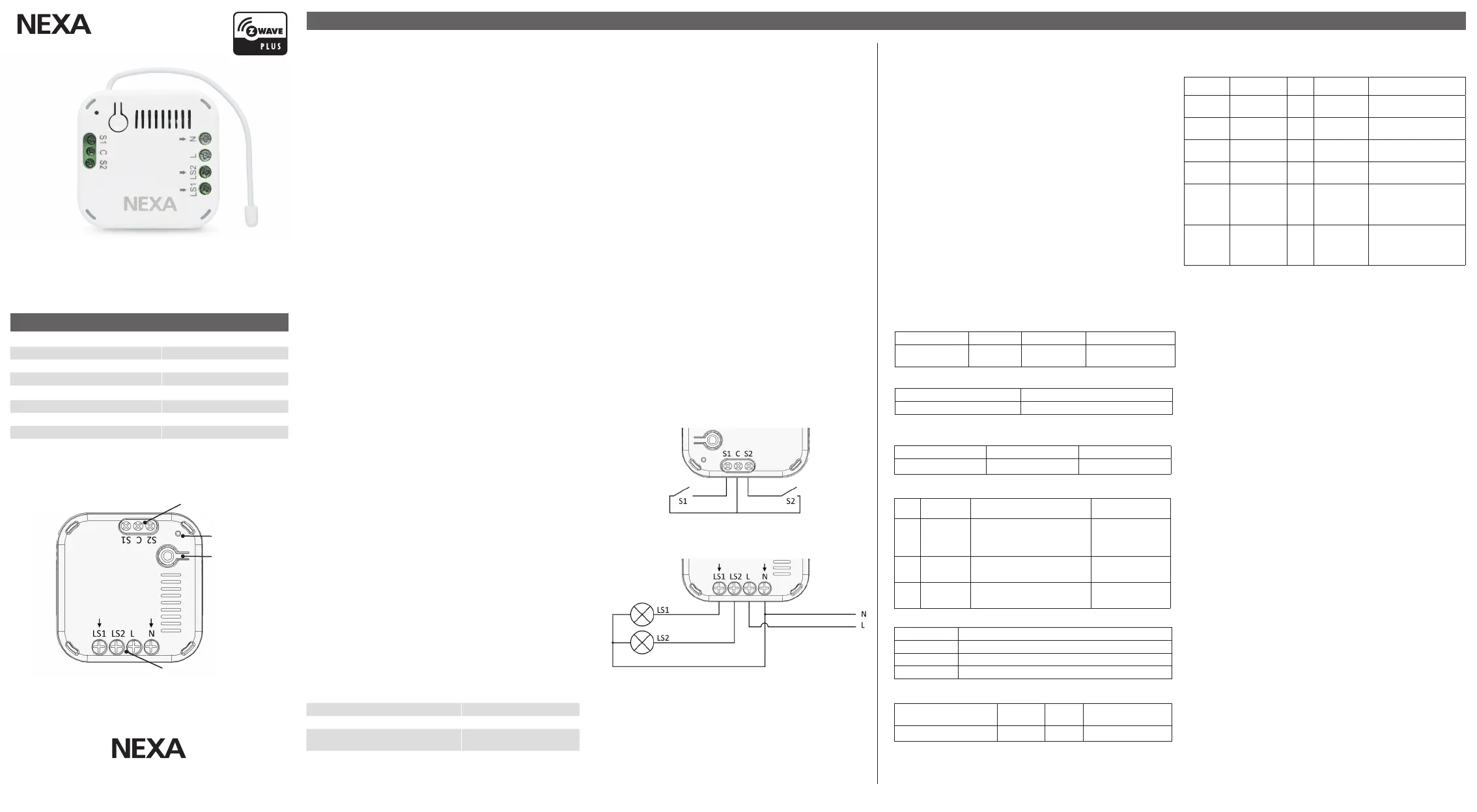

Side 1/5
AN-196
Inbyggnadsmottagare
På/Av, 2 kanaler
TEKNISK DATA
AN-179
Strömkälla 220-240 V~50 Hz
Max. last 2 x 1000 W R
Frekvens Z-Wave (868,42 MHz)
Räckvidd upp till 30 m
Strömförbrukning < 1 W (standby)
IP klassicering Inomhusbruk
Mått (B x H x D) 43 x 42 x 16 mm
Inbyggnadsmottagare för fast installation. Liten och kompakt
storlek för placering i kopplings- eller apparatdosa. Kan anslutas
till befintlig strömbrytare. Mottagaren behöver både fas och nolla.
Mottagaren har full kompatibilitet med Z-Wave Plus standarden.
SÄKERHET
Läs igenom hela instruktionen först. Anlita fackman vid behov. Nexa
kan ej hållas ansvarig om produkten används till annat än den är
designad för eller om instruktionen inte följs.
Anslut aldrig lampor eller utrustning som överskrider mottagarens
maximala angivna belastning, det kan leda till fel, kortslutning eller
brand.
Försök inte att reparera produkten. Produkten innehåller inga
reparerbara delar.
INSTALLATION
Säkerställ att ledarna är spänningsfria genom att slå av
strömmen i elcentralen.
Koppla Fas till L, Last/Tändtråd till LS1/LS2 och Nolledare till N.
AN-196 kan kopplas till strömbrytare, även återfjädrande, för
styrning, se även kopplingsschema.
Observera att strömbrytare anslutna till AN-196 måste vara
potentialfria, dvs. helt isolerade från 230V.
ANSLUT TILL ETT Z-WAVE NÄTVERK
Smart start / Autoinklusion:
AN-196 har stöd för SmartStart-funktion, inklusion startar
automatiskt när enheten spänningssätts och upprepas med
dynamiska intervall så länge enheten inte ingår i ett Z-Wave-nätverk.
Z-Wave SmartStart är baserat på Z-Wave SDK 6.8x och kräver att
controller har stöd för detta.
Om controller inte stöder SmartStart-funktion kan den här enheten
läggas till Z-Wave-nätverket med manuell inklusion, eller genom att
skanna DSK QR-koden eller ange en 5-siffrig ”Device Specific Key”
(DSK) på begäran av gatewayen.
1. Sätt Z-Wave controllern i inklusionsläge (se controllerns manual)
2. Anslut AN-196 till spänning och enheten inkluderas.
Manuell Inklusion:
1. Sätt Z-Wave controllern i inklusionsläge (se controllerns manual)
2. Tryck 3 ggr på Länkknappen inom 1,5 sekunder
Exklusion:
1. Sätt Z-Wave controllern i exklusionsläge (se controllerns manual)
2. Tryck 3 ggr på Länkknappen inom 1,5 sekunder.
Fabriksåterställning:
1. Tryck 3 ggr på Länkknappen inom 1,5 sekunder.
2. Inom 1 sekund från steg 1 ovan, tryck och håll inne länkknappen
till LED slocknar, ca 5 sekunder.
3. Node ID är raderat och enheten fabriksåterställd.
ANVÄNDNING
Utgångarna på AN-196 kan styras trådlöst med Z-Wave controller
och med anslutna strömbrytare
Se manualen till din Z-Wave controller för mer information.
SVENSKA
SÄKERHET OCH INFORMATION
Räckvidd inomhus: upp till 30 m (optimala förhållanden).
Räckvidden är starkt beroende av lokala förhållanden, till
exempel om det finns metaller i närheten. Exempelvis har
den tunna metallbeläggning i energiglas med låg emissivitet
negativ inverkan på radiosignalernas räckvidd. Det kan finnas
begränsningar för användningen av enheten utanför EU. Om
tillämpligt bör du kontrollera att enheten överensstämmer med
lokala föreskrifter.
Max belastning: Anslut aldrig lampor eller utrustning som
överskrider mottagarens maximala belastning. Det kan leda till
fel, kortslutning eller brand.
Livsuppehållande utrustning: Använd aldrig Nexas produkter
till livsuppehållande utrustning eller andra apparater där fel eller
störningar kan få livshotande följder.
Störningar: Alla trådlösa enheter kan drabbas av störningar som
kan påverka prestandan och räckvidden. Det minsta avståndet
mellan två mottagare bör därför vara åtminstone 50 cm
Reparation: Försök inte att reparera produkten. Den innehåller
inga reparerbara delar.
Vattentäthet: Produkten är inte vattentät. Se till att den alltid är
torr. Fukt gör att elektroniken inuti fräts sönder och kan leda till
kortslutning, fel och risk för elstötar.
Rengöring: Rengör produkten med en torr trasa. Använd inte
kemikalier, lösningsmedel eller starka rengöringsmedel.
Miljö: Utsätt inte produkten för stark värme eller kyla, eftersom
det kan skada eller förkorta de elektroniska kretsarnas livslängd.
NEXA AB, DATAVÄGEN 37B, 436 32 ASKIM, SWEDEN
info@nexa.se | www.nexa.se
KOPPLINGSSCHEMA
LAST MAX EFFEKT
Glödlampor & Resistiv last (230V) 1000W /220-240V
Halogenlampor (230V) 450W / 220-240V
LED- & lågenergilampor (230V)
130W / 220-240V (40W x 3)
Z-WAVE PLUS INFO (Root/Endpoint1/Endpoint2)
NOTIFICATION
AGI (ASSOCIATION GROUP INFORMATION) TABLE
VERSION
BASIC COMMANDS
MANUFACTURER
Role Type Node Typer Installer Icon User Icon
Slave Always On Z-Wave Plus
node
On/Off Power
Switch
On/Off Power Switch
Wall outlet
Event Type Event Event Parameters
Length
Power applied for rst time 0x08 0x01 0x00
Group Profile Command Class & Command
(List) N bytes Group Name (UTF-8)
1 General:NA
Binary Switch Report,
Notification Report,
Device Reset Locally Notification
Lifeline
2 Control Basic Set On/Off control
Button 1
3 Control Basic Set On/Off control
Button 2
Protocol Library 3 (Slave_Enhance_232_Library
Protocol Version 6.04 (6.81.03)
Command Description
Basic Get Inquire about the status of the device
Basic Report Report the status of the device.
Basic Set Set the status of the device.(Value=0XFF (ON), 0x00 (OFF))
Manufacturer ID Product Type Product ID
0x0060 0x0004 0x000E
PROGRAMMING
Z-WAVE GROUP SUPPORT
AN-196 relay module supports three Z-wave Association Groups:
Group 1: Association with 5 Controller nodes.
Group 2: Association with 5 nodes.
Group 3: Association with 5 nodes.
Group 1 commands:
• When the unit is powered up for first time, a Notification Report
will be sent to the node of Group 1.
• When performing Factory Reset, a Device Reset Locally Notifi-
cation will be sent to the node of Group 1.
• When relay is activated through the switch, the unit will send a
Binary Switch Report to the node of Group 1.
Group 2 commands:
• When switch 1 is pressed, a BASIC SET command containing
a value will be sent to the node of Group 2 (When relay is off,
Basic Set Value=0x00, when relay is on, Basic Set Value=0xFF).
Group 3 commands:
• When switch 2 is pressed, a BASIC SET command containing
a value will be sent to the node of Group 3 (When relay is off,
Basic Set Value=0x00, when relay is on, Basic Set Value=0xFF). COMMAND CLASSES
The module supports Command Classes including -
• COMMAND_CLASS_ZWAVEPLUS_INFO_V2
• COMMAND_CLASS_ASSOCIATION_V2
• COMMAND_CLASS_ASSOCIATION_GRP_INFO
• COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V2
• COMMAND_CLASS_MULTI_CHANNEL
• COMMAND_CLASS_TRANSPORT_SERVICE_V2
• COMMAND_CLASS_VERSION_V2
• COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
• COMMAND_CLASS_DEVICE_RESET_LOCALLY
• COMMAND_CLASS_POWERLEVEL
• COMMAND_CLASS_SECURITY
• COMMAND_CLASS_SECURITY_2
• COMMAND_CLASS_SUPERVISION
• COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4
• COMMAND_CLASS_NOTIFICATION_V4
• COMMAND_CLASS_CONFIGURATION
• COMMAND_CLASS_SWITCH_BINARY
END POINT 1/2
• COMMAND_CLASS_ZWAVEPLUS_INFO_V2
• COMMAND_CLASS_SWITCH_BINARY
• COMMAND_CLASS_ASSOCIATION_V2
• COMMAND_CLASS_ASSOCIATION_GRP_INFO
• COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V2
• COMMAND_CLASS_SUPERVISION
ADDITIONAL COMMAND CLASSES SUPPORTED
• Binary Switch: Refer to Basic.
• Multi Channel: To control 2 relay independently.
• Firmware Update: For OTA function.
CONFIGURATION
The configurable values are as following:
Parameter
Number
Parameter
Function Size Range Default
1 Switch 1 Type 1 0~1 0
(0: Momentary 1: Toggle)
2 Switch 2 Type 1 0~1 0
(0: Momentary 1: Toggle)
3Relay 1 Auto
Off Time 4 0~43200(sec.) 0 (Not auto off)
(Max 12 hours)
4Relay 2 Auto
Off Time 4 0~43200(sec.) 0 (Not auto off)
(Max 12 hours)
5
Set whether to
remember the
last status of
Relay 1
1 1/0 1:Remember
(0: do not remember)
6
Set whether to
remember the
last status of
Relay 2
1 1/0 1:Remember
(0: do not remember)
Anslutningar för strömbrytare
Anslutningar för spänning
LED indikering
Länkknapp
