Nissin Power Pack PS300 Manual
Nissin
Accus kamera
Power Pack PS300
Læs nedenfor 📖 manual på dansk for Nissin Power Pack PS300 (1 sider) i kategorien Accus kamera. Denne guide var nyttig for 11 personer og blev bedømt med 4.5 stjerner i gennemsnit af 2 brugere
Side 1/1

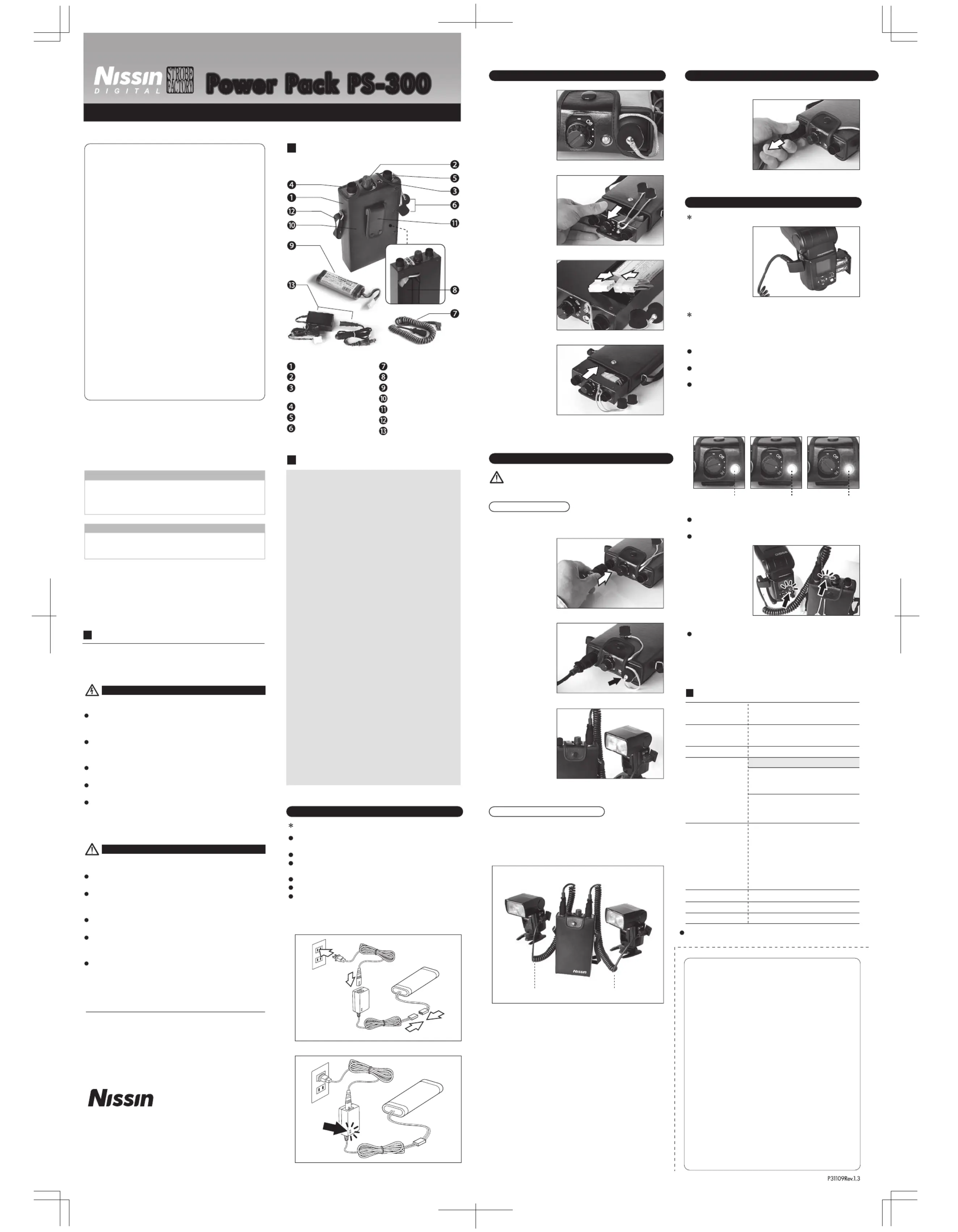

Nissin Power Pack PS-300 is an external
power booster for an electronic flash.
By using this Power Pack PS-300 together
with the regular power source in the
flash body, the recycle time to charge up
is reduced to 1/4 compare to that with
the regular power source only.
Futhermore , the maximum number of
flashes is increased significantly.
Two power supply sockets are provided
so that two flashes can be used together
at the same time.
Before using the Power Pack PS-300,
please read this operation manual and
refer your flash owner’s manual carefully
to get a better understanding of proper
operation to enjoy flash photography.
Nissin supplies two kinds of power supply cable
according to the design of its plug to be connected into
the external power source service socket provided by
respective flash models. Please pay attention to the
following combination chat.
This safety instruction refers important information to
use the product safely and properly. Please read the
following instructions before using the product.
1. Do not shoot more than 20 continuous full
power flashes, which may damage the flash
circuit. Interrupt the shooting of flashes for 10
to 15 minutes after such continuous shooting.
2. When using one flash power supply cable only,
the open socket is to be capped since it carries
a high voltage at its contacts.
3. This power pack is effective only when the
flash unit is operational. Do not remove the
batteries in the flash unit.
4. For safety reason, the power pack can be
switched on only when the flash power supply
cable is plugged into the socket on the power
pack main body.
5. Using two flashes together requires more
energy from the batteries and this may result in
a longer recycle time than using one flash.
6. The oscillating circuit is automatically switched
off for safety protection when the power pack
main body circuit is overheated. The flash is
then charged by its own batteries in the flash
unit only and the recycle time becomes longer.
The oscillation is suspended to cool down the
power pack main body circuit for about 4 to 5
minutes and it returns to the normal operation
automatically.
Nissin Di866 Canon
Canon 580EXII, 580EX, 550EX, MR-14EX
and MT-24EX
Cable with plug C for Canon type flash unit:
Nissin Di866 Nikon
Nikon SB900, SB800, SB80DX, SB28DX
Cable with plug N for Nikon type flash unit:
Power Pack Main Body
Power Switch
Power-on Indication
Lamp
Socket 1
Socket 2
Socket Cap
Nomenclature
MUST-READ
CHARGING THE BATTERY
Connect the power cable for AC adapter to the AC outlet
and plug the other end to the AC adapter. (fig.1)
Connect the AC adapter to the socket of the battery.
A red lamp on the charger turns on and this indicates that
charging has been started. (fig.2)
The battery will be fully charged in about 4 hours.
The red lamp turns green when the battery is charged up.
Disconnect the socket of the battery from the charger.
Remove the charger from the outlet when not in use.
Connect the flash power supply cable to the Power Pack
PS-300 and turn on the power switch.
An indication lamp lights up green - orange - or red
according to the power level set (fig.13).
For quick recycling or for using two flashes together, the
highest power level red(marked “Hi”) is recommended.
To save the battery energy or to reduce the load of the flash
capacitor, either low level green or medium level orange is
recommended.
Switch the flash on, and the ready lamp of the flash will
light up within a second.
A power indication lamp on the power pack is linked to the
ready lamp of the
flash; it goes off
while the flash is
charging, and it
turns on when the
flash becomes
ready.
Turn the power switch off when not in use. In case that the
power switch remains on for long, the battery may be
damaged by over-discharge. Replace the battery in such a
case by a new one.
Be sure to use Nissin’s original battery.
CONNECTING THE FLASH POWER SUPPLY CABLE
Make sure to switch off both the Power
Pack and the flash unit.
DISCONNECTING THE FLASH POWER SUPPLY CABLE
POWER ON
You can use two flashes together at the same time.
CONNECTING THE BATTERY
Make sure to switch
off the Power Pack
PS-300.
Open the flap of the
leatherette case and
pull out the power
pack main body
from the case.
Place the battery in
the battery
compartment and
connects its plug to
the socket of the
power pack main
body firmly.
Use the compatible flash power supply cable for your flash.
Hold the connector of the flash power supply cable in front of
the socket with both
guide marks on the
connector and on the
socket coinciding and
insert it to the socket
straight.You can plug
the connector either to
socket 1 or to socket 2.
Cap the open socket
with the socket cap
strapped at the
socket.
Return the power
pack main body into
the leatherette case
and close the flap.
Power Supply Cable
Battery Compartment
Battery
Leatherette Case
Belt Holder
Strap
AC Adapter and Power
Cable for AC Adapter
Thank you for purchasing
a Nissin product
WARNING
This power pack contains high voltage electric parts. Do not
try to open or rework the power pack. Keep the power pack
away from small children.
Do not touch inside parts from opening when the unit was
broken, e.g. by downfall. Return it back to the repair service
station or the store where you bought it.
Do not use the power pack nearby flammable gas, chemicals
or such liquids. It may cause fire or electric shock.
Do not touch the power pack with wet hands. The power pack
carries high voltage inside and it may cause an electric shock.
Plug the battery firmly to the charger’s sockets. Plugging the
battery loose may cause exothermic heat.
CAUTIONS
Do not leave or store the power pack at temperature over
40°C, such like in an automobile.
The power pack is not water resistant. Keep it away from rain,
snow and humidity. Do not use in wet places, such as
bathrooms or in the rain.
Do not use benzene, thinner or other alcoholic agents to clean
the body and the leatherette case.
Use Nissin’s original battery only. Do not use other batteries
(battery cluster), otherwise it may damage the generator
circuitry.
Since the power source is stronger than the regular battery
source in the flash, repeated flash beyond the limit may
damage the flash. Some flashes provide a special circuit to
protect from overheat problem. Before using this power pack,
read the safety instruction of the flash carefully and follow its
This sign refers the danger or serious damage.
This sign refers to a damage or defect.
SAFTY INSTRUCTION
fig.1
fig.2
fig.4
fig.5
fig.6
fig.7
fig.8
Connect the plug at
the other end of the
power supply cable
to the flash unit.
fig.9
fig.3
Using one flash unit only
These two flashes can be either same brand or the different
brand mixed, as far as the power supply cable is compatible
to those respective flashes. (fig.10)
Switch off both the power pack and the flash. Hold
the connector of
the flash power
supply cable as
shown and pull it
off.
For connecting each of both cables, please follow the
instruction as given above (fig.7) for one flash usit only.
Connect the plug of each flash power supply cable to the
corresponding flash unit (fig.9).
Make sure the batteries are correctly inserted in the
flash unit when
using with
Power Pack.
Without battery
in the flash, the
flash does not
work.
The Power Pack PS-300 cannot be switched on if
the flash power supply cable is not connected to
the Power Pack.
fig.10
fig.12
fig.14
fig.13
Green(low)
Using two flash units simultaneously
Power source
Battery life
Charging time of
battery
Outlet
Flash Power supply
cable ( options )
Flash recycle
Number of flashes
Dimensions (main body)
Weight
NiMH battery – 7.2V/3,300mAh
200 times of charge/discharge
4 hours, approx.
2 x DC 315V
Type C or Type N
Type C for Nissin Di866 model (Canon
version) or Canon’s original flash with
external power socket.
Type N for Nissin Di866 model (Nikon
version) or Nikon’s original flash with
external power socket.
1/4th of the recycle time by the regular
batteries loaded in the flash unit.
(e.g. approx. 0.7sec. for Nissin Di866,
Canon EX580EX II, Nikon SB900)
with switch position at “Hi”(lamp terns red)
Note : No flash can be released, when
batteries are not inserted in the flash unit.
300 full flashes per charge
110(W) x 200(H) x 35(D) mm / 4.3(W) x 7.8(H) x 1.3(D) inches
980g with battery, w/o power supply cable.
SPECIFICATIONS
WARRANTY :
In case of the following reasons of a defect, the
warrantee may be void. For details, please look up
the respective condition on your warranty card
because it may vary from country to country.
1. The product has not been used in accordance with
the instruction of the owner's manual.
2. The product is been repaired or modified by
somebody else but an authorized repair service.
3. The product has been used with the flash unit not
applicable (not compatible).
4. Fault or defect has been caused by fire,
earthquake, flood, public pollution and such
natural disaster.
5. The product has been stored or use in moisture,
dust, extremely high temperature or such poor
conditions.
6. Scratch, blemish, crush or other sign of wear by a
violently use or treatment.
7. Guarantee card without dealer’s name and
address, without date of purchase and dealer’s
stamp, or no guarantee card at all.
Nissin Japan Ltd., www.nissin-japan.com
Nissin Marketing Ltd., www.nissindigital.com
for CANON
Type C Power Supply Cable Type N Power Supply Cable
for NIKON
fig.11
Orange(medium) Red(high)
Power Pac k PS-300
OPERATION MANUAL
External Power Booster for an Electronic Flash Unit
Design And Specifications Are Subject To Change Without Prior Notice
With your Power Pack PS-300 you have received one
cable of the desired kind of your flash unit. If you need
another one or two cables of the other kind, you can
purchase them from your dealer seperately.
