USB MAGNETIC CHARGING CABLE -- MCC3

Parameter Specication

Charging cable USB type A - magnetic charging connector, length: 0.5m

USB A - Type DC 5V 2A

Input

CC&CV

Charging pattern

1.5A

Maximum

charging current

4.2V±0.05V

Voltage of fully

charged battery

Time to fully charge

3 hours (For reference only. When the USB power source is

insufficient to provide 5V 1.5A power capacity, the charging

time will be longer)

Charge indication Red: charging

Green: full (over 95%) or

disconnected

with flashlight

BEFORE FIRST USE

Odin GL Mini (with battery)

RED Charging：

GREEN Charging Completed：

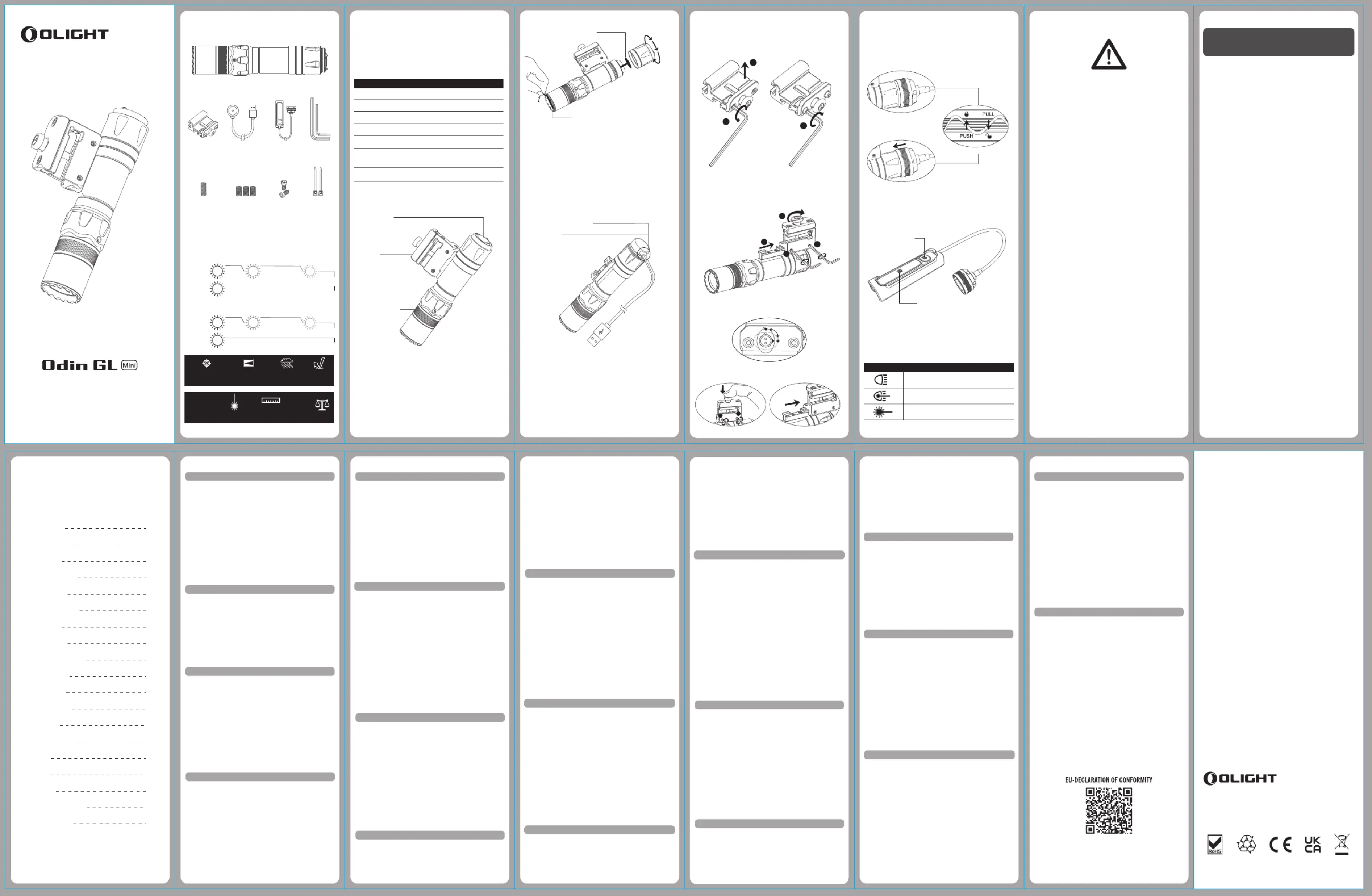

USER MANUAL

Thank you for purchasing this Olight product. Please read

this manual carefully before use and keep it for future

reference!

Please remove the protective film on the lens; and please also

unscrew the tailcap to remove the insulating film within the

battery compartment, then screw the tailcap back on tightly. If

the battery needs to be replaced, make sure that the positive end

of the new battery faces the flashlight head when you put it in.

IN THE BOX

Slide the product into the rail mount until you hear a click, then turn

the button 90 degrees clockwise as the mark shows to fix the

product. Then, tighten the rail mount to the flashlight firmly by

turning the two tightening screws in the rail mount by an H1.5 allen

wrench.

AVAILABLE BATTERIES

• 1 x customized 2040mAh 18500 rechargeable lithium-ion battery

CHARGING

VIBRATING POWER INDICATOR

I <t helps to alert if the battery is low (power 20% vibrate once every 5

minutes; power 10% vibrate once per minute; power 5% vibrate < <

once every 10 seconds).

Loosen the two tightening screws, press the button and then

remove the product.

Rotate the button 90 degrees counterclockwise to release the

product as the mark shows.

PRODUCT INSTALLATION

Loosen the screws and install the rail mount in its desired

position, then tighten the screws.

3h35min

1000 lumens

200 lumens

50%

100% 20%

100%

67min

13min

3.5min

SPECIFICATIONS

HIGH

LOW

GL BEAM OFF

1000 lumens

200 lumens

HIGH

LOW

GL BEAM ON

DANGER

• DO NOT shine the light or GL beam directly into human eyes.

This may cause temporary blindness, or permanent damage

to the eyes.

• DO NOT cover the flashlight's head or place the head on the

ground when the flashlight is on. The radiation energy may

cause damage to the flashlight itself, or even result in the

burning of flammable objects nearby.

• DO NOT leave the light in any type of fabric bag or fusible

plastic container under high temperature.

• DO NOT charge the product in any other way than using an

MCC3 cable.

• DO NOT use non-protected rechargeable batteries.

• DO NOT use the battery if its wrap is broken.

• DO NOT take the battery out of the flashlight for charging.

WARNING

• Keep out of reach of children.

• DO NOT disassemble the product. The disassembing may

cause irreversible damage.

• The tail switch may not work while immersed in sea water or

other conductive media. Please keep it clean and dry.

• If the light is about to be put aside for a long time or be

transported, please unscrew the tailcap and remove the

battery to cut off the circuit.

• Take good care of the battery. If the battery needs to be

replaced, please keep the removed battery in a safe place.

DO NOT mix it with the conductive metals.

• The surface of the light may reach 50°C or above when the

high brightness setting is used for a long time.

• GL beam light is bright and blinding - DO NOT shine at

aircraft or vehicles at any distance.

NOTICE

• DO NOT short-circuit the tail switch cap with the surrounding

ring. The short circuit in this case will result in a weak

electric discharge between them and may lead to a complete

battery drain if it is in this state for too long.

* The GL beam level is Class 3R/Class IIIa, obeying the standard IEC60825-1

requirement and complying with 21 CFR 1040.10 AND 1040.11.

* All above specifications are test results based on ANSI/NEMA FL1-2009

Standard. The tests are performed using the battery included in the light.

Max Output: 5mW

Max Runtime: 33h

Wavelength: 510~530nm

1.5

IPX4

(L)128 *(D)29mm

(L)5.04*(D)1.14in

190g

6.7oz

Including Battery

HIGH: 8,100cd

LOW: 1,800cd

HIGH: 180m

LOW: 85m

LIGHT&GL BEAM

LIGHT

GL BEAM

ICON LIGHT SETTING

Unscrew

Remove the insulating film

3h15min

50%

100% 20%

100%

61min

12min

3.5min

* Before first use please fully charge the product.

* Connect the USB end of the magnetic charging cable to an

external USB power source, then attach the other end of the

cable to the charging port of the light (best charging efficiency

with a USB power source of no less than 10W (5V 2A). The red

indicator means charging, while the green indicator means

charging completed (battery level 95%).＞

* Only charge with standard MCC3, not compatible with other

MCC.

PRODUCT OVERVIEW

Magnetic Tailcap

Tail Switch

Rail Mount

Mode Selector Ring

EXCLUSION CLAUSE

Olight is not liable for damages or injuries sustained

resulting from the usage of the product inconsistent with

the warnings in the manual. 

Unscrew

Screw

. Push the ring forward to fix the

remote switch.

Detent ring

. Attach the magnetic remote switch to the tail of the product (make

sure the detent ring of the remote switch is unlocked).

REMOTE SWITCH INSTALLATION

Unscrew

• The Odin GL Mini can only be mounted on Picatinny rails with

the included Picatinny mount. Please don't mount it on any

M-LOK rails, otherwise the GL beam cannot be zeroed properly.

• Please use the mount slot with tightening screws to install the

flashlight for a secure fit.

• The magnetic tail is easy to attract iron debris. Please keep the

tail switch cap and the ring surrounding it clean.

• The mode selector ring is magnetically sensitive. When close to

magnet, interference may occur.

• At 25°C ambient temperature, the white light is only able to

provide 1,000 lumens for 2.5 minutes. After that, it gradually

steps down to 500 lumens within 1 minute.

MAGNETIC REMOTE SWITCH

HI Button

( High )

LO Button

( Low )

Quickly single click the button to turn the flashlight ON/OFF.

When you press and hold the button, the flashlight will be in

momentary-on mode; when you release the button, it will turn off.

CONTENTS

( EN ) English

( CN ) 简体中文

( FI ) Finnish

( NO ) Norwegian

( SV ) Swedish

( NL ) Nederlands

( PL ) Polska

( DE ) Deutsch

( HU ) Magyarország

( RU ) Русский

( ES ) Español

( UA ) Ukrainian

( JP ) 日本語

( KR ) 한국어

( TH ) ไทย

( FR ) Français

( IT ) Italia

( SK ) Slovenskýjazyk

( PT ) Português

Screws Cable Zip Ties

H2.5/H1.5

Wrench

USB Magnetic

Charging Cable

Magnetic Remote

Switch

Pic Rail

Mount

M3x4

Socket Screws

NYLOK

Oval Point Set

Screw

( JP ) 日本語

使用方法
