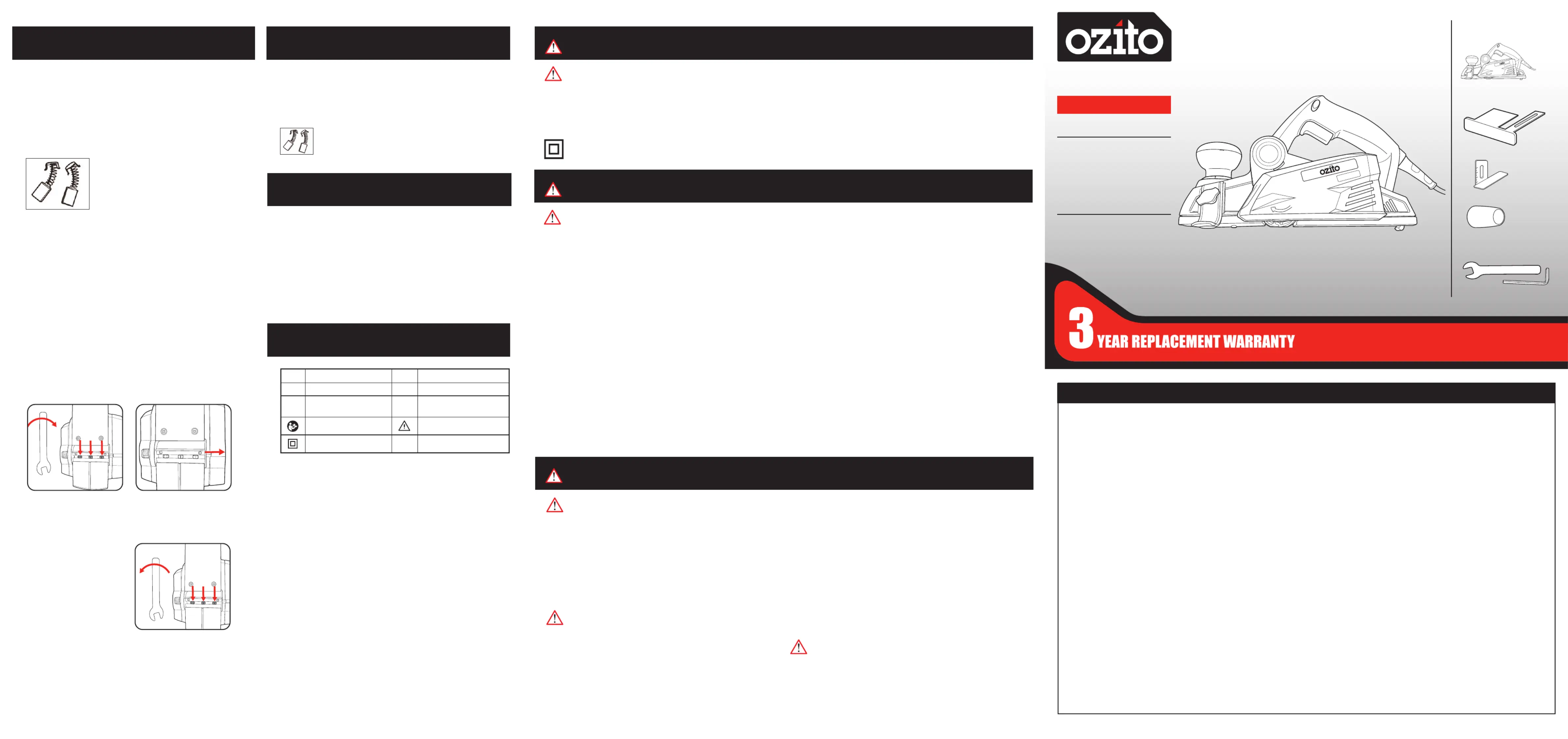

V Volts Hz Hertz
~ Alternating current W tts Wa
/min Revolutions or
reciprocation per minute
Double insulated
Read instruction manual rningWa
n0 No load speed
WARRANTY
OZITO UK Unit 9 Stadium Court, Wirral International Business Park, Plantation Road, Bromborough, Wirral, CH62 3QG 0616
All of our products undergo strict quality checks to ensure that they reach
you in perfect condition. In the unlikely event that your device develops a
fault, please contact our service department at the address shown on this
guarantee card. You can also contact us by telephone using the customer
service number shown. Please note the following terms under which
guarantee claims can be made:
1. These warranty terms regulate additional warranty services, which the
manufacturer mentioned below promises to buyers of its new products
in addition to their statutory guarantee claims are not affected by this
guarantee. Our guarantee is free of charge to you.
2. The warranty services only covers defects due to material or
manufacturing faults on a product which you have bought from the
manufacturer mentioned below are limited to either the rectication of said
defects on the product or the replacement of the product, whichever we
prefer.
Please note that our devices are not designed for use in commercial, trade
or professional applications. A guarantee contract will not be created if the
device has been used by commercial, trade or industrial business or has
been exposed to similar stresses during the guarantee period.
3. The following are not covered by our guarantee:
- Damage to the device caused by a failure to follow the assembly
instructions or due to incorrect installation, a failure to follow the operating
instructions (for example connecting it to an incorrect mains voltage or
current type) or a failure to follow the maintenance and safety instructions
or by exposing the device to abnormal environmental conditions or by lack
of care and maintenance.
- Damage to the device caused by abuse or incorrect use (for example
overloading the device or the use or unapproved tools or accessories),
ingress of foreign bodies into the device (such as sand, stones or dust,
transport damage), the use of force or damage caused by external forces
(for example by dropping it).
- Damage to the device or parts of the device caused by normal or natural
wear or tear or by normal use of the device.
4. Your Product is guaranteed for a period of 36 months from the original
date of purchase and is intended for DIY (Do It Yourself) use only. Lithium
Ion batteries and chargers are covered by a 12 month warranty. Warranty
excludes consumable parts. Guarantee claims should be submitted
before the end of the guarantee period within two weeks of the defect
being noticed. No guarantee claims will be accepted after the end of the
guarantee period. The original guarantee period remains applicable to the
device even if repairs are carried out or parts are replaced. In such cases,
the work performed or parts tted will not result in an extension of the
guarantee period, and no new guarantee will become active for the work
performed or parts tted. This also applies if an on-site service is used.
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST
RETURN THE PRODUCT TO THE PLACE OF PURCHASE WITH YOUR
REGISTER RECEIPT.
Please refer to the restrictions of this warranty concerning wearing parts,
consumables and missing parts as set out in the service information in
these operating instructions.
CUSTOMER SERVICE HELPLINE
GB: 0151 294 4488
IRL: 1850 882711
Ozito-diy.co.uk
PLANER
750W
ORIGINAL INSTRUCTIONS
SPECIFICATIONS
Voltage: 230-240V ~ 50Hz
Input Power: 750W
No Load Speed: 14,000/min
Planing Width: 82mm
Blade Type: HSS Blades
Planing Depth: 3mm
Rebate Depth: 0-20mm
Weight: 3.2kg
PLR-5000U
WHAT’S IN THE BOX
Planer
Spanner & Hex Key
Dust Extraction
Adaptor
Parallel Guide
MAINTENANCE
DESCRIPTION OF SYMBOLS
TROUBLESHOOTING
• Keep the ventilation vents of the planer clean at all times, if possible, prevent
foreign matter from entering the vents.
• After each use, blow air through the planer housing to ensure it is free from
all dust particles which may build up. Build up of dust particles may cause the
planer to overheat and fail.
• If the enclosure of the planer requires cleaning, do not use solvents but a
moist soft cloth only. Never let any liquid get inside the planer; never immerse
any part of the planer into a liquid.
Carbon Brushes
When the carbon brushes wear out, the planer
will spark and/or stop. Discontinue use as soon
as this happens. They should be replaced prior to
recommencing use of the planer. Carbon brushes
are a wearing component of the planer, and are
not covered under warranty. Continuing to use the
planer when carbon brushes need to be replaced
may cause permanent damage to the planer. Carbon
brushes will wear out after many uses but when the carbon brushes need to be
replaced, take the planer to an electrician or a power tool repairer for a quick
and low cost replacement. Always replace both carbon brushes at the same
time.
Note: Ozito Industries will not be responsible for any damage or injuries caused
by the repair of the planer by an unauthorised person or by mishandling of the
planer.
Sparking visible through the housing air vents
A small amount of sparking may be visible through the housing vents. This is
normal and does not indicate a problem.
Excessive sparking visible through the housing air vents
and/or the planer failing to operate
May indicate the carbon brushes have worn out and need to be
replaced. Carbon brushes should only be replaced by a qualied
electrician or power tool repairer.
ozito-diy.co.uk
WARNING!
• Wait for the cutter to stop before setting the tool down. An exposed cutter
may engage the surface leading to possible loss of control and serious injury.
• Hold the power tool by insulated gripping surfaces only, because the cutter
may contact its own cord. Cutting a “live” wire may make exposed metal parts of
the power tool “live” and could give the operator an electric shock.
• Use clamps or another practical way to secure and support the workpiece to
a stable platform. Holding the work by hand or against the body leaves it unstable
and may lead to loss of control.
• Recommendation that the tool always be supplied via a residual current
device with a rated residual current of 30 mA or less.
• If the supply cord of this power tool is damaged, it must be replaced by a
specially prepared cord available through the service organization.
WARNING!
Use of this tool can generate dust containing chemicals known to cause
cancer, birth defects or other reproductive harm. Use appropriate respiratory
protection.
Hold power tool by insulated gripping surfaces, when performing an operation
where the cutting accessory may contact hidden wiring or its own cord. Cutting
accessory contacting a “live” wire may make exposed metal parts of the power tool
“live” and could give the operator an electric shock.
• Be sure to read the instruction manual thoroughly before using this tool.
• Be sure the voltage agrees with specic data on the nameplate.
• Be sure the switch is in OFF position before connecting tool to the power supply.
• Be sure to switch OFF immediately if the tool is jammed in work.
• Be sure the tool is disconnected from power source when cleaning or making
adjustments to the tool.
• Be sure the tool is properly held and set for correct use before turning switch to ON.
• Be sure to use specied replacement parts only.
• Be sure to maintain tool with care. Follow instructions for lubricating and changing
accessories.
• Be sure to store tool in a clean dry place after disconnecting from power source.
• Keep air vents unobstructed for proper motor cooling.
• DO NOT lay tool down on shoe when the blades are exposed. This can chip the
blades.
• Keep side dust extraction port unobstructed at all times.
• Never reach under the tool for any reason unless it is turned off and UNPLUGGED.
BLADES ARE EXPOSED AND EXTREMELY SHARP.
• Use this tool for working with wood and wood products only.
• Never operate without securely holding the front handle.
• Always operate planer with two hands.
• Planer blades are extremely sharp – Handle with great care.
WARNING!
Some wood contains preservatives such as copper chromium arsenate (CCA) which
can be toxic. When sanding, drilling, or cutting these materials extra care should be
taken to avoid inhalation and minimise skin contact.
This appliance is not intended for use by young or inrm persons unless
supervised by a responsible person to ensure that they can use the appliance
safely. Young children should be supervised to ensure that they do not play with the
appliance.
PLANER SAFETY WARNINGS
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings refers
to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of re, electric shock, personal injury and
material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The manufacturer cannot accept any liability for damage or accidents which arise due to a failure to follow these
instructions and the safety information.
Before you connect the charger to the mains supply make sure that the data on the rating plate are identical to
the mains data.
This tool is double insulated; therefore no earth wire is required.
The power supply for this product should be protected by a residual current device (rated at 30mA or less). A
residual current device reduces the risk of electric shock.
If the supply cord of this power tool is damaged, it must be replaced by a specially prepared cord available
through the service organization.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may result in a risk of re and electric
shock.

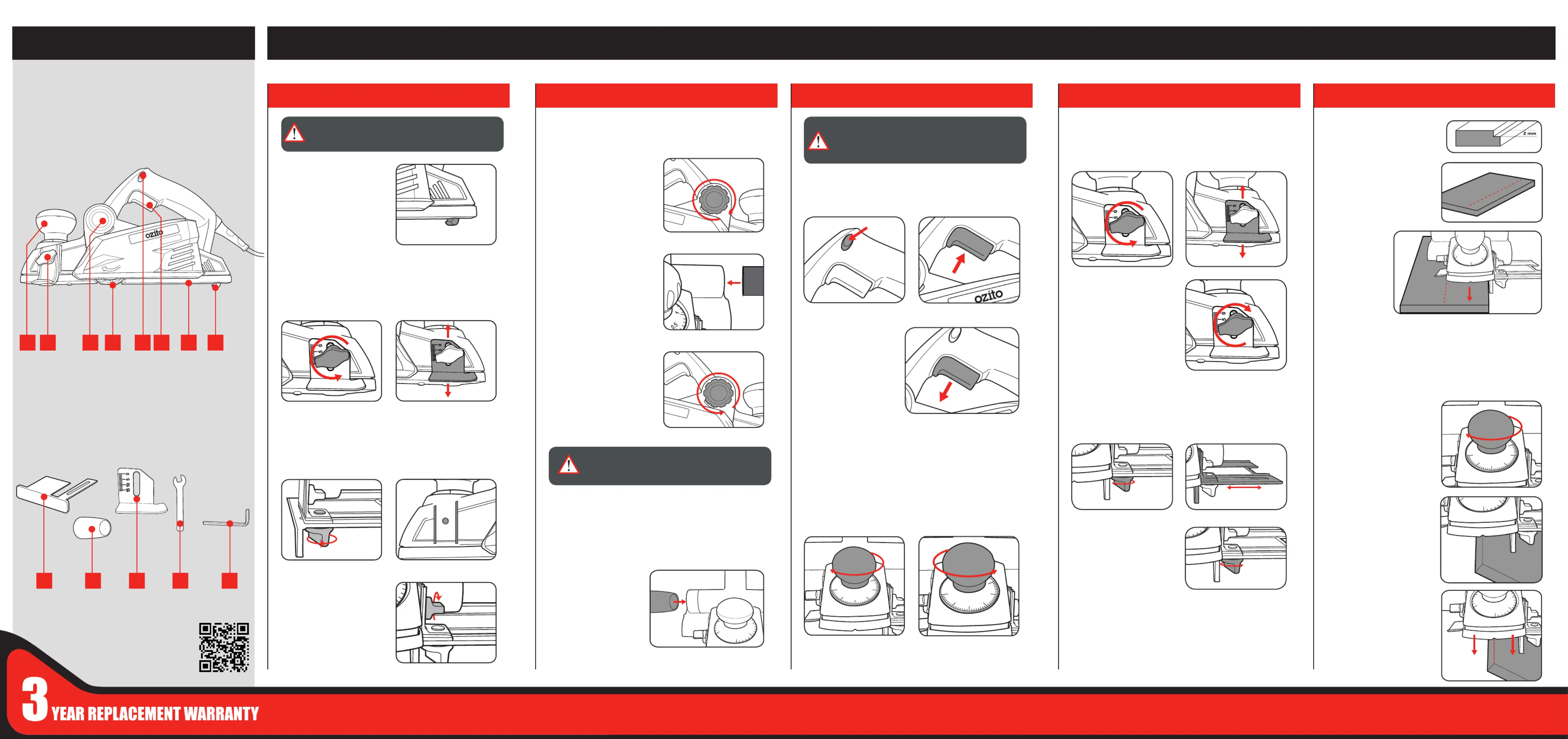

Changing Blades
Before you make any adjustments, make sure the power cord has
been disconnected from the power supply.
The blades that come tted to the tool are 82mm blades. The
drum is tted with two separate blades; both must be reversed or
replaced at the same time. Never replace only one blade.
1 Loosen the 3 hex head
screws using the spanner
provided.
3 Install new blades.
Note: Blades are reversible. If changing blades for the rst time,
turn over the blades to expose a fresh cutting edge.
2 Push the used blade out
through the slot in the motor
housing using a screwdriver.
Keep ngers away from
blade.
4 Tighten the 3 hex head
screws.
5. Repeat the process for the second blade.
Rebate Guide
SPARE PARTS
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse or Homebase store.
For further information, or any parts visit
www.ozito-diy.co.uk or contact Ozito Customer Service:
Great Britain: 0151 294 4488
Ireland: 1850 882711
E-mail: enquires@ozito-diy.co.uk
Produkt Specifikationer
| Mærke: | Ozito |
| Kategori: | Høvlemaskine |
| Model: | PLR-5000U |
Har du brug for hjælp?
Hvis du har brug for hjælp til Ozito PLR-5000U stil et spørgsmål nedenfor, og andre brugere vil svare dig
Høvlemaskine Ozito Manualer
31 August 2024
31 August 2024
31 August 2024
28 Juli 2024
14 Juni 2023
Høvlemaskine Manualer
- Høvlemaskine Bosch
- Høvlemaskine Metabo
- Høvlemaskine DeWalt
- Høvlemaskine Skil
- Høvlemaskine AEG
- Høvlemaskine Gardena
- Høvlemaskine Stihl
- Høvlemaskine Makita
- Høvlemaskine Worx
- Høvlemaskine Güde
- Høvlemaskine Parkside
- Høvlemaskine Black And Decker
- Høvlemaskine FERM
- Høvlemaskine Einhell
- Høvlemaskine Proxxon
- Høvlemaskine Hikoki
- Høvlemaskine Hitachi
- Høvlemaskine Stomer
- Høvlemaskine Alpha Tools
- Høvlemaskine Bavaria
- Høvlemaskine Topcraft
- Høvlemaskine Herkules
- Høvlemaskine Powerplus
- Høvlemaskine Gamma
- Høvlemaskine Taurus
- Høvlemaskine Fieldmann
- Høvlemaskine Porter-Cable
- Høvlemaskine Cotech
- Høvlemaskine Snow Joe
- Høvlemaskine Meec Tools
- Høvlemaskine Bavaria By Einhell
- Høvlemaskine Proviel
- Høvlemaskine RIKON
- Høvlemaskine McKenzie
- Høvlemaskine Cocraft
- Høvlemaskine Hammer
- Høvlemaskine Varo
- Høvlemaskine Rupes
- Høvlemaskine Protool
- Høvlemaskine Triton
- Høvlemaskine Black Decker
- Høvlemaskine Max Bahr
- Høvlemaskine Surtek
- Høvlemaskine Global
- Høvlemaskine Felisatti
- Høvlemaskine Robust
- Høvlemaskine Einhell Bavaria
- Høvlemaskine Ergotools Pattfield
- Høvlemaskine Prowork
- Høvlemaskine XU1
Nyeste Høvlemaskine Manualer
6 Oktober 2024
23 September 2024
20 September 2024
15 September 2024
6 September 2024
6 September 2024
6 September 2024
6 September 2024
2 September 2024
2 September 2024
