Pacific Accessory Corporation 835 835 3233 1502 S. Santa Fe Street, Santa Ana, CA 92705Voice: 714- - -3133 Fax: 714 -
OEM-1 REV. 12- -1 00
Cables for replacing Factory head unit.
Installation instructions for cables on list “A
This “A” cable, is used when replacing a factory radio. (the appropriate cable from list “B” is also required). One end of
cable plugs into or connects to your new aftermarket head unit and the other end plugs into the 18 pin connector of the OEM-
1. When using the complete OEM-1 system the radio will be current protected by the vehicle fuse. The installer must
decide to transfer any other fuses or noise filters from the harness provided with the head unit. Use the wire / terminal
identification chart below to locate the correct power wires.
While every effort has been made to insure this cable was made to connect properly to your aftermarket head unit,
changes in models and configurations do occur. To prevent potential damage consult your stereo’s owners manual
and check wire function (as shown below) with that of the head unit you have. Move any wires that are not in the
correct pin location for you head unit.
Installation instructions for cables on list “B
This “B” cable, is used when replacing a factory radio. (the appropriate cable from list “A” is also required). One end of
this cable plugs into the vehicle dash harness that was removed from the factory radio. (the AMP-UNV harness must be
spiced into the vehicle harness, use the 16 pin chart below for wire identification) The other end plugs into the 16 pin
connector of the OEM-1.
WIRE AND TERMINAL IDENTIFICATION
Output of the OEM-1, 16 pin connector (cable “B” or AMP-RCA). Looking into connector / wire side of cable.
WIRE COLOR WIRE COLOR CIRCUIT CIRCUIT
ORANGE ILLUMINATION 8 16 IGNITION SWITCH 12V RED
BLUE/WHITE AMP TRIGGER 7 15 BATTERY YELLOW
BLACK GROUND 6 14 POWER ANTENNA BLUE
PURPLE/ BLK RIGHT REAR (-) 5 13 RIGHT REAR (+) PURPLE
GREEN/ BLACK LEFT REAR (-) 4 12 LEFT REAR (+) GREEN
N/C 3 11 N/C
GRAY/ BLACK RIGHT FRONT ( -) 2 10 RIGHT FRONT (+) GRAY
WHITE/ BLACK LEFT FRONT ( -) 1 9 LEFT FRONT (+) WHITE

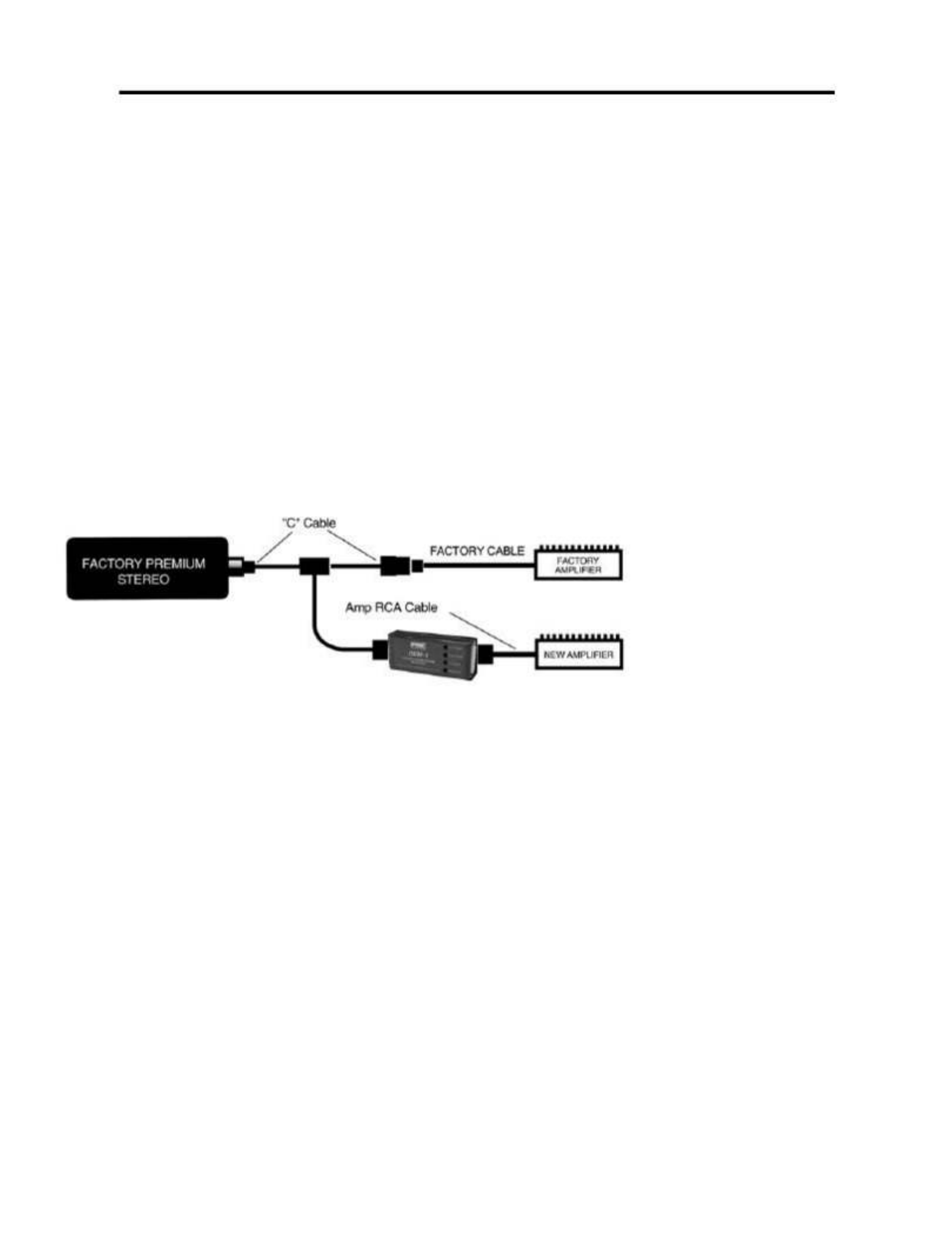

Input of the OEM-1, 18 pin connector (cable A” or C”). Looking into connector / wire side of cable.
WIRE COLOR WIRE COLOR CIRCUIT CIRCUIT
WHITE/ BLK LEFT FRONT ( -) 9 18 LEFT FRONT LOW LEVEL (+) WHITE/ RED
GRAY/ BLK RIGHT FRONT ( -) 8 17 LEFT FRONT HIGH LEVEL (+) WHITE
GREEN/ BLK LEFT REAR (-) 7 16 RIGHT FRONT LOW LEVEL (+) GRAY/ RED
PURPLE/ BLK RIGHT REAR (-) 6 15 RIGHT FRONT HIGH LEVEL (+) GRAY
BLACK GROUND 5 14 LEFT REAR LOW LEVEL (+) GREEN/ RED
BLUE POWER ANTENNA 4 13 LEFT REAR HIGH LEVEL (+) GREEN
ORANGE ILLUMINATION/ DIMMER 3 12 RIGHT REAR LOW LEVEL (+) PURPLE/ RED
BLUE/WHITE AMP TRIGGER 2 11 RIGHT REAR HIGH LEVEL (+) PURPLE
RED IGNITION/ SWITCHED 1 10 BATTERY YELLOW
