Speaker Connection Harness for Select
Toyota Vehicles with Factory Ampliers
Equipped with a 10-Pin and 12-Pin Connector
C
Page 1
Copyright © 2019. All rights reserved. PAC is a Power Brand of AAMP Global.
PAC-audio.com
APH-TY01
Rev: V1
Date: 010419
Introduction and Features
The APH-TY01 simplies speaker wire connections when adding aftermarket ampliers. Aftermarket ampliers can be
easily added with no need to cut or modify a vehicle’s original wiring. Each pair of wires has been labeled with the
corresponding speaker name.

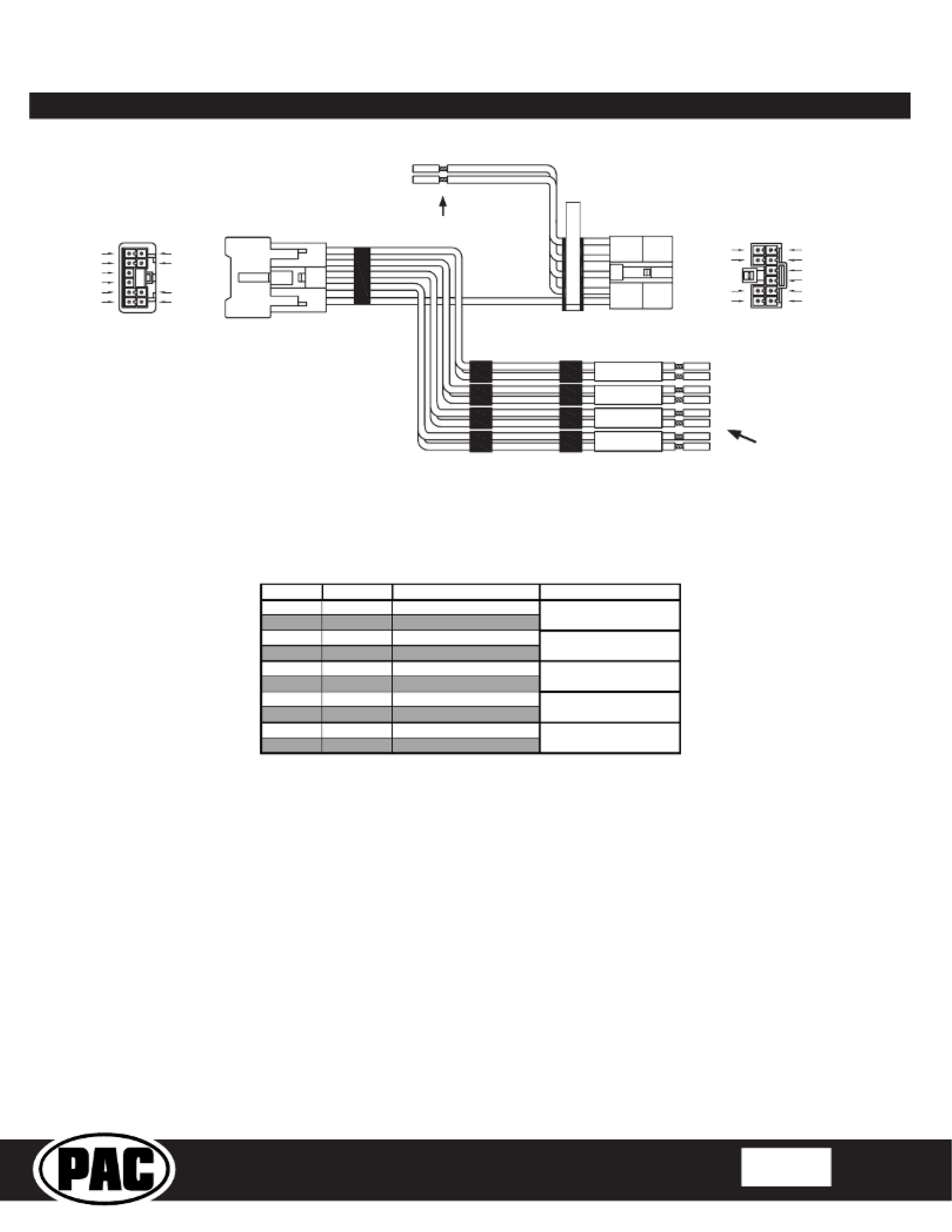

Wiring Overview
Harness 1 (APH-TY01 12P):
Installation Notes
1. It is always best to use a tone generator (PAC part number TL-PTG2) to verify that the tables in this manual, and the labels
on the wires, match the wiring in your specic vehicle. This is important as there are instances where different trim levels of
the factory system may have the speaker outputs in different locations.
2. Not all applicable vehicles will come equipped with a corresponding speaker for all of the wires populated in our harness. It is
important to understand which speakers are equipped in your vehicle.
3. If you are leaving any of the factory speakers connected to the factory amplier, simply connect the speaker wires (color for
color) between the male and female connectors. For example: If you want the rear speakers to be powered by the factory
amplier, simply connect the Green, Green / Black, Purple and Purple / Black wires from the male connector to the Green,
Green / Black, Purple and Purple / Black wires from the female connector.
4. For vehicles that lose audio output when there is no load on the speaker outputs of the factory amplier, PAC load resistors
will be required (PAC Part Number LR335 or LR475).
1. Locate the vehicle’s factory amplier and disconnect the 10-pin and 12-pin connectors.
2. Connect the APH-TY01 harness to the connectors that were disconnected in the previous step.
3. Connect the male connectors from the APH-TY01 to the amplier.
4. Connect the longer loose wires from the APH-TY01 to your aftermarket amplier outputs or passive crossovers according to
the tables in this manual.
5. Insulate unused wires in the 10-pin and 12-pin connectors that plug into the factory amplier side of the APH-TY01.
Installation Steps
Connect to aftermarket amplier
output or passive crossover.
*Illustration is for reference only.
Your harness will have more wires*
PinNumber WireColor Description Label
1 Black PassThrough(Ground)
6 Brown PassThrough(Ground)
2 Black PassThrough
3 Brown PassThrough
4 Gray FrontRight+
10 Gray/Black FrontRight‐
11 Orange Speaker3+
5 Orange/Black Speaker3‐
12 Blue Speaker4+
7 Blue/Black Speaker4‐
9 White FrontLeft+
8 White/Black FrontLeft‐
N/A
FRSpeaker
Speaker3
Speaker4
FLSpeaker
12‐Pin
Insulate any unused wires
APH-TY0112P
Speaker1
Speaker2
RRSpeaker
RLSpeaker
White / Black
White
Gray / Black
Orange
Blue
Black
Black
Brown
Brown
Gray
Orange / Blac
k
Blue / Black
1
7
8
12
Black
Black
Brown
Brown
1
7
8
12
Gray
Or
ange / Black
Blue / Black
White / Black
White
Gray / Black
Orange
Blue
