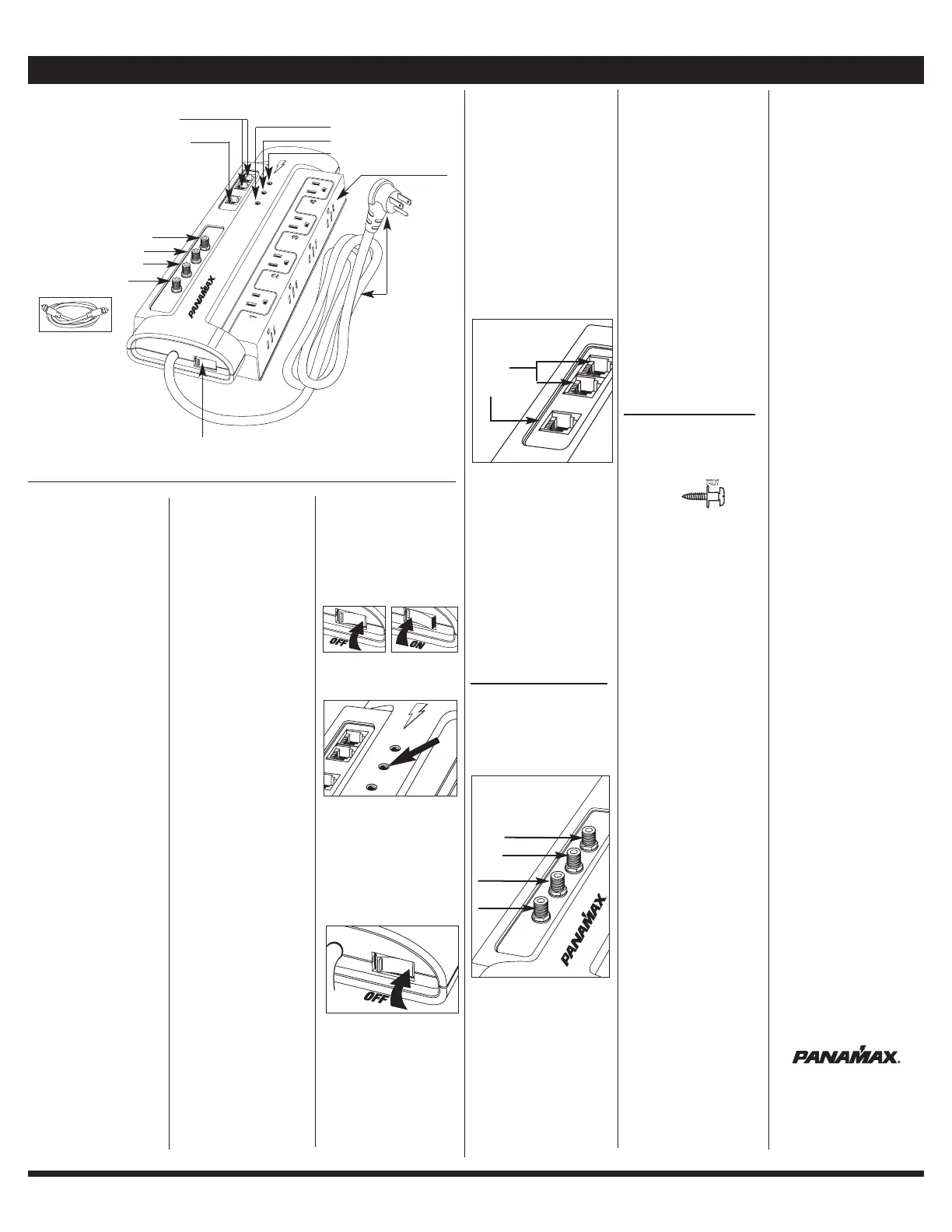

M8-AV INSTRUCTIONS - English

ADDING SIGNAL-LINE MODULES

(Optional):

Some connected equipment may have

more signal-lines than can be protected

by the base unit alone. Panamax offers

a line of add-on signal-line modules

(sold separately) for these situations.

Each module includes installation

instructions and a small rectangular

bracket with a grounding interface. This

bracket replaces the small triangular

wall-mount bracket that comes with the

AC base unit and is needed only when

add-on modules are being installed.

More information can be obtained on

the Panamax website or by calling our

Customer Support Department.

WALL MOUNTING (optional):

1. Determine the mounting location on

the wall and mark the position for the

top mounting screw.

3. Place a spacer eyelet on one of the

#6 pan-head screws with the flared end

of the eyelet toward the wall. Drive the

screw into the wall (use the included

drywall anchors for hollow walls) at the

marked location, leaving the eyelet

exposed.

4. Position the key-hole on the unit's

top mounting bracket over the

eyelet/screw and slide the unit down to

lock the screw-head into the bracket.

5. Mark the location for the two lower

mounting screws (in the narrow portion

of the key-holes) and drive the screws

into the wall using the other 2 spacer

eyelets like in step #3. The included

drywall anchors should be used for

mounting on hollow walls.

6. Position the protector over the 3 eye-

lets/screws and slide the unit down to

lock it into place.

7. Using the above procedure allows

easy removal of the unit by sliding the

unit up to disengage the brackets from

the eyelets/screws.

TROUBLESHOOTING–

If you are having problems with your

surge protector, read this section.

The “Power On/Protection OK” LED

is not lit, there is no AC power to

my equipment, or my equipment

doesn’t turn on.

• Make sure that the protector is plugged

into a working AC outlet.

• Check all AC power connections.

• Make sure that the protector and con-

nected equipment are turned on.

• Verify that the “Unsafe Voltage” LED is

not lit. If it is on, the incoming line volt-

age is either too high or too low and has

been disconnected from your connected

equipment.

• Check to see if the circuit breaker on the

surge protector (combination power

switch/circuit breaker) needs to be reset

(press “ON” to reset).

• If you still have no power, the protector

may be damaged. Contact Panamax

(website or Customer Support

Department) for replacement.

There is no audio or video for my

TV, stereo or VCR.

• Check the coaxial connections, making

sure they are correctly and securely

installed.

• Bypass the coaxial connectors. If your

picture returns, the protector is damaged.

Contact Panamax (website or Customer

Support Department) for replacement.

• If you still have no picture, a problem

with your cable provider’s signal may

exist.

My fax machine, modem or tele-

phone has AC power but still does

not work.

• Check to see if your connected equip-

ment is receiving a dial tone.

• If not, bypass the surge protector’s

phone jacks to see if the protector is dam-

aged.

• If your dial tone returns, the protector is

damaged. Contact Panamax (website or

Customer Support Department) for

replacement.

• If you still have no dial tone, a problem

with the phone company’s lines may exist.

The Panamax circuit breaker dis-

connects AC power from the con-

nected equipment.

• You have exceeded the ampere rating for

your surge protector. As a temporary fix,

disconnect one or more pieces of equip-

ment. Ask your Panamax dealer about

additional Panamax protectors that may

be required.

800-472-5555

www.panamax.com

INS00873 REV. A 7/09

PO WER ON

PROTEC

TI ON O K

GRO UN D OK

NSA

FE V

OLT AGE

POWE R

OFF

LED Indicators

Unsage Voltage LED

Ground OK LED

Power ON, Protection OK LED

Phone Jacks Phone Line Splitter, 1 line in, 2 lines out

Coax Connectors

ON/OFF Power Switch and

Circuit Breaker Combo

8 ft. AC Power Cord

Right Angle with

45 Degree Offset Plug

8 AC Outlets

Coax Cable included

2 Phone Lines (RJ-11) OUT to equipment

1 Phone Line (RJ-11) line IN from wall outlet

All of the AC outlets are controlled by the

combination power switch/circuit breaker.

In addition, the M8-AV has 3 diagnostic

LEDs for maximum safety. They are des-

ignated as follows:

1. POWER ON, PROTECTION OK –

(green) normally ON; indicates that the

surge protector is functioning properly

and that all connected equipment is pro-

tected. Also indicates that the power

switch is turned ON.

2. GROUND OK – (green) normally ON;

indicates that the wall outlet is properly

wired and grounded.

3. UNSAFE VOLTAGE – (red) normally

OFF; when lit, indicates that incoming

voltages are unsafe and the surge protec-

tor has disconnected the power to your

connected equipment.

The M8-AV has been designed with flexi-

bility and expansion in mind. This model

will accept add-on signal-line protection

modules in the event that your installation

has more signal-lines than can be pro-

tected with one of the above units. More

information is available on our website

(www.panamax.com) or from our

Customer Support Department

(800-472-5555; 7:30AM – 4:30PM PST).

PROPERLY CONNECTING YOUR

SURGE PROTECTOR

To completely protect your equipment

from surges, every wire leading into or

out of the equipment you want to protect

must be connected to the appropriate

Panamax surge protector. Damaging

lightning and power surges can enter

your system through any AC power or

signal-line (phone line, grounding wires,

coax cables, modem cables, LAN cables,

etc.) connected to your electronic equip-

ment.

The Panamax $5,000,000 Connected

Equipment Protection Policy is void if

any wire leading into or out of the equip-

ment is not properly connected to the

appropriate Panamax surge protector(s).

The surge protector must also be

plugged into a properly wired and

grounded outlet. Please see the warran-

ty for details or contact the Panamax

Customer Support Department with

questions.

IMPORTANT SAFETY POINTS

Panamax surge protectors and the con-

nected equipment must be indoors, in a

dry location and in the same building.

Although your Panamax protector is very

durable, its internal components are not

isolated from the environment. Do not

install any Panamax product near heat

emitting appliances such as a radiator or

heat register.

Do not install this product where exces-

sive moisture is present; for example

near a bathtub, sink, pool, basement

floor, fish tank, etc.

It is not uncommon for a building to be

improperly grounded. In order to protect

your equipment, Panamax products must

be plugged into a properly wired and

grounded 3-wire outlet. Additionally,

building wiring and grounding must

conform to applicable NEC (USA) or

CEC (Canada) codes for the Panamax

protection policy to be valid.

Do not use 2-blade adapters or any other

“power strips” with this product. Use

only Panamax extension cords if a

longer cord is required.

INSTALLATION (AC Power):

1. Turn the power to all equipmentOFF

that will be plugged into the unit.

2. Make sure that the ON/OFF switch is

in the position (see figure). PlugOFF

the unit into the wall outlet and then turn

it .ON

POWER ON

PROTECTION OK

GROUND O

UNSAFE VOLTAGE

4. Plug the equipment to be protected into

the Panamax unit and one at a time, turn

each piece of connected equipment ON

and check for correct operation.

5. Turn the unit and all connectedOFF

equipment before connecting any signal-

lines or installing any add-on signal line

modules.

3. Verify that the green “Ground OK” LED

is lit, indicating that the wall outlet is

properly wired and grounded.

NOTE to TV ANTENNA, SATELLITE

DISH and CATV INSTALLERS:

Articles 810.21 and 820.40 of the NEC

provide specific guidelines for proper

grounding, and in particular, specify

that the cable ground shall be connect-

ed to the grounding system of the

building, as close to the point of cable

entry as practical.

INSTALLATION (Telephone Lines):

IMPORTANT: Note the position of the

LINE EQUIPand jacks on the Panamax

unit. is for the line connectionLINE

that comes from the wall or floor jack.

EQUIP is for the line connection to your

connected equipment. The protection

circuit will only function if connected

properly. Reversed connections will

pass the signal to the connected equip-

ment but will also prevent the protection

circuitry from working and will invali-

date the Panamax Connected Equipment

Protection Policy.

1. Make sure the Panamax protector and

all connected equipment is turned .OFF

2. Take the incoming telephone line and

plug it into the appropriate jack onLINE

the protector. The line should now be

connected between the wall and the

Panamax unit.

3. EQUIPPlug a telephone line into the

jack and then plug the other end into the

equipment to be protected.

4. Turn On the protector and the con-

nected equipment. Verify that each piece

of connected equipment is receiving

power and signal.

The M8-AV provide protection for one

telephone line. A built-in line splitter

allows the one protected line to be

used with two pieces of equipment.

LINE (in)

EQUIP (2 out

jacks with

splitter)

INSTALLATION (Coaxial Lines):

Note the position of the and LINE EQUIP

jacks on the Panamax unit. is forLINE

the line connection that comes from the

wall or floor jack. is for the lineEQUIP

connection to your connected equipment.

The M8-AV coaxial protection circuits

achieve optimum signal quality from our

new coaxial protectors that have the

smallest signal loss on the market - less

than 0.5dB of attenuation from 0MHz to

2.2GHz. Our upgraded coaxial protection

has been specifically designed to virtual-

ly eliminate signal loss. The clamping

level of 75 volts will meet the demands

of both cable and satellite voltage while

minimizing exposure to spikes and

surges.

NOTE: The CATV/Sat/Antenna protection

circuit in these models is bi-directional

and has been designed to work with

cable TV systems that send pay-per-view

ordering information to the cable compa-

ny over the coaxial line.

Make sure that your equipment is con-

nected to the proper jacks. When used

with diplexers, this protection circuit

must be placed between the diplexer and

the Satellite receiver; it will protectnot

the diplexer.

1. Make sure the Panamax protector and

all connected equipment is turned .OFF

2. Connect the coaxial cable from the

CATV system, antenna, or Satellite dish to

the appropriate connector on theLINE

Panamax protector.

3. Connect a coaxial cable from the

EQUIP jack on the protector to appropriate

input jack on your TV, VCR, cable modem

or Satellite receiver.

4. Repeat steps 2 & 3 for additional

coaxial line.

Set 1

Set 2

Set 1

Set 2

EQUIP (out)

LINE (in)

EQUIP (out)

CAUTION – Do not install this device if there is not at least 10 meters (30 feet) or more of wire between the electrical outlet and electrical service panel.
