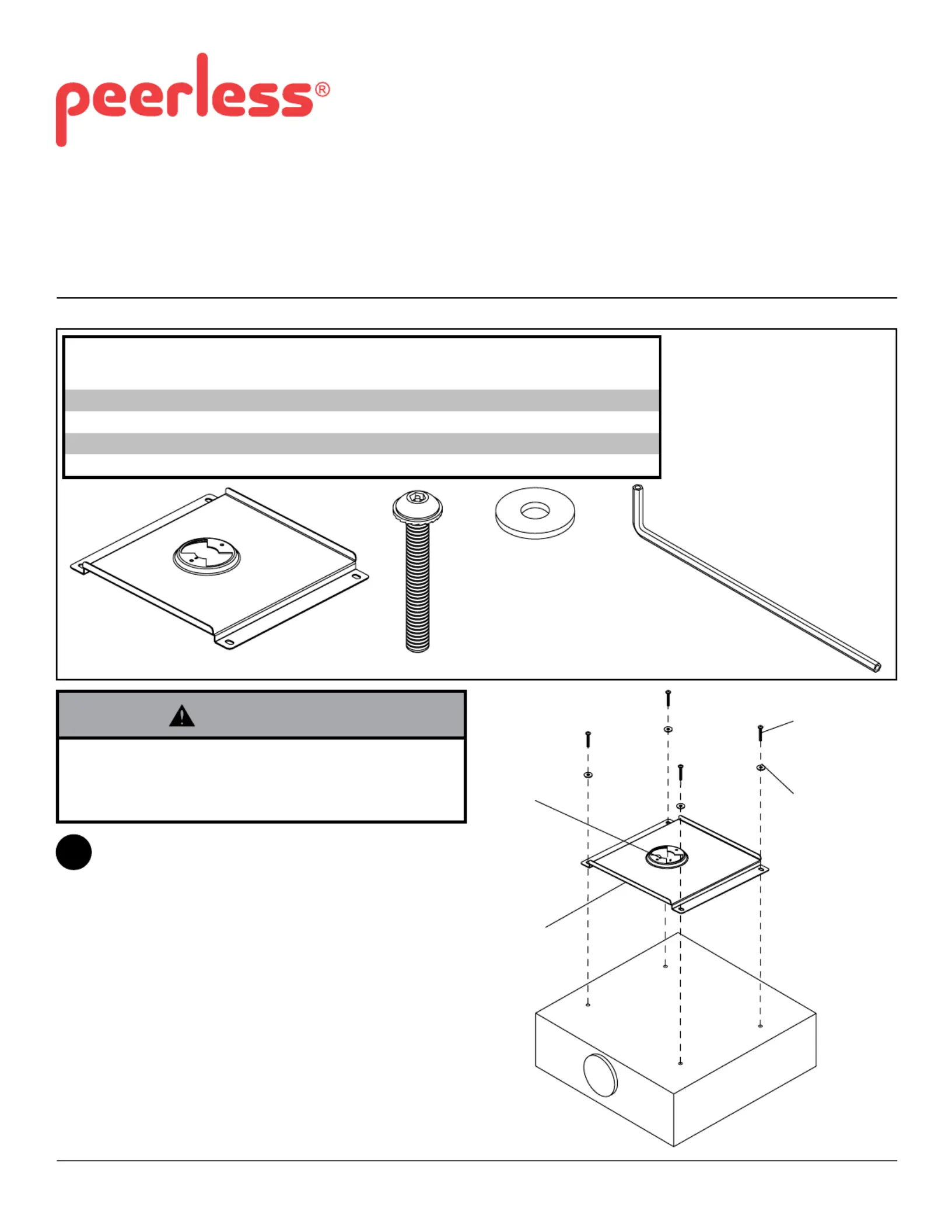

1 of 1 ISSUED :01-04-10 SHEET #: 125-9172-2 (2017-09-20)
Qty. Part #
A1 055-1994
B4 510-1112
C4 540-1078
D1 560-96464 mm allen wrench
Description
adapter plate
M5 x 30 mm socket pin serrated washer head screw
6.5 ID x 17.8 OD x 1.6 flat washer
Parts List
Model: PAP-JVC-DLA
Installation and Assembly:
Adapter Plate for DLA-RS40, DLA-RS50, DLA-RS60, DLA-RS45, DLA-RS55, DLA-RS65,
DLA-RS46, DLA-RS48, DLA-RS4810, DLA-RS56, DLA-RS66, DLA-RS49, DLA-RS4910,
DLA-RS57, DLA-RS67, DLA-RS6710, DLA-RS400, DLA-RS500, DLA-RS600, DLA-X3, DLA-X7,
DLA-X9, DLA-X30, DLA-X70, DLA-X90, DLA-X35, DLA-X55, DLA-X75, DLA-X95, DLA-X500,
DLA-X700, DLA-X900, DLA-X550, DLA-X750, DLA-X950 Projectors
Max Load Capacity: 50 lb (22.6 kg)
Parts may appear slightly different than illustrated.
1Attach adapter plate ( ) to projector using four A
M5 x 30mm socket pin serrated washer head screws ( ), and B
four 6.5 ID x 17.8 OD x 1.6 at washers (C) using 4mm allen
wrench ( ).D
*Notch indicates front of projector.
CD
AB
FRONT OF
PROJECTOR
A
C
B
*
• Installer must verify that the supporting surface will
safely support the combined weight of all attached
equipment and hardware.
WARNING
© 2017, Peerless Industries, Inc. All rights reserved.
All other brand and product names are trademarks or registered trademarks of their respective owners.
