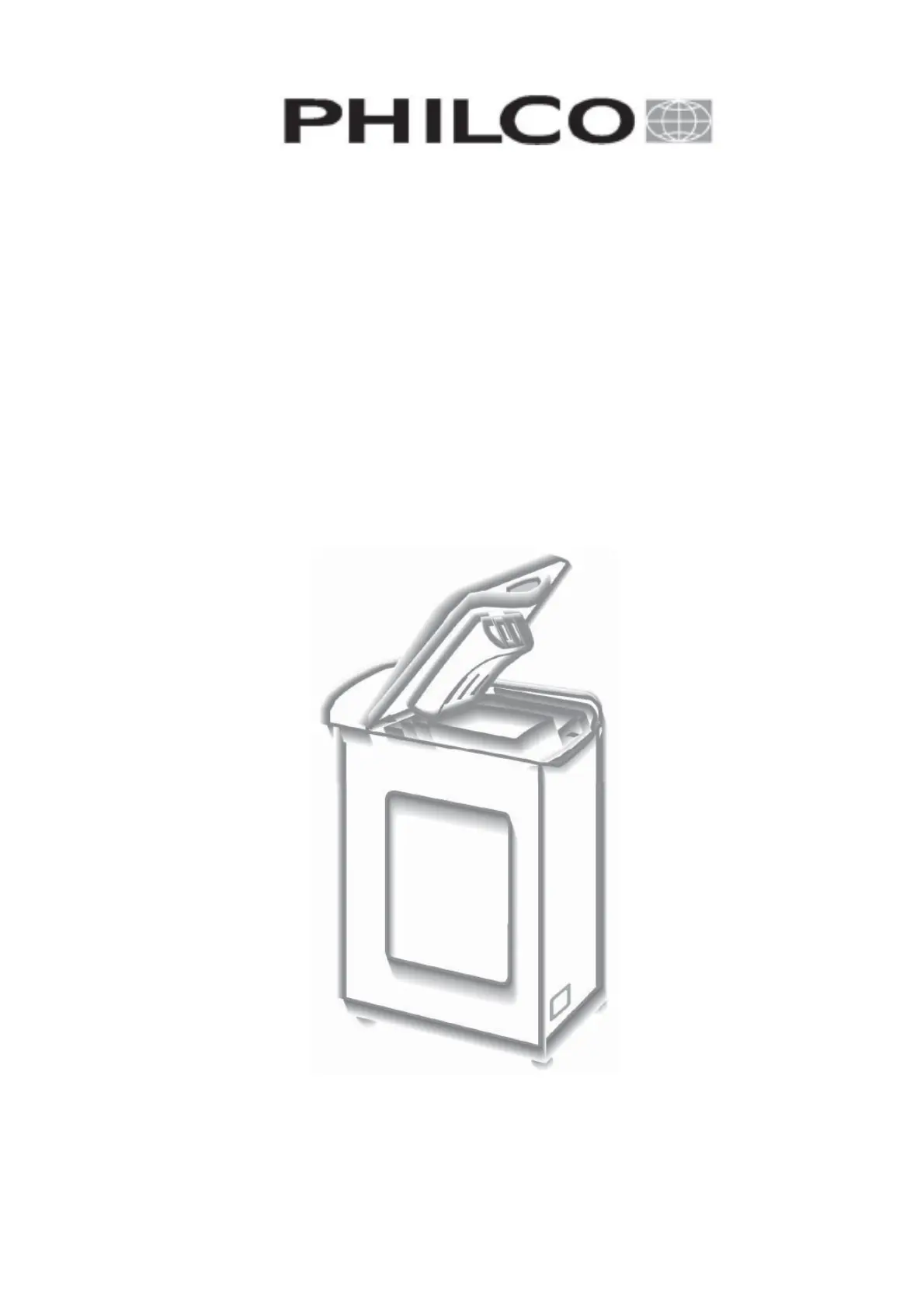

Philco PTL 7105 D Manual (48 Sider)

ࠌشᎅࣔ஼

ীᇆ ˍ

請仔細閱讀並妥善保存此說明書

Instruction and installation manual

P T L 7 1 0 5 D

Please read and save these instruction

2

Introduction

Read this manual carefully as it offers practical

advice to help you get the most from your washing

machine.

This «Instruction and Installation Manual» contains

everything you need to know about the everyday

running of your machine.

Please refer to this manual for installation and

maintenance instructions. The manual also contains

information about possible working problems,

advice about sorting clothes for washing, an

explanation of label symbols and hints about how to

remove stubborn stains.

1.- CONTROL PANEL 2.- LID 3.- DRUM

4.- DETERGENT DISPENSER 5.- PLINTH PANEL

6.- FILTER

Table of contents

page

Safety measures 3

Setting up - Installation 5

Preparing the wash. Opening/ closing the drum 7

Detergent load 8

Electronically-controlled variable load- Fuzzy Logic 8

Description of controls 9

Programmes selection 17

General recommendations 18

Troubleshooting 20

Washing hints 21

Safety measures

This appliance meets the European Directives

2004/108/EC, 2006/95/EC which have been substituted

respectively by 89/336/EEC, 73/23/EEC and subsequent

modifications thereof.

This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance

by a person responsible for their safety.

Children should be supervised to ensure that they do not play

with the appliance.

ATTENTION: FOR ALL CLEANING AND MAINTENANCE

WORK

• Remove the plug.

• Turn off the water inlet tap after each wash.

3

• The manufacturer fits all the machines with an earth

connection.

Ensure that the electrical installation has an earth connection

and that it is connected; if not, call a qualified Service Center.

The earth connection is essential for user safety as it elimi-

nates the risk of electrical discharge.

• Power sockets should be in easily accessible places so that

the washing machine can be unplugged in case of any

problems.

• If the electric cable is damaged replace with an original set

(cable and plug) supplied by the manufacturer or official after-

sales service.

note:

In the event that it is necessary to replace the power cable,

make sure that you comply with the following colour-code chart

during the wiring:

blue neutral

brown phase

Yellow-green earth

The manufacturer accepts no responsibility for any

damage to people or things resulting from the failure to

comply with the appliance’s installation and safety

regulations.

• Do not touch the appliance with wet hands or feet.

• Do not use the appliance when bare-footed.

• Use extension cords only with extreme care.

• Do not use adapters or multiple plugs.

• Do not allow the appliance to be used by children or the infirm

without due supervision.

• Do not pull on the power cord or the appliance itself to remove

the plug from the socket.

• Do not leave the appliance outdoors or exposed to the

atmospheric elements (rain, sun, etc.).

• Do not cover the appliance with cloth or plastic while it is

working.

• Do not install the appliance in damp places or anywhere

where it could be sprayed by the shower.

• Do not install the appliance on a surface which obstructs the

space between the floor and the base of the machine.

• Keep all packaging out of the reach of children as it could

constitute a health hazard.

ATTENTION:

DURING A WASH CYCLE THE WATER

CAN REACH TEMPERATURES OF 90ºC.

4

Setting up - Installation

• Unpack the appliance.

• Remove the 4 screws (A) from

both clamps and the 4

screws (B ).

• Replace the 4 screws (A) and

fit the trims provided (D ).

If your model offers this function:

Position the protection sheet as shown in the

diagram.

1.- Washing machine with wheel trolley.

2.- Washing machine without wheel trolley.

ATTENTION: DO NOT TURN THE TAP ON

• The washing machine should be connected to the

water mains via the new tube supplied with the

appliance (inside the drum). Do not use the old tube for

this purpose.

• Connect one end of the water inlet pipe with the elbow

bend to the electrovalve (top rear part of the machine)

and the other end to a tap or a plumbed-in 3/4" gas

threaded connection.

• Place the washing machine close to the wall, ensuring

that there are no bends or kinks anywhere in the tube.

Hook the outlet pipe to the edge of the sink or preferably

to a fixed drainage outlet of a diameter greater than that

of the outlet pipe and at a height of min. 50 cm. and a

maximum of 75 cm. from the floor.

If necessary, use the curved accessory to attach and

support the outlet pipe more securely.

5

Preparing the wash. Opening/ closing the drum

ATTENTION:

IT IS IMPORTANT TO MAKE SURE THAT THE

DRUM IS CAREFULLY OPENED AND CLOSED,

OTHERWISE THE MACHINE OR LAUNDRY

COULD GET DAMAGED.

ENSURE THAT THE DOORS FIT TOGETHER

PERFECTLY AND ARE PROPERLY CLOSED.

Loading

1.

Open the washing machine lid.

2.

Open the drum by pressing the (A) button with one

hand while pressing down on the opposite door

with the other.

3.

Place clothes in the drum one item at a time, and

without squashing. Do not exceed the load limits

recommended in the “programme table”. An

overloaded washing machine will not wash

properly, and will leave clothing wrinkled.

4.

To close the drum, place the doors so that the one

with the (A) button is below the other and they fit

together perfectly.

7

ġ

Description of controls

ġ

9

ġ



     



A Programme selector with OFF

position

B START/PAUSE button

C SPIN SPEED button

D TEMPERATURE SELECTION

button

E DELAY START button

F WASH TIME button

G EXTRA RINSE button

H OPTIONS button

I EASY IRON button

L Digital display

M DOOR LOCKED indicator light

L

10



Press the START/PAUSE button to start

the selected cycle.

 Once a programme is selected the

programme selector remains stationary on

the selected programme till cycle ends.

 Switch off the washing machine by

turning the selector to OFF.



Press to start the selected cycle.

ADD OR REMOVE ITEMS AFTER THE

PROGRAMMES HAS STARTED (PAUSE)



Press and hold the START/PAUSE

button for about 2 seconds (some

indicator light and the time remaining

indicator will flash, showing that the

machine has been paused).



Wait 2 minutes until the safety device

unlocks the door.



After you have added or removed items,

close the door and press the

START/PAUSE button (the programme

will start from where it left off).

CANCELLING THE PROGRAMME

 To cancel the programme, set the

selector to the OFF position.

WARNING:

Don’t touch the display while inserting

the plug because the machines

calibrates the systems during the first

seconds: touching the display, the

machine couldn’t work property. In

this case, remove the plug and repeat

the operation.

Opening the door

A special safety device prevents the

door from being opened immediately

after the end of the cycle.

Wait for 2 minutes after the wash

cycle has finished and the "Door

Security" light has gone out before

opening the door.

PROGRAMME selector with OFF

position

When the programme selector is turned

the display lights up to show the settings

for the programme selected.

For energy saving, at the end of the

cycle or with an inactivity period, the

display level contrast will decrease.

N.B.: To switch the machine off, turn the

programme selector to the OFF

position.

The programme selector must be

returned to the OFF position at the end

of each cycle or when starting a

subsequent wash cycle prior to the next

programme being selected and started.

START/PAUSE button

Close the door BEFORE selecting the

button START/PAUSE.

When the START/PAUSE button has

been pressed, the appliance can take

few seconds before it starts working.

11

 By pressing this button, it is possible to

reduce the maximum speed, and if you

wish, the spin cycle can be cancelled.

 To reactivate the spin cycle press the button

until you reach the spin speed you would

like to set.



It is possible to modify the spin speed

without pausing the machine.

 This button allows you to change the

temperature of the wash cycles.



It is not possible to raise the temperature

over the maximum allowed for every

programme, in order to save the fabrics.



This button allows you to pre-programme

the wash cycle to delay the start of the

cycle for up to 24 hours.



To delay the start use the following

procedure:

- Set the required programme.

- Press the button once to activate it (h00

appears on the display) and then press

it again to set a 1 hour delay (h01

appears on the display). The pre-set

delay increases by 1 hour each time the

button is pressed, until h24 appears on

the display, at which point pressing the

button again will reset the delay start to

zero.

- Confirm by pressing the START/PAUSE

button (the light on the display starts to

flash). The countdown will begin and

when it has finished the programme will

start automatically.



It is possible to cancel the delay start by

turning the programme selector to OFF.

If there is any break in the power supply

while the machine is operating, a special

memory stores the selected programme

and, when the power is restored, it

continues where it left OFF

The option buttons should be selected

before pressing the START/PAUSE

button.

If an option is selected that is

not compatible with the selected

programme then the option indicator

first flashes and then goes off.

SPIN SPEED button

To prevent damage to the fabrics, it is

not possible to increase the speed

over that which is automatically

suitable during the selection of the

program.

The machine is fitted with a special

electronic device, which prevents the

spin cycle should the load be

unbalanced.

This reduces the noise and vibration in

the machine and so prolongs the life of

y

our machine.

TEMPERATURE SELECTION button

DELAY START button

12



By selecting this button there is a choice

of 3 levels of wash intensity, depending

on how much the fabrics are soiled (can

be used only on some programmes as

shown in the table of programmes).

 Once the programme has been selected

the indicator light will automatically show

the wash time set for that programme.

 Selecting a different wash time the

relevant indicator will light up.

 This button allows you to add rinses at

the end of the washing cycle. The

maximum number of extra rinses is

related to the programme selected.



This function has been studied for the

people with delicate and sensitive skin,

for which also a least residue of detergent

can cause irritations or allergies.



It advises to also use this function for the

children items and in case of washings of

very dirty items, for which it is due to use

a lot of detergent, or in the washing of

toweling items whose fibres mostly have

the tendency to hold the detergent.

You can choose between three different

options:

- PREWASH

 This option allows you to make a prewash

and it is particularly useful for heavily

soiled loads (can be used only on some

programmes as shown in the table of

programmes).



We recommend you use only 20% of the

recommended quantities shown on the

detergent pack.

- HYGIENE PLUS



With this option it is possible to hygienize

the clothes, the washing programme

reach a temperature of 60°C.

- NIGHT & DAY



This option reduces the intermediate spin

speed to 400 rpm, where applicable,

increase the water level during rinsing and

keep the laundry immersed in water after the

final rinse, in order to spread the fibre

sevenly.



During the phase in which the water is

held in the tub, the relevant indicator light

blink to show that the machine is at a

standstill.

 Deselect the option to end the cycle with a

spin dry (which may be reduced or cancelled

using the appropriate button) and emptying

phase.



Thanks to electronic control, the water

in the intermediate phases is emptied

silently, making this option very useful for

washing at night.

This function allows you to minimizes

creases as much as possible, eliminating

the intermediate spins or reducing the

intensity of the last one.

WASH TIME button

EXTRA RINSE button

OPTIONS button

EASY IRON button

The display’s indicator system allows you to

be constantly informed about the status of

the machine.

2

1

8 109

3 4 5 6 7

1) DOOR LOCKED INDICATOR LIGHT

1

 The indicator light is illuminated when the

door is fully closed.



When START/PAUSE is pressed on

the machine with the door closed, the

indicator will flash momentarily and then

illuminate.

 A special safety device prevents the door

from being opened immediately after the

end of the cycle. Wait for 2 minutes after

the wash cycle has finished and the

DOOR LOCKED light has gone out before

opening the door. At the end of the cycle

turn the programme selector to OFF.

2) SPIN SPEED

2

This show the spin speed of the selected

programme that can be changed or omitted

by the relevant button.

3) WASH TEMPERATURE

3

This show the washing

selected programme that can be changed

(where allowed) by the relevant button.

4) CYCLE DURATION

4

 When a programme is selected the

display automatically shows the cycle

duration, which can vary, depending on

the options selected.

 Once the programme has started you will

be kept informed constantly of the time

remaining to the end of the wash.

 The appliance calculates the time to the

end of the selected programme based

upon a standard loading, during the cycle,

the appliance corrects the time to that

applicable to the size and composition of

the load.

Digital Display

Close the door BEFORE selecting the

START/PAUSE button.

If the door is not properly closed,

the light will continue to flash for

about 7 seconds, after which the

start command will be automatically

delete. In this case, close the door

in the proper way and press the

START/PAUSE button.

13

15

PROGRAM kg*

(MAX.)

TEMP.°C DETERGENT

Recommended

Max. 2 1

Eco 20°C 7 20° 20°

Baby 60°C 4,5 60° 60°

Daily 59

2,5 40° 40°

Rapid 30 2,5 30° 30°

Rapid 14 1 30° 30°

Dark Colours 3,5 40° 40° ( )

Auto Clean

Rinse - - -

Drain & Spin - - -

Shirts 1) 3,5 30° 30° ( )

Lingerie 1) 2 40° 60°

Wool & Silk 1 30° 30°

Delicates 2,5 40° 40°

Mixed 1) 3,5 40° 60° ( )

1) 7 40° 90° ( )

Table of programmes

General recommendations

CLEANING AND MAINTENANCE OF THE MACHINE

Do not use abrasives, spirits or solvents when cleaning the exterior of the washing machine. It is sufficient

to use a damp cloth.

The washing machine requires very little maintenance.

• Drying the rubber seal of the drum.

• Cleaning the dispenser and its compartments.

• Cleaning the filter.

• Cleaning prior to removals or when the machine is to stand idle for long periods.

To help conserve the washing machine, dry the rubber seal and leave the door open when the

cycle ends.

CLEANING THE FILTER

The washing machine comes with a special filter, located behind the machine’s front plinth panel, that

collects larger objects (coins, buttons, etc.) which could even block the pump.

It is advisable to clean the filter whenever the machine fails to rinse the clothes as well as it should

or when it fails to drain properly.

When it is necessary to clean the filter, proceed as follows:

• Use a basin to collect the water coming out.

• Remove the filter and clean it.

• Once the filter is clean, replace it by following the above-

mentioned pro in reverse.

18

CLEANING THE DETERGENT DISPENSER AND ITS COMPARTMENTS

A

II I

S

B

C

.- It is advisable to clean the three compartments of the

detergent dispenser (pre-wash, wash, and fabric conditioner)

from time to time. To do this, remove the detergent dispenser

and after cleaning it, fit it back in place.

To remove and fit the detergent dispenser, follow the steps

indicated in the images.

removing

.- Press button A

.-Hold down the button and pull the detergent dispenser

outwards

.- Remove the dispenser and clean it

.- In the case of the pre-wash (I) and wash (II) compartments,

it is advisable to remove any dried-in remains of detergent

which obstruct the flow of the detergent to the drum.

.- In the fabric conditioner compartment, the trap (S) located at

the rear part of the dispenser should be removed by pulling

them out.

Remove any solid residue which could block the holes in the

compartments.

fitting

.- Fit in the tabs as shown

.- Push the detergent dispenser towards the housing (C) in the

door until the tab clicks into place.

19

Troubleshooting

FAULT CAUSE SOLUTION

1.- No programme works • The appliance is not plugged

in.

• The general switch is discon-

nected.

• There is no electricity.

• The fuses in the electric insta-

llation are damaged.

• The door is open.

• Plug it in.

• Activate the general switch.

• Check.

• Close the door.

2.- The appliance does not

load water

• See causes for 1.

• The tap is turned off.

• Check.

• Turn on the tap.

3.- The water does not drain • The filter is clogged.

• The outlet pipe is bent.

• Check the filter.

• Straighten the outlet pipe.

4.- The spin function does not

work

• The washing machine has not

yet drained the water.

• The “Spin Exclusion” option is

activated.

• Wait a few minutes for the was-

hing machine to drain.

• Enable the spin option.

5.- Strong vibrations during

spin cycle

• The washing machine is not

correctly levelled.

• The anchoring device for trans-

port has not been removed.

• The wash load is not evenly

distributed.

• Adjust the feet.

• Remove the transport support.

• Distribute it evenly.

6.- The high-speed spin does

not work

• The wash load is not evenly

distributed within the drum.

• Distribute the wash load evenly

in the drum.

7.- Display will show error nº

0,1,5,6,7,8,9,12,13,15,16

• Contact technical service.

8.- Display will show error nº 2

• Machine does not fill with water • Check that water inlet tap is open.

9.- Display will show error nº 3

• Water does not empty from

machine

• Check that outlet is not clogged

• Check for kinks in outlet tube.

10.-Display will show error nº 4

• Too much water in machine. • Shut off water tap.

• Contact technical service

If the problem or malfunctioning persists, disconnect the

machine, turn off the tap and do not try to repair.

For all repairs contact an Official Technical Assistance centre

and always insist on the use of original parts. Failure to do so

of your machine.

When contacting a Technical Assistance Centre always refer to

the model (see also control panel) and the registration and serial

numbers indicated on the plate at the bottom front of the

machine behind the plinth panel or on the guarantee certificate.

That is to say, everything that appears in the box.

Providing this information will ensure a faster and more efficient

service.

20

may compromise the safety

Washing hints

Hints on the most economical, most environmentally friendly way to use your washing machine.

HINTS ON USING YOUR WASHING MACHINE

Wait until you have a full load before using the machine: this will avoid the use of more water and power

than necessary.

We recommend using the full load capacity: this could save you up to 50% in power consumption. Wash a

single full load rather than two light loads.

WHEN IS PRE-WASHING NECESSARY?

Only when washing heavily soiled clothes.

With clothes that are not especially dirty, you can save between 5 and 15% by not using this option.

WHAT WASH TEMPERATURE SHOULD I USE?

Applying a stain remover before placing clothes in the machine will eliminate the need for wash

temperatures of more than 60 ºC.

When loading a wash into the drum, we recommend that you:

• For specially delicate garments we recommend the use of a protective net.

• Empty all pockets and ensure that they do not contain metal objects (paperclips, safety pins, pins,

coins,etc.).

• Fasten pillow slips, close all zips and fastenings, and tie any loose ribbons or belts from dresses.

• Remove all runners (metal and plastic) from curtains and net curtains. We recommend that the ribbon be

gathered into a ball and tied with its own cord.

• Unfold all items to be washed.

• Be careful not to exceed the recommended load for each programme.

• When washing rugs, bedspreads and other highly absorbent items, cancel the spin option.

• In order to be able to wash woollens in the washing machine they must carry the “Pure New Wool”

symbol as well as the information “does not become matted” or “machine washable”.

• If possible, do not wash only towels. Mix them with your regular washing.

• Ensure that no item becomes trapped between the drum doors.

LABEL SYMBOLS

Labels are usually sown into the collar or side seams. The symbols which appear on them indicate the

following:

• Maximum WASH temperature.

• Appropriate and inappropriate washing methods.

• Appropriate and inappropriate washing products.

The symbols are as follows:

WASH

Washing instructions always appear as a basin with different indications:

• Do not wash.

• Can be washed both by hand or in the washing machine. The figures in the basin indicate the

maximum wash temperature.

• Hand wash only.

When the hand is half submerged in the water, this means that the item should be tumbled only

gently during washing. If it is fully submerged in the water, this means that the garment should

only be washed by hand.

• The line under the basin means that the item should be washed on a gentle cycle.

• Do not spin.

BLEACH

Bleach is widely used to whiten fabrics, although in some cases it can cause irreparable damage. There

are various symbols which refer to its use.

• Bleach can be used.

• Do not use bleach.

21

Please record the following information:

 Model

 Serial No.

 Name of distributor

 Date of purchase

The manufacturer reserves the right to make any technical modifications

due to product improvement. No prior notice will be given.If you have

any enquiry,please contact our after-sales department and forgive for

any inconvenient.

All information is subjected to English version.

楁

楁㷗Ṽ⣏忻343悥ⶍ㤕⣏⹰Ḵ㦻

㷗Ṽ⣏忻343悥ⶍ㤕⣏⹰Ḵ㦻

㷗Ṽ⣏忻343悥ⶍ㤕⣏⹰Ḵ㦻㷗Ṽ⣏忻343悥ⶍ㤕⣏⹰Ḵ㦻烁

烁

烁烁/F, Shing Dao Industrial Building,

232 Aberdeen Main Road,Hong Kong

䵕ᾖ⬱墅

䵕ᾖ⬱墅䵕ᾖ⬱墅 : 8210 8210 Service Hotline : 8210 8210

22

婳姀抬ᶳ↿屯㕁

 ✳嘇

 㨇幓䶐嘇

 䴻扟⓮⎵䧙

 岤屟㖍㛇

㛔䓊⑩ᶵ㕟㓡忚

ᷕ

炻⤪≇傥㚱㇨㚜㓡炻⿽ᶵ⎎忂䞍炻⤪㚱䔹⓷炻婳冯䵕ᾖ

ᷕ⽫倗䴉炻ᶵὧ

ᷳ

嗽炻㔔婳⍇婺ˤ

婒㖶㚠ẍℏ⭡ẍ劙㔯䇰㛔䁢㸾ˤ

楁㷗Ṽ⣏忻悥ⶍ㤕⣏⹰Ḵ㦻烁232 /F, Shing Dao Industrial Building,

232 Aberdeen Main Road,Hong Kong

䵕ᾖ⬱墅 : 8210 8210 Service Hotline : 8210 8210

23

24

簡介

請仔細閱讀本手冊，因為它提供了實用

建議，幫助你認識你的洗衣機。

這《操作指南與安裝手冊》已包括洗衣

機的日常運行操作。

請參閱本手冊的安裝和保養說明。該手

冊還包含有關可能的工作問題，建議對

清理衣服洗滌，解釋和提示符號的標籤

如何去除頑固污漬。

1 .- 控制板面

2 .- 機蓋

3 .- 滾桶

4 .- 洗衣劑抽屜

5 .- 底板

5 .- 過濾網

安全的措施

設置 - 安裝

準備清洗衣物。打開 / 關閉滾桶

放入洗衣劑

電子裝置 - 控制不同洗衣量 - 快思邏輯

面板詳述

特別程式

一般建議

排除疑難

清洗貼士

2

4

6

7

8

12

13

15

16

安全措施

內容

ءข঴ฤٽᑛ੊යࠏ ˅˃˃ˇ˂˄˃ˋ˂˘˖Δ˅˃˃ˉ˂ˌˈ˂˘˖

բ։ܑ࠷ז ࡉᙟ৵ኙࠡၞ۩ˋˌ˂ˆˆˉ˂˘˘˖Δˊˆ˂˅ˆ˂˘˘˖

ऱଥޏΖ

ˀʳߪ᧯Εტࡴࡉ壄壀ڶᎽᡶࢨ౒׎ᆖ᧭वᢝऱԳՓ ʻ ץ

ਔ՛৘ ʼΔຟլᔞٽࠌشੑ۪ᖲΔೈॺ൓ࠩ૤ຂהଚ

ڜ٤ऱԳ጑ኘࡉਐ֧ՀࠌشᖲᕴΖ

ˀʳڇᒔঅ጑ጥՀլ૞ᨃ৘՗ނनੑ۪ᖲΖ

ࣹრ ˍʳࢬڶ堚ᑥ֗অ塄ՠ܂ʳʳ

Θʳʳࢮנ༺ᙰ

Θʳʳޢڻ堚ੑ৵ᣂൾֽᚊᙰ

2

3

•製造商所有的機器符合與地線連接。

確保用電的安裝有連接地線 ; 如不是，請召喚一個合規格

的服務中心。

連接地線對使用者安全是有需要的 , 因為此可減少漏電的

風險。

•電插座應設置在洗衣機容易接的地方，萬一有任何問

題可即時拔除。

•如果電線損壞更換要由製造商或官方售後服務所提供原

本的一套（電線和插頭）。

備註 :

當發生事故需要更換電線期間，請確保遵從以下顏色代碼

圖連接 :

藍色中線

啡色火線

黃綠色地線

製造商概不負責未能遵守該設備的安裝和安全規則所造

成人或事物的任何損害。

•濕手或腳請不要觸摸電器。

•請不要赤腳使用洗衣機。

•請小心使用延長線。

•不要使用連接器或多個插頭。

•不要讓兒童或體弱者在缺乏應有的監督下使用。

•不要拉扯電源線或洗衣機本身，以從插座移除插頭。

•不要遺棄洗衣機在戶外或暴露於大氣成分（雨，太陽，

等等）。

•當洗衣機正在運行中，不要用布或塑膠覆蓋著。

•不要安裝本產品在潮濕的地方或任何可能淋浴噴灑到

的地方。

•不要安裝洗衣機在表面上會妨礙地面之間的空間及機

器的底部。

•保留所有包裝遠離兒童觸摸到的地方，因為它可能構

成危害健康。

警告 :

在清洗程式中 , 水溫可達 90℃

如你的型號提供此功能；

•要移動洗衣機很容易，打開手推車槓桿到右面。一

旦你完成了移動的，把槓桿推回到原來的位置。

•使用洗衣機的前機腳調較水平。

a) 順時針轉動螺絲帽鬆開機腳螺絲。

b) 旋轉機腳升高或降低，直至它平穩安放在地面上。

c) 逆時針方向轉動螺絲帽鎖定機腳位置，直到它碰上

了洗衣機的底部。

檢查洗衣機是否平穩。

試圖同一時間移動洗衣機頂部斜對面角落，檢查洗衣

機是否移動。

•如果您將洗衣機從一個地方移到另一個地方，你必

須再次調校機腳。

•連接洗衣機

5

準備洗衣 - 打開 / 關閉滾桶

注意 :

確保小心地打開和關閉滾桶，否則會損壞洗衣機或洗

衣物。

確保機門完全關閉好。

˙放入衣物

˄ˁ

ؚၲᖲ።

˅ˁʳشԫೋ֫ਊՀػۥਊၨؚၲዞදΔٵழش׼ԫೋ֫

ਊՀؚၲኙ॰Ζ

ˆˁʳނ۪ढດ࣋ٙԵዞදΔլ૞ᚲᚘΔլ૞၌መ ʵ ࿓ڤ

। ʵ փऱ৬ᤜ۪ढૻࠫΔ၌ૹᄎחੑ۪ய࣠լࠋࡉח

۪ढᒋኹΖ

ˇˁʳᣂՂዞදΔ๻ڶਊၨ ʻ˔ʼ ऱ॰ڇ׼ԫ॰հՀΔ،ଚ

૞ݙ٤ጹຨړΖ

6

放入洗衣劑

電子裝置 - 控制不同衣量 - 快思邏輯

7

最高量主要洗衣粉

最高量主要洗衣液

最高量預洗洗衣粉

最高量香味劑

建議用量

洗衣劑的儲存格層分為三格：

- 格層 I - 預洗器皿 ( 粉沫 )

- 格層 II - 清洗器皿 ( 粉沫或液體 )

- 格層 - 是織物柔順劑，香味劑和特殊添加劑，如澱粉，藍色漂白劑等。

清洗劑的儲存有兩個參考標記：

- 建議用量（下參考標記）。表示預洗和主清洗的洗衣液建議用量。

- 最高量這表示了最高水平，絕不應超越。

重要事項：

- 不要使用洗衣液用於一個預洗整個過程和 / 或定時啟動的程式。

- 　　當衣服污漬是目前需用漂白劑液體產品處理，您可以用開洗衣機進行初步的清洗。為

此：介紹了漂白產品中的“格層Ⅱ”　，並設置清洗程式。當完成後程式設置到關閉位置，

加上其餘的洗衣物，並可進行正常程序的清洗。

ڼੑ۪ᖲ๻ᆜሽ՗ᇘᆜ۞೯ᆖመࢬڶੑ۪࿓ݧΔᒔঅቃཚ෻უऱੑ۪ய࣠Δٵழ੡܃ᆏઊ

ழၴࡉ८ᙒΖ

ᅝ࿓ڤ๯ᙇࡳΔੑ۪ᖲᄎီ׏ੑ۪ၦࡉ᧜ፂጟᣊΔףൎאՀցై ˍ

ˀ ֽࡉሽऱࠌشၦ

ˀ ੑ۪ழၴ

ˀʳመֽய౨

ˀ ੑ۪ᖲᝫڶऱפ౨Κ

ˀ ᛀྒྷॅߌֽ֗ᏺףޱੑၦऱֽΔڕ

ؘ

ڶ૞ழ

ˀ ᓳᖞඝ᠏ຒ৫௅ᖕૹၦ։܉Δൕۖॴַٚ۶լؓᘝऱᖲࠫΖ

8

面板詳述



     



A

B

C

D

E

F

G

H

I

L

M

L

“转速”键

“ ”键加漂洗

“ ”键易烫

“ ”键开始/暂停

“温度”键

程式选择旋钮

显示屏

门锁指示灯

“延迟开始”键

“额外功能”键

“洗衣时间”键

“ 程式选择旋钮 ” 可

式

“程式选择旋钮”

双向旋转来选择所需的程式。当转动旋钮选

择程式时, 显示屏显示所选程的基本运行参数。

关机：

把旋至“关”的位置，关闭洗衣机。

选择程序后请按下“开始/暂停”键，启动洗衣机。

当一个程序被选定后，须停留在选定程序对应

的位置上，直到该程序结束为止。

“程序选择旋钮”

注意:

当每一个程序结束后,或者是开始选择一个新的程序之前,都必须

把程序选择旋钮旋到“关”的位置上。

目前，很多洗涤剂在较低温度下也能达到不错的洗涤效果，鉴

此，我们已经将每一个程序的默认温度设得较低,以节省能源和

减少二氧化碳排放。可通过“温度 ”键将所选程序的洗涤温度调

高。（请参照程序表中指引的各程序的可设最高洗涤温度）

-程式选择旋钮

将手伸进“门把手”里，然后拉开机门。

洗衣机内设有特殊的安全装置，可防止机门在洗涤程序刚结束后就

马上被打开。需在洗涤程序结束约2分钟后，才可以打开机门。

-“转速”键

脱水阶段最重要的是：

衣物里的水分。可根据需要调整脱水转速，以达到最佳的脱水效果。

通过该键可以降低转速，也可以取消脱水。

如何在不损伤衣物的情况下，尽可能多的去除

9

打开洗衣门

於

利用该键进行可设定24小时内的预约洗涤时间。

设定预约时间：

1.选择一个洗涤程式；

2.按下“预约”键(这时显示屏上会出现“h00”字样)，第一次

按的时候，显示屏上就会出现“h01”字样。每多按一下，

预约的时间就会增加一个小时，一直累计到24小时为止。当

预约的时间到达24小时后再按这个键，预约的时间就会重新

回到0；

3.确定需要预约的时间，按下“开始/暂停”键，预约时

间就开始倒数，倒数完毕后，洗衣机会自动启动洗涤程式。

取消预约功能：把程式旋钮旋转到“关”的位置。

提示: 洗衣机里有一个特殊的电子装置，这个电子装置是为了防止

衣物在脱水阶段不平衡所设的。这个装置大大地降低了洗衣机的

噪音和震动，延长了洗衣机的寿命。

水转速。

调整脱水转速前无需暂停洗衣机运行。

如想恢复需要的脱水转速，要一直按动该键，直至达到需要的转

速为止。

-“

“ ”

温度

当选择了某个程式后，显示屏显示该程式的推荐洗涤温度。

可通过按温度键调整洗涤温度。

每按一下温度键，新的洗涤温度就会显示在显示屏上。

”键

10

为不损伤衣物，不可设置脱水转速高於所选定程式的默认最高脱

-“延迟开始”键

提示：如在当洗衣机操作时断电，当再通电时，所选择的程式将会

继续操作。

-“加漂洗”键

该功能增加漂洗次数以得到最佳的漂洗效果。通过该功能键最多额

外增加三次漂洗。

该功能可以选择三种不同的洗衣功能。

自定

义

该功能

当选择了程式后，洗衣机就会自动把模式调到默认，用户可按动“

”键调整洗衣设定。

可以根据衣物的脏污程度来选择洗衣强度和洗衣时间。

“预洗”功能

某些程式。

用该功能时，我们不建议使用衣物柔顺剂。

我们建议在这个程式中只使用洗涤剂包装上推荐份量的20%。使

卫生。

“夜间”功能

通过按下这个键，可以把转速减少到400rpm；在漂洗过程中，水

位会升高。在最后漂洗完成后，衣服仍浸泡在水中，衣物纤维保

止状态。

按下该键来终止这个阶段，以进行排水和脱水(也可以利用相关的

键来降低脱水速度或者取消脱水)。

因为是电子控制的关系，洗涤期间的排水过程是非常安静的。这

11

洗衣时间”键

-“

可以有三种不同模式选择，应用於不同脏污程度的衣物。

-“额外功能”键

该功能对於较髒的衣物来说更有用。该功能只适用於程式表上的

“更洁净”功能

该功能通过独特的洗衣节奏和60度的水温，使衣物更加洁净

持在最松弛的状态。在这个阶段里，指示灯会显示洗衣机处於静

个功能特别适用於夜间洗涤。

-“开始/暂停”键

选择某程式后，按“开始/暂停”键启动所选择的程式。

注意:

-“易熨”键

生。

1) 按住“开始/暂停”键大约两秒钟后，可以在程式运行中的任何

示灯及功能指示灯都会闪烁)

2) 根据需要更改程式设置。

3) 再按一下“开始/暂停”键，再次启动洗衣机。

在洗涤过程中如需添加或减少衣物，可按下“开始/暂停”键，等

待两分钟，“门锁保护”松开后，放入或者取出衣服，关上机门，

再次按下“开始/暂停”键，洗衣机会沿着原来程式的进度继续运

行下去。

如需取消程式记忆功能，操作如下：

把旋至“关”的位置；

选择另一个程式；

“程式选择旋钮”

程式运行过程中改变所选程式的设置(暂停):

12

适用於除棉麻程式外所有程式,洗衣机可以最大程度减少皱褶的产

在最后两次漂洗(不脱水）过程中

, 水温逐渐冷却, 而最后一次轻

柔的脱水使衣物达到最松弛的状态。

在洗涤程式开始之后，“洗涤容量检测” （只适用於棉功能运行

质，化纤程式），自动检测洗衣筒内衣服的重量。

，

时间内暂停所选择的程式。(当机器处於暂停状态时，剩余时间指

-显示屏

显示屏显示洗衣机所处的状态。

13

2

1

8 109

3 4 5 6 7

2) 转速

当选定了一个程式之后，该程式默认的最高转速

就会显示在显示屏。可以通过“转速”键来调整

转速。

1) “门锁保护”图标

当机门完全被关上并且洗衣机开始运转的时候，

“门锁保护”图标就会亮起。当关上机门，按下

“开始/暂停”键后，图标会闪烁，然后持续亮着。

特殊的安全装置，可防止机门在洗涤程式刚结束

后就马上被打开。需在洗涤程式结束约 2分钟

后，“门锁保护”图标熄灭，才可以打开机门。

如果门还没有关好,图标会不停地闪烁

3) 洗涤温度

当选择了某个程式后，显示屏显示该程式的推荐洗

涤温度。

通过温度调整洗涤温度。“ ”键可

4) 程式持续时间

当选定了某程式后，该程式所需要的基本时间

就会自动在显示屏上显示。可以通过更改设置

来改变该程式所需要的时间。程度启动后，显

示屏会持续更新程式的剩余时间。

1

2

3

4

程式所需要的时间是根据满负载洗涤的基础上

计算的，当选择了程式开始运行后，洗衣机的

智能检测系统会根据所洗涤衣服的真正重量调

整所需要的时间。

5)

通过“自定义”键改变洗衣强度和洗衣时间

6)加漂洗

通过“加漂洗”键增加漂洗次数以得到最佳的

漂洗效果。当选择了额外的漂洗次数，相应的

指示灯会亮起。

{

5

{

6

}

7

- 调整洗涤用水量

- 调整洗涤时间

- 根据所选择的衣物布料类型控制漂洗

- 根据所选的衣物布料类型调整洗衣筒转动的频率

- 自动检测洗衣筒内泡沫情况，若泡沫过多，自动增加

漂洗用水量

- 根据真实洗涤容量调整转速，避免衣物分布不平衡的

状况发生

8

9

10

14

洗衣时间

7)额外功能

通过“额外”键选择了某个功能后（预洗、更

洁净和夜间模式），相应的指示灯亮起。

8)“Wi-Fi”功能指示灯( )

当指示灯亮起时代表Wi-Fi正在工作中。Wi-Fi系统的介

绍在本说明书不作介绍。

只有特定的机型配置这个功能

9)“延迟开始”图标

当设置了延迟开始之后，“延迟开始”图标闪烁。

10) 洗涤重量检测

适用於棉质、化纤程式。

在每一个洗涤阶段，“洗涤重量检测”功能都能准确的检

测洗衣筒内真实的洗涤量。在开始洗涤的前几分钟内，

“洗涤重量检测”功能运作，根据真实的洗涤重量作出以

下的调整：

重

2 1

Eco 20°C 7 20° 20°

Baby 60°C 4,5 60° 60°

Daily 59

2,5 40° 40°

Rapid 30 2,5 30° 30°

Rapid 14 1 30° 30°

Dark Colours 3,5 40° 40° ( )

Auto Clean

Rinse - - -

Drain & Spin - - -

Shirts 1) 3,5 30° 30° ( )

Lingerie 1) 2 40° 60°

Wool & Silk 1 30° 30°

Delicates 2,5 40° 40°

Mixed 1) 3,5 40° 60° ( )

1) 7 40° 90° ( )

࿓ڤ।

程式

程式程式

最多

最多最多

洗衣量

千克

千克千克

溫度

溫度溫度設定

設定

設定設定

℃

℃℃

建议最高

使用衣粉

15

16

ቃ

ቃໂੑ۪࿓ڤ

ໂੑ۪࿓ڤ

ໂੑ۪࿓ڤໂੑ۪࿓ڤ

˄ˁˀʳᅝ࣋Ե۪ढΔᒔঅᣂړዞද॰Ζ

˅ˁˀʳףԵੑ۪ᕪࡉ෌ףᕪΔլ૞၌መ່೏ۯਐقΖ

Θቃੑੑ۪ᕪʳ˜ʳ

Θੑ۪ᕪ堚ੑ࿓ڤʳ˜˜ʳ

Θ۪ढਫႉᕪʳʳ

ૹ૞

ˀʳ֊֎ڇ๻ڶቃੑࡉ ˂ ࢨழၴ࢏ᙈऱ࿓ڤΔࠌشੑ۪෈Ζ

1）该程式

来选择洗衣强度和洗衣时间。

可以通过“

只有选择了预洗的时候才需要。

●

׌૞

׌૞׌૞

ሽᚘ

ሽᚘሽᚘ 堚ੑ

堚ੑ

堚ੑ堚ੑሽ෷

ሽ෷

ሽ෷ሽ෷ ඝ

ඝ

ඝඝ೓ሽ෷

೓ሽ෷

೓ሽ෷೓ሽ෷

ֽ੗

ֽ੗ֽ੗ᐰؚ

ᐰؚ

ᐰؚᐰؚ

ሽ෷

ሽ෷ሽ෷

࿇ᑷ

࿇ᑷ࿇ᑷցై

ցై

ցైցై

ሽ෷

ሽ෷ሽ෷ ່೏

່೏

່೏່೏ሽᄭ

ሽᄭ

ሽᄭሽᄭ

׌૞

׌૞׌૞অᙠ

অᙠ

অᙠঅᙠ࿭

࿭

࿭࿭

Amp. rating

ֽᚘ

ֽᚘֽᚘ

شֽ

شֽشֽၦ

ၦ

ၦၦ

*

࿓ڤ

࿓ڤ࿓ڤ

EN60456

شሽ

شሽشሽၦ

ၦ

ၦၦ

*

࿓ڤ

࿓ڤ࿓ڤ

EN60456

220-230V.

50Hz. 175 W. 400 W. 30 W. 1950 W. 2150 W. 10 A. 0,05-0,8

Mpa 55 L.

340 1300 1500 0,8 Kw.

技术资料型号 PTL 7105D

洗衣时间” 键

18

10

11.内衣洗

12.羊毛&丝绸

8.漂洗

9

洗涤和浸泡在高水位中交替进行，以保证最佳的洗

涤效果。

14.混合洗

独特的洗衣筒转动节奏和水位，使洗涤和漂洗达到最好的效果。

该程式是为最大洗涤容量设计的。通过间隔脱水，保证了最佳的

漂洗效果。而漂洗完后的最后一次脱水,可以让衣物得到最佳的脱

水效果。

15.棉麻洗

这个程式带有三次漂洗和一次中等速度的脱水（脱水转

料的衣物。

例如：可以在手洗衣物后使用该程式来漂洗。

大的转速进行脱水（转速可以通过“转速”键调整）

这是一个专门针对内衣服饰的洗衣程式。独特的洗衣

该程式可以彻底的清洗羊毛衣物而不对衣物造成任何的

损害。

这个程式能模拟

能为在衣物洗涤标签中注明“只能手洗”的衣物提供一

个完整的洗涤过程。包含了三次漂洗和一次较低转速的

脱水。

轻柔的手洗效果。

Rinse

Drain & Spin

Shirts

Lingerie

Wool & Silk

Delicates

Mixed

速可以通过“转速”键调整），该程式可应用於任何面

.排水&旋乾

这个程式用於排出洗衣机里面的水或者这个程式会以最

.恤衫洗

节奏，令内衣更洁净和更卫生。

13.纤柔

这是一个专为衫设计的新洗衣程序。恤

一般建議

堚ᑥࡉࠏ۩অ塄

堚ᑥࡉࠏ۩অ塄堚ᑥࡉࠏ۩অ塄

լ૞ࠌشܶڶ಺壄ګ։ࡉ ˂ ࢨ֚ஞֽࠐ堚ੑᖲߪ؆ຝΔشԫ౳ᛘ

ؒ

ࢳੑբߩജΖ

ੑ۪ᖲ׽Ꮑ֟๺অ塄Κ

ϥʳʳʳݫ೓෬൷࣍ዞදऱᖮᓄΖ

ϥʳʳʳ堚ᑥװۆᕪࢼഴऱ௑ᐋΖ

ϥʳʳʳ堚ᑥመៀጻΖ

ϥʳʳʳჺฝࢨ९ழၴ޲ࠌشੑ۪ᖲΖ

੡Աᚥܗঅᥨੑ۪ᖲ

੡Աᚥܗঅᥨੑ۪ᖲ ʿʳݫ೓ᖮᓄ෬൷ؚ֗ၲᖲ॰ᅝ堚ੑ࿓ݧݙ࿨Ζ

ʿʳݫ೓ᖮᓄ෬൷ؚ֗ၲᖲ॰ᅝ堚ੑ࿓ݧݙ࿨Ζ

ʿʳݫ೓ᖮᓄ෬൷ؚ֗ၲᖲ॰ᅝ堚ੑ࿓ݧݙ࿨Ζ੡Աᚥܗঅᥨੑ۪ᖲ ʿʳݫ೓ᖮᓄ෬൷ؚ֗ၲᖲ॰ᅝ堚ੑ࿓ݧݙ࿨Ζ

清潔過濾網

清潔過濾網清潔過濾網

洗衣機設有特別過濾網隔阻大物件，它位於機器背後的前面板底座，它們會阻塞排水管，如

錢幣，衣鈕等。這樣可容易隔除。

提議最好清潔過濾網當洗衣機未能適當沖洗衣服及它不能正常排出污水。

提議最好清潔過濾網當洗衣機未能適當沖洗衣服及它不能正常排出污水。提議最好清潔過濾網當洗衣機未能適當沖洗衣服及它不能正常排出污水。

有需要清潔過濾網時，過程如下；

ϥʳʳʳ用底部作托盤收集過濾網流出的水。

ϥʳʳʳ移除和清潔過濾網。

ϥʳʳʳݙګ清潔後，重置過濾網以反次序重覆以上步驟。

19

清潔洗衣劑抽屜和格層

৬ᤜழൄ堚ᑥੑ۪ᕪࢼഴऱ ˆ ଡ௑ᐋ ʻ ቃੑΔ堚ੑࡉਫႉᕪ ʼ

ฝ┨ੑ۪ᕪࢼഴΔ堚ᑥ৵࣋

ڃ଺ۯΖ

૞ฝೈࡉᇘ๻ੑ۪ᕪࢼഴΔࠉᅃᅃׂխ᧩قऱޡᨏΖ

ฝೈ

Ёਊਊၨ ˔Ζ

Ёਊထਊၨނੑ۪ᕪࢼഴٻ؆ࢮΖ

Ёฝߨࢼഴࡉ堚ᑥΖ

Ё࣠

ڕቃੑΰ Iαࡉ堚ੑΰIIα௑ᐋΔ৬ᤜ堚෻ٚ۶ੑ۪ᕪ೓ූྲྀ

塒ढΔ،ᄎॴႾੑ۪ᕪੌԵዞදΖ

Ёڇਫႉᕪ௑ᐋΔॴ௑ΰSα๻ڇࢼഴ৵ຝΔᚨނ،ࢮנΖ

堚෻ᄎॴႾ௑ᐋ֞੐ऱࡐ᧯ྲྀ塒ढΖΓ

ᇘᆜ

ЁڕቹᇘԵסჇΖ

Ёނੑ۪ᕪࢼഴංԵ॰փऱ៲ۯΰCαΔऴ۟סჇ׬ԵۯᆜΖ

20

Mærke:	Philco
Kategori:	Vaskemaskiner
Model:	PTL 7105 D

Philco PTL 7105 D Manual

Produkt Specifikationer

Har du brug for hjælp?

Vaskemaskiner Philco Manualer

Vaskemaskiner Manualer

Nyeste Vaskemaskiner Manualer
