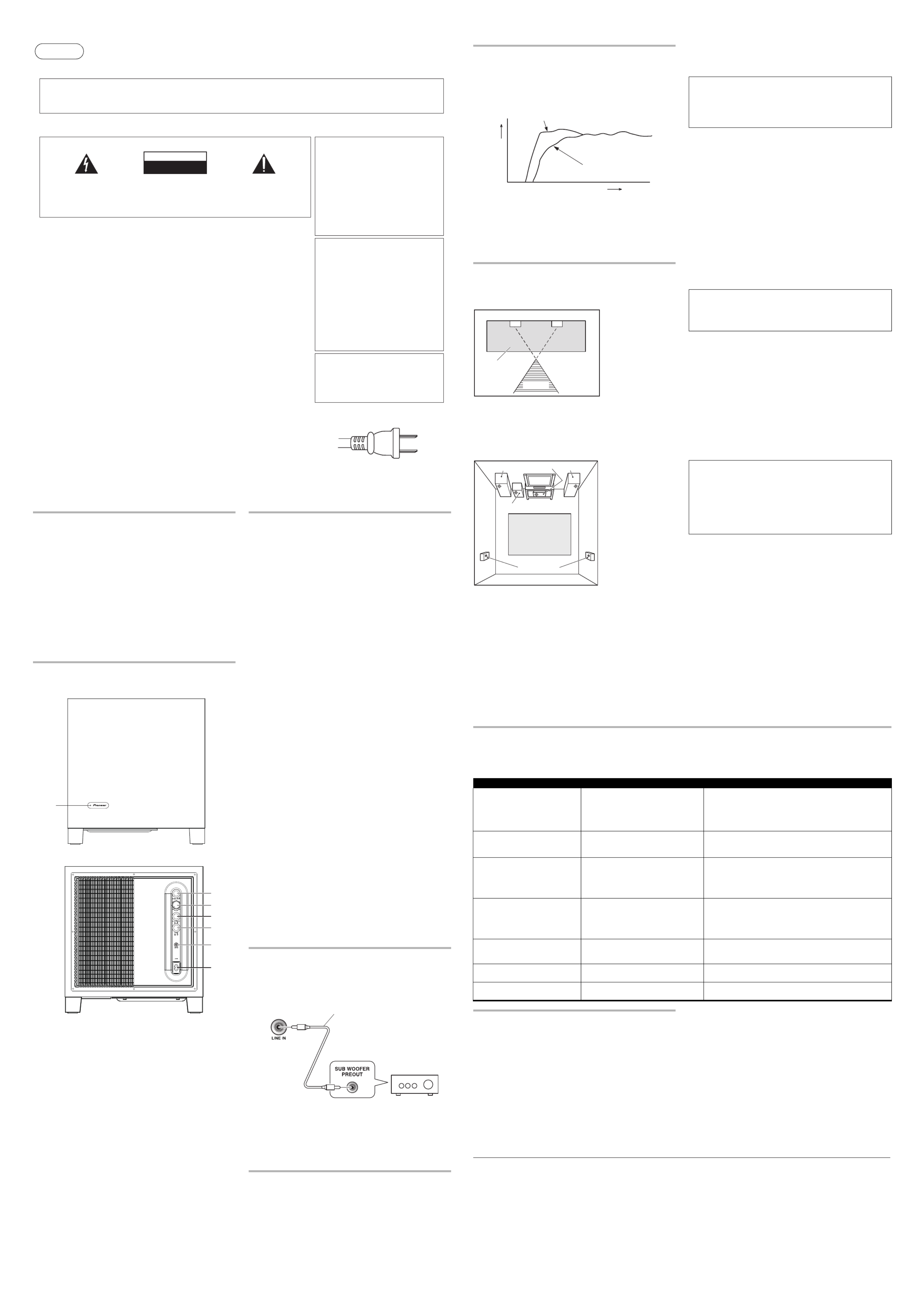

Side 1/2

ACCESSORY ITEMS

• Power cable

Taiwan, Mexico, Middle Latin America models x 2

All other models x 1

• RCA plug cord x 1

• Operating instructions

FEATURES

• Deep bass sound

• Phase Control engineering

• Simply and clean design

IN COMBINATION WITH SPEAKERS

The frequency characteristics of the S-51W combined with small-size

speakers are shown below. As shown in these figures, the low

frequency range is improved.

• These special characteristics are obtained in an echoless chamber.

The effect of an additional S-51W in an ordinary listening room is

better than the chart indicates when positioned adequately.

• With playback of Dolby* Digital, establishment of a special channel

for the subwoofer is recommended; and with playback of LFE (Low

Frequency Effect: sound effect like the rumbling of the earth, whose

purpose is to intensify the force of the video), the S-51W is especially

effective.

* Manufactured under license from Dolby Laboratories. “Dolby” and

the double-D symbol are trademarks of Dolby Laboratories.

INSTALLATION

Speaker Installation

•Subwoofer Installation Criteria

1 Left speaker

2 Right speaker

3 Recommended

installation range

for the subwoofer

4 Listening position

The subwoofer plays back the bass in monaural, making use of the fact

that the human ear is not very sensitive to the direction of low-pitched

sound. Because of this, the subwoofer can be installed almost

anywhere. If it is installed too far away, however, the sound from the

other speakers may become unnatural.

•An example of speaker positioning

1 Front left speaker

2 Center speaker

3 Front right speaker

4 Subwoofer

5 Listening area

6 Rear left speaker

7 Rear right speaker

NOTES:

• Position the left and right channel speakers at equal distances from

the TV set and approximately 1.8 meters from each other.

• Install the center speaker above or below the TV so that the sound of

the center channel is localized at the TV screen.

• The rear (surround) speakers are most effective when installed in

parallel locations directly to the side, or slightly behind, the listener,

at a level about 1 meter above the listener’s ears.

Installation Precautions

• Do not attach the subwoofer to the wall or ceiling. They may fall off

and cause injury.

• Install the unit in a well-ventilated location where it will not be

exposed to high temperatures and high humidity.

• Do not place the unit near stoves or other heating equipment or at

locations exposed to direct sunlight, as these can have an adverse

effect on the cabinet and internal components. Also, do not install

the unit where there is too much dust or high humidity, as these can

cause malfunctioning or breakdowns. (Avoid cooking tables and

other locations where the unit would be exposed to heat, steam and

soot.)

• Do not place heavy or large objects on top of the speaker. Doing so

could provoke the speaker to fall, causing damages or bodily injury.

If speakers fall from their installation locations, they may suffer

irreparable cracks in their finish.

• Keep the unit away from devices such as cassette decks which are

sensitive to magnetic fields.

• Do not place the speaker on an unstable surface, as doing so may

cause the speaker to fall and cause damage or bodily injury.

• Do not place cups, glasses, or other containers with fluids on top of

the units, since the units may be damaged if the liquid spills.

• The installation location selected should have a sturdy floor surface.

Mounting the speaker on a long-pile carpet should be avoided, since

the carpet may touch the driver’s diaphram, causing distorted

sound.

• Please install this unit away from the antenna cable of the tuner, as

noise can be caused with installation close to the antenna cable. In

such a case, use this unit at a position away from the antenna and

the antenna cable, or when playback of extra bass is not required,

switch off the power for this unit.

Small-size s eake s + S-51Wp r

Small-size s eakep r

FREQUENCY (Hz)

RESPONCE (dB)

1 2

2 3

6 7

CAUTION:

When installing the center speaker on top of the TV, be sure to

secure it with tape or some other suitable means.

Otherwise, the speaker may fall from the TV due to external shocks

such as earthquakes, and it may lead to endangering those nearby

or damaging the speaker.

The subwoofer is not magnetically shielded and so should not be

placed near a CRT-based TV or color monitor. Magnetic storage

media (such as floppy discs and tape or video cassettes) should

also not be kept close to the subwoofer.

MAINTENANCE OF EXTERNAL SURFACES:

• Clean the surface by wiping with a soft, dry cloth.

• When the surfaces are very dirty, wipe with a soft cloth dipped in

some neutral cleanser diluted five or six times with water, and

wrung out well, and then wipe again with a dry cloth. Do not use

furniture wax or cleaners.

• Never use thinners, benzine, insecticide sprays and other

chemicals on or near this unit, since these will corrode the

surfaces.

PANEL FACILITIES

FRONT PANEL

REAR PANEL

1 Power Indicator (STANDBY/ON)

Lights blue when the power has been switched ON.

NOTE:

• The power is still supplied even when the power indicator is off. The

power plug (interrupter) must be unplugged in order to completely

cut the power supply. When not using this product for long periods

of time, such as when traveling, unplug the power cord (interrupter)

from the power outlet for safety purposes. Failure to do so could lead

to fire.

2 Power switch (POWER)

Switches the subwoofer between ON and OFF.

3 Volume knob (VOLUME)

Sets the subwoofer volume.

• Turn the knob slowly from the MIN position.

• With this unit, the bass level can be independently set, so do not

turn up the bass on the AV amplifier.

4 Auto Standby switch (AUTO STANDBY)

Turning the Auto Standby function on or off.

NOTE:

• The default setting for Auto Standby switch is ON.

Auto standby function

The power is automatically set to the standby mode (off) if there is no

input signal for approximately 12 minutes (the power indicator turns

red). The power automatically turns on when a signal is input. The auto

standby function is deactivated when Auto Standby switch is set to OFF.

NOTE:

• There may be cases where a connected component outputs noise or

some other non-audio signal which causes this system to

automatically power on when in Auto Standby mode. If this happens,

switch off the Auto Standby mode and switch the system on/off

manually.

5 Phase switch (PHASE)

When set to 180°, the output phase becomes the reverse of the input

signal, and when set to 0°, it is in the same phase as the input signal.

• Normally, the switch is set to 0°.

But when the sound connection between the subwoofer and the

left and right speakers sounds unnatural, try switching to 180

° and

set the switch in the position where the sound is natural.

6 Line Level Input terminal (LINE IN)

Connect to the SUBWOOFER PREOUT terminal of an amplifier or

receiver, with the specially provided RCA plug cord.

7 AC IN

• Connect the power cord to the powered subwoofer unit’s AC IN.

• Connect the power cord to a AC socket.

CONNECTIONS

Before making or changing any connections, switch off the power

and disconnect both this unit and the amplifier/receiver from the

AC outlet.

LINE LEVEL CONNECTION

Connect the set's LINE IN terminal to the amplifier or receiver's

SUBWOOFER PREOUT terminal using the included RCA pin cord.

NOTE:

• When connected to the PREOUT terminal for surround center

channel on the amplifier or receiver, the bass is heard only on the

center channel, so it will be insufficient.

OPERATION

For details regarding operating part functions, refer to PANEL

FACILITIES above.

1. Turn the POWER switch (2) ON.

• If the unit’s power cord is connected to a switched AC outlet on

the amplifier or receiver and the switch is left ON, the unit can be

turned ON/OFF together with the amplifier or receiver.

• If the unit cannot be connected to the amplifier or receiver, turn

the power to the amplifier or receiver ON before turning the power

to the unit ON. When turning the power OFF, turn the power to the

unit OFF before turning the power to the amplifier or receiver OFF.

2. Operate the amplifier or receiver and adjust the volume of the

other speakers.

3. Adjust the volume of the bass with the VOLUME knob (3).

• When necessary, operate the PHASE switch (5) and then adjust

with the VOLUME knob (3).

4. Turn the POWER switch (2) OFF.

• The power indicator disappears.

1STANDBY/ON

Rear Panel Su lied RCA lug co dpp p r

TROUBLESHOOTING

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the

points below. Sometimes the trouble may lie in another component. and electrical appliances be Investigate the other components ing used. If the

trouble cannot be rectified even after exercising the checks listed below, ask your nearest PIONEER authorized service center or your dealer to carry

out repair work.

SPECIFICATIONS

Cabinet ............................................................Bass-reflex, floor-standing type

Speaker..................................................................................... 20 cm cone type

Power Amplifier Continuous Power Output (RMS)

Taiwan, Mexico, Middle Latin America models .............130 W/6 Ω (100 Hz)

All other models................................................................150 W/6 Ω (100 Hz)

Input (sensitivity at 100 Hz)

LINE LEVEL (RCA jack) .........................................................................190 mV

Outline Dimension ..........................360 mm (W) x 382 mm (H) x 360 mm (D)

Weight (without package)....................................................................... 13.5 kg

Power Requirements

Taiwan, Mexico, Middle Latin America models .......110 V to 127 V~, 60 Hz

All other models............................................... 220 V to 240 V~, 50 Hz/60 Hz

Power Consumption..................................................................................130 W

Power consumption in standby.................................................. 0.45 W or less

Specifications and design subject to possible modification without

notice, due to improvements.

Published by Pioneer Corporation.

SYMPTOM CAUSE REMEDY

1 No power is being supplied

(Indicator does not light up when

power switch is turned on.)

• Power supply plug is not correctly

inserted.

• Insert plug securely.

2 No sound

(Indicator is lit.)

• Connection of accessory RCA plug

cord is wrong or disconnected.

• .VOLUME knob is set to MIN

• Check again and connect correctly.

• Turn clockwise slowly.

3 Sound is distorted. • Level is too high.

• Input level is too high.

• Turn the VOLUME knob counter-clockwise to lower the level.

• Turn the amplifier’s output level (volume, bass control, bass

boost) counter-clockwise to lower the level.

4 Howling noise occurs. • No power supplied to the amplifier.

• Subwoofer level is set too high.

• Connect an amplifier and supply power.

• Place the subwoofer a good distance from speakers. Turn the

VOLUME knob counter-clockwise to lower the volume.

5 Much noise when listening to

AM or FM broadcasts.

• The AM loop antenna or the FM indoor

antenna is close to this unit.

• Increase the distance between the AM or FM antenna (for

indoor use) and this unit.

6 Sound is broken. • Auto standby function is on. • Turn the auto standby function off.

7 Power indicator is lit red. • Auto Standby function is on. • Turn the auto standby function off.

Operating Instructions

Manual de instrucciones

S-51W

POWERED SUBWOOFER

ALTAVOCES DE GRAVES SECUNDARIOS ENERGIZADOS

WARNING

This equipment is not waterproof. To prevent a fire

or shock hazard, do not place any container filled

with liquid near this equipment (such as a vase or

flower pot) or expose it to dripping, splashing, rain

or moisture.

D3-4-2-1-3_B_En

WARNING

The voltage of the available power supply differs

according to country or region. Be sure that the

power supply voltage of the area where this unit

will be used meets the required voltage (e.g., 230 V

or 120 V) written on the rear panel.

D3-4-2-1-4_A_En

Befo e r plugging in for the first time, read the following

section carefully.

WARNING

To prevent a fire hazard, do not place any naked

flame sources (such as a lighted candle) on the

equipment.

D3-4-2-1-7a_A_En

VENTILATION CAUTION

When installing this unit, make sure to leave space

around the unit for ventilation to improve heat

radiation (at least 15 cm at top, 15 cm at rear, and

15 cm at each side).

WARNING

Slots and openings in the cabinet are provided for

ventilation to ensure reliable operation of the

product, and to protect it from overheating. To

prevent fire hazard, the openings should never be

blocked or covered with items (such as newspapers,

table-cloths, curtains) or by operating the

equipment on thick carpet or a bed.

D3-4-2-1-7b_A_En

CAUTION

The POWER switch on this unit will not com letely p

shut off all owe f om the AC outlet. Since the p r r

p r r r rowe co d se ves as the main disconnect device fo

the unit, you will need to un lug it f om the AC outlet p r

to shut down all owep r. The efo e, make su e the r r r

unit has been installed so that the owe co d can p r r

be easily un lugged f om the AC outlet in case of an p r

accident. To avoid fi e haza d, the owe co d should r r p r r

also be un lugged f om the AC outlet when left p r

unused fo a long e iod of time (fo exam le, when r p r r p

on vacation).

D3-4-2-2-2a_A_En

POWER-CORD CAUTION

Handle the owe co d by the lug. Do not ull out the p r r p p

p r r p rlug by tugging the co d and neve touch the owe

co d when you hands a e wet as this could cause a r r r

sho t ci cuit o elect ic shock. Do not lace the unit, a r r r r p

p r r p r r r piece of fu nitu e, etc., on the owe co d, o inch the

co d. Neve make a knot in the co d o tie it with othe r r r r r

co ds. The owe co ds should be outed such that they r p r r r

a e not likely to be ste ed on. A damaged owe co d r pp p r r

can cause a fi e o give you an elect ical shock. Check r r r

the owe co d once in a while. When you find it p r r

damaged, ask you nea est PIONEER autho ized r r r

se vice cente o you deale fo a e lacement.r r r r r r r p

S002*_En

Thank you for buying this PIONEER product. Please read through these operating instructions so you will know how to operate your model properly. After you

have finished reading the instructions, put them away in a safe place for future reference.

In some countries or regions, the shape of the power plug and power outlet may sometimes differ from that shown in the explanatory drawings. However, the

method of connecting and operating the unit is the same.

For Taiwan and Mexico exclusively

Taiwanese two in flat-bladed lugp p

WARNING:

Do not climb or sit on this unit. Be especially

careful when children are around. The unit may be

damaged, or may fall over causing injury.

This oduct is fo gene al household u oses. Any pr r r p rp

failu e due to use fo othe than household u oses r r r p rp

(such as long-te m use fo business u oses in a r r p rp

r r r r r pestau ant o use in a ca o shi ) and which

r r r p r r r requi es e ai will be cha ged fo even du ing the

wa anty e iod. rr p r

K041_En

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

The lightning flash with arrowhead symbol,

within an equilateral triangle, is intended to

alert the user to the presence of uninsulated

“dangerous voltage” within the product’s

enclosure that may be of sufficient

magnitude to constitute a risk of electric

shock to persons.

CAUTION:

TO PREVENT THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR

BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

IMPORTANT

D3-4-2-1-1_A1_En

If the AC plug of this unit does not match the AC

outlet you want to use, the plug must be removed

and appropriate one fitted. Replacement and

mounting of an AC plug on the power supply cord of

this unit should be performed only by qualified

service personnel. If connected to an AC outlet, the

cut-off plug can cause severe electrical shock. Make

sure it is properly disposed of after removal.

The equipment should be disconnected by removing

the mains plug from the wall socket when left unused

for a long period of time (for example, when on

vacation). D3-4-2-2-1a_A1_En

Operating Environment

O e ating envi onment tem e atu e and humidity:p r r p r r

+5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH

(cooling vents not blocked)

Do not install this unit in a oo ly ventilated a ea, o in p r r r

locations ex osed to high humidity o di ect sunlight (o p r r r

st ong a tificial light) r r

D3-4-2-1-7c*_A1_En

English

Produkt Specifikationer

Mærke:	Pioneer
Kategori:	Højttaler
Model:	S-51

Har du brug for hjælp?

Hvis du har brug for hjælp til Pioneer S-51 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Højttaler Pioneer Manualer

Pioneer XW-BTSA1-K Manual

13 September 2024

Pioneer S-H320V-QL Manual

11 September 2024

Pioneer S-ES3TB Manual

9 September 2024

Pioneer S-IC621D Manual

5 September 2024

Pioneer XPRS1182ST Manual

3 September 2024

Pioneer XPRS1152ST Manual

3 September 2024

Pioneer XPRS152 Manual

3 September 2024

Pioneer Elite S-IC891A Manual

2 September 2024

Pioneer S-1EX Manual

30 August 2024

Pioneer UD-RP351PRO Manual

24 August 2024

Højttaler Manualer

Nyeste Højttaler Manualer

Speed-Link Avenza SL-8206-BK Manual

17 November 2024

Speed-Link Methron SL-8325-BK Manual

17 November 2024

Cerwin-Vega XLS-215 Manual

16 November 2024

Fenton SHF700W Manual

16 November 2024

JL Audio C2-650 Manual

16 November 2024

ELAC 4 Pi PLUS.2 Manual

16 November 2024

Genelec 8381A Manual

15 November 2024

Focal Chora Center Stand Manual

15 November 2024

RCF HD 10-A MK5 Manual

15 November 2024

Genesis Helium 800BT Manual

15 November 2024
