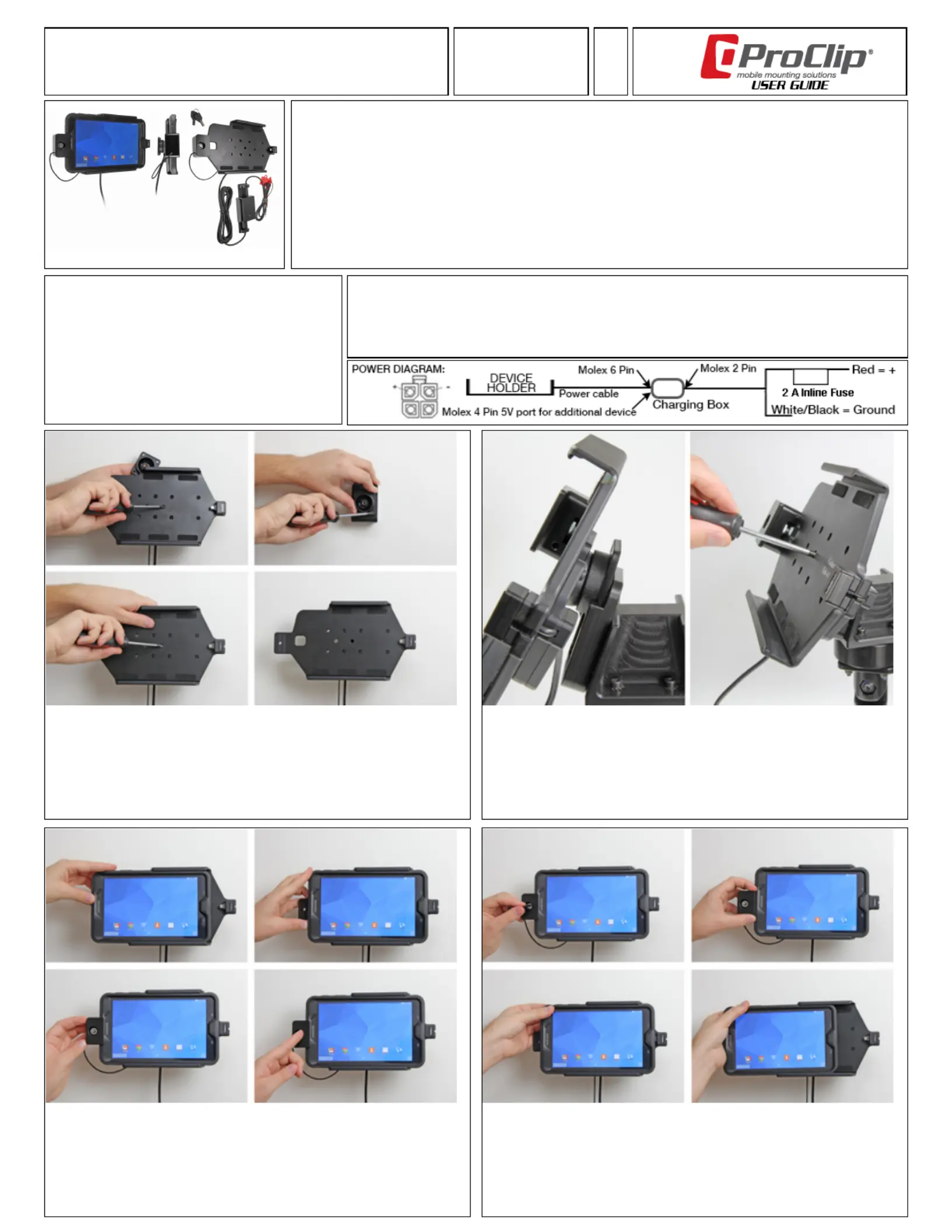

Item No. 247073 - Key Lock Charging Holder for
Hard Wired Installation
Compatible with:
Samsung Galaxy Tab 4 8.0 w/ Otterbox Defender
Important:
Self-installation instructions and advice are provided for your
convenience. It is your responsibility to determine if you have the
knowledge, skills, and physical ability required to properly perform an
installation. ProClip USA, LLC. shall have no liability for damage or
injury resulting from the installation or use of any ProClip or third
party products. It is your responsibility to ensure that all products are
installed in adherence with local laws and regulations and in such a
manner as to allow a vehicle to be operated safely and without
distraction. ProClip USA, LLC. product warranties do not cover the
installation, removal or re-installation of any product.
Power Rating: Input Voltage: 10-30 VDC, 1.1A / Output Voltage: 5 VDC, 2A.
Wiring: Follow the diagram below. Route the wire from the holder behind the dashboard and connect it to a
power source; White or Black to ground or the vehicle chassis, and Red via the 2A in-line fuse to a positive power
source. Professional installation is recommended.
Attention: Carefully read all instructions and review the images before installing this product.
1. To attach the holder to a mount:
Unscrew the screw in the center of the holder so you can remove the tilt swivel
base plate on the back. Place the base plate over the matching holes in the
face plate of your mounting bracket. Attach the base plate by using the
applicable screws enclosed - self-tapping screws if the mount has small holes
or machine screws with nuts if the mount has larger holes.
Place the holder onto the base plate and attach it with the center screw. Adjust
the holder to the preferred position and tighten the screw rmly.
3. To insert the tablet into the holder:
Slide the tablet carefully into the holder. Then slide the lock block onto the left
part of the holder. Push on the center tab in the lock until you hear it click into
place and lock. The holder and tablet is in place. If you want to rotate the tabletNote:
between portrait and landscape view, or angle it for a better view, then loosen
the center screw in the holder slightly.
2. To attach the holder to a Locking Move Clip (quick release plate):
Slide the tilt swivel base plate on back of the holder into the clip. Push until it clicks
into place. Adjust the holder to the preferred position and tighten the center screw
rmly to keep the holder in its position. Then, if you want easier angling or rotation of
the holder between landscape and portrait position, loosen the screw slightly.
To remove the holder from the Locking Move Clip:
Press on the release tab and pull the holder out of the clip.
4. To remove the tablet from the holder:
Unlock the holder with the enclosed key and pull the lock block away from the holder.
Then slide the tablet carefully out of the holder.
For wiring and connecting to a power source, please follow the diagram further up on
this page.
