QSC SR-5152 Manual

QSC Højttaler SR-5152

Læs nedenfor 📖 manual på dansk for QSC SR-5152 (1 sider) i kategorien Højttaler. Denne guide var nyttig for 3 personer og blev bedømt med 4.5 stjerner i gennemsnit af 2 brugere

Side 1/1
4 3 2 1
4 3 2 1
A
B
C
D
A
B
C
D
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION
WHICH IS THE PROPERTY OF QSC AUDIO PRODUCTS, THAT
MAY NOT BE DISCLOSED, REPRODUCED OR USED WITHOUT
EXPRESS WRITTEN CONSENT FROM QSC AUDIO PRODUCTS.
TOLERANCES ARE:
ANGLES
1/2
MATERIAL
FINISH
DO NOT SCALE DRAWING
DRAWN
CHECKED
MFG ENG
QA CHECK
MODEL INFO:
DRAWING INFO:
APPROVALS DATE
(DD-MMM-YY)
SCALE: SHEET
SIZE CAGE CODE DRAWING NO. REV
QSC AUDIO PRODUCTS, LLC
1675 MACARTHUR BOULEVARD
COSTA MESA, CA 92626
00PW4
UNLESS OTHERWISE SPECIFIED
DIMENSIONS IN MILLIMETERS [IN]
DECIMALS
.X .5[.02]
DECIMALS
.XX .25[.010]
DEBURR EDGES .25 [.010] R MAX
222
[222]
813
[813]
445
[445]
386
[386]
212
[212]
215
[215]
384
[384]
87
[87]
175
[175]
326
[326]
REVISIONS
DATE BY
DESCRIPTIONREV
17-MAR-15SSRELEASE FOR SALES AND MARKETINGA
S. STASIAK
M. HARRIS
-
-
17-MAR-15
23-MAR-15
FG-005152-2D.1.2
FG-005152-3D.1.0

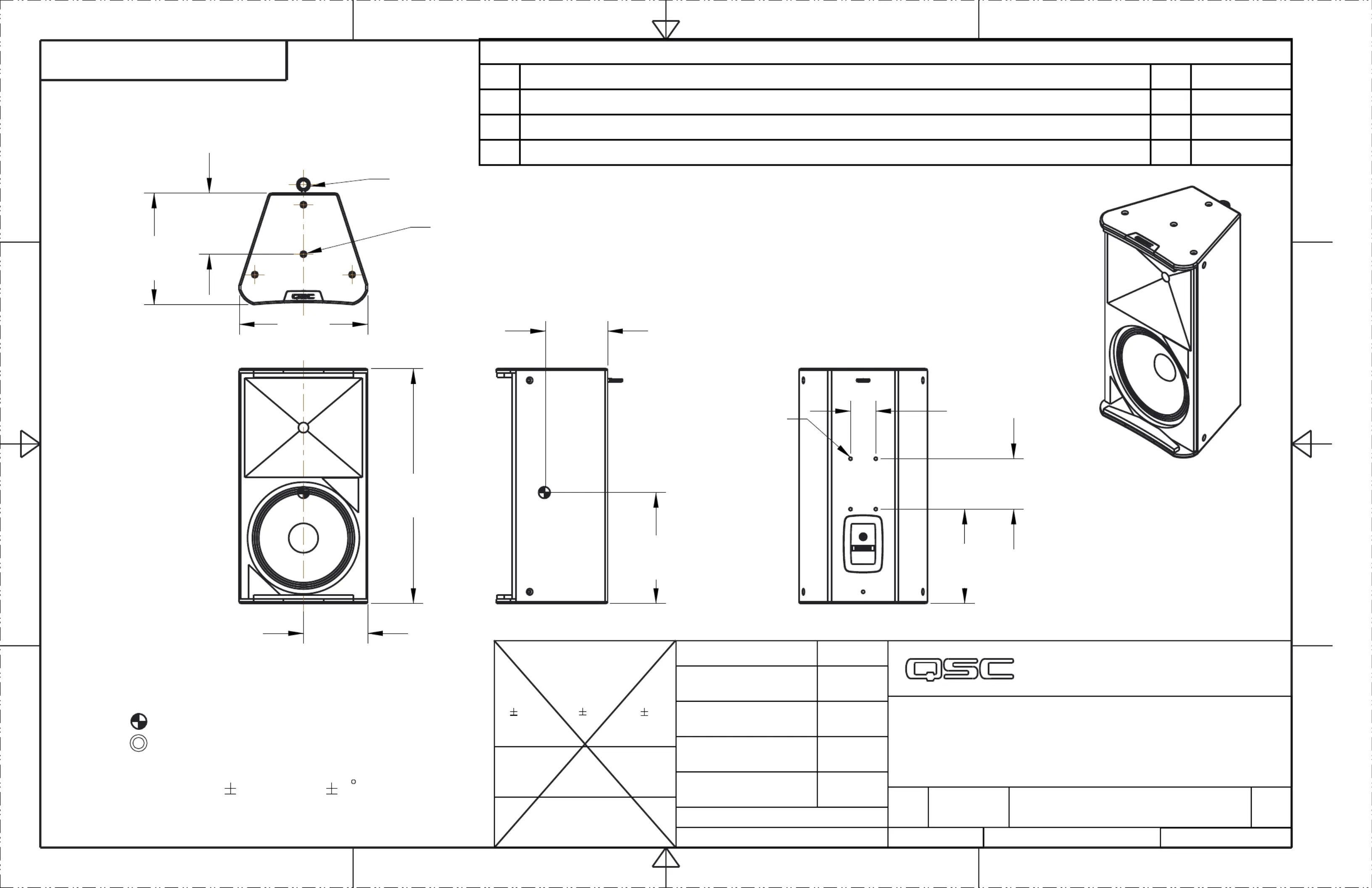

SPEAKER, FINISHED, SR-5152
BFG-005152-2D A
1 OF 1
0.091
SR-5152
5. PARTS ARE SYMMETRICAL ABOUT CENTER LINES
UNLESS OTHERWISE NOTED.
4. SYMBOL INDICATES CENTER OF BALANCE.
3. SYMBOL INDICATES SUSPENSION POINT,
14 TOTAL: M10-1.5 THD.
2. TOLERANCES (MM): X 5, ANGLES: 1 .
1. NET WEIGHT APPROX. 36.3 KG (80 LBS)
NOTE: UNLESS OTHERWISE SPECIFIED
MOUNTING LOCATIONS TOP/BOTTOM
USES M10 FASTENERS
INSTALL SAFETY LINE THRU
M10 EYE BOLT
4X M8 THD.
