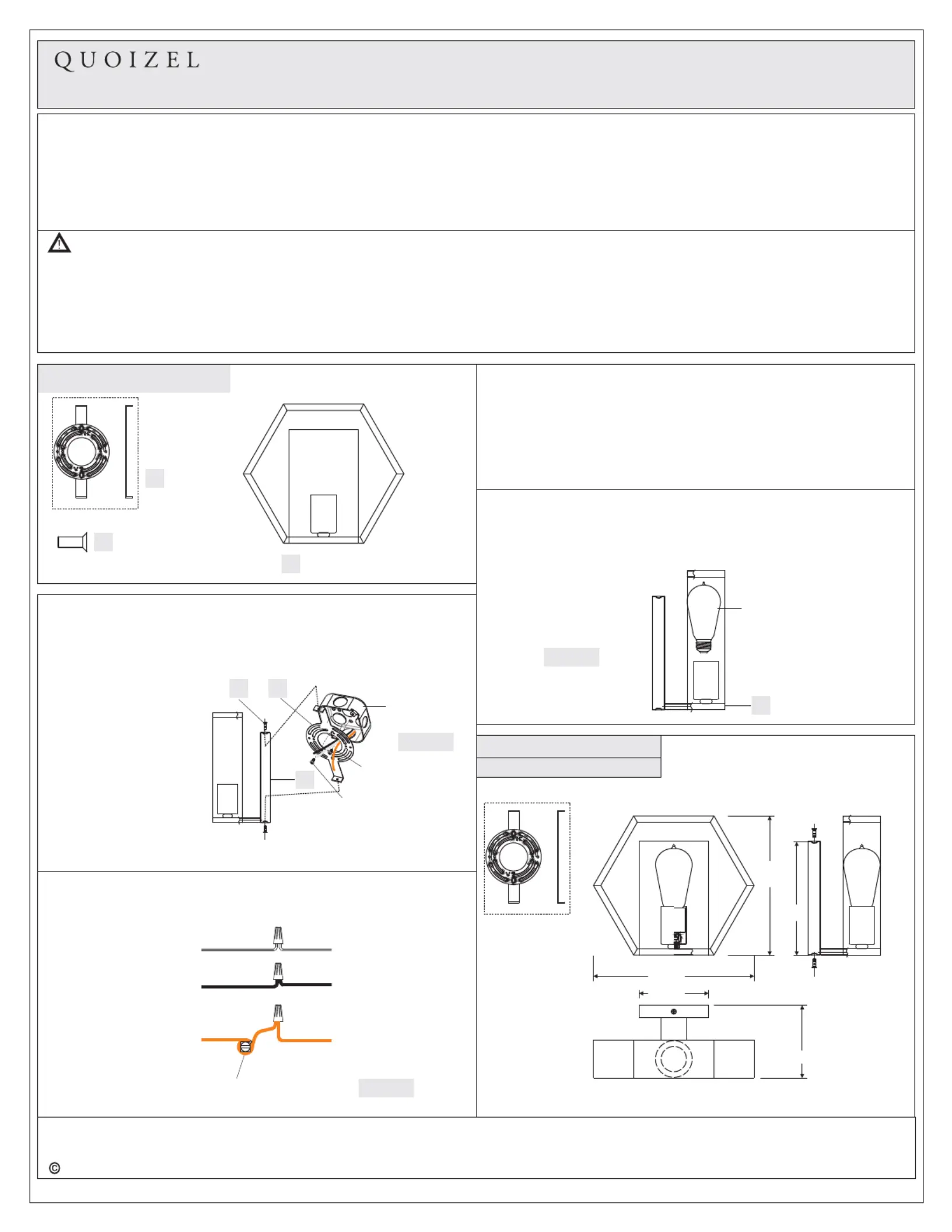

Assembly Instruction Sheet #IS-BSK8701EK
For Style BSK8701EK
Please go to for product cleaning tips. Go to the selection.
(1) A19 Medium Base Bulb 100W Maximum, Medium Base Vintage Bulb is recommended, bulbs not included.
15-30 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement
parts.
www.quoizel.com Care + Maintenance
Light Source:
Estimated Assembly Time:
Preparation:
Tools Required: Flathead screwdriver, Phillips screwdriver,pliers, wire cutters, wire strippers, electrical tape, safety glasses.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
Package Contents
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
Fixture Body
x 1
2018 QuoizelInc. ReleasedDate:2018-03-02
C
B
Mounting
Screw
x 2
Crossbar
x 1
A
STEP 1 Install Crossbar and Fixture Body-
A. Pass the supply wires through the Crossbar (A). Attach the
Crossbar (A) to Outlet Box with the head of Green Ground Screw
facing you. Secure it with Outlet Box Screws (not included). Tighten
until snug.
Outlet
Box
Outlet Box Screw
(not supplied)
Supply Wires and
Ground Wire
A
C
B
Figure 1
B. Refer to Step 2 for
wiring connections.
C. Attach the Fixture
Body (C) over the
Crossbar (A) and
secure with Mounting
Screws (B). Tighten
until snug with
screwdrivers.
Figure 2
Green Ground Screw
on the Crossbar
White wire
from outlet box White wire
from fixture
Black wire from
outlet box (or Red)
Black wire
from fixture
Bare, or Green
Ground wire
from outlet box
Ground wire
from Fixture
STEP 2 - Wire Connections
A. Wrap bare or green ground wire around green ground screw on the
STEP 3 Install the Bulb-
A. Insert the bulb onto the socket and screw snugly into place.
Your fixture is now assembled and ready to use. Enjoy!
Figure 3
C
Vintage Bulb
(recommended
but not included)
FINISH: EARTH BLACK
BSK8701EK
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/4"
8.5”
7”
4.5”
10”
4.25”
(Step 2 Continued)
crossbar, no less than 2 inches from the end of the wire. Tighten the
green ground screw.
B. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined
together. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
