Quoizel Platinum PCDV8603C Manual
Læs nedenfor 📖 manual på dansk for Quoizel Platinum PCDV8603C (2 sider) i kategorien Lettelse. Denne guide var nyttig for 11 personer og blev bedømt med 4.5 stjerner i gennemsnit af 2 brugere
Side 1/2

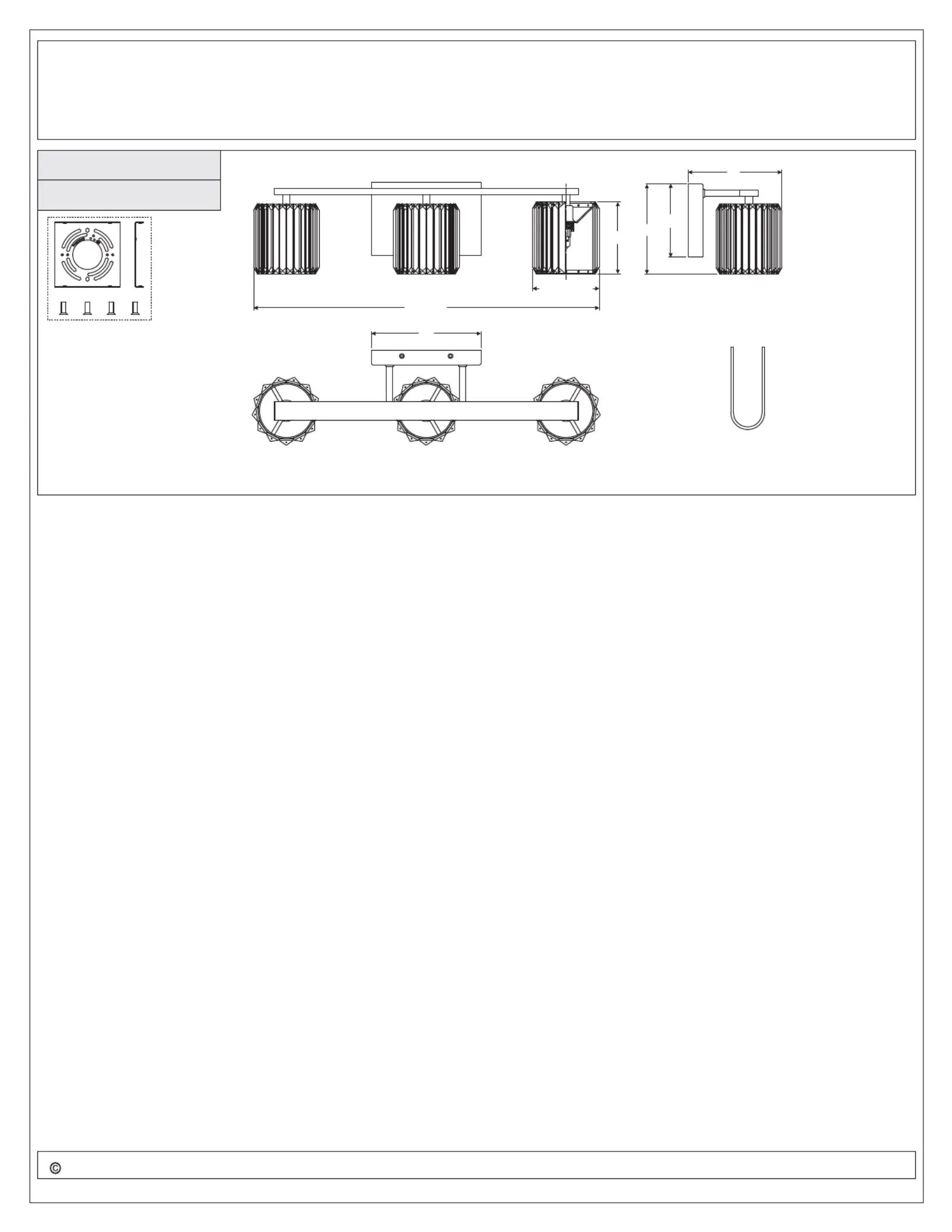

Package Contents
1of2
E
BLock Screw
x 4
Inner Backplate
x 1
A
Shade
x 3
D

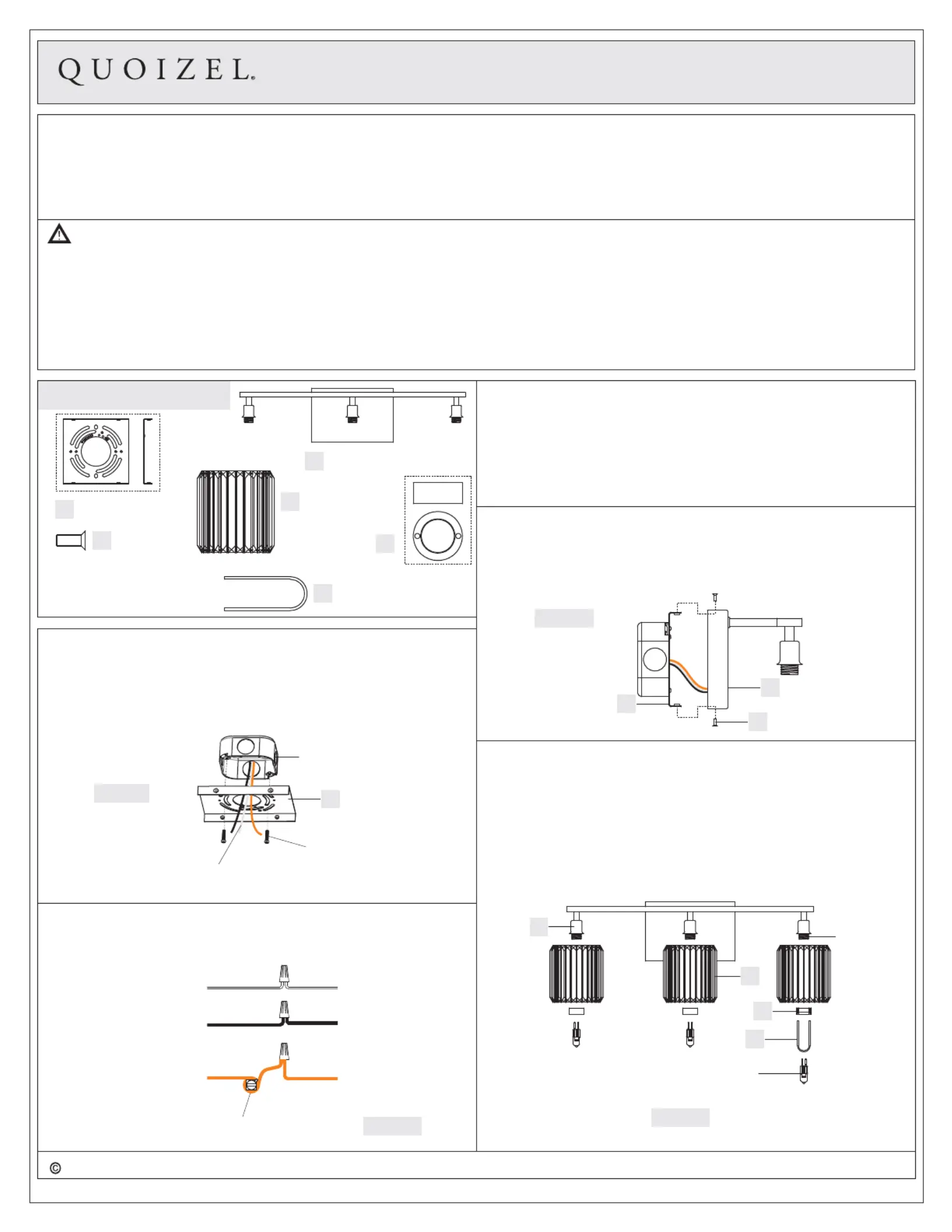

STEP 2 - Wire Connections
A. Wrap bare or green ground wire around green ground screw on the
STEP 1 Install Inner Backplate-
A. Pass the supply wires through Inner Backplate (A). Attach Inner
Backplate (A) to Outlet Box with the head of Green Ground Screw
facing you. Secure it with Outlet Box Screws (not included). Tighten
until snug.
Figure 1
Outlet Box
Outlet Box Screws
(not included)
A
Socket Collar Tool
x 1
F
Socket
Collar
x 3
C
For Style PCDV8603C
Installation Guide #IS-PCDV8603C
Please go to for product cleaning tips. Go to the selection.
.
(3) G9 Clear Xenon Bulbs 60W Maximum, bulbs not included.
Contact your original place of purchase.
www.quoizel.com Care + Maintenance
Light Source:
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses
Estimated Assembly Time:
Preparation:
20-30 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
Do not touch the bulb with bare hands use a cloth or glove.
2018 QuoizelInc. ReleasedDate:2018-12-17
visit us on-line at www.quoizel.com
Supply Wires and
Ground Wire
Figure 2
Green Ground Screw
on the Crossbar
White wire
from outlet box White wire
from fixture
Black wire from
outlet box (or Red)
Black wire
from fixture
Bare, or Green
Ground wire
from outlet box
Ground wire
from Fixture
(Step 2 Continued)
crossbar, no less than 2 inches from the end of the wire. Tighten the
green ground screw.
B. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
STEP 3 - Install Fixture Body
A. Attach Fixture Body (C) over Inner Backplate (A) and secure with
Lock Screws (B). Tighten until snug with screwdrivers.
C
A
B
Figure 3
STEP 4 - Install Shades and Bulbs
A. Place Shade (D) over the socket on the Fixture Body (C). By using
the Socket Collar Tool (F), thread the Socket Collar (E) onto the
socket to secure the Shade (D). Hand tighten until snug.
B. Insert bulbs onto sockets and push snugly into properly.
Your fixture is now assembled and ready to use. Enjoy!
Figure 4
G9 Clear Xenon
Bulb (not included)
D
CSocket
Fixture Body
x 1
E
F
