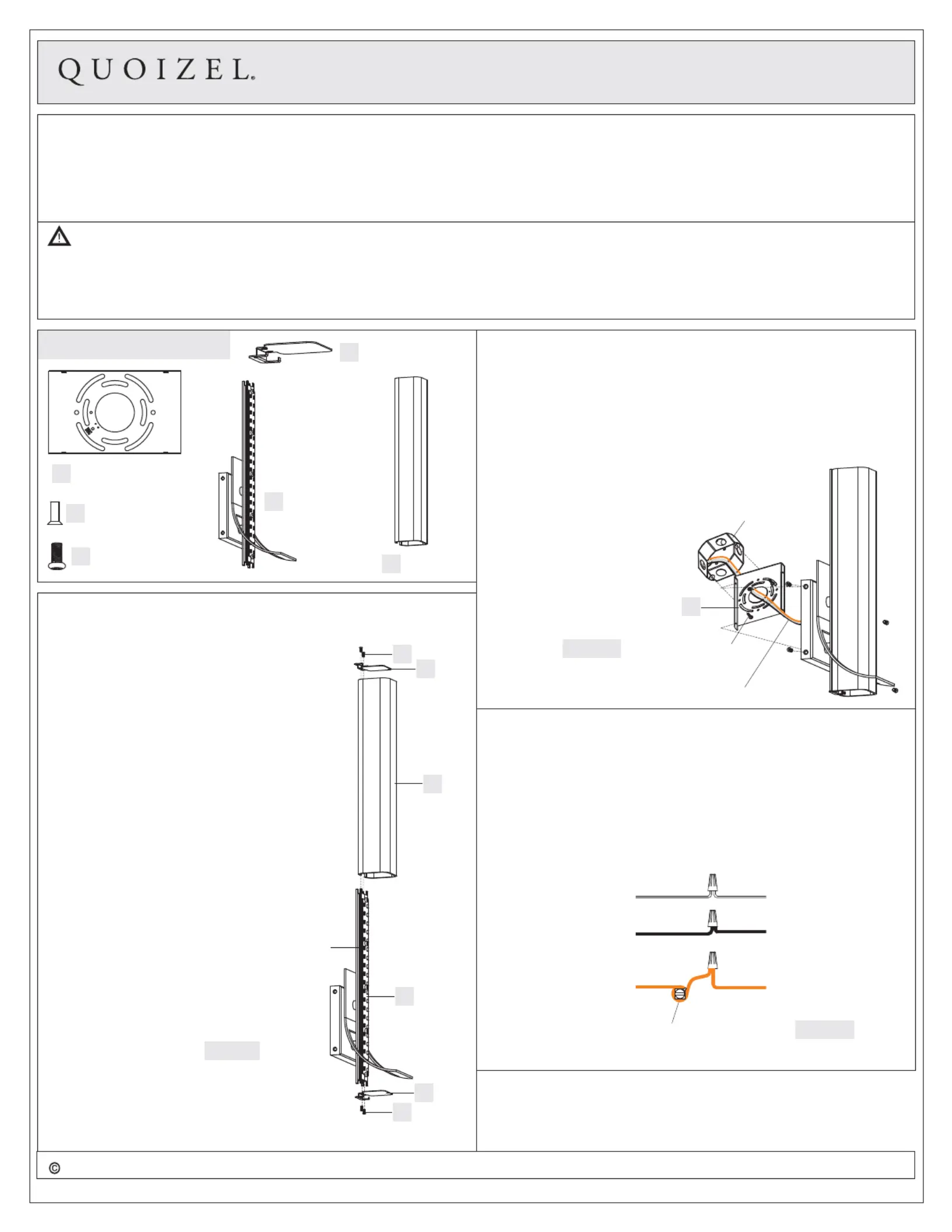

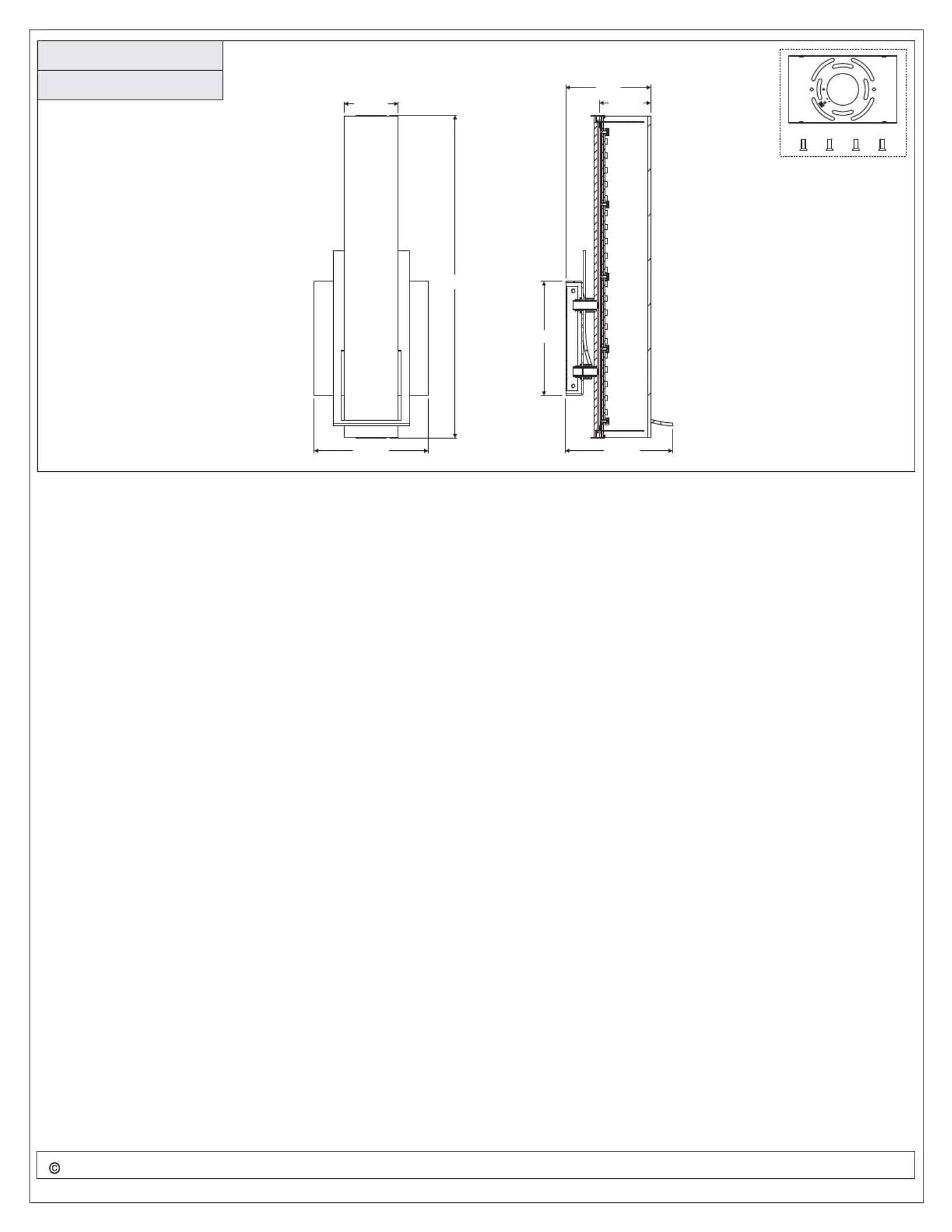

Package Contents
BMounting Screw
x 4
Inner Backplate
x 1
A
STEP 3 - Wire Connections
A. Wrap bare or green ground wire around green ground screw on the
inner backplate, no less than 2 inches from the end of the wire.
Tighten the green ground screw.
B. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
Figure 1
Outlet Box
Outlet Box Screw
(not supplied)
Figure 2
CLock Screw
x 4
D
E
End-Cap
x 2
FShade
x 1
Fixture Body
x 1
STEP 1 Install Shade-
A. Attach one End-Cap (D) onto one end
of the Fixture Body (E) and secure with
(2) Lock Screws (C). Hand tighten until
snug with screwdrivers.
B. Slip the Shade (F) into the Holders on
the Fixture Body (E). Attach the End-
Cap (D) onto the end of the Shade (F)
and align the holes on the End-Cap (D)
to mounting holes on another end of
the Fixture Body (E). Secure the
Shade (F) and the End-Cap (D) with
(2) Lock Screws (C). Hand tighten until
snug with screwdrivers.
A
Figure 3
Your fixture is now assembled and ready to use. Enjoy!
STEP 2 Install Inner Backplate and Fixture Body-
A. Pass the supply wires and ground wire through the Inner Backplate
(A). Attach the Inner Backplate (A) to Outlet Box with the head of
Green Ground Screw facing you. Secure it with Outlet Box Screws
(not included). Tighten until snug
B. Refer to Step 3 for wiring connections.
C. Attach the backplate of the Fixture Body (E) over the Inner
.
C
D
F
E
D
C
Holder
Backplate (A) and secure with
Mounting Screws (B). Tighten
until snug with screwdrivers.
Green Ground Screw
on the Inner Backplate
White wire
from outlet box White wire
from fixture
Black wire from
outlet box (or Red)
Black wire
from fixture
Bare, or Green
Ground wire
from outlet box
Ground wire
from Fixture
For Style PCBD8705EK
Installation Guide #IS-PCBD8705EK
Please go to for product cleaning tips. Go to the selection.
Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
Integrated LED 20W
20-30 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams below to ensure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact your original place of purchase.
www.quoizel.com Care + Maintenance
Tools Required:
Light Source:
Estimated Assembly Time:
Preparation:
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
2019 QuoizelInc. ReleasedDate:2019-01-22
visit us on-line at www.quoizel.com
