Package Contents
Please go to for product cleaning tips. Go to the selection.
(4) G9 Xenon Clear Bulbs (supplied),40W Maximum
www.quoizel.com Care + Maintenance
Light Source:
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
Estimated Assembly Time:
Preparation:
30-45 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement
parts.
1of2

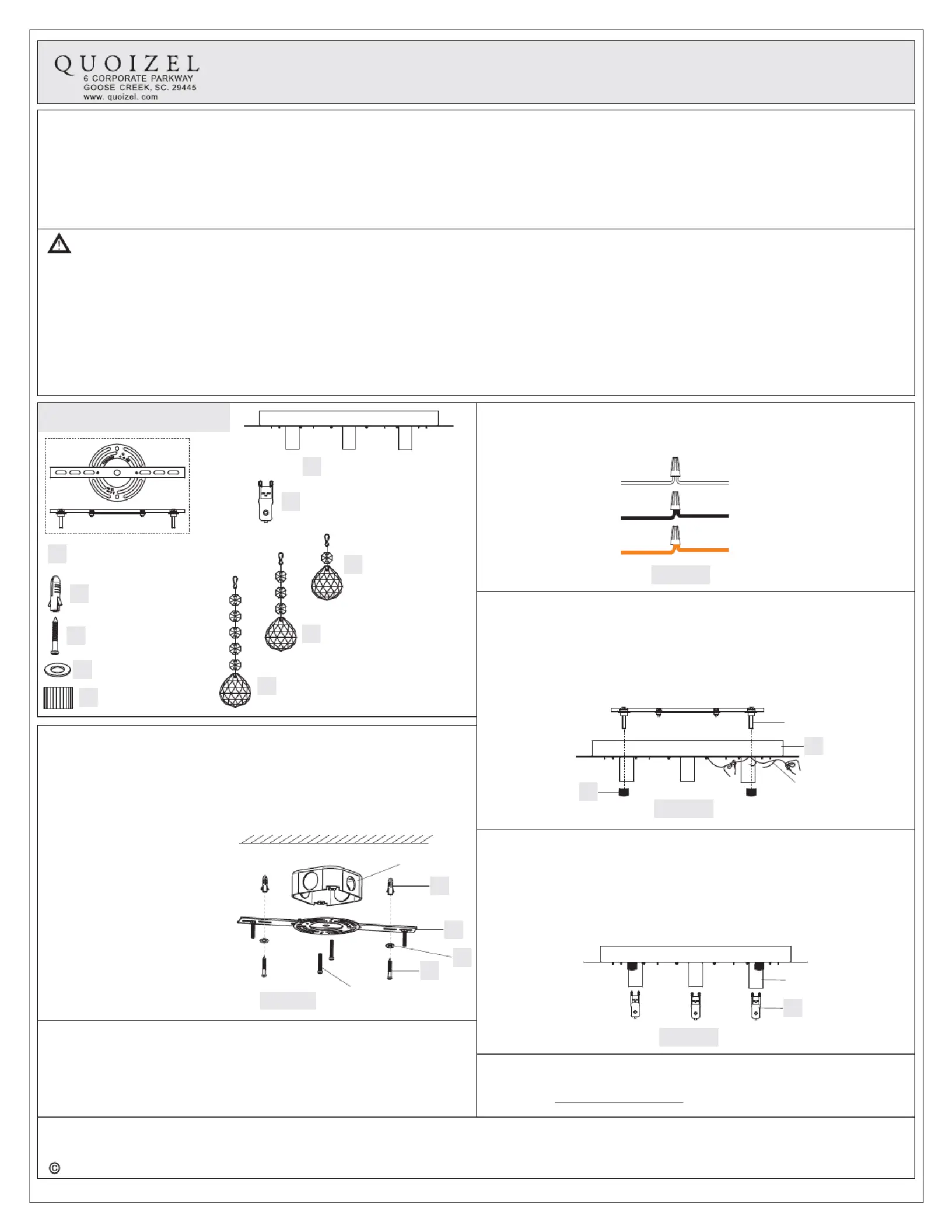

Assembly Instruction Sheet #IS-BRX1614C
For Style BRX1614C
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2015 QuoizelInc.
Warnings and Cautions
Crossbar Assembly
x 1
B
Fixture Body
x 1
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
Do not touch the bulb with bare hands use a cloth or glove.
C
Wall Anchor
x 2
D
Self-tapping Screw
x 2
STEP 1 Attach Crossbar Assembly to Outlet Box-
A. Place the Crossbar Assembly (A) onto the Ceiling surface and line
up one set of holes onto mounting holes on Outlet Box. Using a
pencil, mark the locations for Wall Anchors (B).
B. Remove the Crossbar Assembly (A) and drill holes from the marks
and then push the Wall Anchors (B) into the holes.
Flat Washer
x 2
Mounting Ball
x 2
G9 Xenon Clear Bulb
x 4
Clear Crystal
L: 3-3/8"
x 14
Clear Crystal
L: 5"
x 6
Clear Crystal
L: 6-5/8"
x 1
E
F
G
H
I
J
White wire
from supply White wire
from fixture
Black wire from
supply (or Red)
Black wire
from fixture
Ground wire
from supply
Ground wire
from fixture
Figure 2
STEP 3 - Attach Ceiling Canopy to Mounting Screw
A. Remove Protective Film from Ceiling Canopy.
Note: Gloves are required to avoid leaving fingerprints or scratches
on Ceiling Canopy.
B. Place the Ceiling Canopy on the Fixture Body (F) over the Mounting
Screws and secure with Mounting Balls (E). Hand tighten until snug.
A
STEP 4 - Install Bulb
IMPORTANT:
A. This fixture uses G9 Xenon Clear Bulbs (G). Maximum 40 watts.
Insert bulb and seat properly into place.
Do not touch the bulb with bare hands use a cloth or
glove.
Figure 4
Socket
G
C. Position the Crossbar
Assembly (A) back onto the
Ceiling. Thread the Outlet Box
Screws (not supplied) into the
mounting holes on the Outlet
Box to secure it. Hand tighten
until snug.
D. Pass Flat Washers (D) over
Self-tapping screws (C) and
then thread self-tapping
screws (C) into Wall Anchors
(B). Hand tighten until snug.
STEP 2 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. (Connectors are not included with fixture.) Twist
connectors until wires are tightly joined together. Wrap each
connection with approved electrical tape and carefully stuff all the
Protective Film
E
F
Mounting Screw
Figure 3
STEP 5 - Install Crystal to Fixture
A. (Refer to ) Attach the Clear Crystal L6-5/8” (J)Crystal Distribution
July2015
Figure 1
Ceiling
Outlet Box
Outlet Box Screw
(not included)
B
A
C
D
(Step 2 Continued)
connected wires into the Outlet Box.
