Quoizel Landry LRY1720Y Manual
Læs nedenfor 📖 manual på dansk for Quoizel Landry LRY1720Y (2 sider) i kategorien Lettelse. Denne guide var nyttig for 9 personer og blev bedømt med 4.5 stjerner i gennemsnit af 2 brugere
Side 1/2
1of1

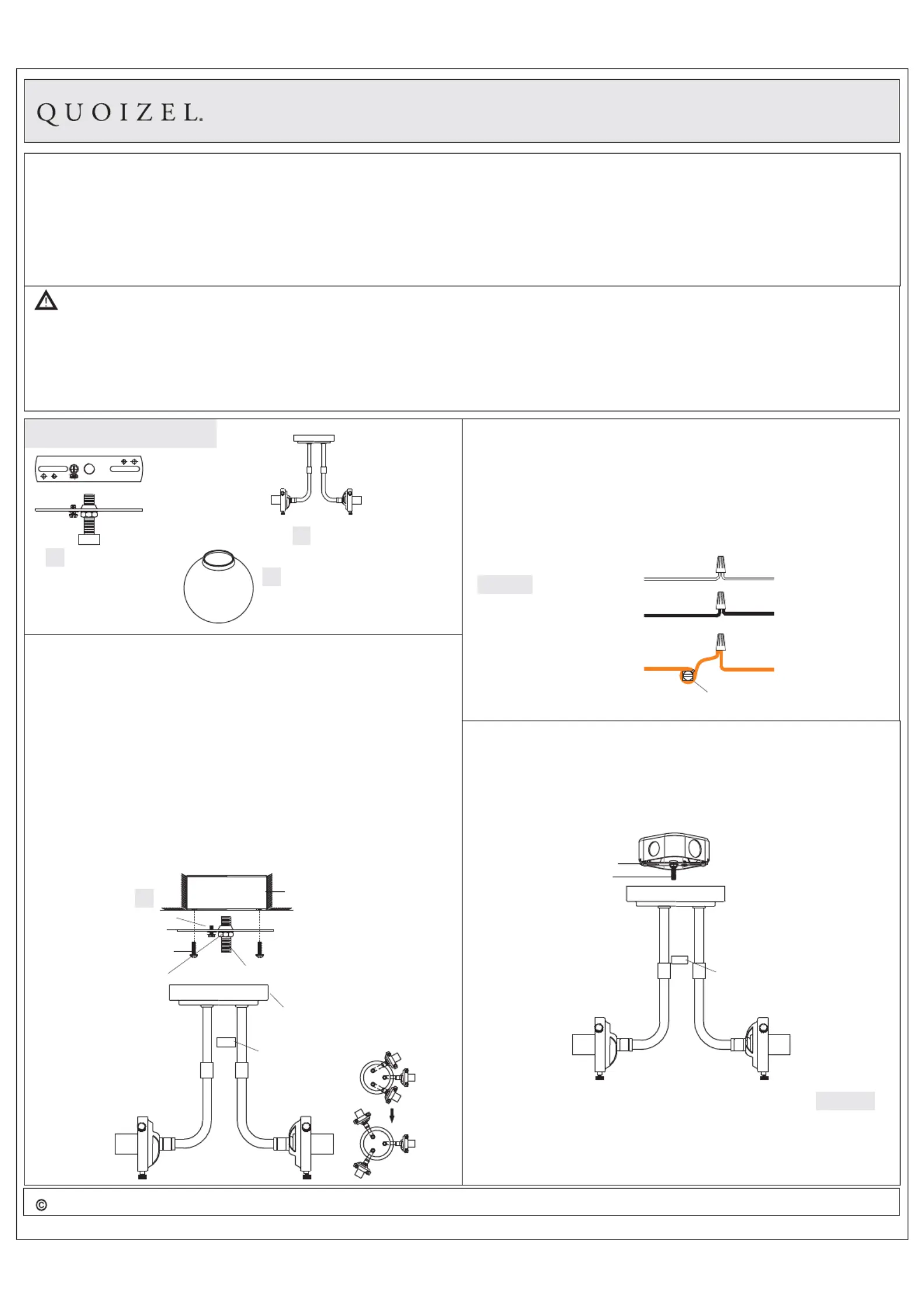

For Style LRY1720Y
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
Please go to for product cleaning tips. Go to the selection.
(3) B10 Candelabra Base bulbs 60W Maximum, bulb not included.
30-45 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams below to ensure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Missing Parts? Contact your original place of
purchase.
www.quoizel.com Care + Maintenance
Light Source:
Estimated Assembly Time:
Preparation:
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
Installation Guide #IS-LRY1720Y
2018 QuoizelInc.
visit us on-line at www.quoizel.com
Package Contents
Figure 2
Green Ground Screw
on the Crossbar
White wire
from outlet box White wire
from fixture
Black wire from
outlet box (or Red)
Black wire
from fixture
Bare, or Green
Ground wire
from outlet box
Ground wire
from Fixture
STEP 2 - Wire Connections
A.
B. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
Wrap bare or green ground wire around green ground screw on the
crossbar, no less than 2 inches from the end of the wire. Tighten the
green ground screw.
Fixture Body
x 1
C
BGlass
x 3
Crossbar
x 1
Assembly
A
Top View
STEP 1 -Install the Crossbar Assembly to Outlet Box and Adjust
the length of the Nipple
a. Unfold support arms on Fixture Body (C) to proper locations.
b. Attach the Crossbar Assembly (A) to the Outlet Box with the head of
the Green Ground Screw facing you. Secure it with Outlet Box
Screws (not included), tighten until snug
c. Adjust the hex nut and lock washer underside of the crossbar to the
middle of the nipple.
d. Remove the from the Nipple. Place the Fixture Canopy
over the Nipple against the ceiling to determine the correct position
of the nipple. Thread the Finial onto the Nipple. Adjust the nipple to
allow the Fixture Canopy to rest against the ceiling when held in
place by the .
e. Remove the and the Fixture Canopy. Tighten the lock
washer against the crossbar to secure in place.
.
Lock Ball
Lock Ball
Lock Ball
Outlet Box Screw
(not included)
Hex Nut and
Lock Washer
Outlet Box
Green Ground Screw
A
Lock Ball
Nipple
Fixture Canopy

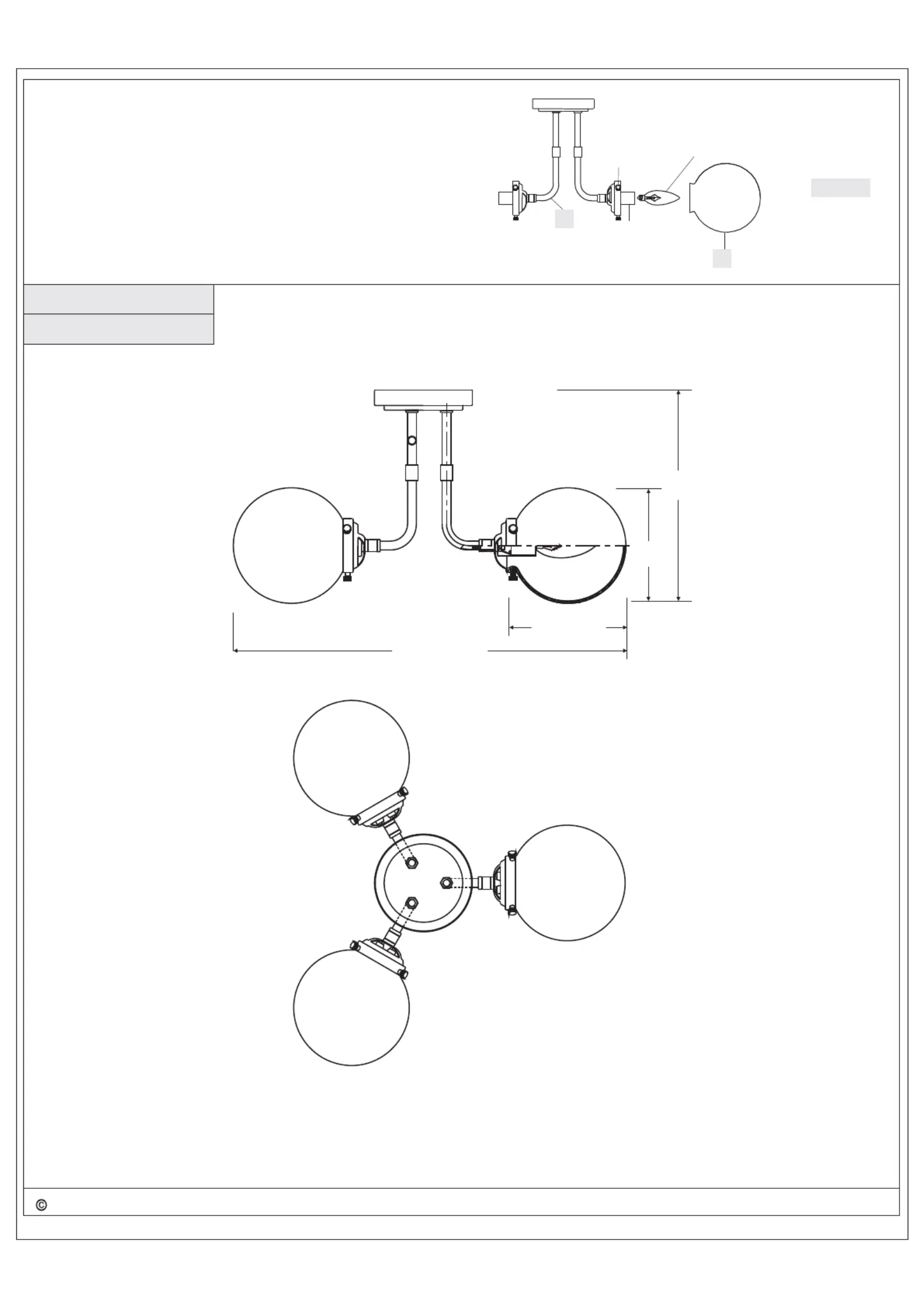

STEP 3 Install Fixture Body to Crossbar-
A. Attach the Fixture Body (C) over the end of the Nipple and secure
with the . Hand tighten until snug.Lock Ball
Figure 3
Nipple
Lock Ball
Crossbar
ReleasedDate:2019-01-08
