Assembly Instruction Sheet #IS-LWN8601BN
For Style LWN8601BN

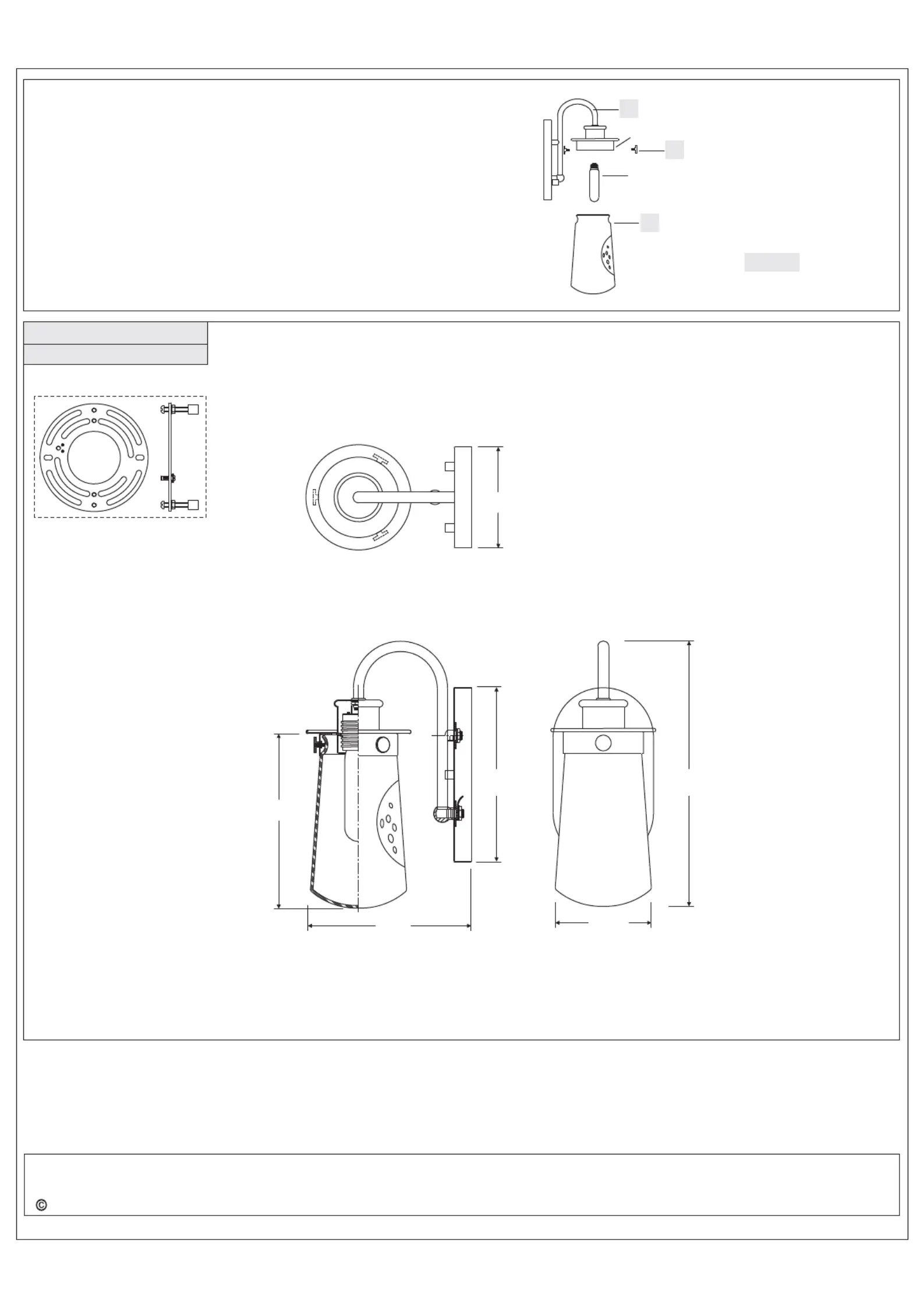

Package Contents
ACrossbar Assembly
x 1
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
Fixture Body
x 1
2018 QuoizelInc. ReleasedDate:2018-09-03
C

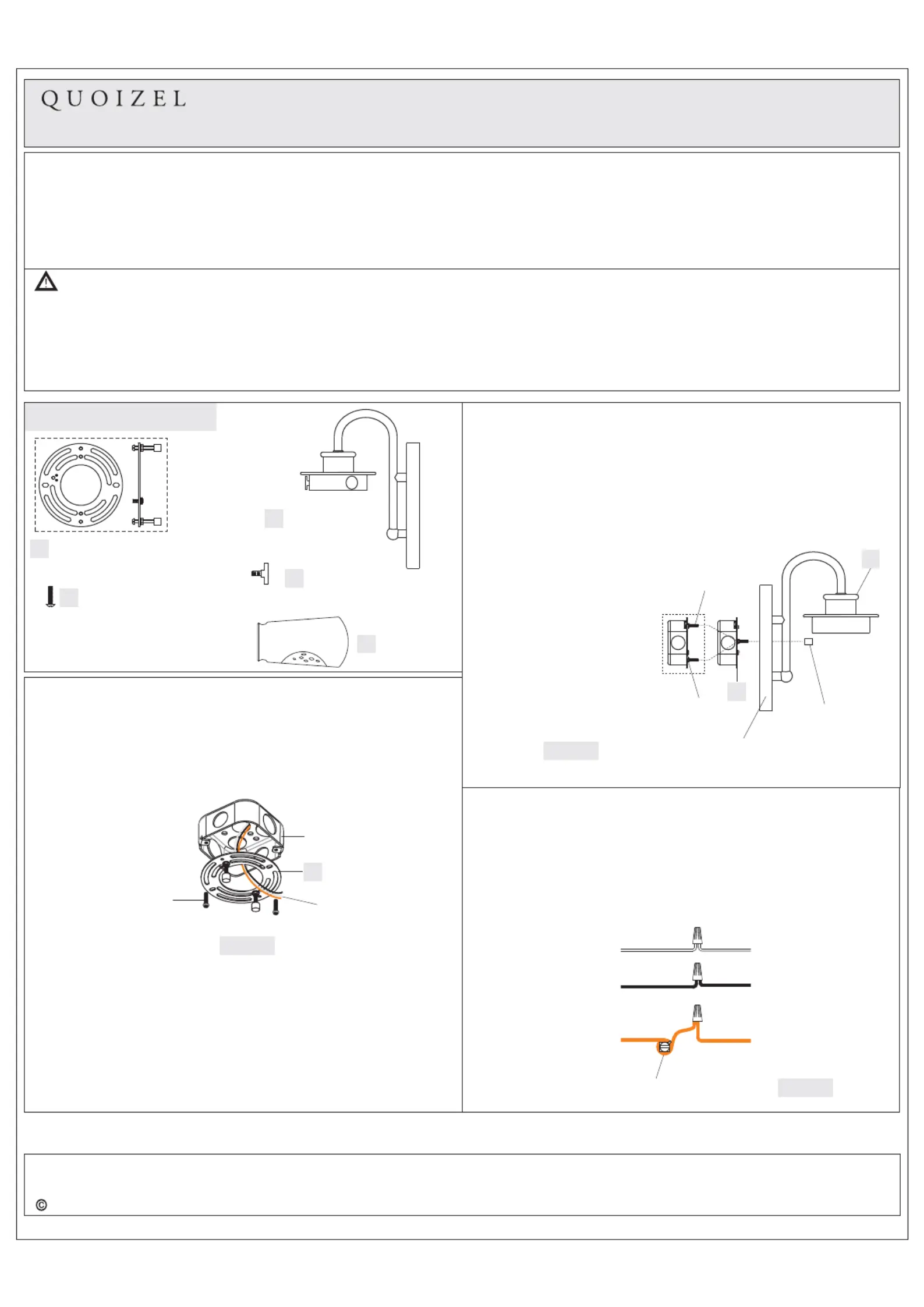

STEP 1 -Installing the Crossbar Assembly
A. Pass the supply wires from outlet box through the Crossbar
Assembly (A). Attach the Crossbar Assembly (A) to the Outlet Box
with the head of the Green Ground Screw facing you. Secure the
Crossbar Assembly (A) with Outlet Box Screws (not included).
Tighten until snug.
Supply Wires with
Ground Wire
Outlet Box Screws
(not included)
Outlet Box
A
Figure 1
D
Shade
x 1
E
STEP 2 Test Fit the Backplate to the Crossbar Assembly-
A. Remove the mounting balls from the Crossbar Assembly (A). Place
the backplate and Fixture Body (C) onto the Crossbar Assembly (A)
and secure with mounting balls. Note: The backplate and Fixture
Body (C) should be snug against the wall and held tight with the
mounting balls. If it is not, adjust the length of the mounting screw or
alternate short mounting screw on the Crossbar Assembly (A) by
unscrewing the preassembled hex nut and lock washer and then
C
Mounting Ball
A
Backplate
Hex Nut and
Lock Washer
Mounting Screw
or Alternate Short
Mounting Screw
screwing the mounting
screws or alternate short
mounting screws in or
out of the crossbar until
the correct length is
achieved. Once the
backplate and Fixture
Body (C) is secure,
remove the mounting
ball and Fixture Body (C)
and proceed to Step 3.
Figure 2
B
Alternate
Mounting screw
x 2
STEP 3 - Wire Connections
A.
B. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
Wrap bare or green ground wire around green ground screw on the
crossbar, no less than 2 inches from the end of the wire. Tighten the
green ground screw.
Figure 3
Green Ground Screw
on the Crossbar
White wire
from outlet box White wire
from fixture
Black wire from
outlet box (or Red)
Black wire
from fixture
Bare, or Green
Ground wire
from outlet box
Ground wire
from Fixture
Lock Screws
( )
x 3
Pre-assembled to Fixture Body
Please go to for product cleaning tips. Go to the selection.
(1) A19 Medium Base Bulb 100W Maximum, Medium Base T10 Vintage Bulb is recommended, bulb not included.
15-30 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement
parts.
www.quoizel.com Care + Maintenance
Light Source:
Estimated Assembly Time:
Preparation:
Tools Required: Flathead screwdriver,Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
