Quoizel PCAE1715C Manual
Læs nedenfor 📖 manual på dansk for Quoizel PCAE1715C (2 sider) i kategorien Lettelse. Denne guide var nyttig for 9 personer og blev bedømt med 4.5 stjerner i gennemsnit af 2 brugere
Side 1/2
Package Contents
Please go to for product cleaning tips. Go to the selection.
Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
www.quoizel.com Care + Maintenance
Tools Required:
Light Source: (3) Medium Base Bulbs 100W Maximum.Alternate Bulbs (3) 23W CFL.
Estimated Assembly Time:
Preparation:
20-30 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement
parts.
Warnings and Cautions
1of2

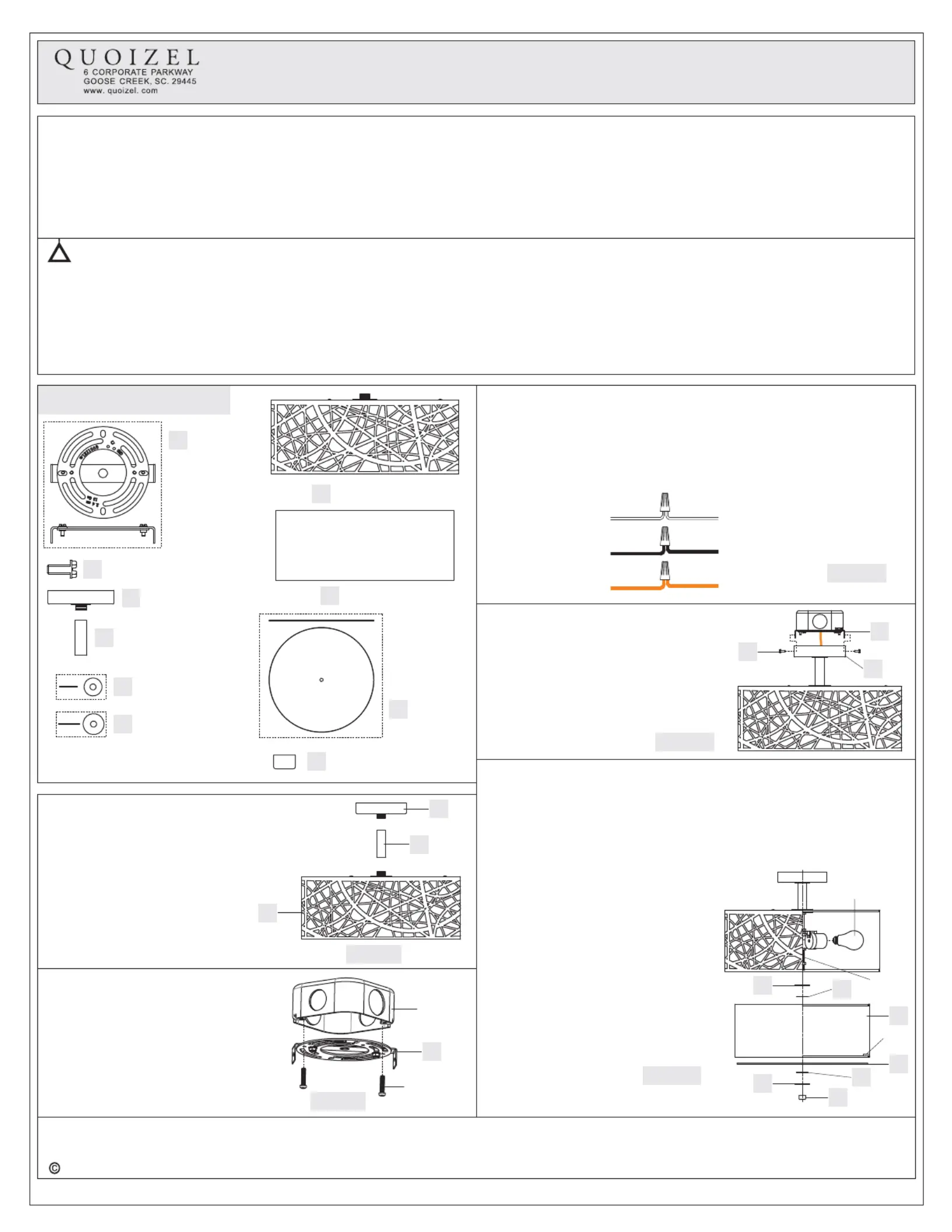

Assembly Instruction Sheet #IS-PCAE1715C
For Style PCAE1715C
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2015 QuoizelInc.
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
Crossbar
x 1
A
CCeiling Canopy
x 1
D2.5”L Spacer Tube
x 1
Mounting Screw
x 2
B
Shade Assembly
x 1
Diffuser
x 1
Rubber Washer
x 2
F
E
G
H
Flat Washer
x 2
I
Lock Ball
x 1
J
White wire
from supply White wire
from fixture
Black wire from
supply (or Red)
Black wire
from fixture
Ground wire
from supply
Ground wire
from fixture
Figure 3
STEP 3 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. (Connectors are not included with fixture.) Twist
connectors until wires are tightly joined together. Wrap each
connection with approved electrical tape and carefully stuff all the
connected wires into the Outlet Box.
July2015
Inner Shade
x 1
STEP 1 Install Ceiling Canopy to Shade
Assembly
-
A. Screw one end of the Spacer Tube (D) onto
the top center of the Shade Assembly (G) and
hand tighten until snug.
C
D
B. Thread the Ceiling Canopy (C)
onto the top end of the Spacer
Tube (D) and hand tighten until
snug.
Figure 1
STEP 2 Attach Crossbar to Outlet
Box
-
A. Attach the Crossbar (A) to Outlet Box
and secure by threading Outlet Box
Screws (not supplied) into the
Mounting Holes on the Outlet Box.
Tighten until snug.
A
Figure 2
Outlet
Box
Outlet Box
Screw
STEP 4 -Attach Ceiling Canopy to
Crossbar
A. Line up the holes on the side of the
Ceiling Canopy (C) to the mounting
holes on the Crossbar (A). Secure
them with Mounting Screws (B).
Tighten until sung.
A
B
C
Figure 4
STEP 5 - Install Inner Shade, Diffuser and Bulbs
A. Adjust the Hex Nut on the bottom end of the Nipple to proper
locations for rest components. Attach the Tabs on the bottom edge of
the Inner Shade (H) to the Diffuser (I).
C. Place Rubber Washers (E), Flat Washers (F), the Diffuser (I) with the
Inner Shade (H) over the end of the Nipple as shown. Secure them
Bulb
Tab
F
Figure 5
together by threading the Lock
Ball (J) onto the Nipple. Hand
tighten until snug.
C. This fixture uses standard bulb
with medium base. Maximum 100
watts. Insert bulb and screw
snugly into place.
Your fixture is now assembled and
ready to use. Enjoy!
J
G
E
H
E
F
I
Nipple
