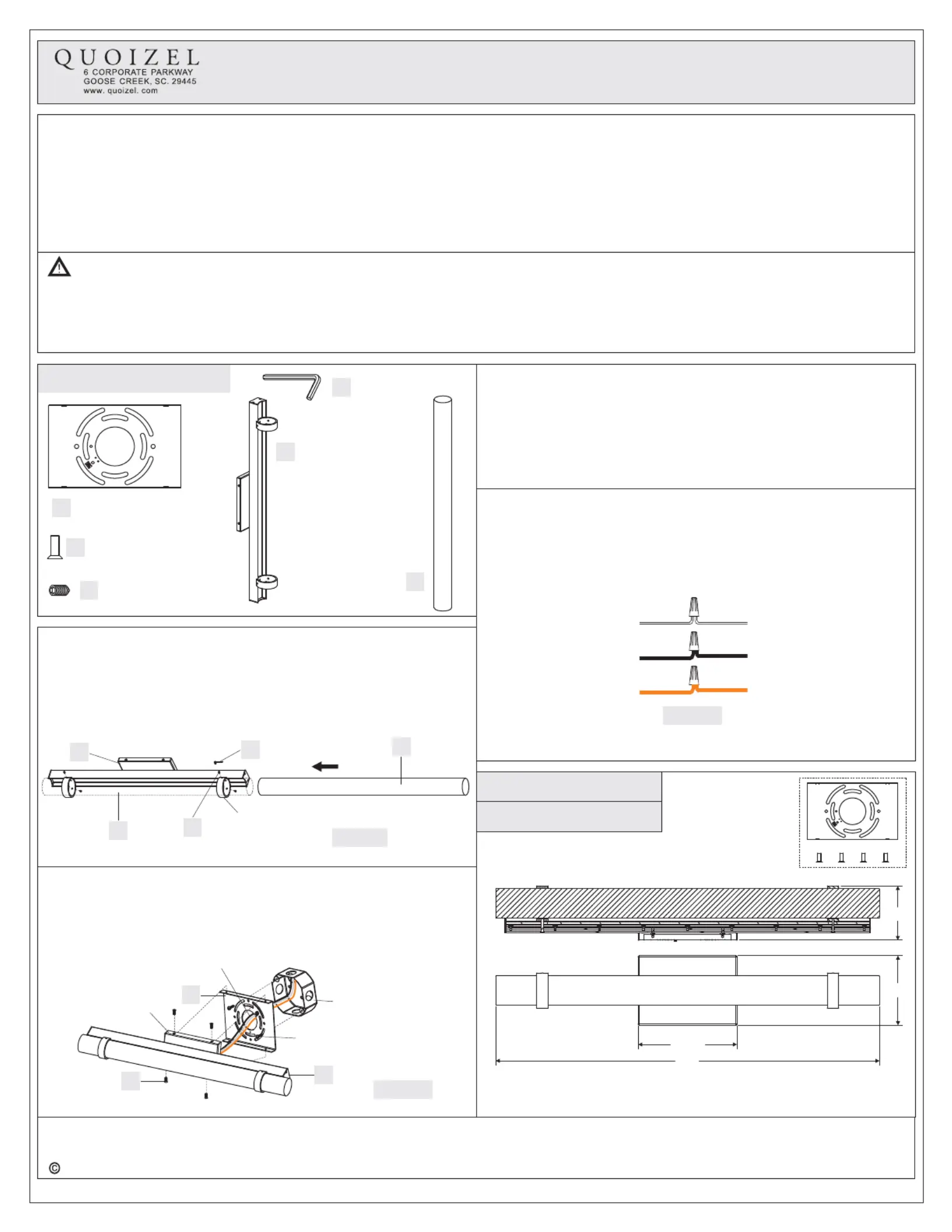

Assembly Instruction Sheet #IS-PCBC8526C
For Style PCBC8526C
Package Contents
BMounting Screw
x 4
Inner Backplate
x 1
ASTEP 3 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires between Inner Backplate (A) and
Fixture Body (E).
Figure 1
Outlet Box
Outlet Box Screw
(not supplied)
E
B
White wire
from supply White wire
from fixture
Black wire from
supply (or Red)
Black wire
from fixture
Ground wire
from supply
Ground wire
from fixture
Figure 2
2016 QuoizelInc. ReleasedDate:2016-08-29
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Please go to for product cleaning tips. Go to the selection.
Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
Integrated 32W LED
: Lutron AYCL-153P or Lutron DVCL-153P.
www.quoizel.com Care + Maintenance
Tools Required:
Light Source:
Compatible Dimmer Switches
Estimated Assembly Time:
Preparation:
20-30 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement
parts.
CSet Screw
x 4
D
E
Allen Wrench
x 1
F
Crystal Rod
x 1
Fixture Body
x 1
STEP 1 Install Crystal Rod-
A. Slip the Crystal Rod (F) into the Holders on the Fixture Body (E).
Move the Crystal Rod (F) to proper location. By using the Allen
Wrench (D), thread Set Screws (C) into Holders and tighten until
snug to secure the Crystal Rod (F) properly.
Backplate A
Supply Wires and
Ground Wire
Figure 3
Your fixture is now assembled and ready to use. Enjoy!
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
D
C
EF
FHolder
STEP 2 Install Inner Backplate and Fixture Body-
A. Pass the supply wires and ground wire through the Inner Backplate
(A). Attach the Inner Backplate (A) to Outlet Box with the head of
(Step 2 Continued)
Green Ground Screw facing you. Secure it with Outlet Box Screws
(not included). Tighten until snug
B. Refer to Step 3 for wiring connections.
C. Attach the backplate of the Fixture Body (E) over the Inner
Backplate (A) and secure with Mounting Screws (B). Tighten until
snug with screwdrivers.
.
PCBC8526C
FINISH: POLISHED CHROME
NOTE: ALL DIMENSIONS ARE ROUNDED UP
TO THE NEAREST 1/4"
6.75”
26”
4.75”
3.75”
