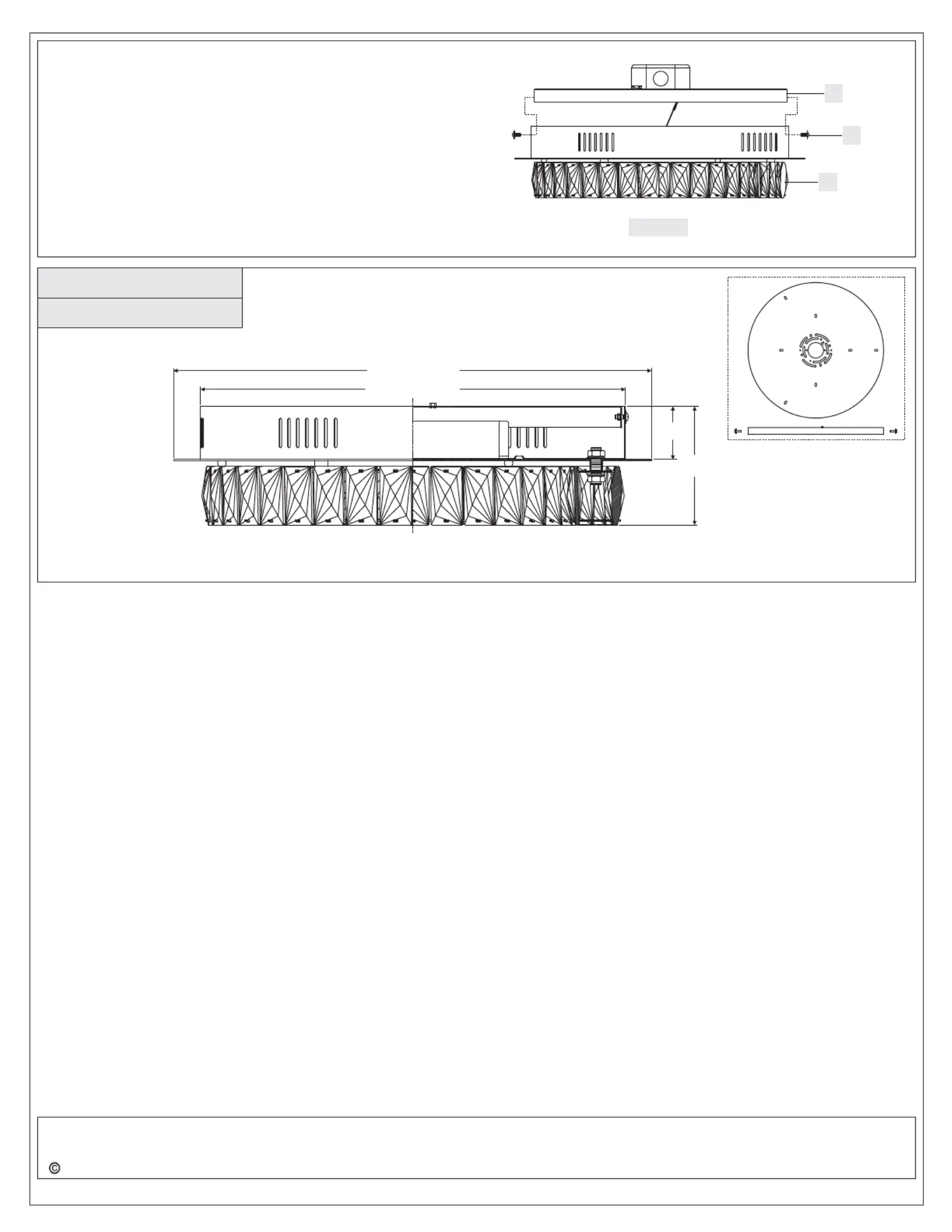

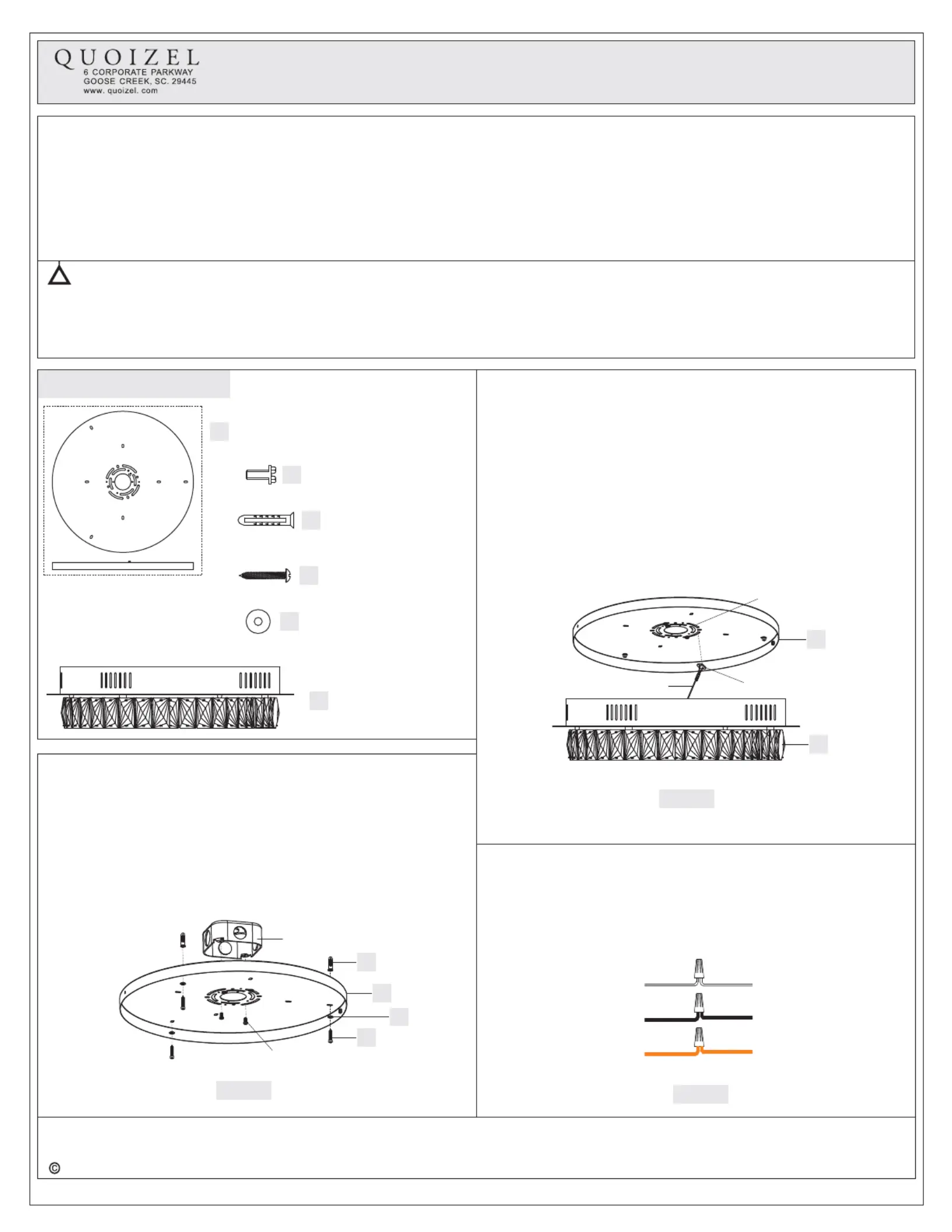

Package Contents
Please go to for product cleaning tips. Go to the selection.
Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
Integrated 27W LED
: Lutron DVELV-300P or Lutron SELV-300P.
www.quoizel.com Care + Maintenance
Tools Required:
Light Source:
Compatible Dimmer Switches
Estimated Assembly Time:
Preparation:
20-30 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement
parts.
Warnings and Cautions
1of2
Assembly Instruction Sheet #IS-PCEM1619C
For Style PCEM1619C
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Inner Backplate
x 1
A
F
Mounting Screw
x 3
B
Fixture Body
x 1
STEP 1 Attach Inner Backplate to Outlet Box-
A. Attach the Inner Backplate (A) onto the Outlet Box and make four
marks on the ceiling from keyholes on the Inner Backplate (A).
B. Remove the Inner Backplate (A) and drill proper holes on the
ceiling from marks. Insert Wall Anchors (C) into the holes properly.
Attach the Inner Backplate (A) to Outlet Box. Thread Outlet Box
Screws (not Supplied) into mounting holes on the Outlet Box. Pass
Washers (E) over Self-tapping Screws (D) and thread Self-tapping
Screws (D) into Wall Anchors (C). Hand tighten until snug.
Figure 1
2016 QuoizelInc. ReleasedDate:2016-10-10
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
STEP 3 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
White wire
from supply White wire
from fixture
Black wire from
supply (or Red)
Black wire
from fixture
Ground wire
from supply
Ground wire
from fixture
Figure 2
Outlet Box
A
Outlet Box Screw
CWall Anchor
x 3
DSelf-tapping Screw
x 3
EWasher
x 3
C
D
E
Button Stop
Lanyard
Slot
STEP 2 - Attach Lanyard
A. The purpose of the lanyard is to provide the installer a means to
support the fixture from the junction box while connecting the
electrical wires. This enables the fixture to hang from the junction
box and your hands are free to make the wire connections.
B. Turn the Button Stop so it may be inserted into the Inner Backplate
Slot. Make sure the Button Stop is completely inside the Inner
Backplate (A). Slowly release the fixture to make sure it is supported
by the Button Stop. Proceed to the wiring steps in the next step.
Once you are complete with the wiring there is nothing to do with
Lanyard. The Lanyard will push into the junction box when the fixture
is placed for final mounting.
F
A
Figure 3
