Package Contents
1of1

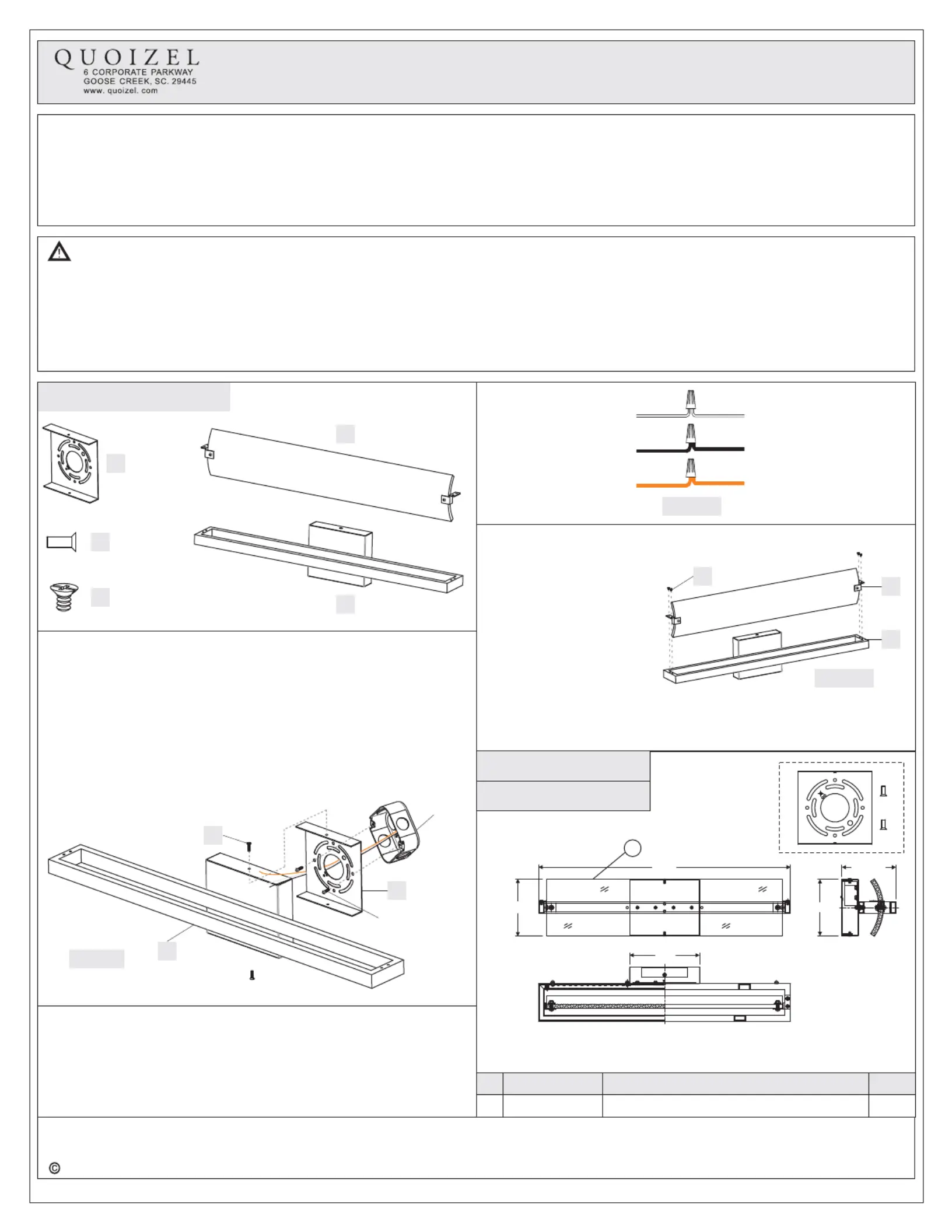

Assembly Instruction Sheet #IS-PCGL8522BN
For Styles PCGL8522BN
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2015 QuoizelInc. March2015
STEP 1 Install Inner Backplate and Fixture Body-
A. Pass the supply wires through Inner Backplate (A). Attach Inner
Backplate (A) to Outlet Box with the head of Green Ground Screw
facing you. Secure it with Outlet Box Screws (not included). Tighten
until snug
B. Race all supply wires through the Inner Backplate (A) as shown.
Refer to Step 2 for wiring connections.
C. Attach Fixture Body (E) over Inner Backplate (A) and secure with
Lock Screws (B). Tighten until snug with screwdrivers.
.
White wire
from supply White wire
from fixture
Black wire from
supply (or Red)
Black wire
from fixture
Ground wire
from supply
Ground wire
from fixture
Figure 2
STEP 3 - Install Shades
A. Place Glass (D) into the
Frame on the Fixture
Body (E), line up the
holes on the Glass (D)
and the mounting hole
on the secure by
threading Lock Screws
into the mounting hole.
Hand tighten until sung.
Frame,
Your fixture is now
assembled and ready
to use. Enjoy!
Figure 1
Outlet
Box
Outlet Box
Screw
Package Contents
E
B
Mounting
Screw
x 2
Inner
Backplate
x 1
A
Fixture Body
x 1
DGlass
x 1
STEP 2 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. (Connectors are not included with fixture.) Twist
connectors until wires are tightly joined together. Wrap each
connection with approved electrical tape and carefully stuff all the
connected wires between Inner Backplate (A) and Fixture Body (D).
Figure 4
Please go to for product cleaning tips. Go to the selection.www.quoizel.com Care + Maintenance
Light Source:
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
Estimated Assembly Time:
Preparation:
LED 22W
20-30 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement
parts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
CLock Screw
x 4
A
B
E
D
C
E
PCGL8522BN
FINISH: BRUSHED NICKEL
PART NUMBER
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO
THE NEAREST 1/4"
REPLACEMENT PART
NO.
1 G4004SH SHADE
REQ.
1
22”
5”
4.75”
5”
6”
1
