Quoizel PCGN1616C Manual
Læs nedenfor 📖 manual på dansk for Quoizel PCGN1616C (2 sider) i kategorien Lettelse. Denne guide var nyttig for 11 personer og blev bedømt med 4.5 stjerner i gennemsnit af 2 brugere
Side 1/2
Package Contents
Please go to for product cleaning tips. Go to the selection.
(5) G9 Base Clear G9 Xenon Bulbs 40W Maximum (supplied).
www.quoizel.com Care + Maintenance
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
Light Source:
Estimated Assembly Time:
Preparation:
20-30 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement
parts.
Warnings and Cautions
1of2

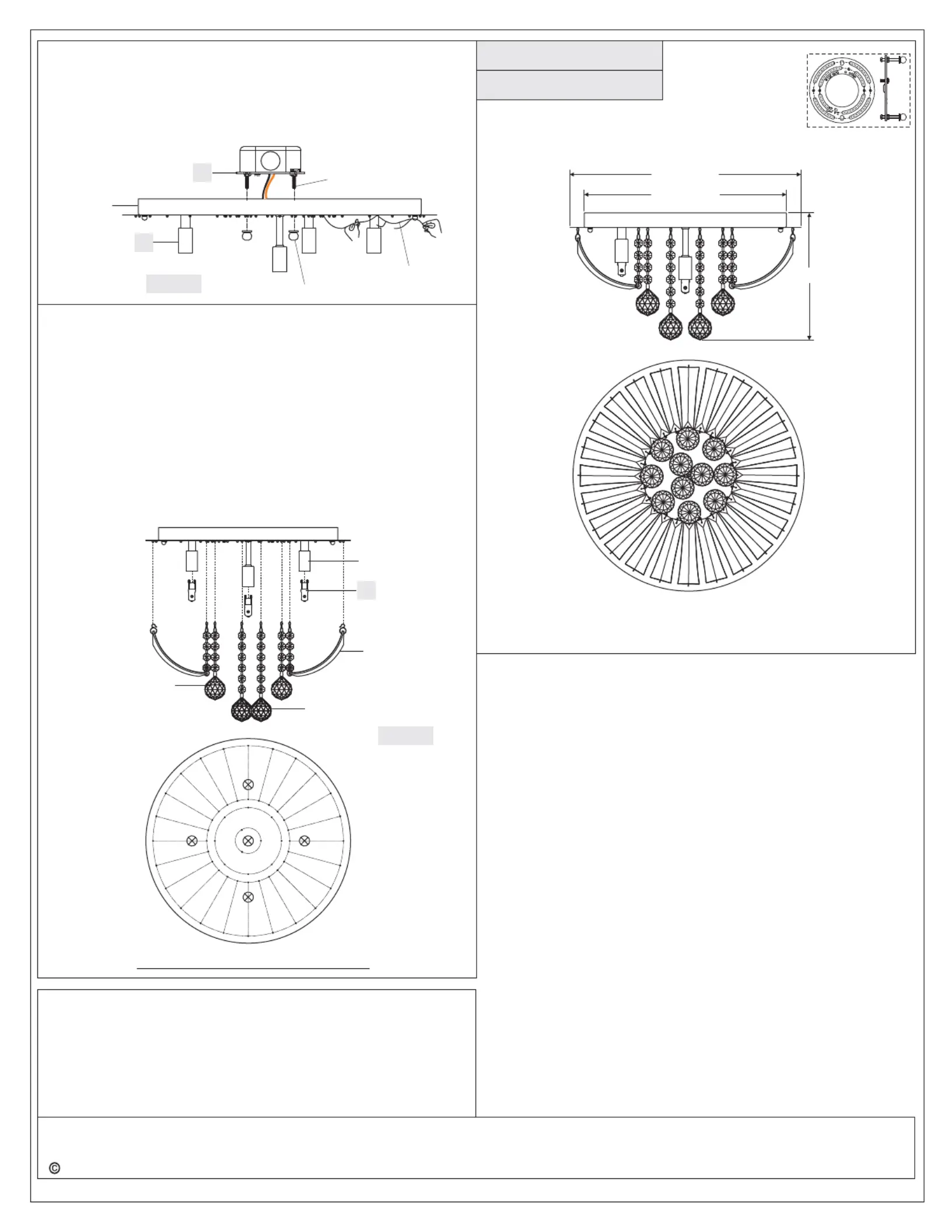

Assembly Instruction Sheet #IS-PCGN1616C
For Style PCGN1616C
2017 QuoizelInc.
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
Do not touch the bulb with bare hands use a cloth or glove.
BFixture Body
x 1
Crossbar Assembly
x 1
AC
Clear G9
Xenon Bulb
x 5
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
ReleasedDate:2017-04-01
DCrystal Strings
Crystal
String B
x 8 Crystal
String C
x 24
STEP 1 Install Crossbar Assembly-
A. Pass the supply wires with ground wire through the Crossbar
Assembly (A). Attach the Crossbar Assembly (A) to Outlet Box with
the head of Green Ground Screw facing you. Secure it with Outlet
Box Screws (not included). Tighten until snug.
STEP 2 - Test Fit the Ceiling Canopy to the Crossbar Assembly
A. Remove the mounting balls from the Crossbar Assembly (A). Place
the ceiling canopy and the Fixture Body (B) onto the Crossbar
Assembly (A) and secure with mounting balls. Note: The ceiling
canopy and the Fixture Body (B) should be snug against the ceiling
and held tight with the mounting balls. If it is not, adjust the length of
the mounting screws on the Crossbar Assembly (A) by unscrewing
Crystal
String A
x 3
(Step 2 Continued)
the preassembled hex nut and lock washer and then screwing the
mounting screws in or out of the crossbar until the correct length is
achieved. Once the Fixture Body (B) is secure, remove the
mounting ball and Fixture Body (B) and proceed to Step 3.
STEP 3 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
White wire
from outlet box White wire
from fixture
Black wire from
outlet box (or Red)
Black wire
from fixture
Bare, or Green
Ground wire
from outlet box
Ground wire
from fixture
Bare, or Green
Ground wire
from outlet box
OR
Ground wire
from fixture
Green Ground Screw
on the Crossbar
Figure 3
Supply Wires
with Ground WireOutlet Box Screws
(not included)
Outlet Box
A
Figure 1
Mounting
Screw
Hex Nut and
Lock Washer
Mounting
Ball
A
B
Figure 2
Ceiling
Canopy
