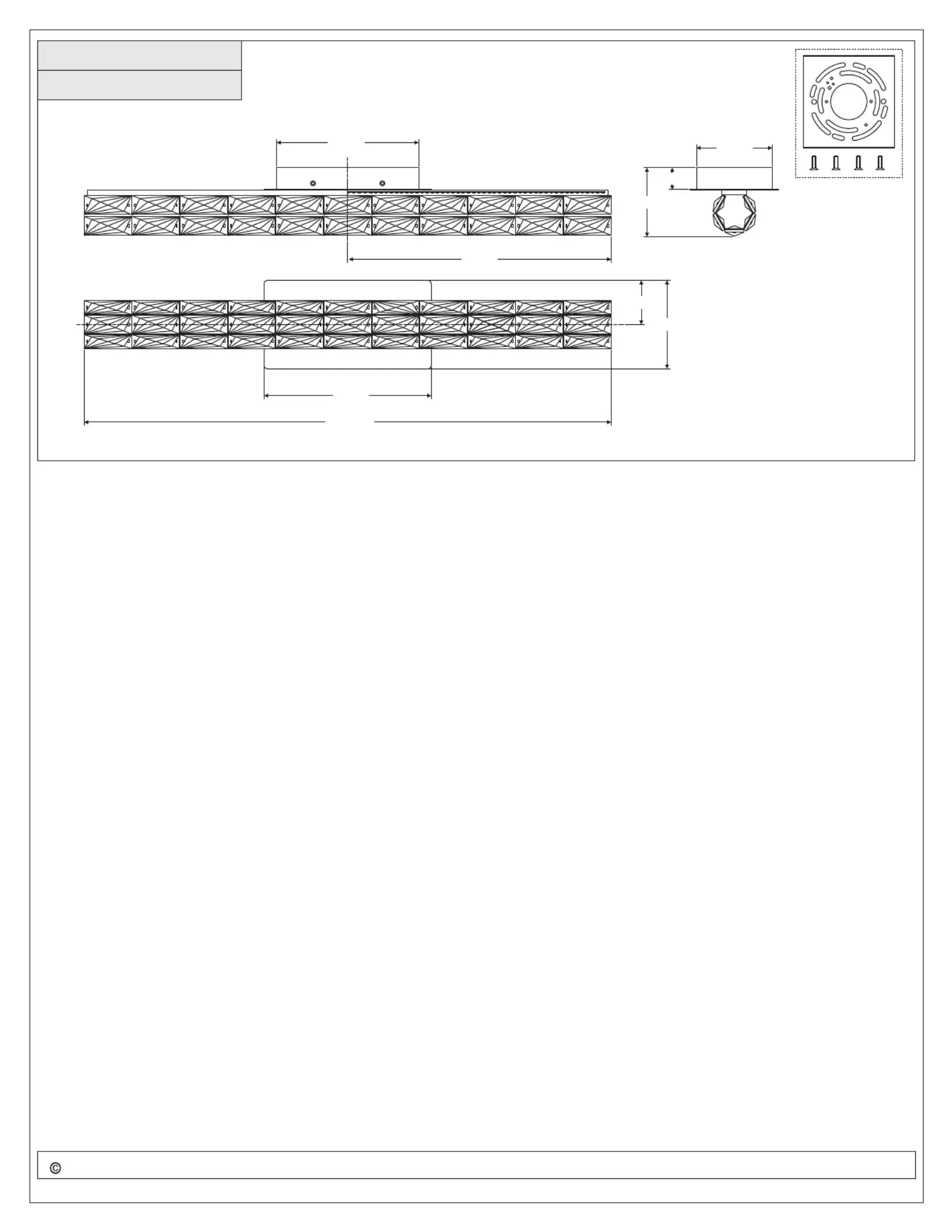

Package Contents
1of2
For Style PCLU8533C
AInner Backplate
x 1
Please go to for product cleaning tips. Go to the selection.
LED 29W
20-30 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams below to ensure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact your original place of purchase.
www.quoizel.com Care + Maintenance
Light Source:
Estimated Assembly Time:
Preparation:
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
Fixture Body
x 1
Installation Guide #IS-PCLU8533C
2018 QuoizelInc. ReleasedDate:2018-08-09
visit us on-line at www.quoizel.com
Mounting Screw
x 4
B
C
Figure 3

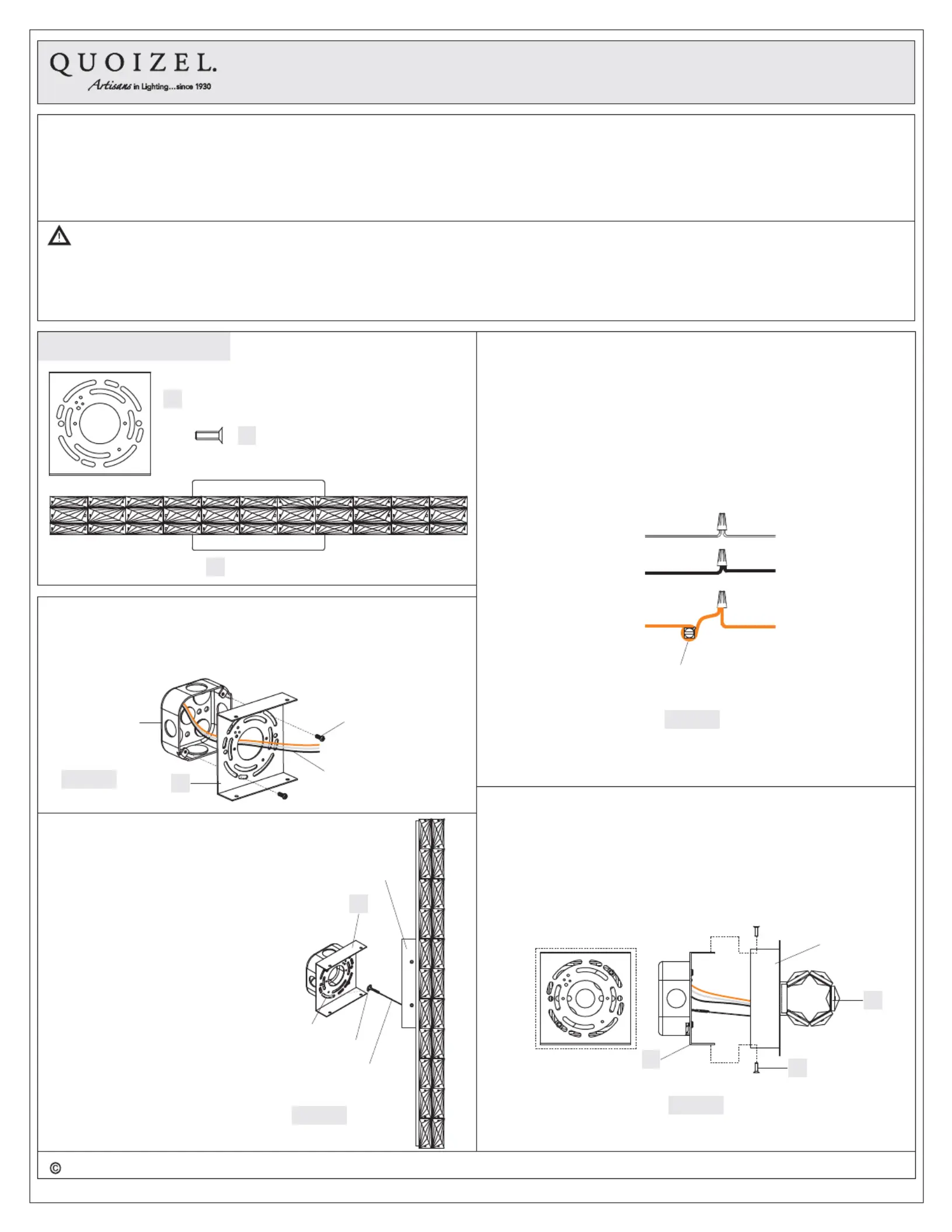

STEP 4 -Install the Fixture Body
A. Place the backplate of the Fixture Body (C) onto the Inner
Backplate (A) and secure with Mounting Screws (B). Tighten until
snug with screwdrivers.
Your fixture is now assembled and ready to use. Enjoy!
Warnings and Cautions
STEP 1 -Install the Inner Backplate to the junction box
A. Attach the Inner Backplate (A) to the outlet box and secure with
outlet box screws (not included), tighten until snug.
Supply Wires
with Ground Wire
Outlet Box Screws
(not included)
A
Outlet Box
Figure 1
STEP 3 - Wire Connections
A. Wrap bare or green ground wire around green ground screw on the
crossbar, no less than 2 inches from the end of the wire. Tighten the
green ground screw.
B. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
Figure 2
Green Ground Screw
on the Crossbar
White wire
from outlet box White wire
from fixture
Black wire from
outlet box (or Red)
Black wire
from fixture
Bare, or Green
Ground wire
from outlet box
Ground wire
from Fixture
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
B
C
Backplate
A
STEP 2 - Attach the Lanyard
A. The purpose of the lanyard is to
provide a means to support the
fixture hands free from the
junction box while connecting
the electrical wires.
B. Turn the Button Stop so it may
be inserted into a inner
backplate slot. Make sure the
Button Stop is completely inside
the inner backplate. Slowly
release the fixture to make sure
it is supported by the Button
Stop. Proceed to the wiring
steps in the next step. Once you
are complete with the wiring, the
Lanyard will push into the
junction box when the fixture is
placed for final mounting.
Button Stop
Lanyard
Slot
A
Backplate
Figure 4
