Quoizel PCSB1722C Manual
Læs nedenfor 📖 manual på dansk for Quoizel PCSB1722C (2 sider) i kategorien Lettelse. Denne guide var nyttig for 15 personer og blev bedømt med 4.5 stjerner i gennemsnit af 2 brugere
Side 1/2
Please go to for product cleaning tips. Go to the selection.
Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
www.quoizel.com Care + Maintenance
Tools Required:
Light Source: (9) Clear G9 Xenon Bulbs 40W Maximum (supplied)
Estimated Assembly Time:
Preparation:
20-30 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement
parts.
Warnings and Cautions

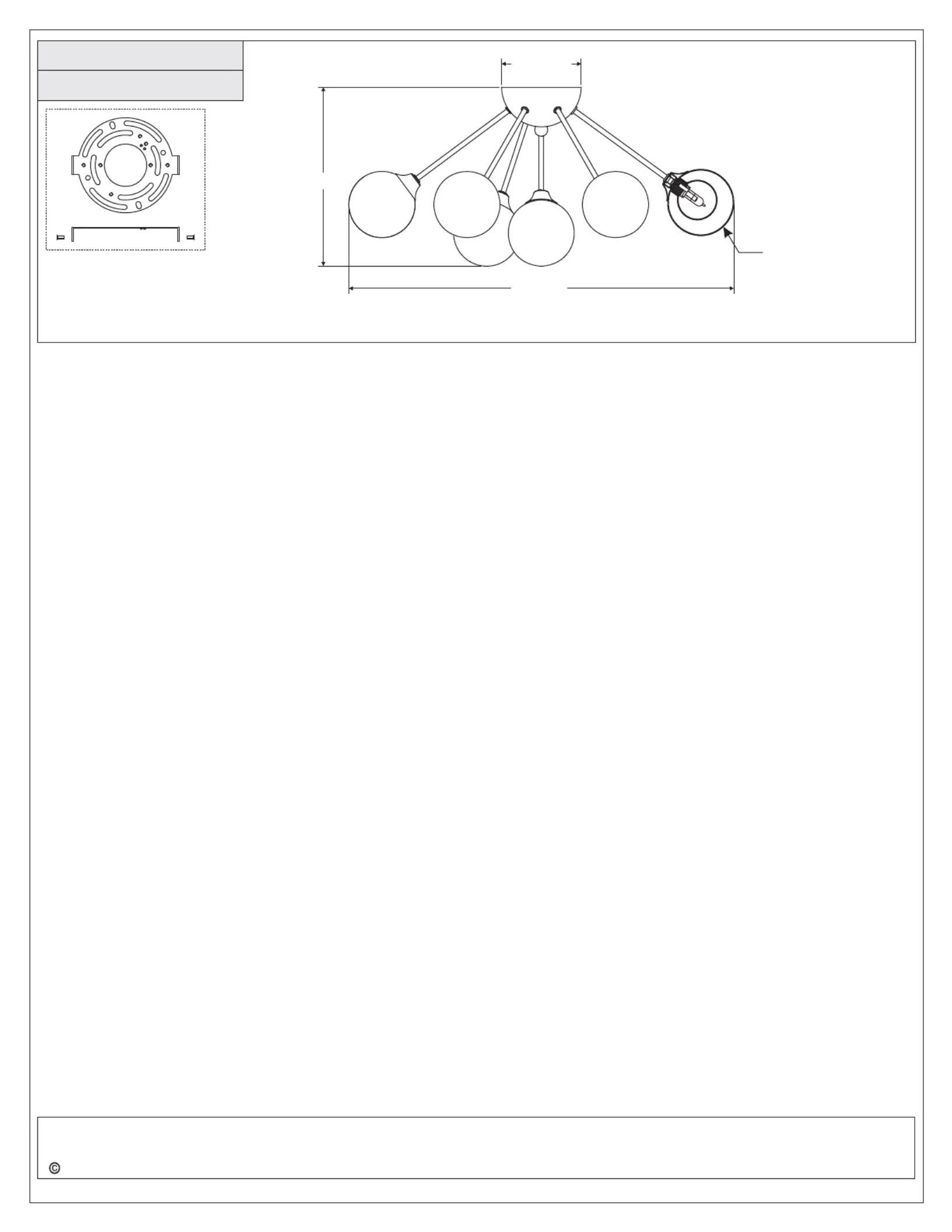

1of2
Assembly Instruction Sheet #IS-PCSB1722C
For Style PCSB1722C
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
Do not touch the bulb with bare hands use a cloth or glove.
2017 QuoizelInc. ReleasedDate:2017-07-24
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
Package Contents
Crossbar
x 1
A
CFixture Body
x 1
Mounting Screw
x 2
B
GND
GND
GND
GNDGND
Clear G9
Xenon Bulb
x 9
E
STEP 1 Install the Crossbar to the junction box-
.
A. Attach the Crossbar (A) to the Outlet Box with the head of the
Green Ground Screw facing you. Secure it with Outlet Box Screws
(not included), tighten until snug
Outlet Box
A
Outlet Box Screw
(not included)
Figure 1
STEP 2 - Making the Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into outlet box.
Figure 2
White Wire
from fixture
Black wire
from fixture
White wire
from outlet box
Black wire from
outlet box (or Red)
Bare, or Green
Ground wire
from outlet box
Ground wire
from fixture
Bare, or Green
Ground wire
from outlet box
OR
Ground wire
from fixture
Green Ground Screw
on the Crossbar
STEP 3 -Attach Fixture Body to
Crossbar
A. Line up the holes on the side of
the ceiling canopy and Fixture
Body (C) to the mounting holes
on the Crossbar (A). Secure
them with Mounting Screws (B).
Tighten until sung.
A
B
C
Figure 3
Ceiling
Canopy
STEP 4 Install Bulbs and Shades-
A. oInsert bulbs (E) nto sockets and
push snugly into place.
Do not touch the bulb
with bare hands use a cloth or
glove.
B. Thread Shades (D) onto sockets
and hand tighten gently until snug.
Your fixture is now assembled and
ready to use. Enjoy!
IMPORTANT:
E
Socket
Figure 4
CAUTION FOR BULB REPLACING
A. When replace bulb, turn off power and allow lamp to cool. For safety
purpose, wear gloves and eye protection.
B. If bulb is scratched or cracked, DO NOT use the lamp to avoid
breakage during use or installation.
C. Use only in fixtures rated for lamps wattage and voltage.
D. Lamp operate under high pressure generating intense heat. Prevent
contact with liquid and combustible materials.
Shade
x 9
D
D
