Quoizel PCSM8524C Manual
Læs nedenfor 📖 manual på dansk for Quoizel PCSM8524C (2 sider) i kategorien Lettelse. Denne guide var nyttig for 7 personer og blev bedømt med 4.5 stjerner i gennemsnit af 2 brugere
Side 1/2
Please go to for product cleaning tips. Go to the selection.
Integrated 18W LED
: Lutron DVELV-300P or Lutron SELV-300P.
www.quoizel.com Care + Maintenance
Light Source:
Compatible Dimmer Switches
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
Estimated Assembly Time:
Preparation:
20-30 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement
parts.
Warnings and Cautions
1of2

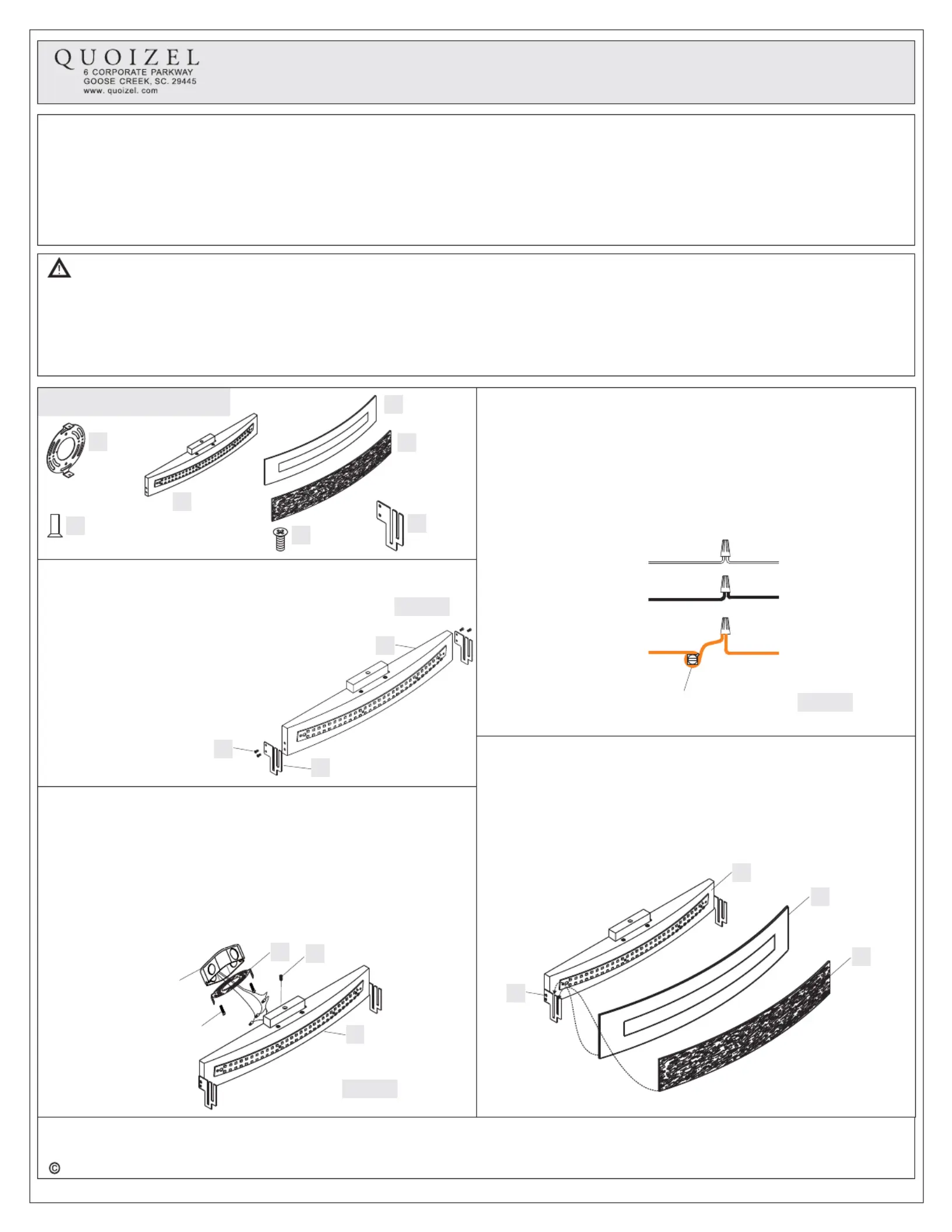

Assembly Instruction Sheet #IS-PCSM8524C_R1
For Style PCSM8524C
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
Package Contents
B
Mounting
Screw
x 2
Inner
Backplate
x 1
A
C
Fixture
Body
x 1
EGlass B
x 1
G
Shade
Holder
x 2
STEP 2 Install Inner Backplate and Fixture Body-
A. Pass the supply wires through Inner Backplate (A). Attach Inner
Backplate (A) to Outlet Box with the head of Green Ground Screw
facing you. Secure it with Outlet Box Screws (not included). Tighten
until snug
B. Race all supply wires through the Inner Backplate (A) as shown.
Refer to Step 3 for wiring connections.
C. Attach Fixture Body (C) over Inner Backplate (A) and secure with
Lock Screws (B). Tighten until snug with screwdrivers.
.
A
Figure 2
Outlet Box
Outlet Box Screw
(not supplied)
B
STEP 4 Install Glass to Fixture Body-
A. Insert Glass (E/D) into the Shade Holder (G) properly.
B. Tighten Lock Screws (F) on both side of the fixture body and hand
tighten until snug.
Your fixture is now assembled and ready to use. Enjoy!
F
Lock
Screw
x 4
DGlass A
x 1
STEP 1 Install Shade to
Fixture Body
-Holder
Do NOT
A. Place Shade Holder (G) over the side
of the Fixture Body (C), line up the hole
on the Shade Holder (G) and the
mounting hole on the Fixture Body (C),
secure by threading Lock Screw (F)
into the mounting hole. tighten
at this moment.
F
C
G
Figure 1
C
D
E
G
STEP 3 - Wire Connections
A. Wrap bare or green ground wire around green ground screw on the
crossbar, no less than 2 inches from the end of the wire. Tighten the
green ground screw.
B. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
Figure 3
Green Ground Screw
on the Crossbar
White wire
from outlet box White wire
from fixture
Black wire from
outlet box (or Red)
Black wire
from fixture
Bare, or Green
Ground wire
from outlet box
Ground wire
from Fixture
F
2017 QuoizelInc. RevisedDate:2017-12-15
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
