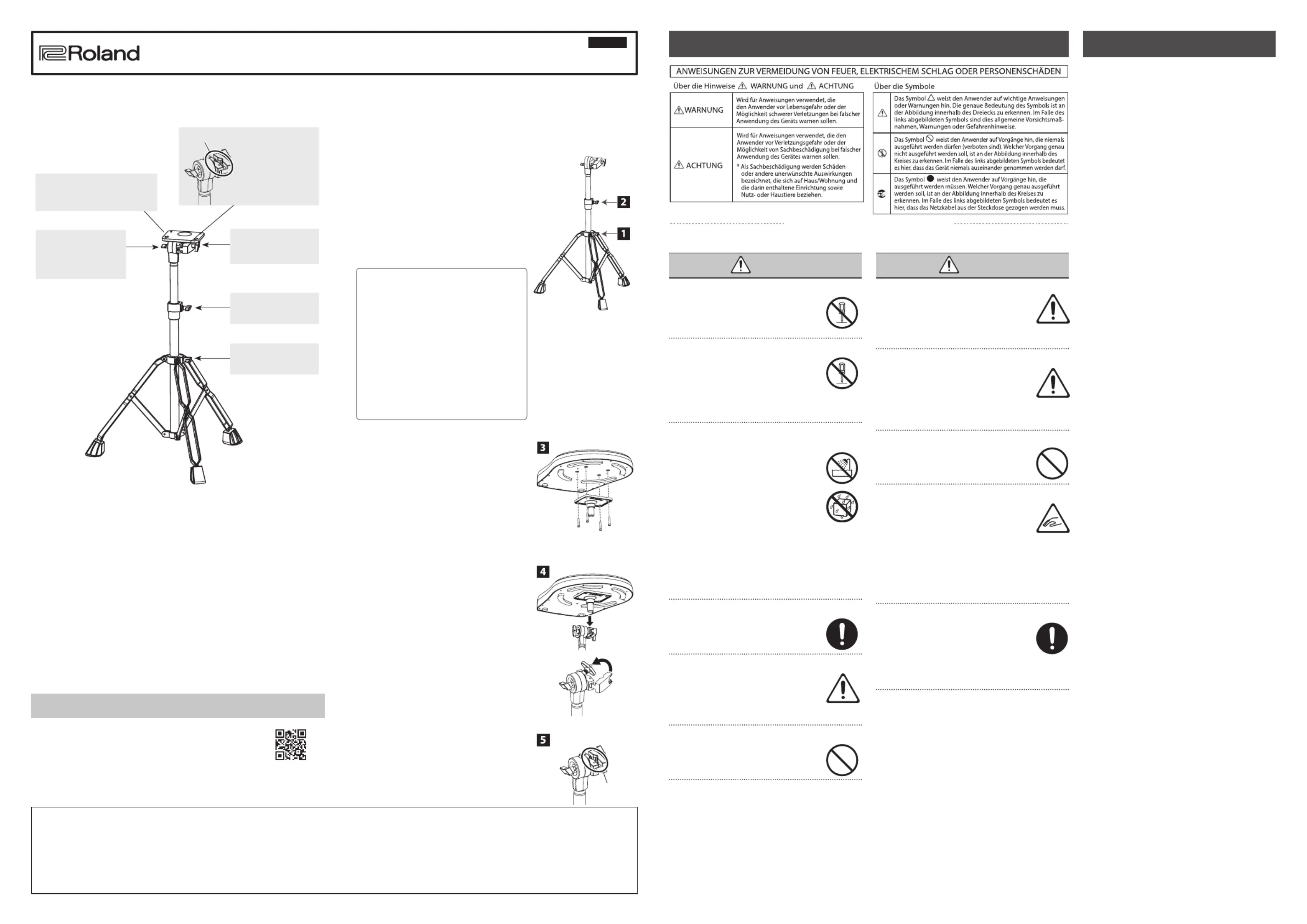

Functions Setup

1. Adjust the spread of the tripod.

* Use the stand with the tripod spread out to

stabilize the stand.

2. Adjust the stand’s height.

* Use this stand so that the top surface of the

mounted product is no higher than 1 meter

(3’ 3” inches) above the oor.

When the upper surface of the mounted

product is at a height of less than 75

(2’ 5” inches) from the oor (with the product

already attached to the stand)

Open the tripod so that the distance between

each leg (at the oor) is approximately 50 cm

(1’ 7” inches).

When the upper surface of the mounted

product is at a height of 75 cm (2’ 5” inches)

or greater above the oor (with the

product already attached to the stand)

Open the tripod to the fullest extent.

3. Use screws to attach the mounting

plate to the product. The screws are

attached to the bottom surface of the

product (four locations).

* When attaching the product to the mounting

plate, do not use any screws other than

those that are included with the product. The

product might be damaged if you use other

screws.

4. Attach the mounting plate to the

stand.

Insert the mounting plate into the clamp, then

turn the clamp knob to secure the mounting

plate.

5. Turn the angle adjustment knob

to adjust the tilt of the mounted

product.

* If you loosen this excessively, the part might

come o or the product might fall down. Clamp

Clamp knob

Fastening/removing the

mounting plate

Tripod adjustment knob

Adjust the tripod spread

Angle adjustment knob

Adjust the tilt of the

mounted product

Mounting plate

Attach this to the product before

attaching to the stand

Height adjustment knob

Adjust the stand height

Attach the mounting

plate to the stand

Clamp

* Do not insert your ngers inside the stand pipe. This may result in injury.

* Take care not to hit your face or head against any of the stand’s protruding components (knobs, mounting plate, etc.).

* When you loosen the knob while making adjustment of each parts, the pipe, product and clamp knob etc. might fall and pinch your ngers. The product might

be damaged if it falls. Use one hand to support the tom, pipe, or cymbal mount while you slowly loosen the knob.

* To prevent the stand from tipping over or falling, tighten the knobs until there is no looseness.

* This document explains the specications of the product at the time that the document was issued. For the latest information, refer to the Roland website.

WARNING

Do not disassemble or modify by yourself

Do not carry out anything unless you

are instructed to do so in the owner’s

manual. Otherwise, you risk causing

malfunction.

Do not repair or replace parts by yourself

Be sure to contact your dealer, a Roland

service center, or an ocial Roland

dealer.

For a list of Roland service centers and

ocial Roland dealers, refer to the Roland website.

Do not use or store in the following types of

locations

• Subject to temperature extremes (e.g.,

direct sunlight in an enclosed vehicle,

near a heating duct, on top of heat-

generating equipment); or are

• Damp (e.g., baths, washrooms, on wet

oors); or are

• Exposed to steam or smoke; or are

• Subject to salt exposure; or are

• Exposed to rain; or are

• Dusty or sandy; or are

• Subject to high levels of vibration and shakiness;

or are

• Placed in a poorly ventilated location.

Do not place in an unstable location

Otherwise, you risk injury as the result

of the unit toppling over or dropping

down.

Be cautious to protect children from injury

Always make sure that an adult is

on hand to provide supervision and

guidance when using the unit in places

where children are present, or when a

child will be using the unit.

Do not drop or subject to strong impact

Otherwise, you risk causing damage or

malfunction.

CAUTION

Use this stand only for specic Roland products

This stand for use only with specic

Roland musical instruments. See

apparatus instructions. Use with other

models is capable of resulting in

instability causing possible injury.

Evaluate safety issues before using stands

Even if you observe the cautions given

in the owner’s manual, certain types of

handling may allow this product to fall

from the stand, or cause the stand to

overturn. Please be mindful of any safety issues

before using this product.

Avoid climbing on top of the unit, or placing

heavy objects on it

Otherwise, you risk injury as the result of

the unit toppling over or dropping down.

Take care so as not to get ngers pinched

When setting up or storing this stand,

take care not to pinch your ngers.

Whenever a child uses the unit, an adult

should be on hand to provide supervision

and guidance.

• Clamp

• Angle adjustment section

• Tripod spread adjustment section

• Height adjustment section

Keep small items out of the reach of children

To prevent accidental ingestion of the

parts listed below, always keep them out

of the reach of small children.

• Removable Parts

Knobs, washer

USING THE UNIT SAFELY

Owner’s Manual IMPORTANT NOTES

Before using this unit, carefully read “USING THE UNIT SAFELY” and “IMPORTANT NOTES.” After reading, keep the document(s) where it will be available for immediate

reference.

BEACHTEN SIE IMMER FOLGENDES

Placement

• Depending on the material and temperature

of the surface on which you place the unit, its

rubber feet may discolor or mar the surface.

Maintenance

• Never use benzine, thinners, alcohol or

solvents of any kind, to avoid the possibility of

discoloration and/or deformation.

Additional Precautions

• When disposing of the packing carton or
