PI9
PhonePatch II
Quick Start Guide
Rolls Corporatio n
Salt Lake City, UT
03/10
SPECIFICATIONS
Input Impedance : s600 Ohm
Output Impedance: 10 K Ohms
Input Level +15 dB ma : x
Out t v : +5 dB xpu Le el ma
Ringer Equivalence 0.0 : A, 0.0 B
Conne ionct s: 11 phone jack,2; RJ
2; RCA jacks
1: Tip-Ring-Sleeve 3.5mm jack
Size: 2.7" W x 1.45" H x 2.32" D
Weight lb: 1 .
PI9 P Patch IIhone
- RCA and 1/8" (3.5mm) Inputs
and Outputs
- 11 RJ Phone and Line jacks
T PI9 he is a passive device for
connecting a phone line to an
audio system or vice versa. Handy
for phone interviews, broadcast, or
laptop presentations with a remote
phone s .ignal
INTRODUCTION
Thank you for your purchase of the PI9 PhonePatch II. The PI9
takes a signal from a standard telephone jack and,via transformer
isolation, connects to a pair of RCA jacks, or a stereo 1/8"
(3.5mm) jack. The isolation keeps the output signal separate from
the telephone line, and will not keep the line open unless the
HOOK switch is in the ON positin as described later in the guide.
Applications for the PI9 include broadcast, conference
rooms, phone training, laptop presentations, or wherever a phone
conversation needs to be recorded or heard over a PA system.
The PI9 also works for putting audio onto a phone line. However,
you must ensure the signal level is no hotter than line level (+4
dB) or you will get distortion on the phone line.
WARRANTY
For information on the Rolls One Year Limited Warranty, and to
register this product, visit our website at www.rolls.com
DESCRIPTION
INPUTS: 2 ea: Standard RJ11 phone jacks.
AUDIO LINE: Stereo RCA, 1/8" (3.5mm) jack
ON/MUTE switch: Connects or disconnects the Phone/Line jacks to
the transformer and the Audio output. With the switch in (ON) the audio
is active. When the switch is out (MUTE) the audio signal is muted.

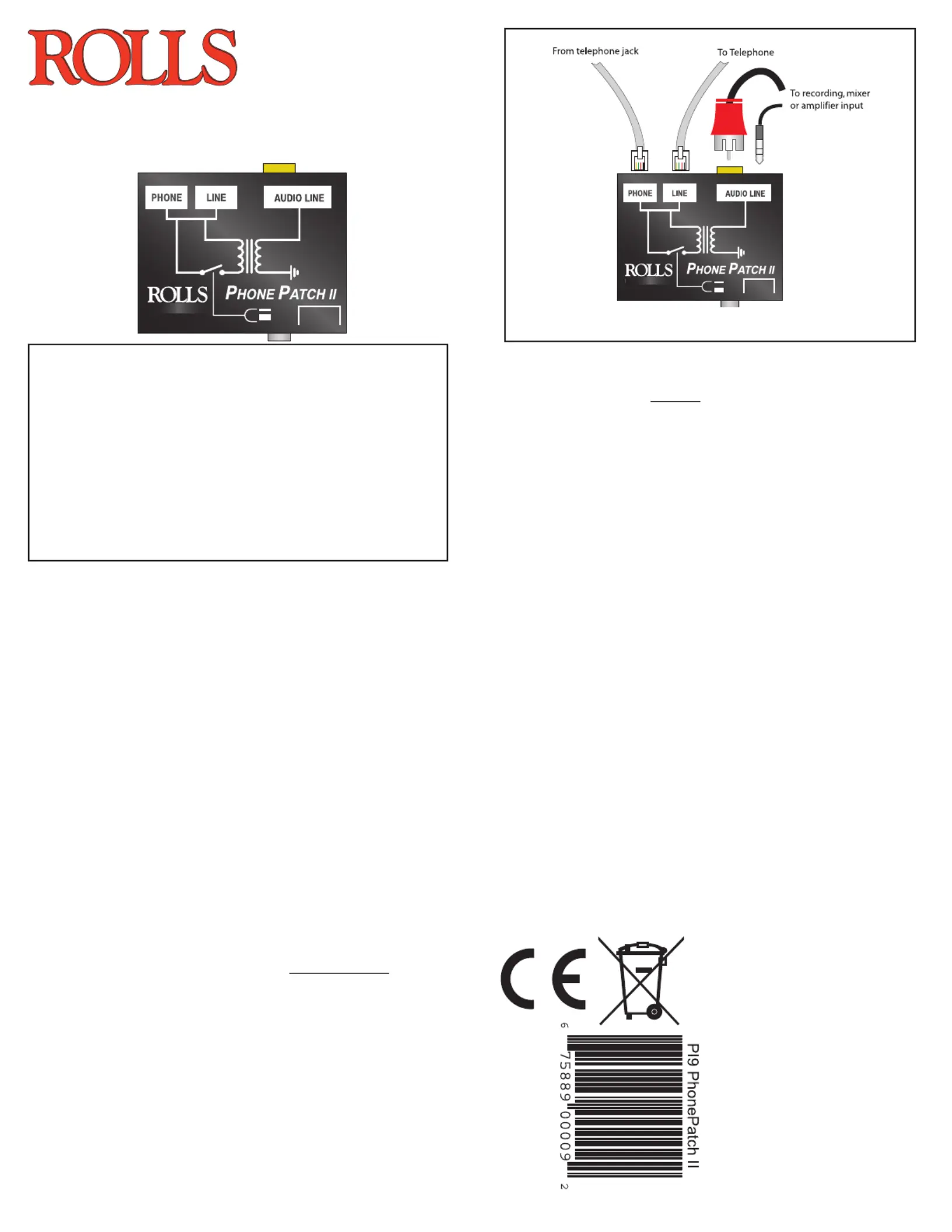

CONNECTION : Re erf to F 1.igure
Connect a standard telephone cable to an active telephone line,
and to the PI9 Phone Input. To pass the signal on to another
telephone, connect another standard telephone cable from the
PI9 Line jack to a telephone.
Connect either a stereo RCA cable, or stereo 1/8" (3.5mm) cable
to an AUDIO LINE output jack.
Fig reu 1.
HOOK: OFF - ON
An option on the PI9 is the ability to select whether or not
the unit will hold a line open. A line being "held open" acts
like a telephone is o the hook. ON is for the line to be left open
and OFF is when the phone is hung up.
PI9
HOOK
OFF - ON
ON
MUTE
ON
MUTE
HOOK
OFF - ON
PI9
www.rolls.com
www.rolls.com
