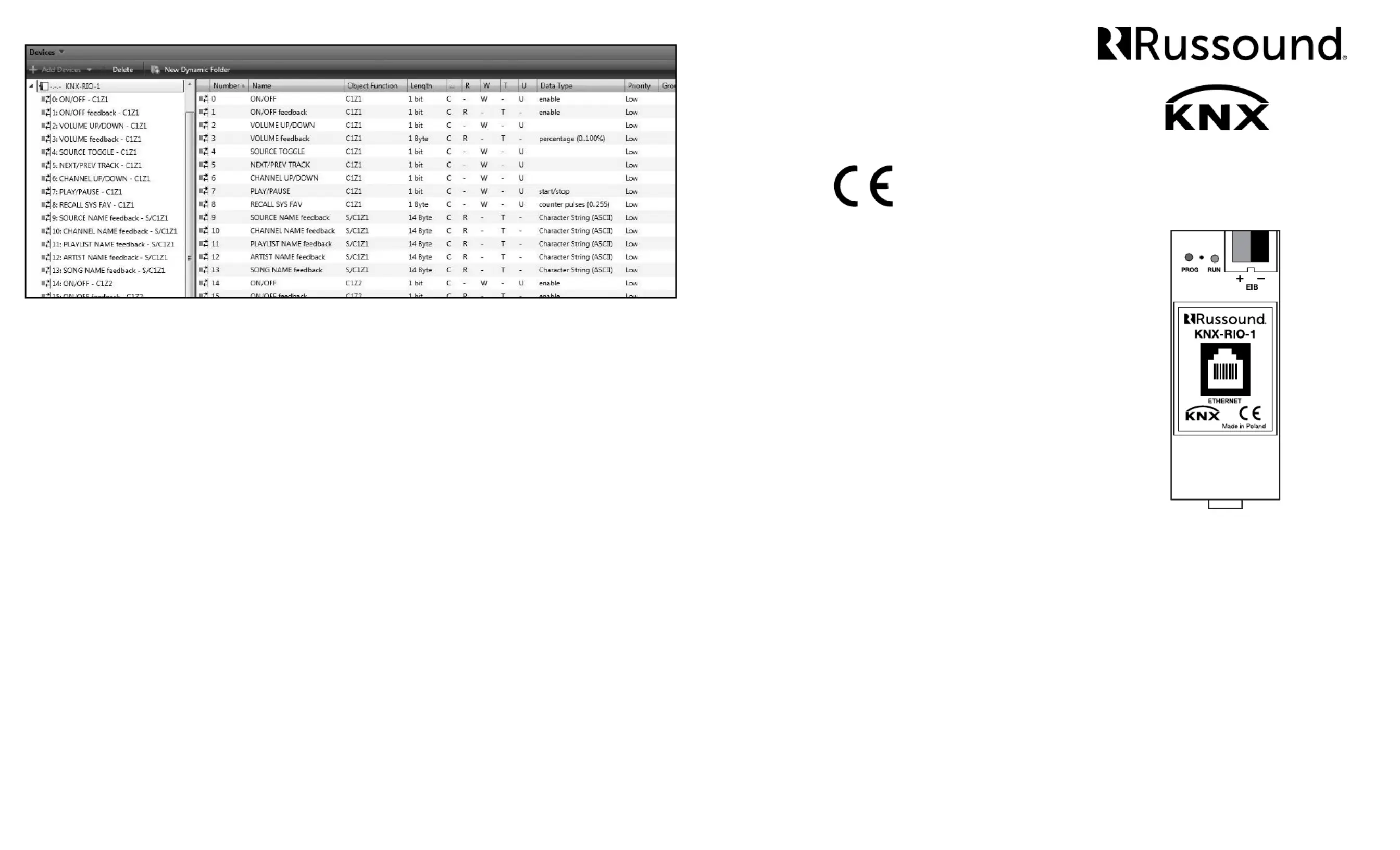

KNX-RIO-1
KNX Gateway
Installation Manual
Overview
The Russound KNX-RIO-1 Gateway is a device that allows
KNX panels and keypads to operate Russound controllers
that support the RIO protocol. The KNX-RIO-1 gateway
supports control of 2 MCA Controllers for up to 16 zones,
or one X5 for 1 zone.
The KNX-RIO-1 can be congured in the standard KNX
ETS Software program to perform a number of control
functions, including basic Zone control. The KNX-RIO-1
also supports metadata feedback for those sources that
support metadata (i.e. Russound streamers) and KNX
keypads and panels that can display the metadata.
The Russound KNX-RIO-1 has standard KNX Bus
connections and two LED lights (Red and Green) to indicate
connection status and programming download status. The
KNX-RIO-1 also contains an Ethernet port with standard
Ethernet status lights for connecting to a local network. The
KNX-RIO-1 is designed to be installed on 35mm DIN Rails and
is powered by the KNX Bus or a separate dedicated power
supply (sold separately).
Russound, Inc. 1 Forbes Rd., Newmarket, NH 03857, USA
tel +1.603.659.5170 • fax +1.603.659.5388 www.russound.com
technical support: +1.866.888.7466
e-mail: intltech@russound.com 28-1393 12.11.15 Rev.6
Copyright ©2015 Russound® All rights reserved. All trademarks
are the property of their respective owners. Specications are
subject to change without notice.
Specications
Power supply: from KNX Bus
Power consumption: Max. 80 mA using only KNX Bus
terminal, Max. 10 mA connecting
12 – 24 VDC to the auxiliary screw terminal
CAT-5 connection: RJ-45 (T568A standard)
Dimensions: 3.5” H x 1.4” W x 2.4”D, (9cm x 3.6cm x 6.2cm)
Weight: 1.6 oz (45 gr)
Limited Warranty
The Russound KNX-RIO-1 is guaranteed against all defects in
materials and workmanship for two (2) years from the date of
purchase. During this period, Russound will replace any defective
parts and correct any defect in workmanship without charge for
either parts or labor. For this warranty to apply, the unit must be
installed and used according to its written instructions. If service
is necessary, it must be performed by Russound. The unit must
be returned to Russound at the owner’s expense and with prior
written permission. Accidental damage and shipping dam-
age are not considered defects, nor is damage resulting from
abuse or from servicing by an agency or person not specically
authorized in writing by Russound. This Warranty does not cover:
Damage caused by abuse, accident, mis-use, negligence, or
improper installation or operation; Power surges and lightning
strikes; Normal wear and maintenance; Products that have been
altered or modied; Any product whose identifying number,
decal, serial number, etc. has been altered, defaced or removed.
Russound sells products only through authorized Dealers and
Distributors to ensure that customers obtain proper support and
service. Any Russound product purchased from an unauthorized
dealer or other source, including retailers, mail order sellers and
online sellers will not be honored or serviced under existing Rus-
sound warranty policy. Any sale of products by an unauthorized
source or other manner not authorized by Russound shall void
the warranty on the applicable product.
Damage to or destruction of components due to application of
excessive power voids the warranty on those parts. In these cases,
repairs will be made on the basis or the retail value of the parts and
labor. To return for repairs, the unit must be shipped to Russound
at the owner’s expense, along with a note explaining the nature of
service required. Be sure to pack the unit in a corrugated container
with at least three (3)inches of resilient material to protect the
unit from damage in transit. Before returning a unit for repair, call
Russound at for a Return Authorization number. 866.888.7466
Write this number on the shipping label and ship to: Russound,
ATTN: Service, 1 Forbes Road, Newmarket, NH 03857.
Communication Objects: Zones/Controller Settings (zone 1 active)
Communication Objects for Controller 1 are the same
for each of the eight (8) zones of the Controller (see
example above – Communication Objects for C1Z1).
These Communication Objects correspond to functions
of RIO commands, as described in Russound RIO Protocol
documentation. The name of the Object describes the
function of that object. For example, PLAY/PAUSE – C1Z1
will perform a Play/Pause toggle in Zone 1.
Most of the Communication Objects are 1-bit Objects. A
value of “1” issues a positive function, like ON, NEXT, UP, or
PLAY, and a value of “0” issues a negative function, like OFF,
PREV, DOWN, or PAUSE. SOURCE TOGGLE uses only a value
of “1”. Volume can be set from 0 to 50.
The Russound System can store up to 32 Global Favorites.
Favorites can be stored and edited by the user with
Russound keypads (MDK, TS3) or the MyRussound app
(Android, iOS). These Favorites can then be recalled in a
zone with the RECALL SYS FAV object. The value assigned
to the object determines which Favorites is recalled. Many
KNX panels will refer to these values as “scenes”, so assigning
“scene 1, scene 2” to two buttons on KNX panel within
Group Addressing with RECALL SYS FAV C1Z1 Object will
recall Favorite #1 and Favorite #2, respectively for Zone 1.
The same Favorites can be recalled in Zone 2 by assigning
RECALL SYS FAV C1Z2 to a KNX panel in zone 2, etc.
Note: System Favorites are stored in order. If a user
DELETES a System Favorite from a Russound interface, it
will no longer be associated with the KNX panel button.
Instead, we recommend the user “EDIT” the System
Favorite, should they desire a dierent channel/preset/
internet radio station to be recalled by that button.
Note: System Favorites can be used to recall a number of
source audio functions, such as an Internet Radio Station,
a Cable/Satellite box channel, and AM/FM tuner preset,
and others. Depending on the source, some additional
programming may be required with the Russound SCS-C5
programming software for MCA Controllers.
Communication Objects: Source Feedback
The KNX-RIO-1 supports Source Metadata Feedback for all
8 sources in a Russound system. The Feedback messages
supported are shown in the example above. Each source
feedback object is a 14-byte text object. Each Source
feedback object exists per zone, so if SOURCE NAME is
desired to display on KNX panels, then SOURCE NAME
S/C1Z1 would be assigned to a KNX panel for Zone 1, and
SOURCE NAME S/C1Z2 would be assigned to a panel for
Zone 2, etc.
