XTS5.5
Wall-mounted Touchscreen
Installation Manual
Overview
The Russound XTS5.5 is an elegant, in-wall
touchscreen with a 5.5” FHD display that is
designed to be a primary user interface for
.metsys oidua dnuossuR elbitapmoc a gnillortnoc
By running the MyRussound™ app, the XTS5.5
allows full control of any zone in a Russound
system and provides metadata feedback from
compatible sources, including song titles, artist
name, album titles, and album art.
Russound
1 Forbes Rd., Newmarket, NH 03857, USA
tel 603.659.5170
www.russound.com
e-mail: tech@russound.com
Limited Warranty
The Russound is guaranteed for one (1) XTS5.5
year from the date of purchase against all defects
in materials and workmanship. During this period
Russound will replace any defective parts and
correct any defect in workmanship without charge
for either parts or labor. For this warranty to apply,
the unit must be installed and used according to its
written instructions. If service is necessary, it must
be performed by Russound. Russound assumes no
responsibility for defects resulting from abuse or
servicing performed by an agency or person not
to or destruction of components due to improper use
voids the warranty. In these cases the repair will be
made at the owner’s expense. Accidental damage and
shipping damage are not considered defects under the
terms of the warranty. To return for repairs, the unit
must be shipped to Russound at the owner’s expense,
along with a Return Authorization number and
documentation explaining the nature of the service
required. Any product returned without prior written
permission will be returned to sender. Russound
sells products only through authorized Dealers and
Distributors to ensure that customers obtain proper
support and service. Any Russound product purchased
from an unauthorized dealer or other source, including
retailers, mail order sellers and online sellers will not be
honored or serviced under existing Russound warranty
policy. Any sale of products by an unauthorized source
or other manner not authorized by Russound shall void
the warranty on the applicable product.
Wall Single gang
electrical box
CAT-5
Mounting bracket Screws
Step 3
Attach the PoE Ethernet cable from the electrical
box to the rear of the XTS5.5 touchscreen. No
other wiring connection is needed.
Note: The XTS5.5 uses a dynamic DHCP network
address. A DHCP-reservation may be used on a
compatible router when a more permanent IP
address is required.
Step 4
Attach the XTS5.5 touchscr n to e mounting ee th
bracket by inserting the prongs of the mounting
plate into e matching slots on e rear of the th th
XTS5.5. M e sure that the XTS5.5 is oriented as ak
shown in the diagram below. There are two captive
mounting screws. Use a Phillips screwdriver to
tighten the screw at both the top and bottom of
the XTS5.5 to secure it i ace.n pl

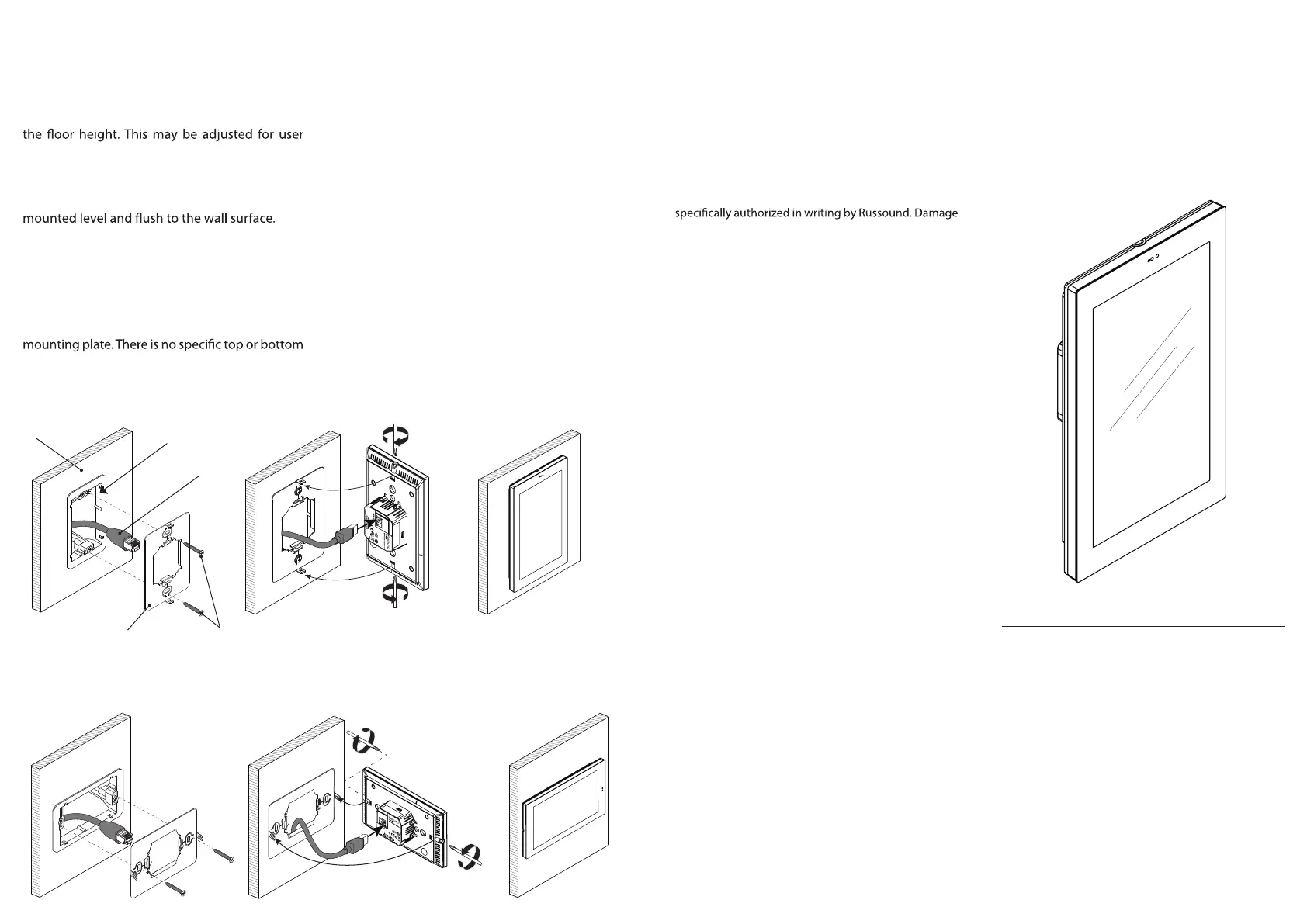

Installation Instructions
Step 1
Install the electrical box or P-Ring. The typical
recommended mounting height for a wall-
mounted touchscreen is for the center of the
electrical box/p-ring to be at 59” (150cm) from
preference, but the 59” height is recommended
to accommodate all users.
Note: The electrical box/P-Ring must be a
1-gang piece. Make sure that the box/P-ring is
Step 2
Attach the XTS5.5 mounting plate to the electrical
box or P-ring using the supplied screws. The plate
should be unted so that the two prongs at mo
either end are facing into the room. These prongs
will be used for attaching the XTS5.5. to the
orienta on. The plate may be mounted in either ti
orienta on as long as th prongs ac utwards.ti e f e o
01.22. 21, Rev. 1.0
Landscape Orientation - The XTS5.5 may also be installed in a landscape orientation, set the
“ ” setting in the Settings Menu to “ ”Screen Orientation Landscape
Russound
©2021 Russound/FMP, Inc. All rights reserved.
All trademarks are the property of their respective
owners. Specications are subject to change without
notice.
