the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential instal-
lation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one
or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
This device complies with Industry Canada license-exempt
RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference
that may cause undesired operation of the device.
Under Industry Canada regulations, this radio transmitter may
only operate using an antenna of a type and maximum (or
lesser) gain approved for the transmitter by Industry Canada. To
reduce potential radio interference to other users, the antenna
type and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than that
necessary for successful communication.
2.1A USB
120 WATT POWER INVERTER
RYi120A
A - LED power button/overload indicator (témoin DEL/indicator de
surcharge, botón LED de encendido//indicador de sobrecarga )
B - 120 V receptacle (réceptacle 120 V, receptáculo de 120 voltios)
C - USB port (port USB, puerto USB)
D - 2.4A USB port (port USB 2,4A, puerto USB de 2,4 A)
A - Power inverter (convertisseur de current, inversor de corriente)
B - 12V DC plug (prise de 12 V CC, enchufe de CC de 12 V)
C - 12V DC receptacle (réceptacle12 V CC, receptáculo de 12 V CC)
D - Connector cord plug (connecteur, enchufe del cable del conector)
E - Receptacle (prise, receptáculo)
Fig. 1 Fig. 2
Fig. 3
A - Led power button/overload indicator (témoin DEL/indicator de
surcharge, botón LED de encendido//indicador de sobrecarga)
A
998000426
7-29-21 (REV:04)
Fig. 5
A - Fuse cover (capuchon du fusible, tapa de
fusible)
B - Fuse cap (capuchon fusible, tapa ce la
fusible)
C - 12 amp fuse (fusible de 12 A, fusible de
12 amperios)
D - 12 volt DC plug (prise 12 V CC, enchufe de
CC de 12 voltios)
C
A
B
D
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS. Failure
to follow all instructions listed below may result in electric
shock, fire and/or serious injury.
SAVE THESE INSTRUCTIONS - This manual contains
important safety and operating instructions for inverter
model RYi120A.
NOTICE:
This product’s AC receptacle has a non-sinusoidal out-
put and is not recommended for use with certain types
of sensitive electronics. Please refer to your product's
operator’s manual.
This product is for indoor use only.
Do not expose inverter to rain or snow, or use when wet.
Do not disassemble the inverter.
To reduce the risk of injury, close supervision is neces-
sary when an appliance is used near children.
Store inverters indoors and away from children.
As with all electrical devices, use caution when plug-
ging and unplugging this unit into an outlet or plugging/
unplugging other devices into this unit. Do not force this
unit into an outlet. Do not force plugs into this unit.
To reduce the risk of damage to electric plug and cord,
pull by plug rather than cord when disconnecting inverter.
If this unit is used in a manner not specified by the
manufacturer, the protection provided by this equipment
may be impaired.
Do not overload the tool. It must be used for powering
devices less than the product rating.
Operate this product using only the AC power type listed
in the product specifications.
Two- or three-prong plugs may be used with this product.
Do not force a polarized plug (one prong larger than the other)
into this product. Flip plug over and retry.
Never block air vents. Blocked vents may cause overheat-
ing. Inverter will automatically shut off when overheated.
Keep inverter cool. Do not place near vehicle heat vents
or in direct sunlight.
Use only with power cord provided.
Disconnect inverter from power supply when not in use.
Do not use the inverter around flammable fumes and
gasses, such as in the bilge of a boat or near propane
tanks.
Do not use in an enclosed area with automotive lead
acid batteries.
Do not put foreign objects into the inverter.
Refer to the operator’s manual for the vehicle or con-
tact the vehicle manufacturer for the proper 12V power
receptacle. This product is not suitable for being powered
through the cigarette lighter receptacle.
WARNING:
To reduce the risk of fire, do not connect to an AC load
center (circuit breaker panel) having multiwire branch
circuits connected.
2.4A USB
C
B
A
D
C
D
B
A
E
Français
MANUEL D’UTILISATION
CONVERTISSEUR DE CURRENT DE 120 W
RYi120A
INSTRUCTIONS IMPORTANTES
CONCERNANT LA SÉCURITÉ
AVERTISSEMENT !
LIRE ATTENTIVEMENT TOUTES LES INSTRUCTIONS.
Le non-respect de toutes les instructions ci-dessous
peut entraîner un choc électrique, un incendie et/ou des
blessures graves.
CONSERVER CES INSTRUCTIONS - Ce manuel
renferme des instructions de sécurité et de fonctionnement
importantes pour le modèle de convertisseur no RYi120A.
AVIS :
Le réceptacle CA de ce produit est équipé d’une sortie
non sinusoïdale et son utilisation n’est pas recommandée
pour certains appareils électroniques sensibles. Veuillez
consulter le manuel d’utilisation des appareils.
Do not power life support devices or other necessary
medical equipment with this tool.
This unit should never be hard wired into a circuit.
This unit should never be wired into a AC distribution
circuit.
Do not attempt to set up, make adjustments or power
devices while operating a vehicle.
Save these instructions. Refer to them frequently and use
them to instruct others who may use this product. If you loan
someone this product, loan them these instructions also.
WARNING:
Risk of Fire. Do not replace any vehicle fuse with a rating
higher than recommended by the vehicle manufacturer.
This product is rated to draw 12 amperes from 13.8V
vehicle outlets. Ensure that the electrical system in your
vehicle can supply this product without causing the vehicle
fusing to open. This can be determined by making sure the
fuse in the vehicle which protects the outlet is rated higher
than 12 amperes. Information on the vehicle fuse ratings
are typically found in the vehicle operator’s manual. If a
vehicle fuse opens repeatedly, do not keep replacing it. The
cause of the overload must be found. Fuses should not be
patched up with tin foil or wire as this may cause serious
damage elsewhere in the electrical circuit or cause fire.
PRODUCT SPECIFICATIONS
Watts Continuous 120 Watts ...................................................
DC Input 12 to 18 Volts DC .....................................................
AC Output 120 Volts, 1 Amp ...................................................
USB Output 5 Volts (2.4 Amps) DC .........................................
Output Wave Form Modified Sine Wave .................................
OPERATION
APPLICATIONS
You may use this product for the following purposes:
Operating and charging USB-powered devices
Supplying electrical power for operating compatible electri-
cal devices such as, but not limited to, lighting, appliances,
tools, motor load, small load switch mode power supply,
and fans
The power inverter converts low voltage DC electricity to 120V
AC household power allowing user to charge and power a
variety of devices.
WARNING:
Risk of electric shock. When using a grounded appli-
ance this tool will not provide an electrical path to earth
ground. Do not power devices with damaged or frayed
power cords.
NOTICE:
Do not power this device with an outlet designated for
lighting cigarettes. If the 12V adaptor does not fit firmly
into the auxiliary power port, the receptacle is not suitable
for use with the inverter. A poor connection at the base of
the 12V adaptor could lead to electrical problems in the
vehicle outside of the protections offered by the vehicle
or inverter’s fuse.
CONNECTING TO AN 18V BATTERY
See Figure 1.
To install: Place the inverter adaptor onto the battery as
shown. Make sure the battery pack is secured on the inverter
adaptor before beginning operation.
With power inverter turned off, insert connector cord plug
into receptacle in rear of inverter.
To remove: lift off the battery pack.
CONNECTING TO A 12V AUTO ACCESSORY
OUTLET
See Figure 2.
Using your vehicle’s 12V DC receptacle, the inverter will
provide power through a 120V AC outlet and/or two USB ports.
NEVER use inverter with any 12V DC power source that uses
a positive ground.
NOTE: Some vehicles require the ignition to be turned on
before power is supplied to an accessory outlet.
With power inverter turned off, insert connector cord plug
into receptacle in rear of inverter.
Plug the 12V DC plug into the 12V DC receptacle.
NOTE: Some vehicles may stop power to the accessory
outlet when the vehicle’s engine starter is engaged. Any
items connected to the power inverter may momentarily be
without power.
USING THE POWER INVERTER
See Figures 3 - 4.
Press LED power button/overload indicator to turn inverter
ON. LED will light up green.
NOTE: If the LED does not come on, turn on vehicle ignition.
Plug devices you want to power or charge into the inverter’s
USB ports and/or 120 Volt receptacle.
The 2.4 A USB ports support mobile devices such as
cellphones and most tablets.
NOTE: If the LED power button/overload indicator comes
on red, press button to turn off inverter then turn it back
on to reset. If fault condition occurs again, device may be
overloading the circuit.
NOTE: Some power tool chargers may experience a delay in
charging. The LED power button/overload indicator may flash
red while it is analyzing the charger, the LED will remain green
once it begins charging.
When finished, disconnect your device and turn off the
inverter.
MAINTENANCE
REPLACING THE FUSE
See Figure 5.
Always replace the fuse with a 12 Amp glass fuse. Never
replace the fuse with a higher-rated fuse.
Make sure LED power button/overload indicator is .OFF
Disconnect any USB or AC devices that are plugged into
the inverter.
Unscrew fuse cover and remove from 12 V plug.
Remove fuse cap.
Remove the blown fuse. Replace with the new fuse.
Reinstall the fuse cap and fuse cover. Tighten securely.
REPLACEMENT PARTS
The following replacement parts may be ordered by calling our
customer service department at 1-800-525-2579:
12A Glass Fuse .....................................................870291007
12V DC Input Cable ...............................................290361034
18V Inverter Adaptor Cable ...................................290361033
WARRANTY
This product has a Three-year Limited Warranty for
personal, family, or household use (90 days for business
or commercial use). For warranty details, visit www.
ryobitools.com or call (toll free) 1-800-525-2579.
Model/item number on product may have additional letters
at the end. These letters designate manufacturing infor-
mation and should be provided when calling for service.
FCC COMPLIANCE
WARNING:
Changes or modifications to this unit not expressly
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC rules. Opera-
tion is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
NOTE: The grantee is not responsible for any changes or modi-
fications not expressly approved by the party responsible for
compliance. Such modifications could void the user’s authority
to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15 of

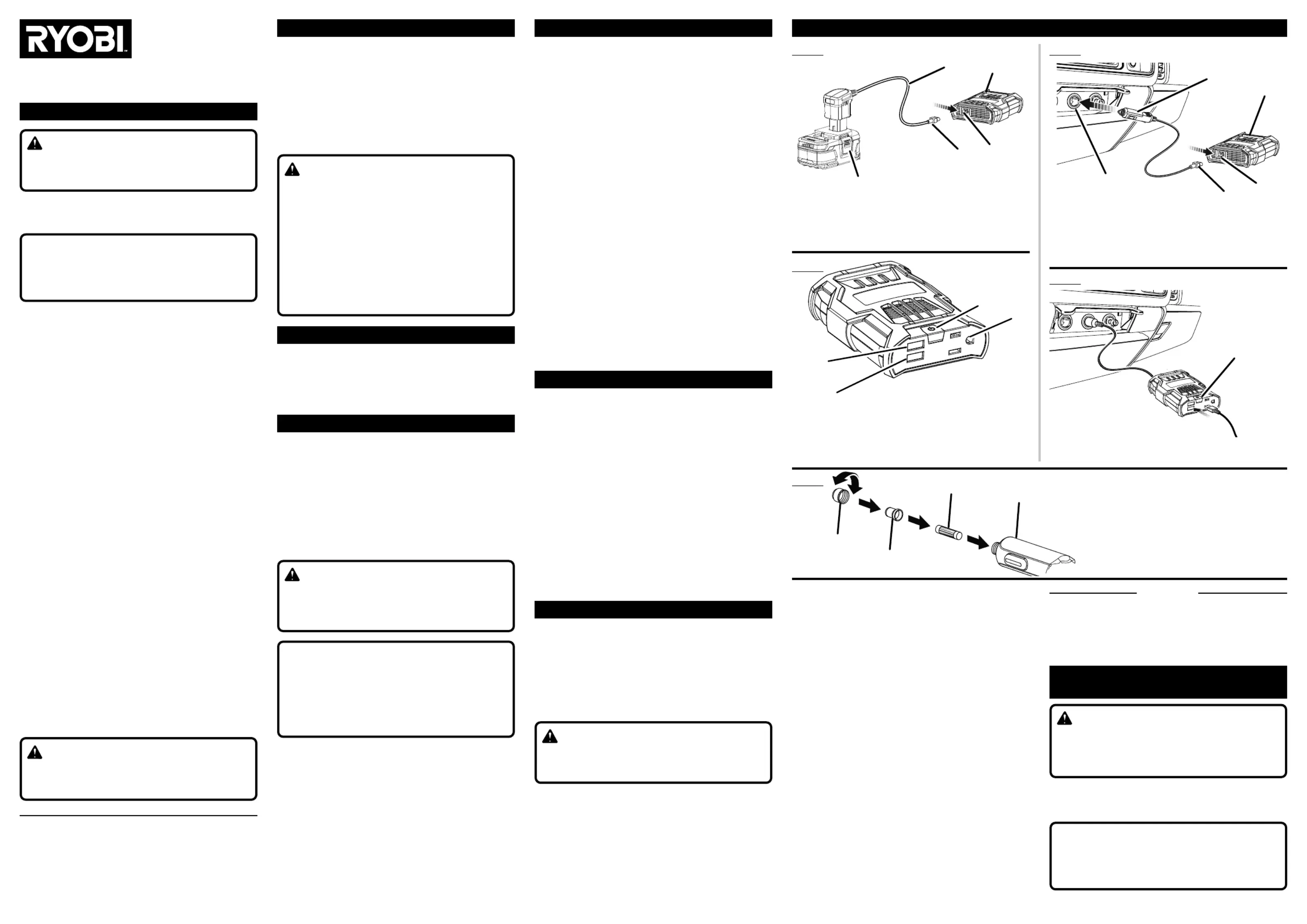

ILLUSTRATIONS / ILLUSTRÉES / ILUSTRADAS
OPERATOR’S
MANUAL
IMPORTANT SAFETY INSTRUCTIONS OPERATION
Fig. 4
TECHTRONIC INDUSTRIES
POWER EQUIPMENT
P.O. Box 1288, Anderson, SC 29622, USA
1-800-525-2579 www.ryobitools.com
A - Power inverter (convertisseur de current, inversor de corriente)
B - Inverter adaptor (adaptateur convertisseur, adaptador de inversor)
C - 18V battery (pile de 18 V, batería de 18 V)
D - Connector cord plug (connecteur, enchufe del cable del conector)
E - Receptacle (prise, receptáculo)
C
D
BA
E

Produkt Specifikationer

Mærke: RYOBI
Kategori: Ikke kategoriseret
Model: RYi120A

Har du brug for hjælp?

Hvis du har brug for hjælp til RYOBI RYi120A stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ikke kategoriseret RYOBI Manualer

RYOBI

RYOBI One+ P505 Manual

6 September 2024
RYOBI

RYOBI One+ PBLRS01 Manual

6 September 2024
RYOBI

RYOBI One+ PBLJS01 Manual

6 September 2024
RYOBI

RYOBI RB61G Manual

6 September 2024
RYOBI

RYOBI One+ PSBDG01 Manual

6 September 2024
RYOBI

RYOBI One+ RB102G Manual

6 September 2024
RYOBI

RYOBI One+ PSBCK102 Manual

6 September 2024
RYOBI

RYOBI One+ PCL601 Manual

6 September 2024
RYOBI

RYOBI One+ PCL460 Manual

6 September 2024
RYOBI

RYOBI STM501 Manual

6 September 2024

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Smeg

Smeg KIT6PX Manual

23 December 2024
Smeg

Smeg KIT6CX Manual

23 December 2024
Smeg

Smeg GTA-6 Manual

23 December 2024
Lucide

Lucide Casper i 79166/19/12 Manual

23 December 2024
Lucide

Lucide Merlina 78193/30/66 Manual

23 December 2024
Lucide

Lucide Pippa 77583/81/30 Manual

23 December 2024
Lucide

Lucide Pia 45380/04/30 Manual

23 December 2024
Lucide

Lucide Pia 45280/01/30 Manual

23 December 2024
Lucide

Lucide Anaka 45179/03/30 Manual

23 December 2024
Lucide

Lucide Zych 45156/01/97 Manual

23 December 2024
