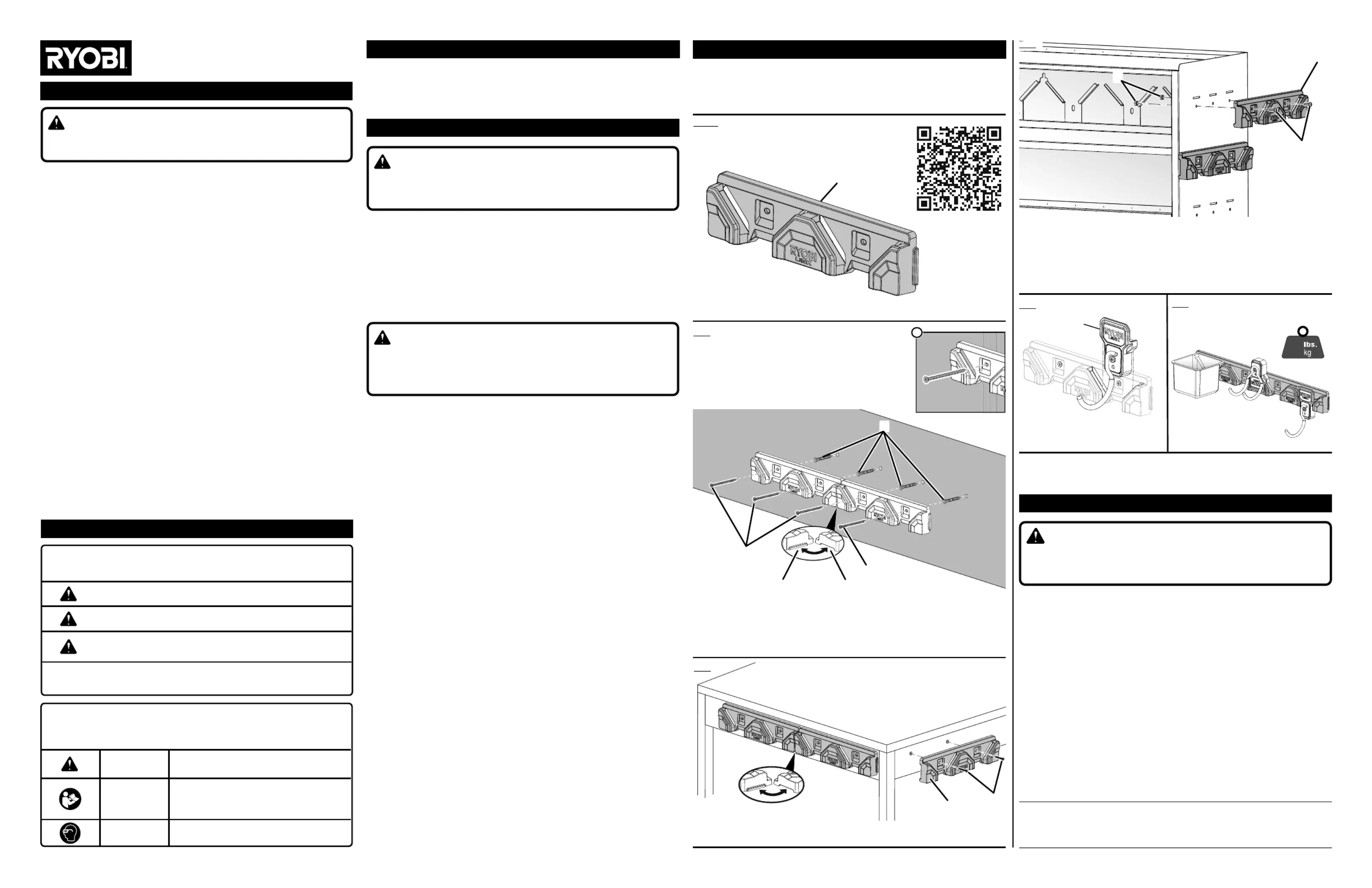

Side 1/2
WARNING:
To reduce the risk of injury, do not attempt to use this product until you have read thor-
oughly and understand completely this operator’s manual and the operator’s manual
for any power tools used.
PACKING LIST
LINK™ Accessory Rails (2), Operator’s Manual, #10 5/8 in. PH2 bolts (4), #10 nuts (4),
#10 T25 screws (4), drywall anchors (4)
TOOLS NEEDED (NOT INCLUDED)
Drill, level, 1/8 in. and 11/32 in. drill bits and T25 drive bit, pencil, hammer, adjustable
wrench and Phillips screwdriver
MOUNTING THE LINK™ ACCESSORY RAILS
See Figures 1 - 3.
WARNING:
Only install screws into sound structural supports (such as studs and drywall anchors)
in areas where no electrical wires, utility cables, pipes, or other obstructions are locat-
ed. Failure to follow these instructions can result in death, electrical shock, or other
serious personal injury.
To mount using drywall anchors:
Place the accessory rail against the wall.
Level the accessory rail.
Mark both screw holes of the accessory rail.
NOTE: Mark two level holes that are 5-5/16” apart.
Remove the accessory rail and, using a drill, make 11/32 in. pilot holes through both marks.
NOTE: In case of stud, do not use anchor but instead use 1/8 in. pilot holes.
Insert anchors into the two pilot holes.
NOTE: Use your fingers to squeeze and press the anchor into the pilot hole. Tap the
head of the anchor lightly with a hammer until it is flush with the wall.
Place the accessory rail back on the wall in the same location as before.
Secure the accessory rail to the wall using the #10 T25 screws into drywall anchors.
Check installation by verifying that the accessory rail is level and secure to the wall.
Repeat steps to mount additional accessory rails.
NOTE: You can align multi-STM501s using the alignment tab. See figure 1.
To mount onto solid wood surface:
Place the accessory rail against a solid wood surface.
Level the accessory rail.
Mark both screw holes of the accessory rail.
Remove the accessory rail and, using a drill, make 1/8 in. pilot holes through both marks.
Place the accessory rail back on the wall in the same location as before.
Insert the screws through the holes in the rail.
Check installation by verifying that the accessory rail is level and secure to the wall.
Repeat steps to mount additional accessory rails.
NOTE: You can align multi-STM501s using the alignment tab. See figure 1.
To mount onto LINK™ cabinet:
Locate the two outer pre-drilled holes on the sides of the LINK™ cabinet.
Align the holes in the LINK™ accessory rails with the holes on LINK™ cabinet.
NOTE: The LINK™ accessory rails should be mounted with the RYOBI name facing up.
Insert the bolts through the holes in the rail.
Place the nuts onto bolts and tighten.
Use a Phillips screwdriver and adjustable wrench to tighten securely.
ATTACHING/REMOVING ACCESSORIES
See Figures 4 - 5.
The LINK™ accessory rails are provided to use in attaching LINK™ compatible bins to
create a storage space for small items needed for a project. The maximum weight of all
the items placed on each accessory rail must not exceed 15 lbs.
Mount the accessory rails as described above.
Position the accessory between the two LINK™ hexagonal patterns on the accessory rail.
NOTE: Some LINK accessories can use the top of the hexagonal pattern for mounting.
WARNING:
Read all saftey warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shcok, fire and/or serious injury.
READ ALL INSTRUCTIONS
Know your product. Read operator’s manual carefully. Learn its applications and lim-
itations, as well as the specific potential hazards related to this product. Following this
rule will reduce the risk of serious personal injury.
The maximum weight of all the items placed on each accessory rail must not
exceed 15 lbs.
Do not exceed the maximum weight capacity for the accessory rails or accessories.
Secure the accessory rail following the instructions in this operator’s manual. Failure
to properly secure each accessory rail will reduce the accessory rail’s maximum
weight capacity.
To reduce risk of injury, do not use accessories which are not specifically designed
and recommended by the manufacturer.
These are hanging accessory rails. Do not use for any other purpose than supporting
tools or products.
Keep the area around the accessory rails clean and well lit. Cluttered or dark areas
invite accidents.
Mount the accessory rails in a dry, indoor place protected from wet conditions.
Keep accessory rails dry, clean, and free from oil and grease.
Do not use the accessory rail if it is damaged or broken. A damaged or broken
accessory rails may not mount securely and/or it might not provide adequate support
for the items stored on it.
When servicing this product, use only identical replacement parts. Use of unautho-
rized parts may create a risk of injury.
Mount the accessory rails on smooth and flat surfaces capable of bearing the weight
of accessory rails and the items stored on it.
Use extra care when mounting the accessory rails. Keep proper footing and bal-
ance at all times.
Ensure the accessory rails are securely mounted. Make sure they do not rock, slide,
or move before storing products or tools.
Always wear eye protection with side shields marked to comply with ANSI Z87.1
during installation. Following this rule will reduce the risk of serious personal injury.
Do not allow children or untrained individuals to use these accessory rails.
Store idle power tools out of the reach of children
SAVE THESE INSTRUCTIONS. Refer to them frequently and use them to instruct other
users. If you loan someone this product, also loan these instructions.
SAFETY RULES
FEATURES
INSTALLATION
The following signal words and meanings are intended to explain the levels of risk
associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates a hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING: Indicates a hazardous situation, which, if not
avoided, could result in death or serious injury.
CAUTION: Indicates a hazardous situation, that, if not avoid-
ed, may result in minor or moderate injury.
NOTICE:(Without Safety Alert Symbol) Indicates information
considered important, but not related to a potential
injury (e.g. messages relating to property damage).
PRODUCT SPECIFICATIONS
Maximum Weight Capacity*............................................................................15 lbs. per rail
*Accessory rails must be secured to the chosen mounting surface according to the instruc-
tions in this operator’s manual to achieve maximum weight capacity.
TTI CONSUMER POWER TOOLS, INC.
P.O. Box 1288, Anderson, SC 29622
Phone 1-800-525-2579 • www.ryobitools.com
Some of the following symbols may be used on this product. Please study them and
learn their meaning. Proper interpretation of these symbols will allow you to operate
the product better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
Safety Alert Indicates a potential personal injury hazard.
Read
Operator’s
Manual
To reduce the risk of injury, user must read and
understand operator’s manual before using this
product.
Eye
Protection
Always wear eye protection with side shields
marked to comply with ANSI Z87.1.
OPERATOR’S MANUAL
STM501 LINK™ ACCESSORY RAILS
Fig. 2
A - LINK™ accessory rail (Rail d’accessoires LINK™ Riel accesorio LINK™),
B - Screws (des vis, tornillos)
B
A
ATTACHING TO SOLID WOOD SURFACE
FIXATION SUR UNE SURFACE EN BOIS MASSIF
FIJACIÓN A UNA SUPERFICIE DE MADERA SÓLIDA
A - LINK™ accessory rail (Rail d’accessoires LINK™ Riel accesorio LINK™),
STM501
Fig. 1
A
A - Drywall anchors (ancrages pour cloisons sèches tarugos para cartón yeso),
B - #10 T25 screws (des vis n° 10 T25 tornillos n.º 10 T25),
C - Screw over stud (vis au-dessus de montant, tornillo sobre montante)
D - Tab (languette, lengüeta)
E - Slot (fente, ranura)
C
A
B
DE
B
ATTACHING TO WALL
FIXATION AU MUR
FIJACIÓN A LA PARED
Fig. 4
A - LINK™ accessory rail (Rail d’accessoires LINK™ Riel accesorio LINK™),
B - Bolt (#10) [boulon (#10), perno (#10)]
C - Nut (M10) [écrou (M10), tuerca (M10)]
A - Utility hook (not included) [crochet utilitaire
(non inclus), gancho de uso general (no incluida)]
Fig. 3
B
A
A
C
ATTACHING TO COMPATIBLE LINK CABINET ™
FIXATION À UNE ARMOIRE LINK COMPATIBLE ™
FIJACIÓN A GABINETE COMPATIBLE LINK™
Fig. 5
15
6.8
PER RAIL MAX
PAR RAIL MAX
POR RIEL MÁX
AVERTISSEMENTS DE SÉCURITÉ GÉNÉRALES
AVERTISSEMENT :
Lire toutes les mises en garde et directives aux présentes. Tout manquement aux
mises en garde et aux directives aux présentes peut résulter en un choc électrique, un
incendie et (ou) des blessures graves.
LIRE TOUTES LES INSTRUCTIONS
Apprendre à connaître le produit. Lire attentivement le manuel d’utilisation. Apprendre
les applications et les limites de le produit, ainsi que les risques spécifiques relatifs à son
utilisation. Le respect de cette consigne réduira les risques d’incendie, de choc électrique
et de blessures graves.
Le poids maximal de tous les objets placés sur chaque rail d’accessoire ne doit
pas dépasser 6,80kg (15 lb).
Ne pas dépasser la capacité de poids maximale pour rails d’accessoires ou les
accessoires.
Fixer le rail d’accessoire en suivant les instructions de ce manuel d’utilisation.
Ne pas sécuriser correctement chaque rail d’accessoire diminuera la capacité de
poids maximale des rails d’accessoires.
Pour réduire tout risque de blessure, ne pas utiliser d’accessoires qui ne sont pas
conçus ni recommandés spécialement par le fabricant.
Il s’agit de rails muraux suspendus pour le garage. Ne pas utiliser pour tout autre
but que le support d’outils ou de produits.
Garder la zone autour les rails d’accessoires propre et bien éclairée. Les endroits
encombrés ou sombres sont propices aux accidents.
Installer les rails d’accessoires l’intérieur, dans un endroit sec et protégé contre
toute condition humide.
MANUEL D’UTILISATION
STM501 RAILS D’ACCESSOIRES LINK™
FOR MORE PRODUCT INFORMATION, SCAN QR CODE
POUR PLUS D’INFORMATIONS SUR LE PRODUIT, SCANNER LE CODE QR
PARA MÁS INFORMACIÓN DEL PRODUCTO, ESCANEE EL CÓDIGO QR
Insert the tabs on the accessory into the openings on the accessory rail.
Push the accessory in and down to secure.
To remove an accessory:
Slide the accessory up and away from the accessory rail.
SYMBOLS
INSTALLATION
