Warranty and processing

The warranty/guarantee for the Schimmel-DRY is 2 years from the date of delivery

and relates exclusively to the proper heating of the heating elements. The warranty

includes the repair or exchange of the defective individual component and will be

processed after the damage has been reported in accordance with the general

terms and conditions of your dealer.

In the event of a malfunction, check which of your heating elements is affected by

directly plugging in each heating element (with a connection cable of the same

construction), or see whether the defect is caused by the mains cable or the

connection cable. No liability is assumed for possible contamination of surfaces in

the area of the heating elements due to soot, dust or other chemical influences, as

well as discolouration of surfaces due to the effects of heat. In the event of damage

to the device due to incorrect or unsafe installation or incorrect operation, all

warranty claims are forfeited.

The manufacturer assumes no responsibility for direct or indirect damage and

costs (e.g., shipping, installation, energy expenditure, heating failure, heat

exposure, damage, soiling) that may arise as a result of use or the non-observance

of these instructions, or from improper use. Damage caused by breakage of the

heating plate is only covered by the warranty if it can be proven beyond any doubt

that the breakage is due to a material or functional defect in the heating element.

We recommend checking with your household insurance provider to ensure that

surface units are included in your insurance against breakage of the heating

surface.

Prevention and protection

As with every technical device, contact with liquids (water), dust or dirt and an

excessively high operating temperature should also be avoided with the Schimmel-

DRY in order to avoid malfunctions or consequential damage.

Radiant heat that can be used to dry out the wall is available from a heating plate

surface temperature of approx. 55°C. In the case of an uninterrupted power supply,

a surface temperature of 70 to max. 80°C should not be exceeded. If the

temperature is higher, this indicates a malfunction of the heating element or

insufficient ventilation.

Permanent mould solution.

We wish you a lot of

happiness, dry walls and

healthy indoor air with the

Schimmel-DRY.

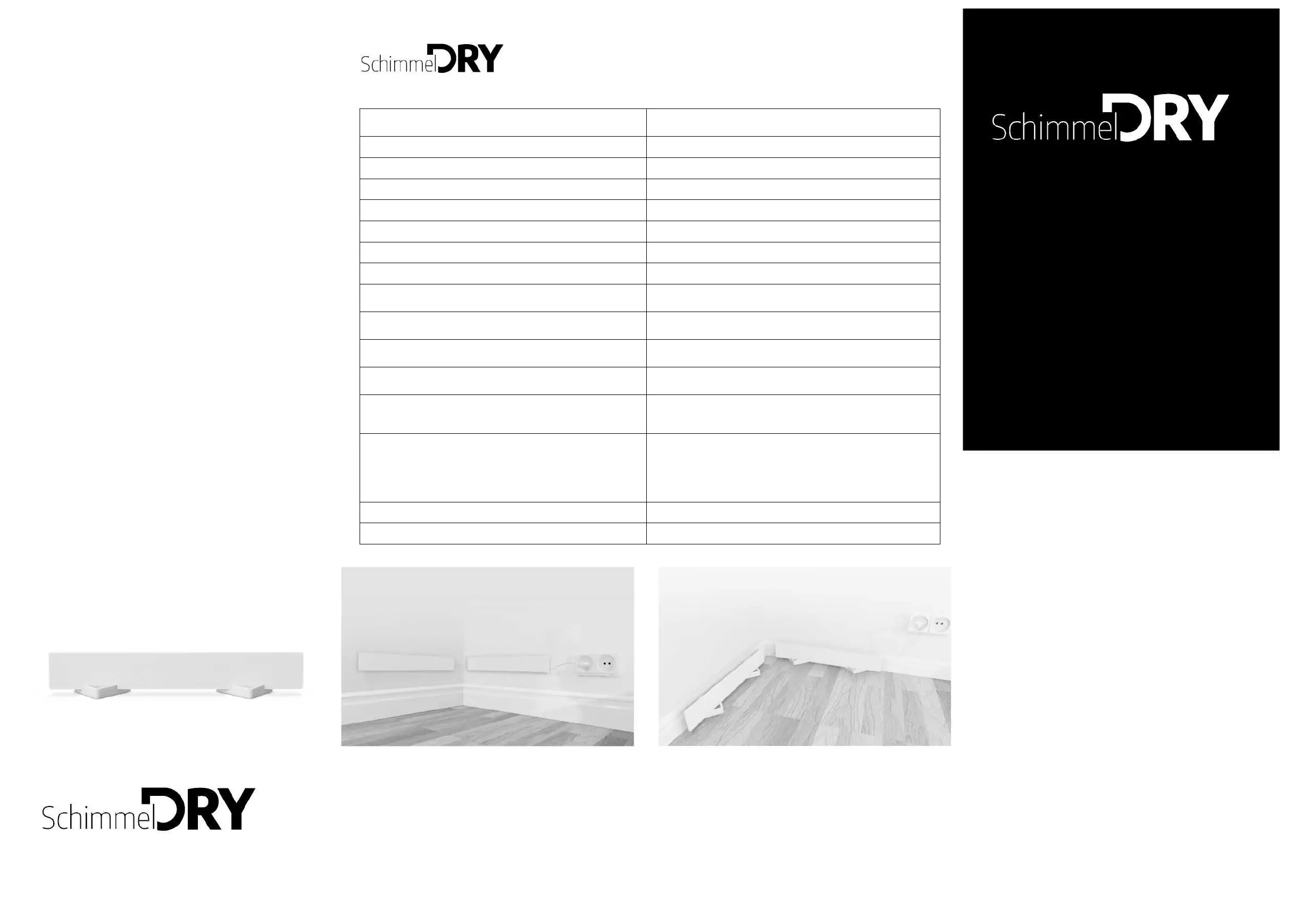

Positioning mounted directly.

Positioning with stand.

Technical specications

Dimensions:

Length: 520 mm, width: 90 mm

Depth: 16 18 mm (4 6 mm stone-ceramic composite + 12 mm console) – –

Model name:

EGS-WHI- GL

Colour:

White

Rated power per heating element:

45– –50 watts (2 heating elements: 70 90 watts)

Rated voltage/frequency:

230 volt/50 Hz

Weight per heating element:

approx. 500 g

Surface temperature:

approx. 55 70°C –

Controls:

None when connected directly; optional timer switch

Protection class:

Heating element: IP 54 (protected against dust and spraying water) Plug

connections: IP 50 (protected against dust and accidental contact)

Power connection:

Optional length: 75 200 cm/cross-section: 2 x 0.75 mm–2 Euro plug to IEC

connector C7

Connection between 2 heating elements:

Optional length: 20 200 cm/cross-section: 2 x 0.75 mm–2IEC connector C8 to

IEC connector C7

Surface:

High-quality, mechanically resistant composite heating plate with ideal

radiation properties, washable

Rear:

Temperature-resistant paint, solvent-free, resistant to conventional solvent-

free and acid-free household cleaners with an alcohol content of up to 5%

Packaging units available:

• 1 x EGS-WHI-GL heating element, 1 power cord

• 1 x EGS-WHI-GL heating element, 1 connection cable

• 2 x EGS-WHI-GL heating elements, 1 power cord + 1 connection cable

With fastening material in each case

Electrical capacity:

Up to 5 heating elements of 40 50 watts per connection cable –

Mechanical resistance:

Avoid mechanical stress

Customer service and

information:

ELIAS Heiztechnik GmbH, Unterbruckendorf 14 9314

Launsdorf, Austria

Tel: +43 (0) 4212/467 15

Email: info@schimmel-dry.com

Website: www.schimmel-dry.com

INSTRUCTION MANUAL

PLEASE BE SURE TO FOLLOW THE INSTALLATION,

USAGE AND SAFETY INSTRUCTIONS!

• The device is designed for continuous operation or operation at intervals (e.g.,

timer switch) via connection via a socket.

• Do not cover the heating elements with textiles or other materials.

• Air must be able to circulate freely around the heating elements to prevent

heat build-up and possible overheating.

• No liability is accepted for damage to the device or affected objects and

surfaces, or for any consequential damage resulting from non-compliance

with these guidelines.

• In the event of improper use, all warranty claims are void.

This manual describes how to install and operate the Schimmel-DRY heating

elements. It is for information only and is subject to change without notice.

Please read this manual first, so that you can familiarise yourself with all the

product's properties before you start using it.

Manufacturer's declaration of conformity (CE)

This equipment has been designed and manufactured in accordance with the

following standards relating to the European Community low voltage regulations:

EN 60335-1 (Single layer insulation, general part), EN 60335-2-30 (Particular

requirements for space heaters) and EN 62233 (Low voltage directive).

Properties and benets of use

Congratulations on purchasing Schimmel-DRY heating elements. As a company,

we guarantee the quality and safety of this product. The following sections

explain how to use the device and provide useful information for a better

understanding and the best possible use of its properties.

Permanent mould solution.
