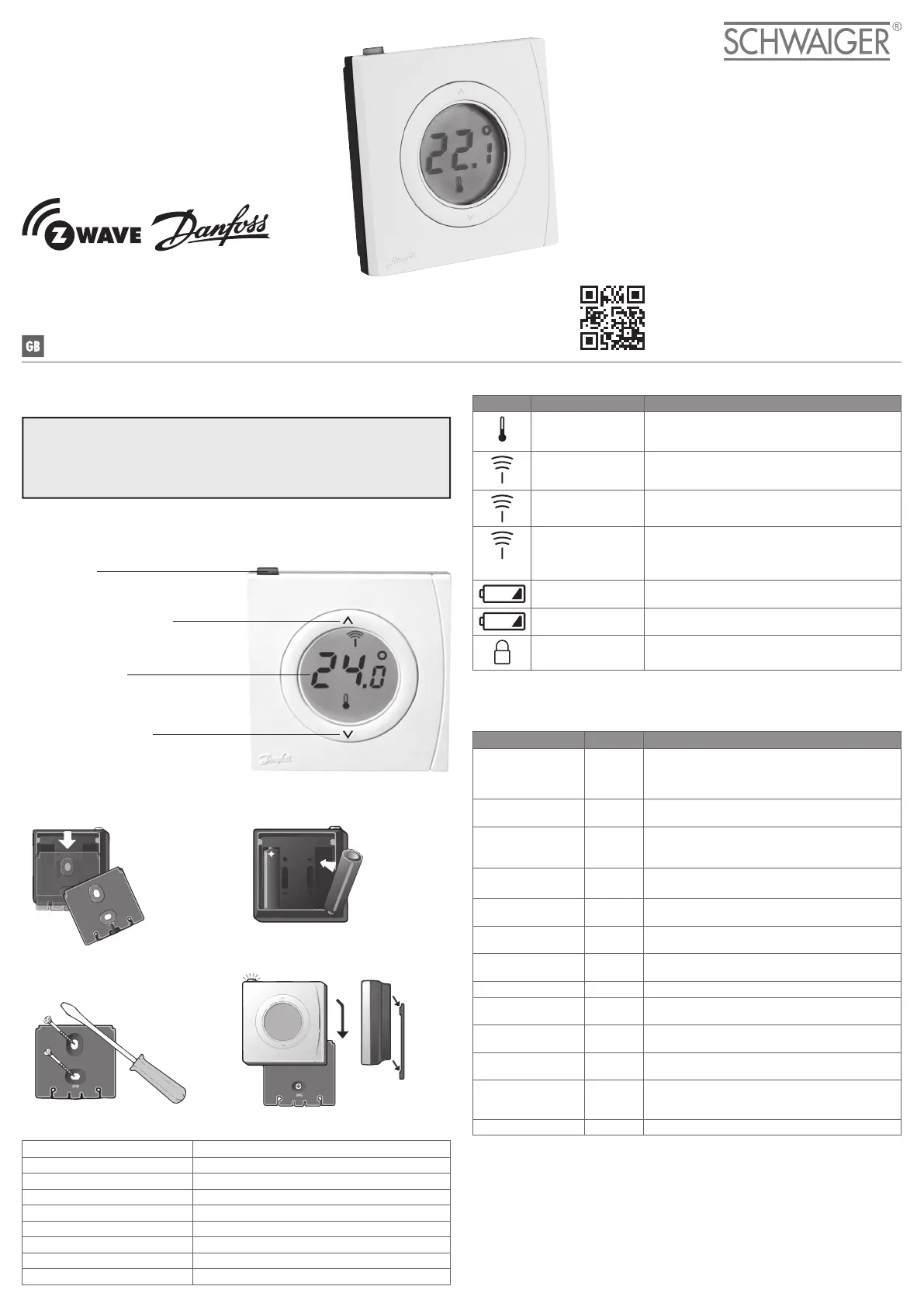

USER MANUAL ZHD01
TEMPERATURE SENSOR
ZHD01
MANUFACTURER INFORMATION
Dear Customer,
should you require technical advice and your
retailer could not help please contact our
technical support.
Schwaiger GmbH
Würzburger Straße 17 90579 Langenzenn
Hotline: +49 (0) 9101 702-199
www.schwaiger.de info@schwaiger.de
BDA_ZHD01
Business hours:
Monday to Thursday: 08:00 - 17:00
Friday: 08:00 - 14:30
HOME AUTOMATION
Congratulations and thank you for purchasing the Schwaiger ZHD01
product. Below you will find useful operating guidelines.
Display information
Display LED Explanation
Room temperature displayed
Rapid green flashing
Red flashing
Flashes
Runs insertions or deletions
Red flashing every
150 seconds
Red flashing every
30 seconds
Insertions or deletions failed
Z-Wave information
General device class Multi-level sensor
Specific device class Routing multilevel sensor
Device type Routing slave
SDK 4.55
NWI Yes
Explorer frames Yes
Manufacturer ID 0x0002
Product type ID 0x0003
Product ID 0x8010
Introduction
Schwaiger ZHD01 is a battery-operated temperature sensor. If it is integrated into the wireless
Z-Wave network, the control buttons can be used to control the heating system.
Disposal information
This device contains no batteries. It is an electrical device. It can be disposed of free of charge at
specified disposal sites.
EC Declaration of Conformity
„Hereby Schwaiger GmbH declares that the ZHD01 product is in compliance with the essential requi-
rements and other relevant provisions of Directive 1999/5/EC. “ The Declaration of Conformity can be
found at the following address: http://www.schwaiger.de/downloads
Installation
LED button
INCREASE temperature
Display
(with backlight)
LOWER temperature
1. Remove the back panel by
sliding it downwards.
3. Fasten the back panel to the wall.
2. Replace the batteries.
4. Gently push the Z-Wave RS on the back panel.
Z-Wave command classes
Command Class Version Description
BASIC V1 • Basic SET: Not supported
• Basic GET: Multi-level sensor get
• Basic REPORT: Multi-level sensor report
(1 °C accuracy)
MANUFACTURER_
SPECIFIC
V2 ID from Danfoss and Z-Wave RS
VERSION V2 Version of command classes, of the Z-Wave Library
and of Z-Wave RS
BATTERY V1 Battery status
MULTI_CMD V1 Conserve battery power by transmitting multiple com-
mands in a single package
WAKE_UP V2 Switch-on intervals of 5 min to 24 h (default: 60
minutes)
PROTECTION V2 0 = No protection
2 = User interface locked
CONFIGURATION V2 Specific Z-Wave RS configuration
SENSOR_MULTILEVEL V6 Specifies the value from the room temperature sensor
again
CENTRAL_SCENE V1 By pressing the LED button the transmission of
CENTRAL_SCENE_ NOTIFICATION is triggered.
THERMOSTAT_
SETPOINT
V3 When selecting a temperature setpoint on the display
controller, the setpoint is reported.
SCHEDULE V1 When selecting a temperature and a number of hours
on the display controller reported the program change
values.
INDICATOR V1 Control of the LED display.
Paste in Z-Wave
• Make sure that Z-Wave RS is in the factory defaults setting.
• Activate „Inclusion/Paste“ on the Z-Wave controller.
• Press the LED button on Z-Wave RS.
• Check the process status on the controller and Z-Wave RS.
