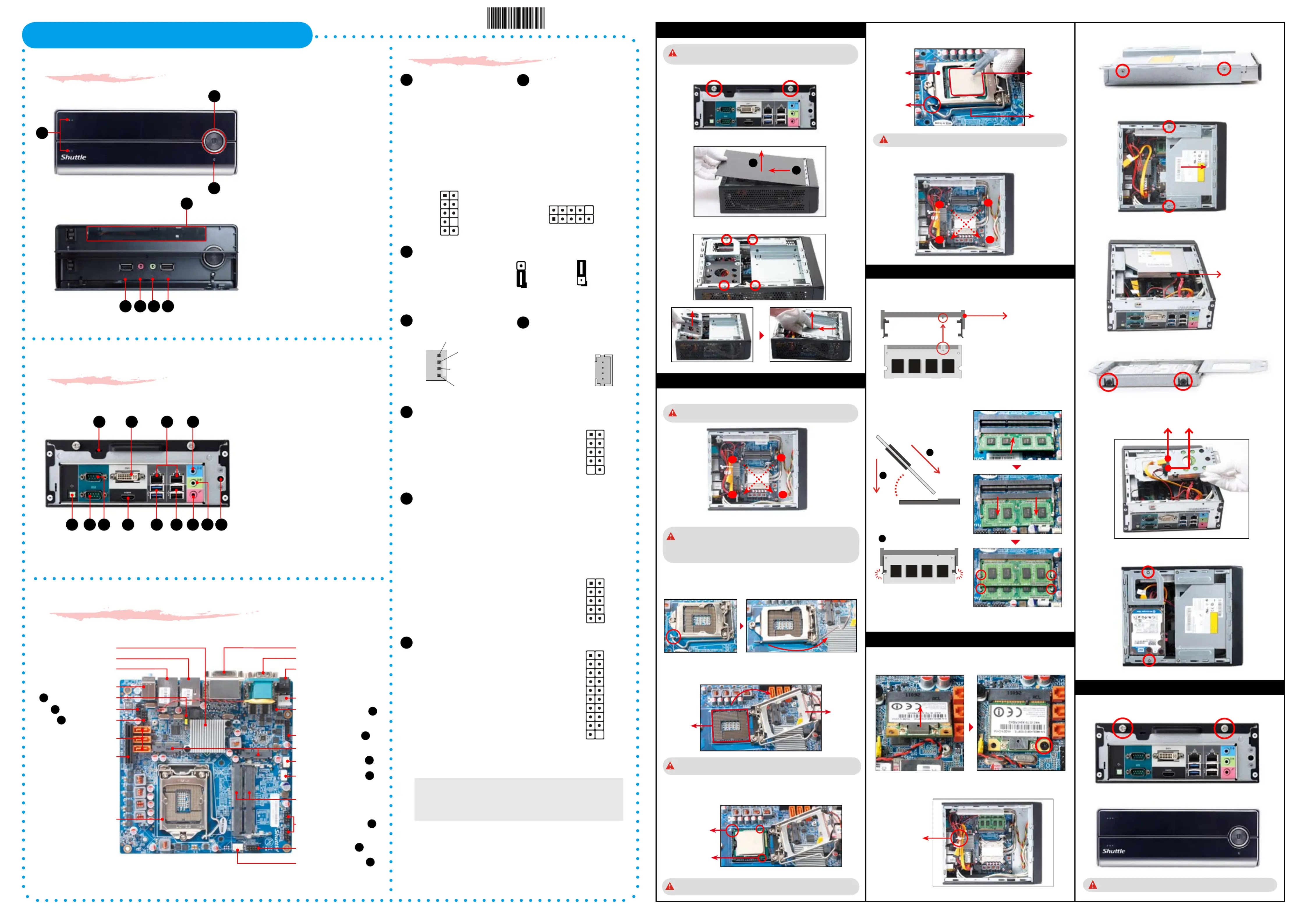

53R-XH61V3-2001

Safety Information

Read the following precautions before setting up a Shuttle XPC.

Laser compliance statement

The optical disc drive in this PC is a laser product.

The drive's classication label is located on the drive.

CLASS 1 LASER PRODUCT

CAUTION INVISIBLE LASER RADIATION WHEN OPEN.：

AVOID EXPOSURE TO BEAM.

CAUTION

Incorrectly replacing the battery may damage this computer.

Replace only with the same or equivalent as recommended by Shuttle.

Dispose of used batteries according to the manufacturer's instructions.

B10

LGA1155 Package CPU Socket

DDR3 SODIMM slots

Power Connector-JP6

USB Header-USB4

Mic-In/ Line-Out/ Line-In Ports

LAN (x1) & USB2.0 (x2) Ports

Serial ATA Connectors-SATA1,2,3

Intel H61 Chipset

COM (x2) Ports

Fan Connector-SYS_FAN

Audio Connector-JP4

DVI-I & HDMI Ports

Pin Assignments (JP4):

1=MIC2_L

2=AGND

3=MIC2_R

4=FRONT-JD

5=LINE2-R

6=SENSE1_RETURN

7=FRONT_SENSE

8=KEY

9=LINE2-L

10=SENSE2_RETURN

Pin Assignments (JP10):

1=UL_BAT_PWR

2=-RTCRST

3=-RTCBTN Pin1-2

(BAT_POWER Mode)

Pin2-3

(Clear CMOS Mode)

Pin Assignments (USB1/USB2/USB4):

1=5V_USB 2=5V_USB

3=USB A- 4=USB B-

5=USB A+ 6=USB B+

7=GND 8=GND

9=NC 10=NC

Serial ATA Cable Serial ATA Power Cable

Slimline SATA Cable

F5F7

B1 B4 B6

B5 B7

B13

B12

Pin Assignments (JP6):

1=+HD_LED

2=PWR_LED

3=-HD_LED

4=GND

5=RST_SW

6=PWR_SW

7=GND

8=GND

9=NC

10=KEY

ATX Power Connector-CN8

S/PDIF Out Port

Support RS232 Back panel

Independent External Power

12V/5V-JP3

PCI-Express X4 Slot

1 3 5 7 9

JUMP1 Connector Pin 1 and Pin 2 = RI1 Signal.

JUMP2 Connector Pin 3 and Pin 4 = RI2 Signal.

IF JUMP1 Connector Pin 5 and Pin 7 = RI1 is +5V

IF JUMP2 Connector Pin 6 and Pin 8 = RI2 is +5V

IF JUMP1 Connector Pin 7 and Pin 9 = RI1 is 12V

IF JUMP2 Connector Pin 8 and Pin 10 = RI2 is 12V

Pin Assignments (JP3):

1=-XRI1 2=COM_-XRI1

3=-XRI2 4=COM_-XRI2

5=+5V 6=+5V

7=COM1_PWR 8=COM2_PWR

9=+12V 10=+12V

Purse lock

B11

B3 B8 B9

B10

USB Headers-USB1,USB2

LAN (x1) & USB3.0 (x2) Ports

TPM Header (LPC)-JP1

SATA Power Connector-J1

Fan Connector-CPU_FAN

Mini PCIE Slot

Clear CMOS Jumper-JP10

Pin Assignments (JP1):

1=+12V 11=NC

2=5V 12=3VSB

3=5VSB 13=RI

4=SERIRQ 14=LDRQ

5=CLK-48M 15=PME

6=CLK-33M 16=LAD1

7=SIORST# 17=LAD0

8=LFRAME 18=+3.3V

9=LAD3 19=GND

10=LAD2 20=NC

2 4 6 8 10

Ground

SPEED_SENSE

+12V

PWM_CTRL

CUP_FAN/SYS_FAN

Pin Assignments (J1):

1=GND

2=GND

3=+5V

4=+5V



Socket

1155

CPU

62R-XH61V0-0601 XH61V

English.Spanish.Korean.

Traditional Chinese.Japanese.

French. German Quick Guide
