Dual View Wireless Media Presentation
User Manual
P/N - -CE H25Y11 S1
P/N CE- - H26611 S1
04 1272A 6711- -P/N CE H2 -S1
2
Features
Support dual viewer on one display.
Support VESA PC resolution input, detecting.auto-
Can transmit PC’s mirror/extended desktop or Macbook’s mirror desktop.
Can transmit smart devices’ mirror, photos, videos, music etc.
Support USB plug in auto pairing for Wireless Media Presentation-
Support “Airplay” for apple device.
Package contents ( ) CE- -H25Y11 S1
Dual View Wireless Media Presentation (WMS)
USB A/C Dongle
Power adapter DC 12V/1.5A
Antenna x2
Quick Start Guide
Package contents ( ) CE- -H26611 S1
Dual View Wireless Media Presentation (WMS)
Wireless Media Presentation Transmitter- HDMI Dongle x2
USB A/C Dongle
Power adapter DC 12V/1.5A
Antenna x2
Quick Start Guide
Package contents ( ) CE- -H26711 S1
Wireless Media Presentation Transmitter- HDMI Dongle
Quick Start Guide
3
Specification:
WMS Specification
HDMI output
1x HDMI 19-pin female connector
Video Output Resolution 3840x2160@60Hz,3840x2160@30Hz,
1920x1080@60Hz,
Format Compliance
HDMI1.4/HDMI2.0
Video Capacity:
1080P @ <60Hz Airplay for IOS devices
1080P @ <60Hz "WirelessMedia" app
1080P @ <30Hz for all show- me button
HDCP HDCP1.4/HDCP2.2
Analog Audio Output 1x 3.5mm PC audio female connectors
LAN port RJ45 x2 100Mbps x1：1000Mbps x1，
USB interface USB3.0 x1, USB 2.0 x1，Type- C x1
Audio Input AirPlay, Windows/MAC, WMH
Control connectors
3.5mm Phoenix terminal/ RS232 interface
Number of window simultaneous
on screen
≥4+14
（
4 main windows+14 thumbnail
windows）
Number of simultaneous
connections ≥16
Data rate in wireless Up to 1200Mbps
Video Playback Frame Rate - 20 60 FPS
Latency ＜ ，100ms Min 20ms
Wireless transmission protocol WIFI IEEE 802.11 a/g/n/ac
Frequency band 2.4 GHz & 5 GHz
WIFI Antenna
MIMO 2x2
Dimension (W x D x H)
165mm x 95mm x 24.5mm
（
including antenna
：
165mm x 125mm x 24.5 mm）
Weight 0.4lbs 200g（ ）
Temperature - (-4° ~ +140° F 20° ~ +60° C)
Humidity (Storage / Operating)
20% 90%-
（
non-condensing
）
DC Power
12V / POE
POE standard IEEE802.3af
Power Consumption
10W(MAX)
4
Catalogue
Layout ....................................................................................................................................................................... 6
Software Interface .................................................................................................................................................. 12
Installation .............................................................................................................................................................. 14
Wiring Diagram....................................................................................................................................................... 16
Video Connection ................................................................................................................................................... 16
Audio Connection ................................................................................................................................................... 17
LAN connection ...................................................................................................................................................... 19
Usage of USB device ............................................................................................................................................... 20
Quick- - to Start......................................................................................................................................................... 21
Mobile device: Wireless Connection .......................................................................................................... 21
Mirroring ................................................................................................................................................................ 25
Preview Window .................................................................................................................................................... 30
Whiteboard & Annotation...................................................................................................................................... 30
Whiteboard ............................................................................................................................................................ 31
Annotation .............................................................................................................................................................34
Web Setting Management Configuration .............................................................................................................. 36
Network settings .................................................................................................................................................... 39
Ethernet .................................................................................................................................................................. 49
Auto change password ........................................................................................................................................... 50
Display & Audio ...................................................................................................................................................... 51
Audio ...................................................................................................................................................................... 53
Volume ................................................................................................................................................................... 53
Airplay screen quality ............................................................................................................................................. 54
Screen display ID .................................................................................................................................................... 55
Home Screen background image ...........................................................................................................................56
System settings....................................................................................................................................................... 57
Date & Time ............................................................................................................................................................ 58
Auto standby .......................................................................................................................................................... 59
Language ................................................................................................................................................................ 60
Reset ....................................................................................................................................................................... 60
5
Config File ............................................................................................................................................................... 61
Uart Setting ............................................................................................................................................................ 61
Security Settings ..................................................................................................................................................... 62
Password ................................................................................................................................................................ 63
Connection password ............................................................................................................................................. 64
Firmware upgrade .................................................................................................................................................. 64
Other settings ......................................................................................................................................................... 65
Clear history after meeting .................................................................................................................................... 65
About device ..........................................................................................................................................................66
Updating WirelessMedia ........................................................................................................................................ 66
Check current firmware information .....................................................................................................................67
Upgrading firmware of base unit: .......................................................................................................................... 70
Upgrading and Pairing of Dongle: ..........................................................................................................................71
Upgrading Launcher: .............................................................................................................................................. 72
Operation Guide ..................................................................................................................................................... 74
Mirroring PC desktop ....................................................................................................................................74
MAC OS PC/Laptop with Dongle ............................................................................................................. 80
MAC OS PC/Laptop without Dongle ....................................................................................................... 81
Options for Apple MacOS, MacBook – Extended Screen ..................................................................83
Transmitting IOS mobile device ............................................................................................................................. 84
Transmit Android device wireless .......................................................................................................................... 84
WIFI Recommendation Setting ..............................................................................................................................86
Check the WIFI config on base unit ............................................................................................................ 86
Check the WIFI RSSI on dongle or Mobiles ............................................................................................................ 87
Problem Shooting ................................................................................................................................................... 87
6
Layout
ID Name Description
1 Front USB connector USB port, for dongle pairing, mouse control,
USB touch screen etc.
2 - - pairing. Front Type C connector Type C port, for dongle
3 -Back lit LED indicator
Initializing indicates RED, power on indicates
flashing GREEN, “Ready to share” indicates
static GREEN, “Sharing” indicates static cyan.
USB port
The USB port is used to update the software of the WMS.
The USB port is used for pairing the dongle and base unit, when the transmitter is plugged-in.
The USB port is used for connecting a mouse to create/upgrade Launcher by clicking Download
button, hide SSID, PASS, Wifi IP and Lan IP by clicking Info, check Security level button and control PC
source device, when a PC desktop is mirroring to the screen by plugging in the dongle.
The USB port is used for connecting a USB-based touch screen to create/upgrade Launcher by clicking
Download button, hide SSID, PASS, Wifi IP and Lan IP by clicking Info, check Security level button
and control PC source device, when a PC desktop is mirroring to the screen by plugging in the dongle.
The USB port is used for creating or upgrading Launcher by clicking Download button, when a USB
stick is plugged in.
Type C port-
The -Type C port is used for pairing USB Type C dongle with base unit.
7
Mechanical fixture points.
The mechanical fixture points are located at the bottom of the base unit.
ID Name Description
1 Line audio
output
2 channel analog audio output, Connect a 3.5mm mini-
jack PC connector from this jack to the Line in jack of an
audio system.
2 Rear USB3.0
connector
USB port, for USB dongle pairing, mouse control, USB
touch screen etc.
3 Reset Reset button to restore to the factory default setting.
4 HDMI output Connect an HDMI cable from this port to an
HD or 4K/HDMI2.0 display.
5 - RS 232 Connect an RS- -232 cable from this port to an RS 232
device.
6 LAN Ethernet
port 1
100Mbps, Connect an Ethernet cable between
this jack and a LAN to connect WMS to LAN.
7 LAN Ethernet
port 2
1000Mbps, Connect an Ethernet cable between
this jack and a LAN to connect WMS to LAN. Support POE.
8 DC Power
socket
Connect the included power adapter to this socket, and
connect the plug to an available electrical outlet.
9 Antenna fixture
points Screw up the included two antennas to these two ports.
8
USB port
The USB port is used to update the software of the WMS.
The USB port is used for pairing the dongle and base unit, when the transmitter is plugged-in.
The USB port is used for connecting a mouse to create/upgrade Launcher by clicking Download
button, hide SSID, PASS, Wifi IP and Lan IP by clicking Info, check Security level button and control PC
source device, when a PC desktop is mirroring to the screen by plugging in the dongle.
The USB port is used for connecting a USB-based touch screen to create/upgrade Launcher by clicking
Download button, hide SSID, PASS, Wifi IP and Lan IP by clicking Info, check Security level button
and control PC source device, when a PC desktop is mirroring to the screen by plugging in the dongle.
The USB port is used for creating or upgrading Launcher by clicking Download button, when a USB
stick is plugged in.
Factory Reset
Start up the Base unit.
When the Home Screen is shown up, press the reset button at the rear panel of base unit. Press this
button with a pointed object, e.g. an unbent paper clip until the “Factory Reset” page is shown up as
below, for at least 2 seconds.
The Base unit will reboot after 3 seconds to be default configuration.
If you do not have a picture, press and hold the reset button until the red LED in the top panel will lit,
to execute the reset.
All previous settings will be lost and you will need to do the set- up once more.
9
Default Configuration
Ethernet:
Proxy: None
IP setting: DHCP
Wireless network:
Frequency: 5GHZ
Channel: 40Hz
Auto change Wi- Fi hotspot password: 5minute
Display & Audio
HDMI resolution: Auto
HDMI CEC: Device auto power off: ON
Base unit auto power on: OFF
Audio output: Jack&HDMI
Airplay screen quality: High
show device name and password when mirroring: OFF
show PCs user name when mirroring: ON
System settings
Date & time: Automatic date & time: use network- provided time
Auto Standby: Never
Language: English
Security Settings
Security Level: Security level 1
Connection Password: 4-digits password beginning with 0000
Change admin password: admin(default)
Other settings
Auto create launcher: Disabled
Clear history after meeting: Always
10
Transmitter-HDMI Dongle
ID Name Description
1 HDMI
connector
Using HDMI connector of the button can be plugged into a
PC/Laptop for sharing your screen.
2 USB connector Supply power, or plug into the base unit for pairing the
Button to the Base Unit or upgrade the dongle.
3 Touching
Button
Touch the sensor button to start displaying the content of
the PC/Lap-top’s screen on the main screen. Touch the
button during the meeting will toggle the sharing of the
screen.
4. LED ring
indicator Indicates the status of the button.
11
LED ring indicator behavior
When LED indicator is static green, it’s ready to mirror your PC desktop on the main screen.
When LED indicator is static red, 1) it’s mirroring your PC desktop on the screen, 2) pairing is done. You
can now unplug the Button from the base unit.
When LED indicator is blinking Green, it indicates 1) the button is plugged in the laptop and initializing
or waiting for user to start the WirelessMedia application, 2) pairing/software upgrading of the button
in the Base Unit is in progress.
When LED indicator is Off (no light), it indicates 1) the button is not plugged in the PC/Lap-top; 2) the
button is defective; 3) the USB port or computer might be defective.
USB A/C Dongle
ID Name Description
1 USB connector Using USB connector of the dongle can be plugged into a
PC/Laptop for sharing your screen.
2 Type C
connector
Using Type C connector of the dongle can be plugged into
a PC/Laptop for sharing your screen.
12
Software Interface

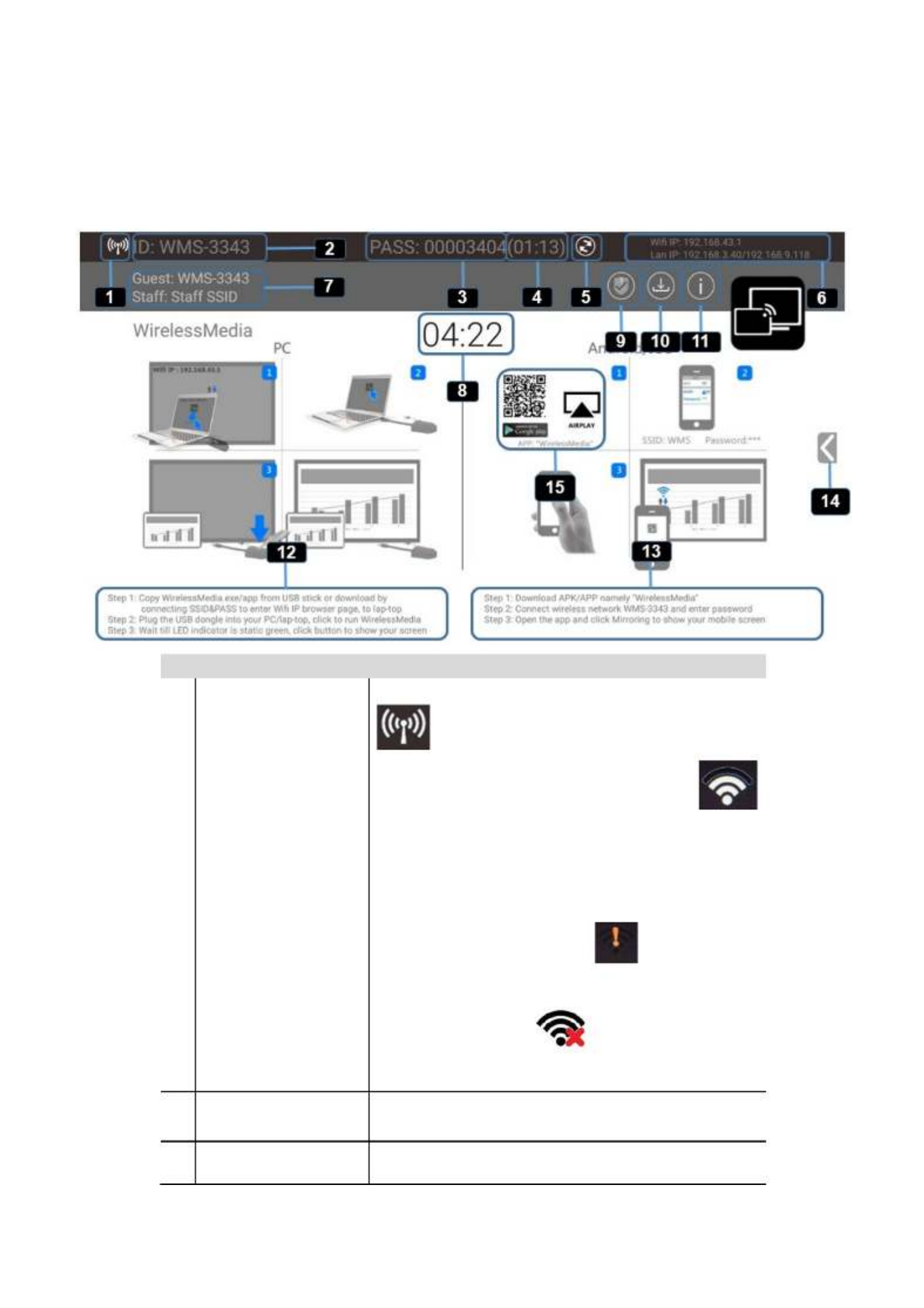

Home Screen
ID Name Description
1 - Wi Fi Indicator
Wi-Fi Direct mode: internal access point is enabled
Wi-Fi Infrastructure mode: “Client- Mode“ ,
Wi-Fi connection to router is established,
icon displays the current signal strength.
A secure Wi-
Fi connection is established, or
connection to a router failed:
Wi- Fi is not available:
LAN Infrastructure mode: access point is disabled
2 ID Wi-Fi name or device name of the Base-unit access
point.
3 PASS Wi-Fi password of base unit.
14
Installation
The installation chapter gives an overview of the different ways to install and connect WirelessMedia Base
Unit.
Overview:
Installation methods for the Base unit
Table mounting
Wall mounting
Recommendations about antenna placement and orientation
WMS Power Connection
WMS Video Connection
WMS Audio connection
WMS LAN connection
About USB device connection
Wiring Diagram
Installation methods for the Base unit
Introduction to the installation methods:
The Base unit can be installed in different ways in a meeting room.
Table mount
Wall mount
The articulated antennas are removable. They can rotate for better wireless connection.
Attention: For optimal performance, install the Base unit close to the display and avoid obstacles between
the Base unit and the Transmitters.
Necessary tools
• A drill (type of drill depends on the type of wall)
• Flat screwdriver
• Additional screwdriver that matches the mounting screws (mounting scr not included in the packageews )
16
Wiring Diagram
Power over Ethernet
If the LAN Ethernet switcher support POE (Power over Ethernet), it could power up the Base-unit instead of
using the external power adapter. (WMS LAN2 Port is support POE.)
Video Connection
1. Connect the HDMI Output Full- of base unit to a 4K or HD display by a HDMI cable.
2. Connect the power adapter to the base unit DC power socket and connect the other side plug to
an available electrical outlet and switch the base unit on.
3. After started, the system show the home page, as shown . below
20
Usage of USB device
Please use a USB Mouse or Touchscreen:
1. To configure the Security level check button, DOWNLOAD BUTTON, INFO.
2. To control the sharing PC/Lap-top.
3. To activate system upgrading
4. For white board or annotation during a presentation, WirelessMedia transmits Video, Audio and the
USB- HID
function for mouse function of a touchscreen. interface of your - -control and click Connect touch- screen to
the USB- port on your laptop or PC.
USB control
USB mouse for configuration menu
Single click to select.
Right-click to back to the Home Page.
T ouch screen
Click to select.
Long press to open the contextual menus, as double- click or click the right button of a USB mouse.
23
Pairing transmitter with base unit
1. Connect the USB of USB A/C Dongle or Transmitter-HDMI Dongle, to pair all the transmitters with base
unit. The home page displays as shown below.
2. When plug in transmitters, the message table shows “ please wait…” as shown USB dongle is booting,
below
3. Then, the message table shows “ , please wait…” as shown belowPairing
24
4. After completing the pairing, the message table shows “Succeeded to pair!” on the home page, as
shown below. Then, please un- plug the transmitters and use it for the mirroring on your laptop.
If error-message “Configuration fail” is shown, please check the connection of USB/type C to keep stable
after plug in, and try again.-
Note: After each changing the SSID/Wi-Fi channel in menu, all the transmitters must be paired again!
When you buy additional transmitters or when a transmitter should be unit, the assigned to another Base-
transmitter must be paired again.
A transmitter can only be paired to one Base will always make connection to -unit at a time. The transmitter
the Base-unit it was last paired to.
25
Mirroring
PC/Lap-top
USB A/C Dongle:
1. Plug USB A/C Dongle into USB/Type C port to pair with base unit. The “WirelessMedia-windows.exe” for
windows PC/Lap top, “WirelessMedia- -macOS.app” for Macbook will be auto downloaded into USB A/C
Dongle.
2. Plug USB A/C Dongle into PC/Laptop/MACbook and click the “Launcher” to run. USB A/C Dongle
will auto change PC’s wifi to the target base unit wifi. No need to manually change PC’s wifi. It will
pop out the message bar to enter the password to connect.
3. It will show “Ready to share”, click to share the desktop to screen.
27
Mobiles Devices
Sharing on Android devices
1. Open the “WirelessMedia” application.
2. Connect your mobile device to one of the displayed Wi Fi networks.-
3. Open the “WirelessMedia2” application in your mobile device, and you will see the Home Page of
“WirelessMedia2” as shown below. and click the device list refresh button for
Android, which is highlighted in red circles as shown below:
28
4. Select the base unit you want to connect, enter password and mirror.
5. After completing the pairing, it shows OSD “Welcome ***” on the home page. For example, if we
connect it by a HUAWEI- -PLA AL00, it shows a “Welcome HUAWEI- - ” PLA AL00 on screen, as shown below.
Produkt Specifikationer
| Mærke: | SIIG |
| Kategori: | Trådløs oplægsholder |
| Model: | CE-H26611-S1 |
Har du brug for hjælp?
Hvis du har brug for hjælp til SIIG CE-H26611-S1 stil et spørgsmål nedenfor, og andre brugere vil svare dig
Trådløs oplægsholder SIIG Manualer
31 August 2024
31 August 2024
31 August 2024
Trådløs oplægsholder Manualer
- Trådløs oplægsholder Sony
- Trådløs oplægsholder Logitech
- Trådløs oplægsholder Epson
- Trådløs oplægsholder Planet
- Trådløs oplægsholder Edimax
- Trådløs oplægsholder Black Box
- Trådløs oplægsholder Trust
- Trådløs oplægsholder Targus
- Trådløs oplægsholder BenQ
- Trådløs oplægsholder Marmitek
- Trådløs oplægsholder Manhattan
- Trådløs oplægsholder Kramer
- Trådløs oplægsholder Genius
- Trådløs oplægsholder Christie
- Trådløs oplægsholder V7
- Trådløs oplægsholder Iogear
- Trådløs oplægsholder Iiyama
- Trådløs oplægsholder Speed-Link
- Trådløs oplægsholder StarTech.com
- Trådløs oplægsholder Crestron
- Trådløs oplægsholder Barco
- Trådløs oplægsholder Intellinet
- Trådløs oplægsholder August
- Trådløs oplægsholder Arctic Cooling
- Trådløs oplægsholder Kensington
- Trådløs oplægsholder Ednet
- Trådløs oplægsholder Kindermann
- Trådløs oplægsholder Wentronic
- Trådløs oplægsholder Meade
- Trådløs oplægsholder Promate
- Trådløs oplægsholder Mitsai
- Trådløs oplægsholder Perfect Choice
- Trådløs oplægsholder Procare
- Trådløs oplægsholder ByEasy
- Trådløs oplægsholder Inateck
- Trådløs oplægsholder HuddleCamHD
- Trådløs oplægsholder Xcellon
- Trådløs oplægsholder SMK-Link
Nyeste Trådløs oplægsholder Manualer
31 December 2025
19 December 2024
19 December 2024
17 December 2024
17 December 2024
17 December 2024
17 December 2024
17 December 2024
17 December 2024
17 December 2024
