UrbanCell
02/10.2015 A016.13.57274
ESP
INTERRUPTOR CREPUSCULAR
INSTRUCCIONES DE EMPLEO
FIG. 1: 1.- 4.- Lente. Pasa-cables.
2.- Led indicador. 5.- Potenciómetro de ajuste de
3.- Pulsador de test. luminosidad.
DESCRIPCIÓN:
El interruptor crepuscular UrbanCell permite el control de una
instalación en función de la luminosidad.
El UrbanCell compara la luminosidad ambiente con el nivel ajustado, si
es inferior a dicho nivel se activa. Cuando aumente la luminosidad
hasta alcanzar el nivel de apagado se desactiva. Ambas maniobras
tienen un tiempo de retardo.
INSTALACIÓN:
ATENCIÓN: La instalación y el montaje de los aparatos eléctricos
debe ser realizada por un instalador autorizado.
El aparato esta internamente protegido contra las interferencias por un
circuito de seguridad. No obstante, algunos campos magnéticos
especialmente fuertes pueden llegar a alterar su funcionamiento, por
tanto no debe instalarse próximo a cargas inductivas (motores,
transformadores, etc…).
Si la instalación requiere circuito de tierra es necesario colocar un
terminal flotante debidamente aislado dentro del dispositivo para
garantizar la continuidad del circuito.
MONTAJE:
Sobre pared evitando la exposición directa al sol y a la luz de
alumbrado.
Para asegurar la protección contra la humedad, en el caso de
montajes en el exterior o montajes con posibles salpicaduras de agua,
es necesario que los hilos de conexión pasen a través de los
pasamuros de silicona situados en la parte inferior. Al cerrar el
interruptor crepuscular apriete fuertemente los dos tornillos, de forma
que la base y la tapa queden bien unidas.
La célula está preparada para poder ser instalada en farola, báculo o
poste, mediante fijación por brida metálica, como se aprecia en la
FIG.2, se debe tener especial precaución en que la célula no este en
el campo de acción de la luz a controlar, p1-ya que provocaría un mal
funcionamiento.
PRUEBA DE FUNCIONAMIENTO:
Presionar el pulsador de TEST, sea cual sea el nivel de luminosidad
ajustado la carga se activará durante unos 30 segundos. Si la carga no
se activa compruebe la conexión o el estado de la lámpara.
AJUSTE:
Cuando la luminosidad ambiental sea la deseada para activar el
interruptor crepuscular, girar el potenciómetro de ajuste de
luminosidad hasta el tope izquierdo. A continuación girar lentamente
hacia la derecha hasta que se encienda el LED indicador. El nivel de
encendido queda automáticamente ajustado, y la carga se activará
tras un tiempo de retardo de unos 30 segundos.
La finalidad de los tiempos de retardo es evitar que se active/desactive
a causa de variaciones bruscas de luminosidad (Relámpagos, faros de
automóvil, etc.).
CARACTERÍSTICAS TÉCNICAS:
Alimentación: 230 V~ 50-60 Hz
Poder de Ruptura: µ 16 A 230 V~ cos = 1
Cargas máximas recomendadas: FIG.3
Consumo propio: 3,4 VA cap. (0,7 W aprox.)
Sensibilidad 5 - 200 Lux.
Nivel de apagado (Histéresis): 1,3 x Nivel de Encendido.
Retardo de encendido y apagado 30 segundos aprox.
Temperatura de funcionamiento -25 ºC a +60 ºC
Tipo de Protección IP 55 según EN 60529
Clase de protección II según EN 60335 en condiciones
de montaje correctas.
ITA
INTERRUTTORE CREPUSCOLARE
ISTRUZIONI PER L’USO
FIG. 1 1.- 4.- Lente. Passacavi.
2.- 5.- Diodo. Potenziometro regolazione
3.- Pulsante test. luminosa.
DESCRIZIONE:
L’interruttore crepuscolare UrbanCell consente di controllare un
impianto in funzione della luminosità.
Il dispositivo UrbanCell compara la luminosità ambiente con il livello
impostato; se è inferiore a quest’ultimo, si accenderà. Quando la
luminosità aumenterà tanto da raggiungere il livello di spegnimento, si
disattiverà. Entrambe tali operazioni prevedono un tempo di ritardo.
IMPIANTO:
ATTENZIONE. L’impianto e il montaggio dei dispositivi elettrici devono
essere eseguiti da un installatore qualificato.
Un circuito di sicurezza protegge internamente il dispositivo da
eventuali interferenze. Ciò nonostante, dato che alcuni campi
magnetici particolarmente forti, possono modificarne il funzionamento,
non va installato nei pressi di cariche induttive (motori, trasformatori,
ecc.).
Se l'installazione richiede circuito di massa è necessario porre un
terminale galleggiante nel dispositivo opportunamente isolate per
assicurare la continuità del circuito.
MONTAGGIO:
A muro evitandone l’esposizione diretta alla luce del sole e alla luce
artificiale.
Per proteggerlo dall’umidità, nel caso di montaggi all’esterno oppure
montaggi con eventuali spruzzi d’acqua, i cavi di collegamento devono
essere inseriti nell’isolatore passante in silicone posto in basso. Nel
chiudere l’interruttore crepuscolare, stringere a fondo entrambe le viti
per garantire l’unione perfetta tra la base e il coperchio.
La cellula è stata predisposta per relativo montaggio su lampioni o pali
di illuminazione mediante fissaggio con flangia metallica, come da
FIG.2. Fare attenzione a non sistemare la cellula nel campo di azione
della luce da controllare, onde evitarne un cattivo funzionamento.
TEST DI FUNZIONAMENTO:
Premere il pulsante TEST. A prescindere del livello di luminosità
impostato, la carica si attiverà per ca. 30 secondi. In caso di mancata
attivazione della carica, verificare il collegamento oppure lo stato della
lampada.
REGOLAZIONE:
Quando la luminosità ambientale è quella voluta, per attivare
l’interruttore crepuscolare, ruotare il potenziometro di regolazione della
luminosità fino al fermo sinistro.
Quindi, ruotare lentamente verso destra fino ad accensione avvenuta
del DIODO. Il livello di accensione rimarrà impostato automaticamente
e la carica si attiverà dopo un ritardo di ca. 30 secondi.
I tempi di ritardo ne evitano l’attivazione/la riattivazione a causa di
variazioni brusche della luminosità (lampi, fari di auto, ecc.).
DATI TECNICI:
Alimentazione: 230 V~ 50-60 Hz
Potere di interruzione: µ 16 A 230 V~ cos = 1
Cariche massime raccomandate: FIG.3
Consumo proprio: 3,4 VA cap. (0,7 W appross.)
Sensibilità 5 - 200 Lux.
Livello spegnimento (Isteresi): 1,3 x livello di accensione.
Ritardo accensione e spegnimento 30 secondi appross.
Temperatura di funzionamento -25 ºC a +60 ºC
Tipo di protezione IP 55 secondo EN 60529
Categoria di protezione II secondo EN 60335 a
condizioni di montaggio
corrette.
ENG
TWILIGHT SWITCH
INSTRUCTIONS ON USE
FIG. 1 1.- 4.- Lens. Cable gland.
2.- Led indicator. 5.- Light-level adjustment
3.- Test button. potentiometer.
DESCRIPTION:
The UrbanCell twilight switch provides control of an installation in
function of ambient light levels.
The UrbanCell compares the ambient light level with the adjusted level
and if it is less than this level it activates and will deactivate when the
ambient light reaches the switch-off level. Both operations incorporate
delay times.
INSTALLATION:
WARNING: installation and mounting of electric apparatus shall be
carried out by an authorised installer.
The unit is internally protected against interference by a safety circuit.
However, certain, especially strong magnetic circuits may alter its
operation and thus, it should not be installed close to inductive loads,
such as motors and transformers etc.
If the installation needs circuit of ground it is necessary to place a
floating terminal properly isolated inside the device to guarantee the
continuity of the circuit.
MOUNTING:
On a wall, avoiding direct exposure to sunlight and lighting sources.
To ensure moisture protection in outside installation or where it might
be splashed with water, the connection wires must pass through the
silicone wall bushings in the lower section. When the twilight switch is
closed, the two screws must be firmly tightened so that the base and
cover are correctly joined together.
The cell is ready for installation on a lamppost, support or other post
using a metal clamp as shown in FIG.2. Special precautions must be
taken not to position the cell within the field of action of the light to be
controlled since this would cause incorrect operation.
OPERATIONAL TEST:
Press the TEST pushbutton and no matter what light level is adjusted,
the load will be activated for thirty seconds. If it does not activate,
check the connection or lamp condition.
ADJUSTMENT:
When the ambient light level is that required to activate the twilight
switch, rotate the light-level potentiometer fully anticlockwise.
Then slowly turn it clockwise until the LED indicator comes on. The
switch-on level is now automatically adjusted and the load will be
activated after a delay time of approximately thirty seconds.
The purpose of the delay times is to prevent activation/deactivation due
to sudden changes in light level (lightning and vehicle headlights etc).
TECHNICAL SPECIFICATIONS:
Power supply: 230 Vac, 50-60 Hz
Breaking power: µ 16 A 230 Vac cos = 1
Maximum recommended loads: FIG.3
Own consumption: 3.4 VA cap. (0.7 W aprox.)
Sensitivity: 5 - 200 Lux.
Switch-off level (Hysteresis): 1.3 x Switch-on level.
Switch On/Off delay: Approximately 30 seconds.
Operating temperature: -25 ºC to +60 ºC
Protection type: IP 55 in accordance with EN
60529
Protection class: II in accordance with EN 60335
under correct installation
conditions.
1
2
345

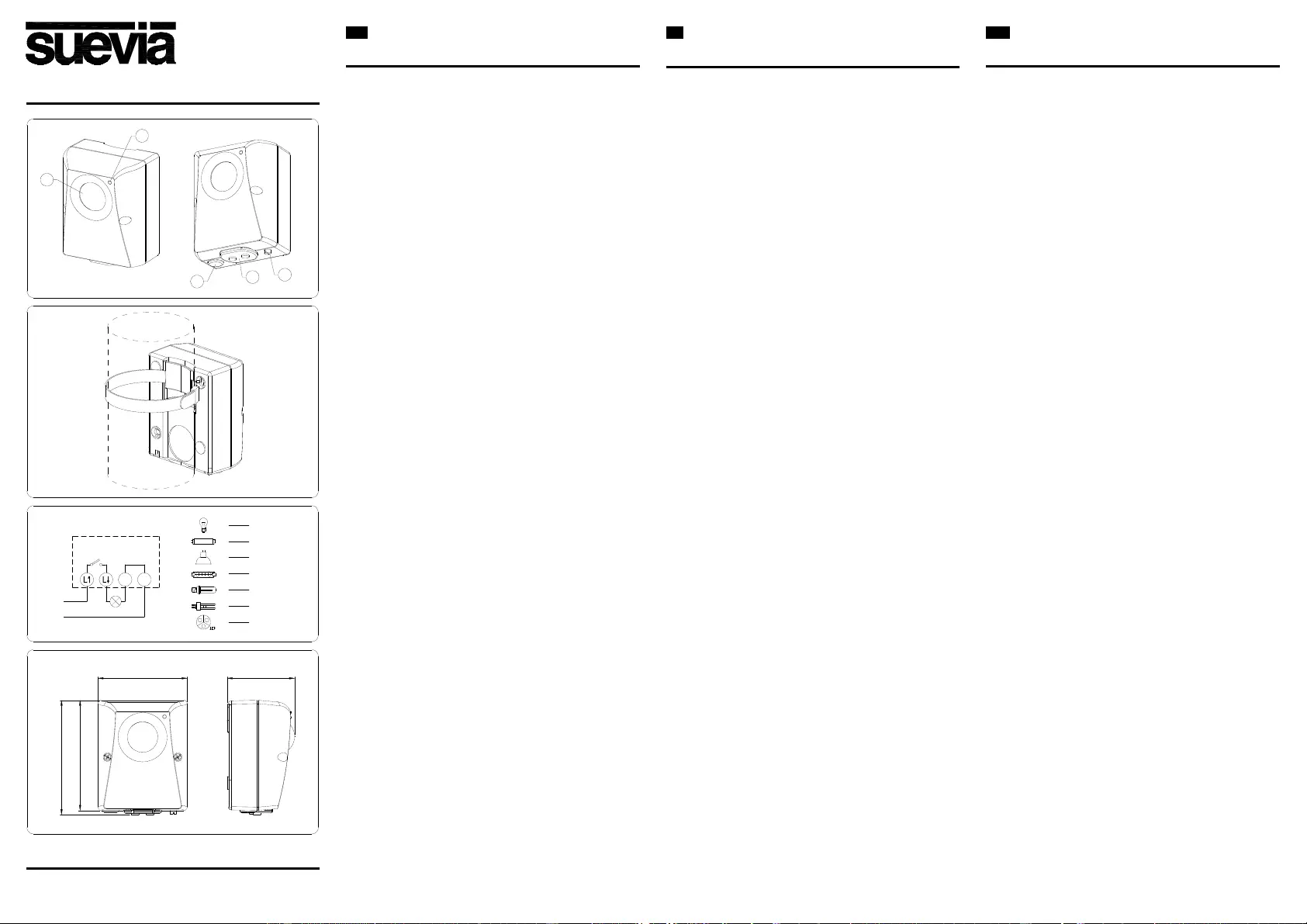

FIG. 1
FIG. 2
O O
M
O
UrbanCell
69.2
85.4
88.7
52.3
FIG. 3
FIG. 4
500 VA
3000 W
2000 VA
1000 VA
3000 W
500 VA
400 VA
ORBIS TECNOLOGÍA ELÉCTRICA S.A. Lérida, 61 E-28020 Madrid Tel: (+34) 915672277; Fax:(+34) 915714006
ORBIS ITALIA S.p.A. Via L. Da Vinci,9/B Cassina de’ Pecchi -MI- Tel.- 02/95343454; Fax.- 02/9520046 E-mail: info@orbisitalia.it http://www.orbisitalia.it
