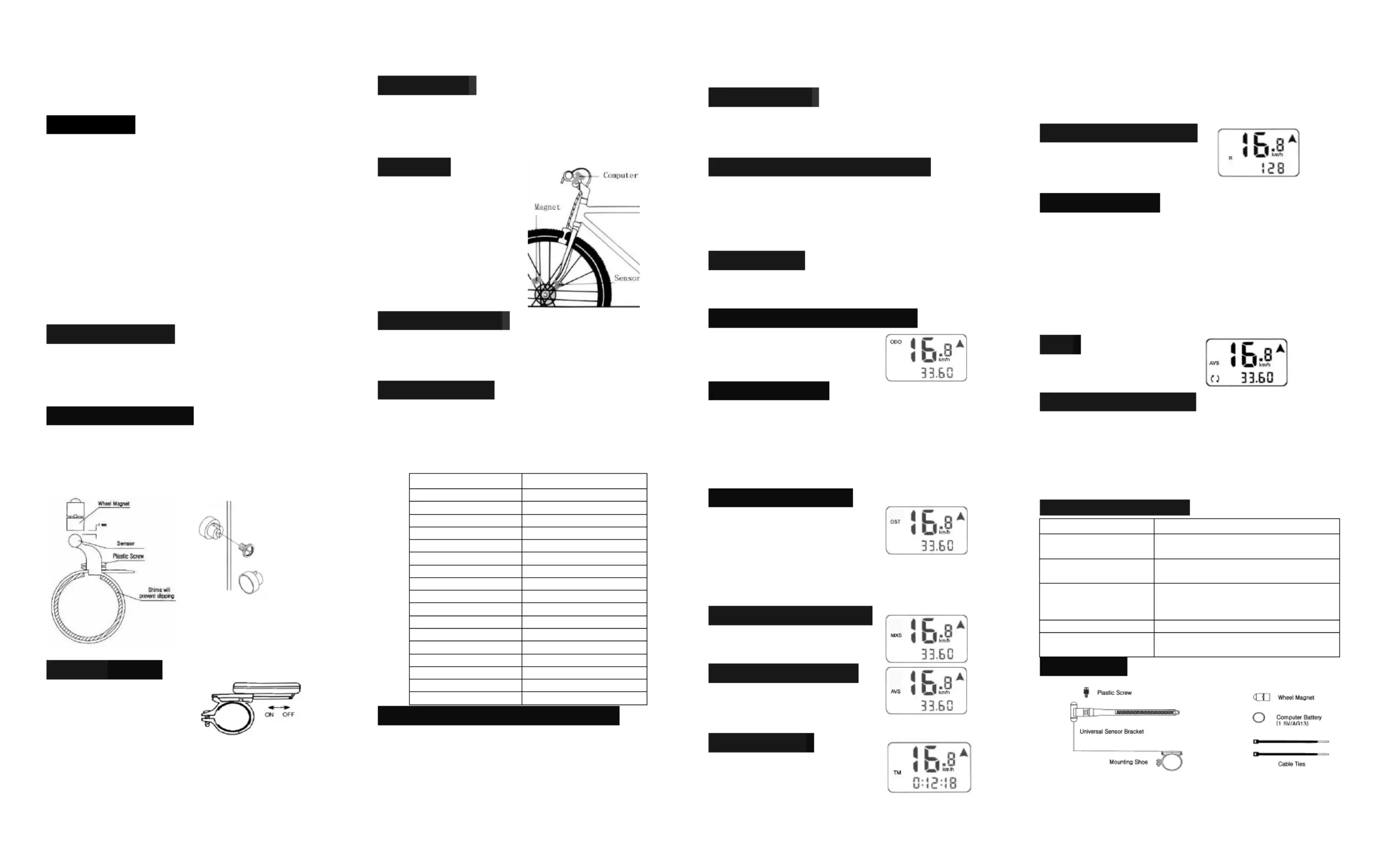

Sunding
Bicycle Computer
SD-536A (15Functions)
FUNCTIONS FUNCTIONS FUNCTIONS FUNCTIONS
-
SPD CURRENT SPEED.
-
ODO ODOMETER
(
TOTAL DISTANCE
)
.
-
DST TRIP
DISTANCE .
-
MXS MAXIMUM
SPEED .
-
AVS AVERAGE
SPEED .
-
TM ELAPSED
TIME .
-
RPM ROTATION
PER
MINUTE .
-
CLK CLOCK
(
12H/24H
)
.
-
SCAN
()
ICON.
-
“
▲
” “
▼
” COMPARATOR.
-
SETTING SPEED SCALE
(
km/h,m/h
)
.
-
SETTING TYRE CIRCUMFERENCE(60CM
~
229CM).
-
SETTING
THE
LAST VALUE
OF ODOMETER.
-
FREEZE FRAME MEMORY
-
AUTO
ON/OFF .
Battery InstallationBattery InstallationBattery InstallationBattery Installation
Remove the battery cover from the bottom of the computer using a flat
blade screwdriver. Install an AG13 battery with the positive (+) pole
facing the battery cover and replace the cover.
Should the LCD show irregular figures, take out the battery and install
again.
Speedometer Sensor
Speedometer SensorSpeedometer Sensor
Speedometer Sensor
The speedometer sensor bracket attaches to the left fork blade, using
rubber shims to adjust to the diameter of the fork. Position the sensor
and magnet as show, making sure that the arc of the magnet intersects
the alignment mark on the sensor with 1 mm clearance.
The magnet attaches to the front wheel spoke with the screws provided.
MountingMountingMountingMounting Shoe Shoe Shoe Shoe
Attach the mounting shoe to the
handlebar with the bracket screw
provided. Rubber shims are slso
included to provide a secure fit if the
clamp can’t close completely, or the
bracket slips on the handlebar, shims will be necessary.
Bracket can be attached to either left or right hand side of the handlebar.
Sensor Wiring
Sensor WiringSensor Wiring
Sensor Wiring
Route the sensor wire up the fork blade, using tie wraps to secure it at
the bottom and crown.Wire must not hang loosely. Leaving enough
slack to allow free movement of the front wheel,route the remaining
wire around the front brake cable and to the handlebar. Excess wire
should be carefully looped and secured to the stem with a tie wrap.
ComputerComputerComputerComputer
The computer attaches to the
mounting shoe by sliding the unit
until it snaps firmly into
position.push foward the oppiste
direction to remove.
To check for proper speed
function and sensor alignment, spin
the front wheel with computer in speed
mode. Adjust the position of sensor
and magnet when there is no or weak
reaction.
KM/MILE Selection
KM/MILE SelectionKM/MILE Selection
KM/MILE Selection
After installing the battery within 15 seconds (it enters to automatic
scan after 15 seconds), the mainframe display km/h, press LEFT button
to choose km/h or m/h. Range of speed recording: 0-99.9km (m) /h.
Press RIGHT button to enter Wheel size input mode.
Wheel Size Input
Wheel Size InputWheel Size Input
Wheel Size Input
Flashing ‘208’ appears on the screen, choose needed circumference
according to the following diagram, press LEFT button to input(keep
pressing LEFT button to input quickly), press RIGHT button to confirm.
The circumference varies between 60cm~229cm.
Press the RIGHT button to enter ODO mode.
Tyre type(diameter) Tyre Circumference
20" 160
22" 176
24" 192
26" (650A) 207
26.5" (Tubular) 211
26.6" (700x25C) 212
26.8" (700x28C) 214
27" (700x32C) 216
28" (700B) 224
(W/tyre)
ATB 24"x 1.75 189
ATB 26"x1.4 200
ATB 26"x1.5 203
ATB 26"x1.75 205
ATB 26"x2 (650B) 210
27" p1-x1 214
27"x1 1/4 216
Setting the Last Value of OdoSetting the Last Value of OdoSetting the Last Value of OdoSetting the Last Value of Odometermetermetermeter
In ODO mode, one figure flashing, press the LEFT button to
adjust, press the RIGHT button to confirm and advance to next
number. Its initial value is 0000.0. (after re-install the battery,
latest value can be inputted according to the value exists
before the battery is re-installed).
Auto Start/StopAuto Start/StopAuto Start/StopAuto Start/Stop
To preserve batteries, the cycle computer will automatically switch off
if the unit is unused for over 2 minutes. Display will reappear with a
Press on either button or input from the sensor.
CLK will remain on the screen.
Recording the Cycle Movements Recording the Cycle Movements Recording the Cycle Movements Recording the Cycle Movements
Press the RIGHT button to enter DST mode, press the LEFT button,
km/h (m/h) will flashing, press the RIGHT button to view the records of
DST,MXS,AVS,TM,RPM, when there is input from the sensor, ‘/’ starts
to flash. Only when km/h(m/h) is flashing, do the computer have the
records.
Note : in ODO mode, the Cycle Movements can’t be recorded.
SpeedometerSpeedometerSpeedometerSpeedometer
Current Speed is indicated on the top line all the time. The range of
measurement is 0-99.9 km/h (m/h) and the accuracy is +/-0.1 km/h
(m/h)
Speed Comparator
Speed ComparatorSpeed Comparator
Speed Comparator
(Cadence)
(Cadence)(Cadence)
(Cadence)
During riding,“ ” Indicates that the ▲instant
speed is higher than average
speed(AVS). “ ” indicates the instant ▼speed
is lower than the average speed.
Odometer
OdometerOdometer
Odometer
(ODO)
(ODO) (ODO)
(ODO)
In ODO mode , the total distance is indicated on the screen, its mileage
range is 0~99999km(m). Press the LEFT button to know the fixed
value of the tyre circuference, press the LEFT button for 6 seconds to
clear out all the ODO value and other records, the users need to reset
km(m), tyre circuference, and the original ODO value, the CLK will
remain. ODO will back to 0 when value exceeds its maximum limit,
press the RIGHT button to enter DST mode.
Trip Distance
Trip DistanceTrip Distance
Trip Distance(
((
(DST
DSTDST
DST)
))
)
In DST mode, press the LEFT button to see
km/h (m/h) flashing, the distance for one
trip indicated on the bottom line.
Press LEFT and RIGHT button
simultaneously to clear the records of DST,MXS,AVS and TM. DST
ranges from 0-9999km (m), when the value exceeds the limit, it restarts
from 0 automatically.
Press the RIGHT button to enter MXS mode.
Maximum SpeedMaximum SpeedMaximum SpeedMaximum Speed (MXS) (MXS) (MXS) (MXS)
In MXS mode, maximum speed of one trip is
indicated on the bottom line.
Press the RIGHT button to enter AVS mode.
Average speed
Average speedAverage speed
Average speed
(AVS)
(AVS) (AVS)
(AVS)
In AVS mode, average speed is
indicated on the bottom line. AVS is
calculated according to the Trip
Time(TM). Press the RIGHT button to enter TM mode.
Trip Time
Trip TimeTrip Time
Trip Time
(TM)
(TM)(TM)
(TM)
In TM mode, trip time is indicated on the
bottom line. It records only the riding time.
TM will be cleared by pressing both LEFT and RIGHT buttons
simultaneously. TM ranges 0:00:00 ~ 9:59:59, the computer will restart
from 0 when exceeds.
Press RIGHT button to enter R mode.
Rotation Per Minute(R) Rotation Per Minute(R) Rotation Per Minute(R) Rotation Per Minute(R)
In R mode, Wheel frequency
measurement is indicated on the
bottom line.
Press the RIGHT button to enter CLK mode.
ClockClockClockClock (12H/24H)(12H/24H)(12H/24H)(12H/24H)
Clock mode: Press LEFT and RIGHT button at the same time, the
number indicating HOUR start to flash, press the LEFT button to adjust
hour, then press the RIGHT button, the number indicating MINUTE
start to flicker, press the LEFT button to adjust minute, press the
RIGHT button to go back.
12H/24H mode: The mainframe display 24H originally, press LEFT
button for 6 seconds, “R (P)” appear on the bottom line, the mainframe
goes to “12H”, again press the LEFT button for 6 seconds, “R (P)”
disappear and back to “24H” mode.
Press the RIGHT button to enter “( )” (SCAN) mode.
ScanScanScanScan
“( )” (SCAN) mode: Screen display ODO,
DST, MXS, AVS, TM, R, CLK every 4
seconds.
Freeze Frame Memory Freeze Frame Memory Freeze Frame Memory Freeze Frame Memory
In any mode of DST, MXS, AVS, TM, when computer display with
km/h(m/h) flashing, means it is recording cycle movement, press the
LEFT button under this condition, Freeze Frame Memory will lock the
DST, MXS AVS, TM records. Press the RIGHT button to read these
locked records. Press the LEFT and RIGHT button simultaneously to
clear the Freeze Frame Memory to 0. This is particularly useful to
record the information of sports comepetition.
Malfunction and
Malfunction andMalfunction and
Malfunction and
Problem
ProblemProblem
Problem
Malfunction Problem
No speedometer
reading Improper magnet/sensor alignment
Slow display response Temperature exceeds operating limits
(0~55 º C).
Black display Temperature too high, or put in direct
sunlight for too long time. Should take
back to shadow for a period.
Weak display Poor battery contacts or dead battery
Display shows
irregular figures Take out battery and reinstall it after 10
seconds.
Accessoires
Accessoires Accessoires
Accessoires
