http://www.supermicro.com MNL-2459-QRG
Board Layout

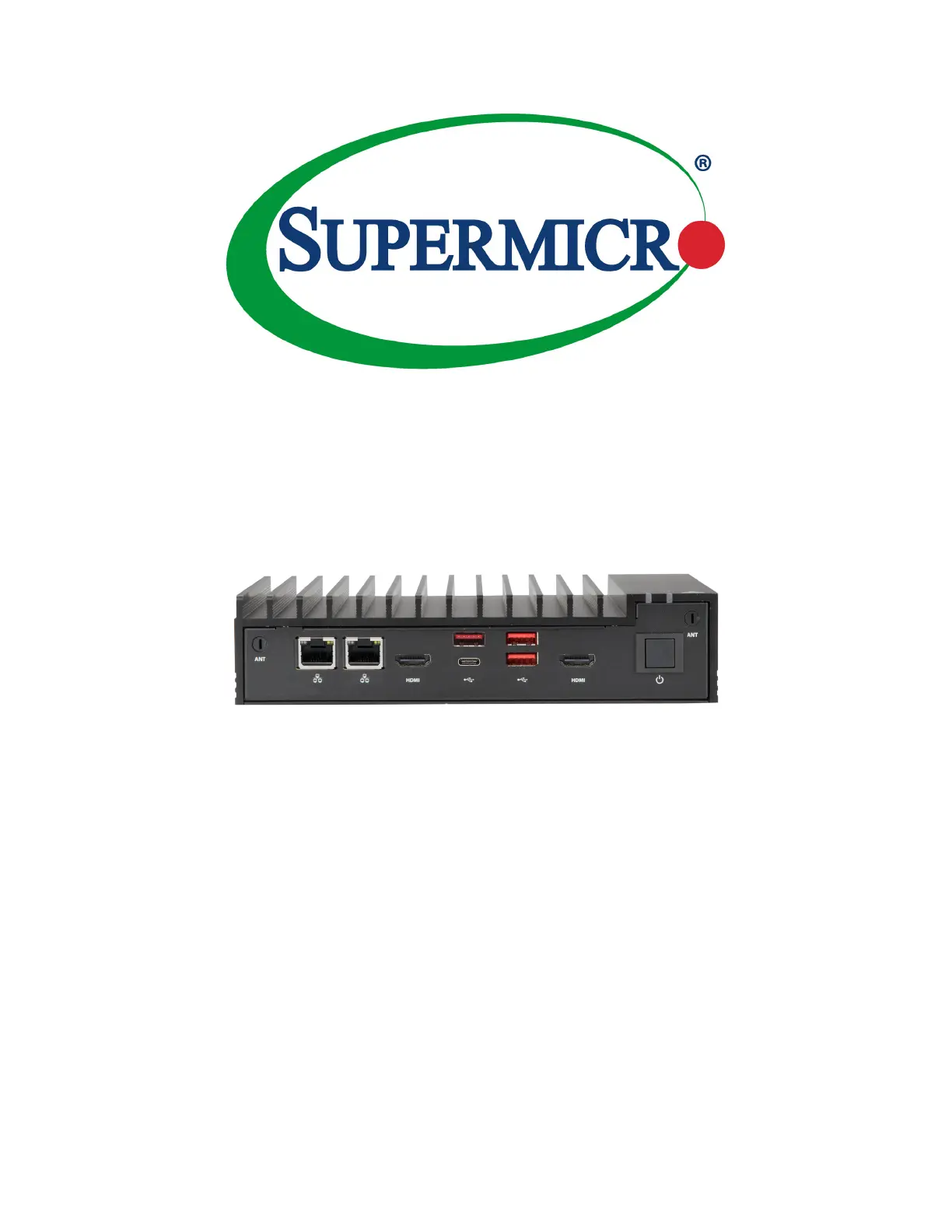

SuperServer E100-12T-H/E/L/C Quick Reference Guide
Rev 1.0a
For more information go to: http://www.supermicro.com/support
!
SAFETY INFORMATION
IMPORTANT: See installation instructions and safety warning before connecting
system to power supply.
http://www.supermicro.com/about/policies/safety_information.cfm
WARNING:
To reduce risk of electric shock/damage to equipment, disconnect power from
server by disconnecting all power cords from electrical outlets.
If any CPU socket empty, install protective plastic CPU cap.
!
WARNING:
Always be sure all power supplies for this system have the same power output.
If mixed power supplies are installed, the system will not operate.
!
Beep (POST) Codes
B p ( ) C esIOS Bee POST od
Bee Descrp C eod ip iot n
1 beep Circuits have been reset (Ready to power up)
5 s 1 g te emhort, lon No memory de cted in syst
5 , 2 t V t th f ty ylong shor ideo adap er mi ingss or wi aul memor
1 c t s ov t c nlong on inuou System erhea onditio
Front View & Interface Accessing the System
Mounting the Chassis
System Features
Motherboards
Chassis
Processor Support
CSE-E101-03
11th Generation Inte Core or Celero processor
Two DIMM slots support up to 64GB unbuffered, non-ECC
SO-DIMM, DDR4-3200
X12STN-H/E/L/C-WOHS
Memory
Three M.2 slots (one B-key, one M-key, one E-key)
Expansion Slots
Two 2.5GbE LAN ports
Two HDMI ports (one 2.0b port and one 1.4b port)
One HD audio header for mic-in, line-out)
Four serial ports
Three USB 3.2 Gen 1 ports, one USB-C 3.2 port, four USB 2.0 ports
I/O Ports
Power
Lockable 12V, 84W DC power adapter
Form Factor
3.5" SBC; 7.68" x 1.73" x 5.94" (195 x 44 x 150mm) (WxHxD)
11th Generation Intel
Core™ i7-1185GRE
SYS-E100-12T-H X12STN-H-WOHS
11th Generation Intel
Core™ i5-1145GRE
SYS-E100-12T-E X12STN-E-WOHS
11th Generation Intel
Core™ i3-1115GRE
SYS-E100-12T-L X12STN-L-WOHS
11th Generation Intel
Celeron® 6305E
SYS-E100-12T-C X12STN-C-WOHS
System Model CPU SupportMotherboard
System Configurations
CautionI/O Connectors
Rear Features
CPU
JHDMI1
MH4 BT1
USB0/1
USB2/3
MH2
JSPKR1
AUDIO FP
JPH1
JCOM2 I-S A0AT
JCOM1
MH3
LVDS1
JLCDPWR1
JPW1
MH1
FAN1
JHDMI2 JGP1
JF1
LAN1LAN2
LED1
USB4/5 (3.1)USB6/7 (3.1)
JSIM1_OPT
2
3
4
5 6 8 9
10
11
12
15161718
13
14
7
1
JHDMI2: Manufacturing Mode
FAN1: System Fan Header
LVDS1: Dual Channel 48-bit LVDS Connector
JCOM1: COM1/COM2 Header
Jumper & Description
JLCDPWR1: LVDS Panel VCC Power Source Selection
No.
1
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
3
JPH1: 4-pin HDD Power Connector
I-SATA0: SATA 3.0 Port
AUDIO FP: Front Panel Audio Header (Mic-In/Line-Out)
USB2/3: Front Accessible USB 2.0 Headers
USB0/1: Front Accessible USB 2.0 Headers
JF1: Front Control Panel Header
JGP1: 8-bit General Purpose I/O Header
BT1: Onboard Battery
LAN1: 2.5 GbE Ethernet Ports
LAN2: 2.5 GbE Ethernet Ports
USB4/5: Front Accessible USB 2.0 Headers
USB6/7: Front Accessible USB 2.0 Headers
JCOM2: COM3/COM4 Header
Descrip iot nNo. No. Descrip iot n
5 U 5 TSB ype (3 C .1)
6 U 6/7 .1)SB (3
7 I 1.4 P tHDM or
1 LAN1
2 LAN2
3 I 2.0 P tHDM or
4 U 4 .1)SB (3
2 3 5 6 7
4
1
Removing the Chassis Cover Removing the Bottom Cover
1. Remove power from the system as described in Section 2.1.
2. Remove the eight screws that hold the cover in place.
3. Lift the cover up and off the chassis.
Installing the Mounting Brackets
1. Turn the chassis over to the bottom side.
2. Decide whether the bracket mounting holes will face outwards or inwards.
3. The mounting bracket supports two screw alignments. Decide which screw holes will be
used.
4. Align the screw holes on the mounting bracket with the screw holes on the chassis.
5. Install two screws.
6. Repeat on the other mounting bracket.
Remove the screws
and Lift the cover
Front Chassis Features
Item t nDescrip io
1WiFi antenna
22.5GbE LAN ports (Intel I225-IT)
3Left port: HDMI 2.0b (4K60Hz), Right port: HDMI 1.4b
4USB 3.2 ports, lower left port is USB C port
5
6
7
System on/off button
Indicates data is being written to the storage drives
F u seat re
ANTENNA
LAN P tsor
HDMI Ports
USB Ports
Power Button
HDD LED
Power LED Indicates power is being supplied to the system.
1 2
3 5
4
6 7
Rear Chassis Features
Item
1
2
3
4
5
6
F u seat re
12V DC Input
GPIO Port
COM Ports
USB Ports
Mic-In
Line-Out
Descrip iot n
Power input for system
General Purpose Input/Output Port
COM1 and COM2: RS232/422/485 serial ports
COM3 and COM4: RS232 serial ports
USB 2.0 ports
Microphone jack (optional)
Line out jack for audio (optional)
1 2 34 5
7
