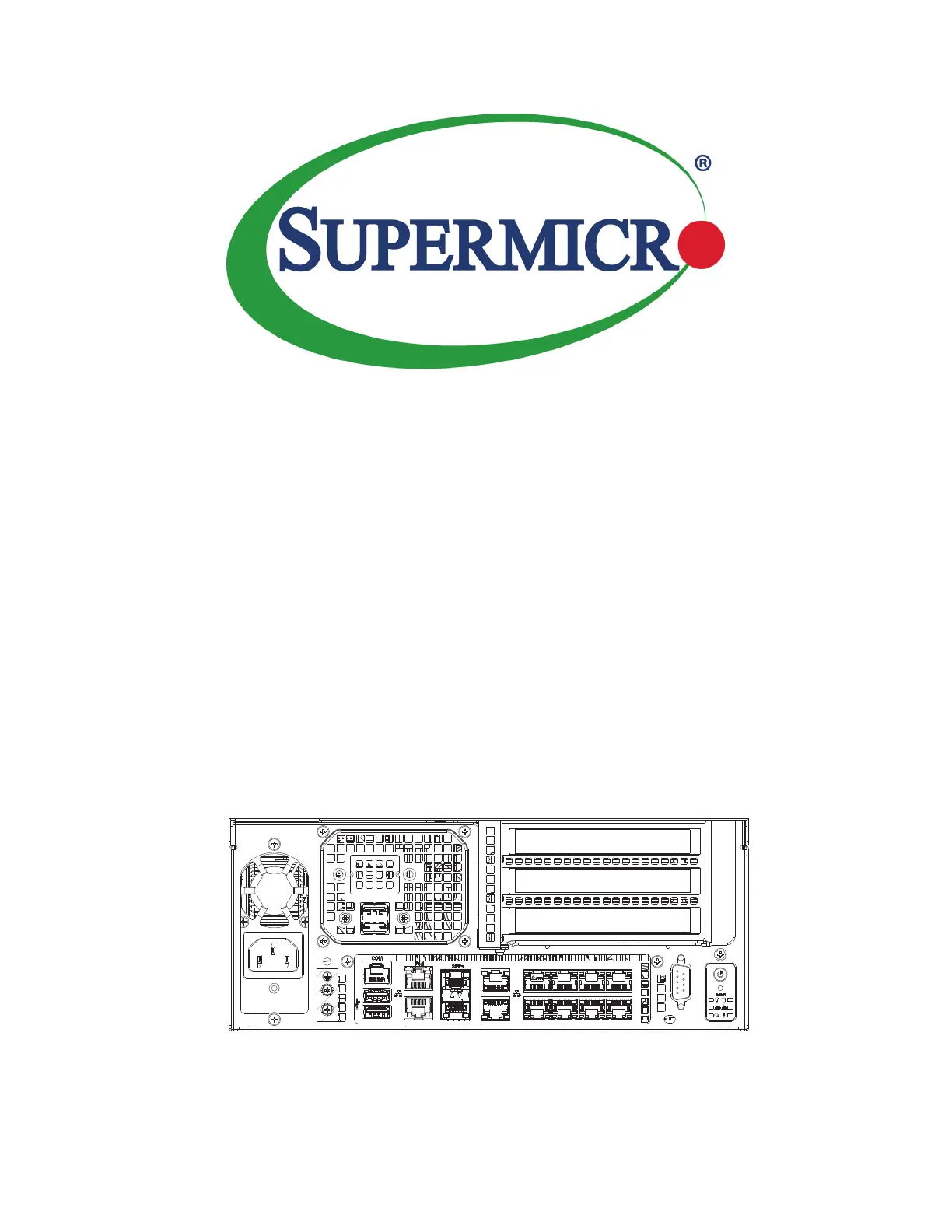

USER’S MANUAL
Revision 1.0a
SuperServer®
E403-9D-4C-FN13TP
E403-9D-8CN-FN13TP
E403-9D-12C-FN13TP
E403-9D-14C-FN13TP
E403-9D-14CN-FN13TP
E403-9D-16C-FN13TP
The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes
no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update
or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note:
For the most up-to-date version of this manual, please see our website at www.supermicro.com.
Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual
at any time and without notice. This product, including software and documentation, is the property of Supermicro and/
or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except
as expressly permitted by the terms of said license.
IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT
OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER
MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED
OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING,
INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.
Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the
State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution
of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a consumer environment or residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
manufacturer’s instruction manual, may cause harmful interference with radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct
the interference at your own expense.
California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only
to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply.
See ”.www.dtsc.ca.gov/hazardouswaste/perchlorate
WARNING: This product can expose you to chemicals including
lead, known to the State of California to cause cancer and birth
defects or other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
!
The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment,
nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical
systems whose failure to perform be reasonably expected to result in signicant injury or loss of life or catastrophic
property damage. Accordingly, Supermicro disclaims any and all liability, and should buyer use or sell such products
for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully
indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and
proceedings of any kind arising out of or related to such ultra-hazardous use or sale.
Manual Revision 1.0a
Release Date: April 10, 2020
Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this
document. Information in this document is subject to change without notice. Other products and companies referred
to herein are trademarks or registered trademarks of their respective companies or mark holders.
Copyright © 2020 by Super Micro Computer, Inc.
All rights reserved.
Printed in the United States of America
3
Preface
Preface
About this Manual
This manual is written for professional system integrators and PC technicians. It provides
information for the installation and use of this server. Installation and maintenance should be
performed by experienced technicians only.
Please refer to the E403-9D-4C-FN13TP, E403-9D-8CN-FN13TP, E403-9D-12C-FN13TP,
E403- 9 D-14C-FN13T P, E403- 9 D-14CN-FN13 T P, E403 - 9D-16C-FN13 T P, or
E403-9D-16C-FN13TP server specications page on our website for updates on supported
memory, processors and operating systems (http://www.supermicro.com).
Notes
For your system to work properly, please follow the links below to download all necessary
drivers/utilities and the user’s manual for your server.
• Supermicro product manuals: http://www.supermicro.com/support/manuals/
• Product drivers and utilities: https://www.supermicro.com/wftp
• Product safety info: http://www.supermicro.com/about/policies/safety_information.cfm
If you have any questions, please contact our support team at: support@supermicro.com
This manual may be periodically updated without notice. Please check the Supermicro website
for possible updates to the manual revision level.
Secure Data Deletion
A secure data deletion tool designed to fully erase all data from storage devices can be found
on our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wftp/utility/
Lot9_Secure_Data_Deletion_Utility/
Warnings
Special attention should be given to the following symbols used in this manual.
Warning! Indicates high voltage may be encountered when performing a procedure.
Warning! Indicates important information given to prevent equipment/property damage
or personal injury.
4
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
Contents
Chapter 1 Introduction
1.1 Overview ...............................................................................................................................7
1.2 System Features ................................................................................................................10
1.3 Chassis Features ...............................................................................................................11
Control Panel ....................................................................................................................11
Chassis Front ....................................................................................................................13
Chassis Rear .....................................................................................................................14
1.4 Motherboard Layout ...........................................................................................................15
Quick Reference Table ......................................................................................................16
1.5 Server Installation and Setup .............................................................................................19
Unpacking the System ......................................................................................................19
Warnings and Precautions ................................................................................................19
Adding Components to your System ...............................................................................19
Chapter 2 Maintenance and Component Installation
2.1 Removing Power ................................................................................................................20
2.2 Accessing the System ........................................................................................................21
2.3 Motherboard Components ..................................................................................................25
Processor ..........................................................................................................................25
Memory Support ................................................................................................................25
ESD Precautions ...........................................................................................................25
Memory Population Guidelines .........................................................................................26
DIMM Module Population Sequence ................................................................................27
DIMM Installation ...........................................................................................................28
DIMM Removal ..............................................................................................................28
M.2 SSD Installation .........................................................................................................29
Motherboard Battery .........................................................................................................30
2.4 Chassis Components .........................................................................................................31
Installing the Storage Drive(s) .........................................................................................31
Expansion Cards ...............................................................................................................33
System Cooling .................................................................................................................35
Mounting on a Surface ......................................................................................................38
Power Supply ....................................................................................................................41
5
Preface
Chapter 3 Motherboard Connections
3.1 Power Connections ............................................................................................................43
3.2 Headers and Connectors ...................................................................................................44
3.3 Ports ...................................................................................................................................50
Front I/O Ports ..................................................................................................................50
Front Control Panel ...........................................................................................................53
3.4 Jumpers ..............................................................................................................................57
Explanation of Jumpers .................................................................................................57
3.5 LED Indicators ....................................................................................................................61
Chapter 4 UEFI BIOS
4.1 Introduction .........................................................................................................................64
Starting the Setup Utility ...................................................................................................64
4.2 Main Setup .........................................................................................................................65
4.3 Advanced ............................................................................................................................67
4.4 Event Logs .........................................................................................................................94
4.5 IPMI ....................................................................................................................................96
4.6 Security .............................................................................................................................100
4.7 Boot ..................................................................................................................................103
4.8 Save & Exit .......................................................................................................................105
Chapter 5 Software
5.1 Driver Installation ..............................................................................................................107
5.2 SuperDoctor® 5 .................................................................................................................109
5.3 IPMI ..................................................................................................................................109
Appendix A BIOS Error Codes
Appendix B Standardized Warning Statements for AC Systems
Appendix C System Specications
Appendix D UEFI BIOS Recovery Instructions
Appendix E IPMI Crash Dump
6
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
Contacting Supermicro
Headquarters
Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: +1 (408) 503-8000
Fax: +1 (408) 503-8008
Email: marketing@supermicro.com (General Information)
support@supermicro.com (Technical Support)
Website: www.supermicro.com
Europe
Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: +31 (0) 73-6400390
Fax: +31 (0) 73-6416525
Email: sales@supermicro.nl (General Information)
support@supermicro.nl (Technical Support)
rma@supermicro.nl (Customer Support)
Website: www.supermicro.nl
Asia-Pacic
Address: Super Micro Computer, Inc.
3F, No. 150, Jian 1st Rd.
Zhonghe Dist., New Taipei City 235
Taiwan (R.O.C)
Tel: +886-(2) 8226-3990
Fax: +886-(2) 8226-3992
Email: support@supermicro.com.tw
Website: www.supermicro.com.tw
7
Chapter 1: Introduction
Chapter 1
Introduction
1.1 Overview
This chapter provides a brief outline of the functions and features of the SuperServer
E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP. Applications for the servers include edge
computing, universal customer premise equipment, cloud radio access network, network
function virtualization, and software dened wide area network. The servers support an
extended temperature range for rugged environments and graphics cards for greater
compute power. The servers are based on the X11SDW-4C/8C/12C/14C/14CNT/16C-TP13F
motherboards and the CSE-E403iF chassis.
In addition to the motherboards and chassis, several important parts that are included with
the system are listed below.
Main Parts List
Description QuantityPart Number
Air shroud MCP-310-40302-0B 1
Pre-installed riser card in expansion card module AOM-SDW-B16X2-P 1
80x80 mm hot-swappable fans FAN-0201L4 3
Power supply module PSW-601-1H 1
Y-split SATA power extension cable CBL-0082L 1
SATA data extension cable CBL-0483L 2
VGA cable CBL-CDAT-0850 1
SuperServer Model Variation Table
SuperServer Motherboard Processor
E403-9D-4C-FN13TP X11SDW-4C-TP13F Intel® Xeon® D-2123IT
E403-9D-8CN-FN13TP X11SDW-8C-TP13F Intel® Xeon® D-2146NT
E403-9D-12C-FN13TP X11SDW-12C-TP13F Intel® Xeon® D-2163IT
E403-9D-14C-FN13TP X11SDW-14C-TP13F Intel® Xeon® D-2173IT
E403-9D-14CN-FN13TP X11SDW-14CNT-TP13F Intel® Xeon® D-2177NT
E403-9D-16C-FN13TP X11SDW-16C-TP13F Intel® Xeon® D-2183IT
8
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
Motherboard Model Variation Table
Motherboard Model Name X11SDW-4C-TP13F X11SDW-8C-TP13F X11SDW-12C-TP13F
Processor Name Intel® Xeon® D-2123IT Intel® Xeon® D-2146NT Intel® Xeon® D-2163IT
Number of Cores 4 8 12
Number of Threads 8 16 24
Processor Base
Frequency
2.20GHz 2.30GHz 2.10GHz
Max Turbo Frequency 3.00GHz 3.00GHz 3.00GHz
SoC Max TDP 60W 80W 75W
Number of Memory
Channels
444
Maximum Memory Speed 2400MHz 2133MHz 2133MHz
Intel Turbo Boost
Technology
2.0 2.0 2.0
Embedded Options
Available
Yes Yes Yes
Integrated Intel
QuickAssist Technology
No NoYes
Intel Virtualization
Technology (VT-x)
Yes Yes Yes
Intel Virtualization
Technology for Directed
I/O (VT-d)
Yes Yes Yes
Intel TSX-NI Yes Yes Yes
Instruction Set 64-bit 64-bit 64-bit
Instruction Set
Extensions
Intel® AVX2, Intel®
AVX-512
Intel® AVX2, Intel®
AVX-512
Intel® AVX2, Intel® AVX-
512
Number of AVX-512 FMA
Units
111
9
Chapter 1: Introduction
Motherboard Model Variation Table
Motherboard Model Name X11SDW-14C-TP13F X11SDW-14CNT-TP13F X11SDW-16C-TP13F
Processor Name Intel® Xeon® D-2173IT Intel® Xeon® D-2177NT Intel® Xeon® D-2183IT
Number of Cores 14 14 16
Number of Threads 28 28 32
Processor Base
Frequency
1.70GHz 1.90GHz 2.20GHz
Max Turbo Frequency 3.00GHz 3.00GHz 3.00GHz
SoC Max TDP 70W 105W 100W
Number of Memory
Channels
444
Maximum Memory Speed 2133MHz 2667MHz 2400MHz
Intel Turbo Boost
Technology
2.0 2.0 2.0
Embedded Options
Available
Yes Yes Yes
Integrated Intel
QuickAssist Technology
No NoYes
Intel Virtualization
Technology (VT-x)
Yes Yes Yes
Intel Virtualization
Technology for Directed
I/O (VT-d)
Yes Yes Yes
Intel TSX-NI Yes Yes Yes
Instruction Set 64-bit 64-bit 64-bit
Instruction Set
Extensions
Intel® AVX2, Intel®
AVX-512
Intel® AVX2, Intel®
AVX-512
Intel® AVX2, Intel® AVX-
512
Number of AVX-512 FMA
Units
111
10
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
1.2 System Features
The table below is an overview of the main features of the SuperServer
E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP.
System Features
Processors
Intel® Xeon® D-2123IT, Intel® Xeon® D-2146NT, Intel® Xeon® D-2163IT, Intel® Xeon® D-2173IT,
Intel® Xeon® D-2177NT, and Intel® Xeon® D-2183IT
Motherboards
X11SDW-4C-TP13F, X11SDW-8C-TP13F, X11SDW-12C-TP13F, X11SDW-14C-TP13F, X11SDW-14CNT-TP13F,
and X11SDW-16C-TP13F
Chassis
CSE-E403iF
Memory
Supports up to 256GB of ECC/non ECC RDIMM or 512GB of ECC LRDIMM DDR4 memory with speeds of up to
2667MHz (D-2177NT) in four DIMM slots
Chipset
System on Chip
Expansion Slots
Two PCI-E 3.0 x16 or two PCI-E 3.0 x8 + one PCI-E 3.0 x16 (FH3/4L) slots
One M.2 M-Key 2280/22110
One M.2 B-Key 3042
One M.2 E-Key 2230
Input/Output
Four SATA3 (6Gbps) ports supporting RAID 0, 1, 5, 10
USB: two USB 3.0 ports (front), two USB 2.0 ports (front)
Serial Port: one COM via RJ45
Video: one VGA port
Network
Two RJ45 GbE LAN ports, nine RJ45 10GbE LAN ports, two 10G SFP+ LAN ports, and one RJ45 dedicated
IPMI LAN port
Storage Drives
Four internal SATA3 2.5" drive bays
Power
600W AC multi-output PFC Gold Certied power supply
Cooling
Three 80x80mm PWM redundant fans
Dimensions
Compact Box 2.5U (WxHxD) 10.5 x 4.3 x 16 in. (267 x 109 x 406 mm)
11
Chapter 1: Introduction
1.3 Chassis Features
Control Panel
The power button and LEDs located on the control panel are described below. See Chapter
3 for details on the control panel descriptions.
Control Panel Features
Item Features Description
1 Power Button
The main power switch applies or removes primary power from the power supply
to the server but maintains standby power. To perform most maintenance tasks,
unplug the system to remove all power.
2 Reset Button Press the button using a slender device to reset the system.
3 Power LED Indicates power is being supplied to the system power supply units. This LED is
illuminated when the system is operating normally.
4 HDD LED Indicates hard disk drive activity when ashing.
5 NIC LED Indicates network activity on the LAN when ashing.
6 Information LED Alerts operator to several states, as noted in the table on the next page.
7 Overheat LED If this indicator is continuously on and red, an overheat condition has occurred.
1
4
3
2
6
5
7
5
Figure 1-1. Control Panel View
12
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
Information LED
Status Description
Blinking red (1Hz) Fan failure. Check for an inoperative fan.
Blinking red (0.25Hz) Power failure. Check for a non-operational power
supply.
13
Chapter 1: Introduction
Chassis Front
The illustration below shows the features included on the front of the chassis.
Figure 1-2. Chassis Front View
Front Chassis Features
Item Features Description
1 Power Input
The main power switch applies or removes primary power from the power supply
to the server but maintains standby power. To perform most maintenance tasks,
unplug the system to remove all power.
2 USB ports External USB 2.0 Type-A ports.
3 PCI Slots Three standard height PCI expansion slots.
4 Ground Two ground screws provided to attach the chassis to an electrical ground.
5 I/O Front Panel Front panel for I/O devices supported on the motherboad (see Chapter 3).
6 VGA Port VGA port.
7 Control Panel System Control Panel
4
3
1
2
6
57
15
Chapter 1: Introduction
1.4 Motherboard Layout
Below is a layout of the X11SDW-4C-TP13F motherboard with jumper, connector, and
LED locations shown. See the table on the following page for descriptions. For detailed
descriptions, pinout information, and jumper settings, refer to Chapter 3.
Note: The X11SDW-4C-TP13F shares the same layout as the X11SDW-8C-TP13F, X11SDW-12C-TP13F, X11SDW-14C-TP13F,
X11SDW-14CNT-TP13F, and X11SDW-16C-TP13F.
FAN4 FAN3
FAN1
FAN2
FANB
FANA
JD1
JF1
JSD1
JIPMB1
JNVI2C1
JTGLED2
JTGLED1
JBT1
1
JPI2C1
JPWR1
JBM1
JBM2
JLANLED1
S-SGPIO1
JLANLED3
JLANLED2
JSTBY1
LEDM1
LEDT4 LEDT2
JPG1
J1
JSMB1 JI2C1 JI2C2 JWD1 JPME2 JVRM1 JPL2 JPL3
JPT1
JPUSB1
JPL1
MH1
MH3
MH7
MH2
MH4
MH6
MH5
BT1
JMD2_SRW1
JMD1_SRW1
JMD3_SRW1
LED3
LED1
LED2
LEDT3
S-SATA2
S-SATA3
S-SATA1
JSIM1
JGP1
JPV1
S-SATA0
JVGA1
COM2
JRK1
JPW1
JMD1: M.2-H
JSDP3
JSDP2
JSDP1
LEDT1
PRESS FIT
AC
CA CA
A
C
A
C
CA CA
DESIGNED IN USA
BAR CODE
X11SDW-4C-TP13F
REV:1.01
LAN 1
COM1
USB 4/5
USB 2/3
USB 0/1
2-3:DISABLE
1-2:ENABLE
JPT1:TPM
: PCI-E X16+X16
JSXB1C
JSXB1B
JSXB1A
CPU
JPL3:
LAN 6/7/8/9
1-2:ENABLE
2-3:DISABLE
JPL2:
2-3:DISABLE
1-2:ENABLE
LAN 2/3/4/5
PCI-E 3.0 X1
JMD3:M.2-P
PCI-E 3.0 X2 / S-SATA4
JMD2:M.2-H
PCI-E 3.0 X4 / I-SATA4
UID
LAN 2/3/4/5/6/7/8/9
LAN 12/13
LAN 10/11
IPMI_LAN
ON
PWR
RST X NIC2
FF
OH LED
NIC1 HDD
LED
PWR
JF1:
4-7:SPEAKER
1-3:PWR LED
JD1:
DIMMA1
DIMMB1
DIMME1
DIMMD1
JL1
JPH1
BT1
DIMMB1
DIMMA1
FAN1
JTPM1
JL1
LAN1
IPMI LAN
JPI2C1
DIMME1
DIMMD1
JSIM1
JPME2
JWD1
JGP1
LAN12/13
JVRM1
JBT1
LED3
LED2
JPH1
S-SATA0
LED1
JBM2
FAN2
FAN4
FAN3
UID
S-SATA1
JPG1
JLANLED1
LAN2-9
JBM1
JPV1
JSTBY1
JPWR1
JRK1
JSD1
JMD1
JLANLED2
JLANLED3
JTGLED1
JPL1
JPUSB1
JMD3
JTGLED2
COM1
USB4/5
LAN10/11
JSDP1
JSDP2
JSDP3
JF1
JPL2
JPL3
FANA
FANB
JPT1
JD1
USB0/1
USB2/3
JNVI2C1
S-SATA3
S-SATA2
S-SGPIO1
JSXB1C
JMD2
JSXB1B
COM2
JI2C2
JI2C1
JSMB1
JIPMB1
LEDM1
JVGA1
JSXB1A
J1
Figure 1-4. Motherboard Layout
16
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
Quick Reference Table
Jumper Description Default Setting
J1 M.2 SMBus Enable/Disable Pins 1-2 (Enabled)
JBM1 Disable IPMI Shared LAN Pins 1-2 Open (Enable)
JBM2 Disable Dedicated IPMI/Shared LAN Pins 1-2 Open (Enable)
JBT1 CMOS Clear Open: Normal
Closed: Clear CMOS
 SMB to PCI-E Slots Enable/Disable Pins 2-3 (Disabled)
JPG1 VGA Enable/Disable Pins 1-2 (Enabled)
JPL1 LAN1 Enable/Disable Pins 1-2 (Enabled)
JPL2 LAN2/3/4/5 Enable/Disable Pins 1-2 (Enabled)
JPL3 LAN6/7/8/9 Enable/Disable Pins 1-2 (Enabled)
JPME2 Manufacturing Mode Select Pins 1-2 (Normal)
JPT1 TPM Enable/Disable Pins 1-2 (Enabled)
JPUSB1 USB0/1 Wake Up Pins 2-3 (Disabled)
JVRM1 VRM SMB Data (to BMC or PCH) Pins 1-2 (BMC)
JWD1 Watch Dog Timer Pins 1-2 (Reset)
LED Description Status
LED1 Power LED Solid Green: Power On
LED2 UID LED  
LED3 Overheat/Power Fail/Fan Fail LED Solid Red: Overheat
Blinking Red: Power Failure/Fan Failure
LEDM1 BMC Heartbeat Blinking Green: BMC Normal
Connector Description
BT1 Onboard Battery
COM1/COM2 COM1: Port, COM2: Header
FAN1 - FAN4, FANA, FANB CPU/System Fan Headers
IPMI LAN Dedicated IPMI LAN Port
JD1 Power LED/Speaker Header (Pins 1-3: Power LED, Pins 4-7: Speaker)
JF1 Front Control Panel Header
JGP1 General Purpose I/O Header
JIPMB1 System Management Bus Header (for IPMI only)
JL1 Chassis Intrusion Header
JLANLED1 LAN1 Activity LED Header
JLANLED2 LAN2-5 Activity LED Header
JLANLED3 LAN6-9 Activity LED Header
JMD1 M.2 Slot M-Key 2280/22110 (SATA3.0 / PCI-E x4)
JMD2 M.2 Slot B-Key 2242/3042 (USB2.0 / USB3.0 / SATA3.0 / PCI-E x2)
JMD3 M.2 Slot E-Key 2230 (USB2.0 / PCI-E x1)
17
Chapter 1: Introduction
Connector Description
JNVI2C1 Non-volatile Memory (NVMe) I2C Header
JPH1 4-pin HDD Power Connector
 Power I2C System Management Bus (Power SMB) Header
JPV1 12V 8-pin DC Power Connector (Required to provide extra power to the CPU, or as
alternative power for special enclosure when the 24 pin ATX power is not in use)
JPW1 GPU Power Connector
JPWR1 24-pin ATX Power Connector
JRK1 Intel RAID Key Header
JSD1 SATA DOM Power Connector
JSDP1 
JSDP2 
JSDP3 
JSIM1 Nano SIM Card Slot
JSMB1 System Management Bus Header
JSTBY1 Standby Power Connector
JSXB1A WIO Connector
JSXB1B WIO Connector
JSXB1C WIO Connector
JTGLED1 LAN10/11 Activity LED Header
JTGLED2 LAN12/13 Activity LED Header
JTPM1 Trusted Platform Module (TPM)/Port 80 Connector
JVGA1 VGA Header
LAN1 1G LAN Port (from I210)
LAN2/LAN3 10G SFP+ Ports
LAN4/LAN5 10G LAN Ports
LAN6 - LAN13 1G LAN Ports (from I350)
S-SATA0 - S-SATA3 SATA3.0 Ports
S-SGPIO1 Serial Link General Purpose I/O Header
UID 
USB0/1, USB2/3 Front Accessible USB2.0 Headers
USB4/5 Front Panel USB3.1 Ports
18
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
Figure 1-5. Chipset System Block Diagram
eSPI
CPU
U1
SoC
PE1[15:0]
DDR4 DIMM
A1
PE2[15:0]
DDR4 DIMM
B1
DDR4 1866/2133/2400/2666
B
A
DDR4 DIMM
DDR4 DIMM
E
D
KR
PCH
DDR4 1866/2133/2400/2666
SFI
X557-AT2
JLAN3
10G PHY
Flexible I/O
6,7
Flexible I/O
16
JPCIE1 SLOT7 PCIE 3.0 x32
PCIE 3.0 x32
Flexible I/O
20~21
Flexible I/O
12~15
Flexible I/O
10
Flexible I/O
11
Flexible I/O
8,9
PCIE 3.0 x2
SATA3.0#0
SATA3.0#1
SATA3.0#2
SATA3.0#3
SATA3.0#4
SATA3.0
USB
M.2 (E-key) CONN(JMD3)
M.2(B-key) CONN(JMD2)
USB 2.0 Header
USB 2.0 USB 2.0 Header
USB2.0 HUB
PCIE 3.0 x2
I350 AM4
I350 AM4
JLAN2
USB 3.0/2.0 USB 3.0 Front I/O
JTPM1 Header
M.2 (B-key) CONN(JMD2)
PCIE 3.0 x2
PCIE 3.0 x1
Flexible I/O
17
PCIE 3.0 x1
I210
JLAN1
Flexible I/O
18~19
Flexible I/O
22~25
PCIE 3.0 x4
M.2 (M-key) CONN(JMD1)
SPI
BMC
AST2500
PCIE 3.0 x1
DDR4
COM1/2
FLASH
M.2 (E-key) CONN(JMD3)
1G LAN(2x4)
JLAN4
VGA HEADER
PHY
IPMI LAN IPMI LAN
+
1G LAN
COM
USB3.0 10G LAN
SFP+
JLAN4
D1
E1
+
FRONT IO
Note: This is a general block diagram and may not exactly represent the features on your
motherboard. See the System Specications appendix for the actual specications of your
motherboard.
19
Chapter 1: Introduction
1.5 Server Installation and Setup
The server is shipped with the onboard processor and the motherboard installed in the
chassis. Several steps are necessary to begin using your server. You must add memory,
mount the hard disk drive, and mount the system in place.
Unpacking the System
Inspect the box in which the system was shipped and note if it was damaged. If the server
itself shows damage, le a damage claim with the carrier.
Warnings and Precautions
• Use a regulating uninterruptible power supply (UPS) to protect the server from power
surges, voltage spikes and to keep your system operating in case of a power failure.
• Review the electrical and general safety precautions in Appendix B.
Adding Components to your System
• Memory: If your system is not already fully integrated with system memory, refer to Chapter
2 for details on compatible types of memory and the installation procedure.
• Drives and Storage: To add storage capabilities to your server, see Chapter 2.
• Input/Output: See Chapter 3 for I/O ports and connect them as needed.
• Software: See Chapter 5 for description and procedures for installing software, including
drivers and monitoring programs.
20
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
Chapter 2
Maintenance and Component Installation
This chapter provides instructions on installing and replacing main system components. To
prevent compatibility issues, only use components that match the specications and/or part
numbers given.
Installation or replacement of most components require that power rst be removed from the
system. Please follow the procedures given in each section.
2.1 Removing Power
Use the following procedure to ensure that power has been removed from the system.
1. Use the operating system to power down the system.
2. After the system has completely shut down, disconnect the power cord from the power
source.
3. Disconnect the power cord from the chassis.
21
Chapter 2: Maintenance and Component Installation
2.2 Accessing the System
The CSE-E403iF features a lockable and segmented top cover. Open the fan cover to access
the fans and fan lters. Remove the system cover to access other system components.
Remove the hard drive cage, the expansion card module, and the air shroud to access the
motherboard.
Figure 2-1. Removing Fan Cover Screws
Accessing the Fans and Fan Filters
The fans and fan lters can be accessed without powering down the system.
1. If a lock is attached to the top cover, remove the lock.
2. Remove the two screws on the fan cover. See Figure 2-1.
3. Flip open the fan cover to access the fans and fan lters.
22
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
Accessing the Main System
1. Power down the system as described in Section 2.1.
2. Remove one screw on top of the system cover near the I/O panel. See Figure 2-2.
3. Remove two screws on the fan cover if necessary.
4. Flip open the fan cover.
5. Remove the screw that has been exposed. See Figure 2-2.
6. Slightly slide the system cover towards the fans.
7. Lift both segments of the top cover o the chassis.
Figure 2-2. Open Fan Cover to Access Fans, Filters, and Screw
24
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
Enabling the Top Cover Lock Function
The chassis includes a lock plate that allows the top cover to be locked.
1. Pull the lock plate into a vertical position.
2. Close the fan cover. Make sure the lock plate ts through the slot on the cover.
3. Install two screws on the fan cover.
4. Install a lock on the lock plate.
Figure 2-4. Pull the Lock Plate Up
Figure 2-5. Top Cover Lock Function Enabled
25
Chapter 2: Maintenance and Component Installation
2.3 Motherboard Components
Processor
The E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP each features an Intel® Xeon® processor
with a range of cores and threads. The E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP
features between 4 to 16 cores and between 8 to 32 threads with a TDP between 60W to
105W and a three to seven year life cycle. For a full list of the processor details see the
tables in Section 1.1.
Memory Support
The X11SDW-4C/8C/12C/14C/14CNT/16C-TP13F supports up to 256GB of ECC RDIMM or
512GB of LRDIMM DDR4 memory in four memory slots. Populating these DIMM slots with
memory modules of the same type and size will result in interleaved memory, which will
improve memory performance.
ESD Precautions
Electrostatic Discharge (ESD) can damage electronic com ponents including memory modules.
To avoid damaging your DIMM modules, it is important to handle it very carefully. The following
measures are generally sucient to protect your equipment from ESD.
• Use a grounded wrist strap designed to prevent static discharge.
• Handle the memory module by its edges only.
• Put the memory modules into the antistatic bags when not in use.
• Check the Supermicro website for recommended memory modules.
26
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
Memory Population (Balanced)
DIMMA1 DIMMB1 DIMMD1 DIMME1 Total System
Memory
4GB 4GB 8GB
8GB 8GB
8GB 8GB 16GB
4GB 4GB 4GB 4GB 16GB
8GB 8GB 8GB 24GB
8GB 8GB 8GB 8GB 32GB
16GB 16GB 32GB
16GB 16GB 16GB 48GB
16GB 16GB 16GB 16GB 64GB
32GB 32GB 64GB
32GB 32GB 32GB 96GB
32GB 32GB 32GB 32GB 128GB
64GB 64GB 128GB
64GB 64GB 64GB 192GB
64GB 64GB 64GB 64GB 256GB
126GB 128GB 256GB
128GB 128GB 128GB 128GB 512GB
Memory Population Guidelines
For optimal memory performance, follow the table below when populating memory.
27
Chapter 2: Maintenance and Component Installation
DIMM Module Population Sequence
When installing memory modules, the DIMM slots should be populated in the following order:
DIMMA1, DIMMB1, DIMMD1, DIMME1.
• Always use DDR4 DIMM modules of the same type and speed.
• Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the
slowest DIMM.
• The motherboard will support odd-numbered modules (one or three modules installed).
However, for best memory performance, install DIMM modules in pairs to activate memory
interleaving.
FAN4 FAN3
FAN1
FAN2
FANB
FANA
JD1
JF1
JSD1
JIPMB1
JNVI2C1
JTGLED2
JTGLED1
JBT1
JTPM1
JPI2C1
JPWR1
JBM1
JBM2
JLANLED1
S-SGPIO1
JLANLED3
JLANLED2
JSTBY1
LEDM1
LEDT4 LEDT2
JPG1
J1
JSMB1 JI2C1 JI2C2 JWD1 JPME2 JVRM1 JPL2 JPL3
JPT1
JPUSB1
JPL1
MH1
MH3
MH7
MH2
MH4
MH6
MH5
BT1
JMD2_SRW1
JMD1_SRW1
JMD3_SRW1
LED3
LED1
LED2
LEDT3
S-SATA2
S-SATA3
S-SATA1
JSIM1
JGP1
JPV1
S-SATA0
JVGA1
COM2
JRK1
JPW1
JMD1: M.2-H
JSDP3
JSDP2
JSDP1
LEDT1
PRESS FIT
AC
CA CA
A
C
A
C
CA CA
DESIGNED IN USA
BAR CODE
X11SDW-4C-TP13F
REV:1.01
LAN 1
COM1
USB 4/5
USB 2/3
USB 0/1
2-3:DISABLE
1-2:ENABLE
JPT1:TPM
: PCI-E X16+X16
JSXB1C
JSXB1B
JSXB1A
CPU
JPL3:
LAN 6/7/8/9
1-2:ENABLE
2-3:DISABLE
JPL2:
2-3:DISABLE
1-2:ENABLE
LAN 2/3/4/5
PCI-E 3.0 X1
JMD3:M.2-P
PCI-E 3.0 X2 / S-SATA4
JMD2:M.2-H
PCI-E 3.0 X4 / I-SATA4
UID
LAN 2/3/4/5/6/7/8/9
LAN 12/13
LAN 10/11
IPMI_LAN
ON
PWR
RST X NIC2
FF
OH LED
NIC1 HDD
LED
PWR
JF1:
4-7:SPEAKER
1-3:PWR LED
JD1:
DIMMA1
DIMMB1
DIMME1
DIMMD1
JL1
JPH1
DIMMB1
DIMMA1
DIMME1
DIMMD1
Figure 2-6. DIMM Slots
28
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
DIMM Installation
Caution: Exercise extreme caution when installing or removing memory modules to prevent
any possible damage to the DIMMs or slots.
Begin by removing power from the system as described in Section 2.1.
1. Decide on the number of DIMMs to install and follow the DIMM population sequence
table and diagram on the previous two pages.
2. Push the release tabs outwards on both ends of the DIMM slot to unlock it.
Side Notches
Release Tabs
3. Identify the notches on the side and bottom of the DIMM module.
4. Align the bottom notch on DIMM module with the receptive point in the memory slot.
Align the side notches with the receptive points on the release tabs.
5. With your thumbs on both ends of the DIMM module, press it straight down into the slot
until the module snaps into place.
6. Press the release tabs to the locked position to secure the DIMM module into the slot.
DIMM Removal
To remove a DIMM, unlock the release tabs then pull the DIMM from the memory slot.
Bottom Notch
30
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
Motherboard Battery
This section describes how to remove and install the motherboard battery.
Replacing the Battery
Figure 2-8. Installing the Onboard Battery
1. Remove power from the system as described in Section 2.1.
2. Push aside the small clamp that covers the edge of the battery. When the battery is
released, lift it out of the holder.
3. To insert a new battery, slide one edge under the lip of the holder with the positive (+)
side facing up. Then push the other side down until the clamp snaps over it.
Note: Handle used batteries carefully. Do not damage the battery in any way; a damaged
battery may release hazardous materials into the environment. Do not discard a used battery
in the garbage or a public landll. Please comply with the regulations of your local hazardous
waste management agency to dispose of your used battery properly.
Warning: There is a danger of explosion if the onboard battery is installed upside down (which
reverses its polarities). This battery must be replaced only with the same or an equivalent
type recommended by the manufacturer (CR2032).
31
Chapter 2: Maintenance and Component Installation
2.4 Chassis Components
Installing the Storage Drive(s)
The CSE-E403iF can accommodate up to four xed 2.5" storage drives that are installed to
a hard drive cage and then inserted into the chassis.
Figure 2-9. Preparing to Install the Hard Drive(s)
Hard Drive Cage
Screw
Plastic Handles
Screw
32
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
5. Place the hard drives inside the hard drive cage, stacked up to two units on each end,
then secure them inside the drive bays with the included screws, as shown above.
6. Connect the data and power extension cables to the hard drive.
7. Attach the extension cables to the appropriate motherboard connectors.
8. Secure the hard drive cage back to the chassis with the screws previously set aside.
9. Reinstall the chassis cover and power up the system.
Figure 2-10. Installing 2.5" Hard Drives
Installing Hard Drives
The hard drive cage must be removed from the chassis before installing the hard drives.
1. Make sure there is no power to the system as described in Section 2.1 and remove the
chassis cover.
2. See Section 2.2 for instructions on how to remove the top cover.
3. Remove the two screws that are securing the hard drive cage to the chassis, as shown
in the previous page.
4. Pull the hard drive cage upwards using the provided plastic handles.
33
Chapter 2: Maintenance and Component Installation
Expansion Cards
The E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP supports up to three PCI-E slots on
the riser card. Follow the table printed on the riser card to set the JSEL jumper. The IIO
congurations may also need to be set in the BIOS.
Installing Expansion Cards
1. Power down the system and remove the AC power cord and the chassis cover.
2. Remove the screw as shown below and set aside.
3. Pull the locking lever up to release the expansion card module.
4. Pull the expansion card module upward with the aid of the plastic handle.
5. Set the jumper on the riser card and install expansion cards.
Locking Lever
Expansion Card Module
Remove this screw
Plastic Handle
Figure 2-11. Components of the Expansion Card Module
34
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
Expansion Card Module
Expansion Card
(optional)
Figure 2-12. Expansion Card Module Removed
6. Install the I/O shields for the expansion slots that are being populated.
7. Connect the power cable to the expansion card if necessary.
8. Reinstall the expansion card module.
9. Reinstall the chassis top cover, reconnect the AC power cord and power up the system.
35
Chapter 2: Maintenance and Component Installation
System Cooling
The CSE-E403iF includes three hot-swappable 8-cm fans.
Installing or Replacing the System Fan
1. Access the fans as described in Section 2.2.
2. Press the latch at the side of the fan. See Figure 2-13.
3. Pull up the fan by the two side handles.
4. If replacing a fan, insert the new fan.
5. Close the chassis fan cover and replace the two screws.
Figure 2-13. System Fans
2
36
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
Figure 2-14. Installing or Replacing the Fan Filters
Installing or Replacing the Fan Filters
The system supports three fan lters that can be removed and cleaned. Power to the system
can remain on while the the fan lters are removed or installed.
1. Access the fans as described in Section 2.2.
2. Grab the fan lter's top edge and pull up from the chassis.
3. Clean the lter if necessary.
4. With the lter's at edge facing inward, insert the lter back into its slot.
5. Remove, clean, and reinsert the other lters if necessary.
6. Close the chassis fan cover and replace the two screws.
Note: Regular cleaning of the fan lters maintains proper airow and prevents overheating.
at edge
edge with lip
4
37
Chapter 2: Maintenance and Component Installation
Installing the Air Shroud
The air shroud directs airow from two of the fans to the center of the motherboard.
1. If you are installing expansion cards that require power from the power supply, you must
cut a hole to route the power cable from the power supply to the expansion module.
2. Place the air shroud over the CPU and align the wide-end of the air shroud with the two
fans on the power supply side of the chassis.
Cut hole for
power cables
(optional)
Figure 2-15. Installing the Air Shroud
38
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
Figure 2-16. Installing the Mounting Brackets
Mounting on a Surface
The CSE-E403iF can be mounted directly on a surface using the mounting brackets and
mounting screws or nails. The following procedure describes how to mount the system to a
sturdy surface. Use screws or nails of sucient strength to support the weight of the system.
Mounting the Chassis
1. Attach the three mounting brackets to the chassis using the ten M4xL4 screws that
came with the system. See the gure below. The mounting bracket along the I/O panel
is pre-attached.
39
Chapter 2: Maintenance and Component Installation
76.20 mm
420 mm
2. Decide on an orientation to mount the server. The server can only be mounted with the
I/O panel facing left or right.
Figure 2-17. Possible Mounting Orientations
76.20 mm
76.20 mm
420 mm
I/O Facing Left
I/O Facing Right
40
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
3. Mark two keyhole spots on the surface where the server will be mounted. The two
keyholes for each orientation are circled in red. See Figure 2-17.
4. Install the two keyhole screws or nails.
5. Mount the server onto the two screws or nails.
6. Install screws or nails in all the holes circled in blue. See Figure 2-17.
Note: The weight of a fully populated system can reach up to 21 lbs or 8.3 kg.
41
Chapter 2: Maintenance and Component Installation
Power Supply
The E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP includes a 600W AC multi-output PFC
Gold Certied power supply that can be removed and replaced.
Removing and Replacing the Power Supply
1. Remove the power cord by following the steps in Section 2.1.
2. Remove the top cover by following the steps in Section 2.2.
3. To access the motherboard, remove the expansion card module and the hard drive cage
as described on pages 31-34. Make sure to disconnect the extension cables from the
motherboard and the power supply.
4. Remove any cables routed through the air shroud. Lift the air shroud out of the chassis.
5. With access to the motherboard, disconnect the ATX 24-pin power cable (JPWR1) and
the 8-pin power cable (JPV1).
6. Remove three screws on the chassis as shown in Figure 2-19 and set them aside.
7. Carefully lift the power supply out of the chassis.
8. Carefully place a new power supply into the chassis with the fan at the top rear. Install
the three screws.
9. Reconnect the ATX 24-pin and 8-pin power cable to the motherboard.
FAN4 FAN3
FAN1
FAN2
FANB
FANA
JD1
JF1
D1
JNVI2C1
JBT1
JTPM1
JPWR1
S-SGPIO1
JSTBY1
JPG1
JVRM1
JPL2 JPL3
JPT1
MH1
MH7
MH2
MH4
MH5
BT1
JMD2_SRW1
LED1
S-SATA2
S-SATA3
JSIM1
JPV1
JRK1
JPW1
JMD1: M.2 H
DESIGNED IN USA
BAR CODE
X11SDW-4C-TP13F
REV:1.01
USB 2/3
USB 0/1
2-3:DISABLE
1-2:ENABLE
JPT1:TPM
JSXB1C
CPU
JPL3:
LAN 6/7/8/9
1-2:ENABLE
2-3:DISABLE
JPL2:
2-3:DISABLE
1-2:ENABLE
LAN 2/3/4/5
PCI-E 3.0 X2 / S-SATA4
JMD2:M.2-H
PCI-E 3.0 X4 / I-SATA4
ON
PWR
RST X NIC2
FF
OH
LED
NIC1 HDD
LED
PWR
JF1:
4-7:SPEAKER
1-3:PWR LED
JD1:
DIMMA1
DIMMB1
DIMME1
DIMMD1
JPH1
Figure 2-18. Locating the ATX 24-pin and 8-pin Power Connectors
42
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
Figure 2-19. Removing the Power Supply
Fan
10. Reinstall the air shroud.
11. Reconnect the expansion card power supply if necessary and reinstall the expansion
card module.
12. Reconnect the hard drive data and power extension cables and reinstall the hard drive
cage.
13. Reinstall the chassis top cover.
14. Reconnect the power supply cord to the power supply inlet and the power source.
43
Chapter 3: Motherboard Connections
Chapter 3
Motherboard Connections
This section describes the connections on the motherboard and provides pinout denitions.
Note that depending on how the system is congured, not all connections are required.
The LEDs on the motherboard are also described here. A motherboard layout indicating
component locations may be found in Chapter 1.
Please review the Safety Precautions in Appendix B before installing or removing components.
3.1 Power Connections
Power Connectors
The primary ATX power supply connector (JPWR1) meets the ATX SSI EPS 12V specication.
JPV1 is the 12V DC power connector that provides power to the motherboard. JPH1 is a
4-pin HDD power connector that provides power to onboard hard disk drives.
8-pin 12V Power
Pin Denitions
Pin# Denition
1 - 4 Ground
5 - 8 +12V
4-pin HDD Power
Pin Denitions
Pin# Denition
1 12V
2-3 Ground
4 5V
ATX Power 24-pin Connector
Pin Denitions
Pin# Pin#Denition Denition
13 +3.3V +3.3V1
14 -12V +3.3V2
15 Ground Ground3
16 PS_ON +5V4
17 Ground Ground5
18 Ground +5V6
19 Ground Ground7
20 PWR_OKRes (NC) 8
21 +5V 5VSB9
22 +5V 10 +12V
23 +5V +12V11
24 Ground 12 +3.3V
GPU Power Connector
JPW1 is a GPU power connector. This connector provides additional power for graphics cards.
GPU Power Pin
Denitions
Pin# Denition
1 GND
2 GND
3 12V
4 12V
44
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
3.2 Headers and Connectors
Onboard Fan Header
This motherboard has six fan headers (FAN1~FAN4, FANA, FANB) used for CPU/system
cooling. These are all 4-pin fan headers, which are backward compatible with a traditional
3-pin fan. The onboard fan speed is controlled by Thermal Management via the IPMI 2.0
interface. The motherboard supports dual cooling zones. The table below shows which fan
belongs to which zone.
Fan Header
Pin Denitions
Pin# Denition
1 Ground (Black)
2 2.5A/+12V (Red)
3 Tachometer
4 PWM_Control
Fan Zone
Pin Denitions
Zone 1 2
Fan # FAN1/2/3/4 FANA/B
Chassis Intrusion
A Chassis Intrusion header is located at JL1 on the motherboard. Attach the appropriate cable
from the chassis to inform you of a chassis intrusion when the chassis is opened. Refer to
the table below for pin denitions.
Chassis Intrusion
Pin Denitions
Pin# Denition
1 Intrusion Input
2 Ground
Power SMB (I 2C) Header
The Power System Management Bus (I 2C) connector (JPI 2C1) monitors the power supply,
fan, and system temperatures. Refer to the table below for pin denitions.
Power SMB Header
Pin Denitions
Pin# Denition
1 Clock
2 Data
3 PMBUS_Alert
4 Ground
5 NC
45
Chapter 3: Motherboard Connections
M.2 Connection
This motherboard has three M.2 connectors at JMD1, JMD2, and JMD3. JMD1 supports
M-Key PCI-E 3.0 p45-x4 and SATA 3.0 interfaces in a 2280/22110 form factor. JMD2 supports
B-Key PCI-E 3.0 x2, SATA 3.0, and USB 3.0 interfaces in a 3042 form factor. JMD3 supports
E-Key PCI-E 3.0 p45-x1 and USB 2.0 interfaces in a 2230 form factor.
SATA Ports
The X11SDW-4C/8C/12C/14C/14CNT/16C-TP13F motherboard has four S-SATA 3.0 ports.
Refer to the table below for pin denitions.
SATA 3.0 Port
Pin Denitions
Pin# Signal
1 Ground
2 SATA_TXP
3 SATA_TXN
4 Ground
5 SATA_RXN
6 SATA_RXP
7 Ground
TPM Header
The JTPM1 header is used to connect a Trusted Platform Module (TPM)/Port 80, which is
available from a third-party vendor.
Trusted Platform Module Header
Pin Denitions
Pin# Pin#Denition Denition
1 2+3.3V SPI_CS#
3 4RESET# SPI_MISO
5 6SPI_CLK GND
7 8SPI_MOSI
9 +3.3V Stby 10 SPI_IRQ#
46
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
VGA Header
Connect a 16-pin VGA extension cable to JVGA1 for a VGA connecton.
VGA Header
Pin Denitions
Pin# Pin#Denition Denition
1 2VGA_RED VGA_GRE
3 4VGA_BLE N/C
5 6GND VGA_DET (GND)
7 8GND GND
9 5V 10 GND
11 N/C 12 DDCSDA
13 HSYNC 14 VSYNC
15 DDCSCL 16 N/C
RAID Key Header
The JRK1 header allows the user to enable RAID functions. Refer to the table below for pin
denitions.
Intel RAID Key
Pin Denitions
Pins Denition
1 GND
2 PU 3.3V Stdby
3 GND
4 PCH RAID KEY
Disk On Module Power Connector
The Disk On Module (DOM) power connector at JSD1 provides 5V power to a solid-state
DOM storage device connected to one of the SATA ports. Refer to the table below for pin
denitions.
DOM Power
Pin Denitions
Pin# Denition
1 5V
2 Ground
3 Ground
47
Chapter 3: Motherboard Connections
General Purpose I/O Header
The JGP1 (General Purpose Input/Output) header is a general purpose I/O expander on a
pin header via the SMBus. Refer to the table below for pin denitions.
GPIO Header
Pin Denitions
Pin# Pin#Denition Denition
1 2+3.3V GND
3 4GP0 GP4
5 6GP1 GP5
7 8GP2 GP6
9 GP3 10 GP7
Standby Power
The Standby Power header is located at JSTBY1 on the motherboard. Refer to the table
below for pin denitions.
Standby Power
Pin Denitions
Pin# Denition
1 +5V Standby
2 Ground
3 No Connection
Power LED/Speaker Header
On the JD1 header, pins 1-3 are for the Power LED and pins 4-7 are for the speaker.
Speaker Connector
Pin Denitions
Pin Setting Denition
Pins 1-3 Power LED
Pins 4-7 Speaker
External I 2C Header
The system management bus header is located at JIPMB1. Connect the appropriate cable here
to use the IPMB I 2C connection on your system. Refer to the table below for pin denitions.
SMBus Header
Pin Denitions
Pin# Denition
1 Data
2 GND
3 Clock
4 NC
48
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
NVMe I2C Header
JNVI2C1 is a management header for the Supermicro AOC NVMe PCI-E peripheral cards.
Connect a corresponding I 2C cable to this header. Refer to the table below for pin denitions.
NVMe I2C Header
Pin Denitions
Pin# Denition
1 PE_HP_SDA
2 Ground
3 PE_HP_SCL
4 PVCCIO
System Management Bus Header
A System Management Bus header for additional slave devices or sensors is located at
JSMB1. See the table below for pin denitions.
SMBus Header
Pin Denitions
Pin# Denition
1 Data
2 Ground
3 Clock
Nano SIM Slot
The JSIM1 slot supports a Nano SIM card.
LAN Port Activity LED
JLANLED1 is the activity LED for LAN1, JLANLED2 is the activity LED for LAN2 - LAN5, and
JLANLED3 is the activity LED for LAN6 - LAN9.
JTGLED1, JTGLED2
JTGLED1 is the activity LED for LAN10 - LAN11, and JTGLED2 is the activity LED for LAN12
- LAN13.
49
Chapter 3: Motherboard Connections
S-SGPIO Header
The Serial Link General Purpose Input/Output (S-SGPIO1) header is used to communicate
with the enclosure management chip on the front panel.
SGPIO Header
Pin Denitions
Pin# Pin#Denition Denition
1 2NC NC
3 4Ground DATA Out
5 6Load Ground
7 8Clock NC
Software-Dened Pins (SDP)
JSDP1, JSDP2, and JSDP3 are software-dened pins that can be used to support IEEE
1588 auxiliary devices and other hardware or software-control purposes. These pins can be
congured to function as standard inputs or General-Purpose Interrupt (GPI) input or output
pins. In order for pins to function as GPI, they must be congured as inputs and enabled by
the PCH Ethernet or I350.
JSDP1
Pin Denitions
Pin# Denition
1 X722_SDP1_1
2 X722_SDP1_0
3 X722_SDP0_1
4 X722_SDP0_0
5 Ground
JSDP2
Pin Denitions
Pin# Denition
1 10G_P3_LOW_SPEED
2 X722_SDP3_0
3 10G_P2_LOW_SPEED
4 X722_SDP2_0
5 Ground
JSDP3
Pin Denitions
Pin# Denition
1 I350_SDP0_0
2 I350_SDP0_1
3 I350_SDP0_2
4 I350_SDP0_3
5 Ground
50
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
3.3 Ports
Front I/O Ports
See Figure 3-1 below for the locations and descriptions of the various I/O ports on the front
of the motherboard.
Figure 3-1. Front I/O Port Locations and Denitions
FAN4 FAN3
FAN1
FAN2
FANB
FANA
JD1
JF1
JSD1
JIPMB1
JNVI2C1
JTGLED2
JTGLED1
JBT1
JTPM1
JPI2C1
JPWR1
JBM1
JBM2
JLANLED1
S-SGPIO1
JLANLED3
JLANLED2
JSTBY1
LEDM1
LEDT4 LEDT2
JPG1
J1
JSMB1 JI2C1 JI2C2 JWD1 JPME2 JVRM1 JPL2 JPL3
JPT1
JPUSB1
JPL1
MH1
MH3
MH7
MH2
MH4
MH6
MH5
BT1
JMD2_SRW1
JMD1_SRW1
JMD3_SRW1
LED3
LED1
LED2
LEDT3
S-SATA2
S-SATA3
S-SATA1
JSIM1
JGP1
JPV1
S-SATA0
JVGA1
COM2
JRK1
JPW1
JMD1: M.2-H
JSDP3
JSDP2
JSDP1
LEDT1
PRESS FIT
AC
CA CA
A
C
A
C
CA CA
DESIGNED IN USA
BAR CODE
X11SDW-4C-TP13F
REV:1.01
LAN 1
COM1
USB 4/5
USB 2/3
USB 0/1
2-3:DISABLE
1-2:ENABLE
JPT1:TPM
: PCI-E X16+X16
JSXB1C
JSXB1B
JSX 1A
CPU
JPL3:
LAN 6/7/8/9
1-2:ENABLE
2-3:DISABLE
JPL2:
2-3:DISABLE
1-2:ENABLE
LAN 2/3/4/5
PCI-E 3.0 X1
JMD3:M.2-P
PCI-E 3.0 X2 / S-SATA4
JMD2:M.2-H
PCI-E 3.0 X4 / I-SATA4
UID
LAN 2/3/4/5/6/7/8/9
LAN 12/13
LAN 10/11
IPMI_LAN
ON
PWR
RST X N IC2
FF
OH
LED
NIC1 HDD
LED
PWR
JF1:
4-7:SPEAKER
1-3:PWR LED
JD1:
DIMMA1
DIMMB1
DIMME1
DIMMD1
JL1
JPH1
14
1
9
8
7
6
5
4
3
2
10
13
12
11
Front I/O Ports
# # # #Description Description Description Description
1. COM1 6. LAN2 16. LAN9SFP+ LAN13 11.
2. 7. 12. LAN5 17. LAN8USB5 (USB3.0) SFP+ LAN12
3. 8. LAN11 13. LAN4 18.USB4 (USB3.0) UID Switch
4. 9. LAN10 14. LAN7IPMI LAN
5. LAN1 10. LAN3 15. LAN6
1817
16
15
51
Chapter 3: Motherboard Connections
LAN Ports
The motherboard has 13 LAN ports. LAN1~LAN9 are 1G ports, LAN10 and LAN11 are 10G
ports, LAN12 and LAN13 are 10G SFP+ ports. In addition to the LAN ports, the motherboard
o󰀨ers a dedicated IPMI LAN port. Refer to the table below for the pin denitions.
Caution: If the operating temperature exceeds 30ºC and the system fans are not active, a LAN
component may become overheated.
LAN Port
Pin Denition
Pin# Pin#Denition Denition
1 5TX_D1+ BI_D3-
2 6TX_D1- RX_D2-
3 7RX_D2+ BI_D4+
4 8BI_D3+ BI_D4-
COM Port/Header
The motherboard has one COM port on the I/O front panel and one COM header on the
motherboard to provide serial connections.
COM Port
Pin Denitions
Pin# Pin#Denition Denition
1 2SP_DCDA SP_DSRA
3 4SP_RXDA SP_RTSA
5 6SP_TXDA SP_STSA
7 8SP_DTRA SP_RIA
9 GND 10 NC
RJ45 Port
Pin Denitions
Pin# Pin#Denition Denition
1 6RTS RXD
2 7DTR DSR
3 8TXD CTS
4 GND
5 GND
52
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
Universal Serial Bus (USB) Ports
The motherboard has two USB 3.0 Gen 1 ports (USB4/5) on the I/O front panel. There are
two onboard USB 2.0 headers (USB0/1, USB2/3). These headers can be used to provide
front side USB access with a cable (not included).
USB4/5 (USB 3.0 Type-A)
Pin Denitions
Pin# Pin#Denition Denition
1 5VBUS SSRX-
2 6USB_N SSRX+
3 7USB_P GND
4 8GND SSTX-
9 SSTX+
Front Panel USB 2.0 Header
Pin Denitions
Pin# Pin#Denition Denition
1 2+5V +5V
3 4USB_PN2 USB_PN3
5 6USB_PP2 USB_PP3
7 8Ground Ground
9 Key 10 NC
Unit Identier Switch
A Unit Identier (UID) LED is located on the motherboard. The UID LED provides easy
identication of a system unit that may be in need of service.
Note: UID can also be triggered via IPMI on the motherboard. For more information on IPMI,
please refer to the IPMI User's Guide posted on our website at http://www.supermicro.com.
UID LED
Pin Denitions
Color Status
Blue: On Unit Identied
53
Chapter 3: Motherboard Connections
Front Control Panel
JF1 contains header pins for various buttons and indicators that are normally located on a
control panel at the front of the chassis. These connectors are designed specically for use
with Supermicro chassis. See the gure below for the descriptions of the front control panel
buttons and LED indicators.
FAN4 FAN3
FAN1
FAN2
FANB
FANA
JD1
JF1
JSD1
JIPMB1
JNVI2C1
JTGLED2
JTGLED1
JB 1
JTPM1
JPI2C1
JPWR1
JBM1
JBM2
JLANLED1
S-SGPIO1
JLANLED3
JLANLED2
JSTBY1
LEDM1
LEDT4 LEDT2
JPG1
J1
JSMB1 JI2C1 JI2C2 JWD1 JPME2 JVRM1 JPL2 JPL3
JPT1
JPUSB1
JPL1
MH1
MH3
MH7
MH2
MH4
MH6
MH5
BT1
JMD2_SRW1
JMD1_SRW1
JMD3_SRW1
LED3
LED1
LED2
LEDT3
S-SATA2
S-SATA3
S-SATA1
JSIM1
JGP1
JPV1
S-SATA0
JVGA1
COM2
JRK1
JPW1
JMD1: M.2-H
JSDP3
JSDP2
JSDP1
LEDT1
PRESS FIT
AC
CA CA
A
C
A
C
CA CA
DESIGNED IN USA
BAR CODE
X11SDW-4C-TP13F
REV:1.01
LAN 1
COM1
USB 4/5
USB 2/3
USB 0/1
2-3:DISABLE
1-2:ENABLE
JPT1:TPM
: PCI-E X16+X16
JSXB1C
JSXB1B
JSXB1A
CPU
JPL3:
LAN 6/7/8/9
1-2:ENABLE
2-3:DISABLE
JPL2:
2-3:DISABLE
1-2:ENABLE
LAN 2/3/4/5
PCI-E 3.0 X1
JMD3:M.2-P
PCI-E 3.0 X2 / S-SATA4
JMD2:M.2-H
PCI-E 3.0 X4 / I-SATA4
UID
LAN 2/3/4/5/6/7/8/9
LAN 12/13
LAN 10/11
IPMI_LAN
ON
PWR
RST X NIC2
FF
OH
LED
NIC1 HDD
LED
PWR
JF1:
4-7:SPEAKER
1-3:PWR LED
JD1:
DIMMA1
DIMMB1
DIMME1
DIMMD1
JL1
JPH1
Power Button
OH/Fan Fail
NIC1 Activity LED
Reset Button
HDD LED
PWR LED
Reset
PWR
3.3V Stby
3.3V Stby
Ground
15
3.3V Stby
16
1 2
Ground
NIC2 Activity LED
Power Fail LED
UID
3.3V
3.3V
Figure 3-2. JF1 Header Denitions
54
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
Power Button
The Power Button connection is located on pins 1 and 2 of JF1. Momentarily contacting both
pins will power on/o󰀨 the system. This button can also be congured to function as a suspend
button (with a setting in the BIOS - see Chapter 4). To turn o󰀨 the power when the system
is in suspend mode, press the button for 4 seconds or longer. Refer to the table below for
pin denitions.
Power Button
Pin Denitions (JF1)
Pins Denition
1 Signal
2 Ground
Reset Button
The Reset Button connection is located on pins 3 and 4 of JF1. The reset button is not
connected to the front control panel. Attach it to a hardware reset switch on the computer
case to reset the system. Refer to the table below for pin denitions.
Reset Button
Pin Denitions (JF1)
Pins Denition
3 Reset
4 Ground
Power Fail LED
The Power Fail LED connection is located on pins 5 and 6 of JF1. Refer to the table below
for pin denitions.
Power Fail LED
Pin Denitions (JF1)
Pin# Denition
5 +3.3V
6 PWR LED
55
Chapter 3: Motherboard Connections
Overheat (OH)/Fan Fail
Connect an LED cable to the OH/Fan Fail connections on pins 7 and 8 of JF1 to provide
warnings for chassis overheat and fan failure. Refer to the table below for pin denitions.
OH/Fan Fail Indicator
Status
State Denition
O󰀨 Normal
On Overheat
Flashing Fan Fail
OH/Fan Fail LED
Pin Denitions (JF1)
Pin# Denition
7 +3.3V
8 OH/Fan Fail LED
HDD LED
The HDD LED connection is located on pins 13 and 14 of JF1. Attach a cable to pin 14 to
show hard drive activity status. Refer to the table below for pin denitions.
HDD LED
Pin Denitions (JF1)
Pins Denition
13 +3.3V Stdby
14 HDD Active
NIC1/NIC2 (LAN1/LAN2)
The NIC (Network Interface Controller) LED connection for LAN port 1 is located on pins
11 and 12 of JF1, and LAN port 2 is on pins 9 and 10. Attach the NIC LED cables here to
display network activity. Refer to the table below for pin denitions.
LAN1/LAN2 LED
Pin Denitions (JF1)
Pin# Denition
9/11 3.3V Standby
10/12 NIC Activity LED
56
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
Power LED
The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table below
for pin denitions.
Power LED
Pin Denitions (JF1)
Pins Denition
15 +3.3V
16 PWR LED
57
Chapter 3: Motherboard Connections
3.4 Jumpers
Explanation of Jumpers
To modify the operation of the motherboard, jumpers are used to choose between optional
settings. Jumpers create shorts between two pins to change the function associated with it.
Pin 1 is identied with a square solder pad on the printed circuit board. See the motherboard
layout page for jumper locations.
Note: On a two-pin jumper, "Closed" means the jumper is on both pins and "Open" indicates
the jumper is either on only one pin or has been completely removed.
Connector
Pins
Jumper
Setting
3 2 1
3 2 1
CMOS Clear
JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins, this jumper
consists of contact pads to prevent accidentally clearing the contents of CMOS.
To Clear CMOS
1. First power down the system and unplug the power cords.
2. Remove the cover of the chassis to access the motherboard.
3. Remove the onboard battery from the motherboard.
4. Short the CMOS pads with a metal object such as a small screwdriver for at least four
seconds.
5. Remove the screwdriver (or shorting device).
6. Replace the cover, reconnect the power cord(s) and power on the system.
Note: Clearing CMOS will also clear all passwords.
Do not use the PW_ON connector to clear CMOS.
JBT1 contact pads
59
Chapter 3: Motherboard Connections
Watch Dog
JWD1 controls the Watch Dog function. The Watch Dog is a monitor that can reboot the
system when a software application hangs. Jumping pins 1-2 will cause the Watch Dog to
reset the system if an application hangs. Jumping pins 2-3 will generate a non-maskable
interrupt signal for the application that hangs. The Watch Dog must also be enabled in the
BIOS. The default setting is Reset.
Note: When the Watch Dog is enabled, the user needs to write their own application software
to disable it.
Watch Dog
Jumper Settings
Jumper Setting Denition
Pins 1-2 Reset
Pins 2-3 NMI
Open Disabled
LAN Port Enable/Disable
Change the setting of jumpers JPL1 for LAN1, JPL2 for LAN2 - LAN5, and JPL3 for LAN6 -
LAN9 to enable or disable the LAN ports.
LAN Port Enable/Disable
Jumper Settings
Jumper Setting Denition
Pins 1-2 Enabled
Pins 2-3 Disabled
TPM Enable
Use JPT1 to enable or disable support for the TPM module. Refer to the table below for
jumper settings.
TPM Enable/Disable
Jumper Settings
Jumper Setting Denition
Pins 1-2 Enabled (Default)
Pins 2-3 Disabled
M.2 SMBus Enable
Use J1 to enable or disable the M.2 SMBus. Refer to the table below for jumper settings.
M.2 SMBus Enable/Disable
Jumper Settings
Jumper Setting Denition
Pins 1-2 Enabled (Default)
Pins 2-3 Disabled
60
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
USB Wake Up
Use the JPUSB1 jumper to enable system wake up via a USB device. This jumper allows
you to wake up the system by pressing a key on the USB keyboard or by clicking the USB
mouse of your system. The JPUSB1 jumper is used together with the USB Wake Up function
in the BIOS. Enable both the jumper and the BIOS setting to activate this function. When the
USB Wake Up function is enabled, it will be active on all USB ports. See the table below for
jumper settings.
USB Wake Up
Jumper Settings
Jumper Setting Denition
Pins 1-2 Enabled (Default)
Pins 2-3 Disabled
IPMI Share LAN Enable/Disable
Set the JBM1 jumper to Enabled to share LAN1 with the IPMI.
IPMI Share LAN Enable/Disable
Jumper Settings
Jumper Setting Denition
Pins 1-2 (Open) Enabled (Default)
Pins 1-2 (Short) Disabled
IPMI Dedicated/Share LAN Enable/Disable
Use JBM2 to enable or disable the dedicated IPMI LAN port. Refer to the table below for
jumper settings.
IPMI Dedicated/Share LAN
Enable/Disable
Jumper Settings
Jumper Setting Denition
Pins 1-2 (Open) Enabled (Default)
Pins 1-2 (Short) Disabled
61
Chapter 3: Motherboard Connections
3.5 LED Indicators
LAN LEDs
Thirteen LAN ports (LAN1-LAN13) are located on the I/O front panel. Each LAN port has two
LEDs. The yellow LED indicates activity, while the other Link LED may be green, amber, or
o󰀨 to indicate the speed of the connection. Refer to the tables below for more information.
LAN Activity LEDs (Left)
LED State
Color Status Denition
Yellow Flashing Active
LAN Link LEDs (Right)
LED State
LED Color Denition
O󰀨 No Connection
Amber 1 Gbps
Green 10 Gbps
BMC Heartbeat LED
BMC_HB_LED1 is the BMC heartbeat LED. When the LED is blinking green, BMC is
functioning normally. See the table below for the LED status.
BMC Hearbeat LED Indicator
LED Color Denition
Green:
Blinking BMC Normal
Onboard Power LED
The Onboard Power LED is located at LED1 on the motherboard. When this LED is on, the
system is on. Be sure to turn o󰀨 the system and unplug the power cord before removing or
installing components. Refer to the table below for more information.
Onboard Power LED Indicator
LED Color Denition
O󰀨
System O󰀨
(power cable not
connected)
Green System On
62
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
Overheat/Power Fail/Fan Fail LED
When the light for LED3 is solid red, it means the system is overheating. When the LED is
blinking red, it means a power failure or fan failure has occurred.
Overheat/Power Fail/Fan Fail
LED Indicator
LED Color Denition
Solid Red Overheat
Blinking
Red
Power Failure/
Fan Failure
JTGLED1, JTGLED2
JTGLED1 is the activity LED for LAN10-LAN11 and JTGLED2 is the activity LED for LAN12-
LAN13.
JTGLED1
LAN Activity LED
Pin Denitions
Pin# Denition
1 P3V3 Dual
2 10G_P0_ACT_N
3 P3V3 Dual
4 10G_P1_ACT_N
JTGLED2
LAN Activity LED
Pin Denitions
Pin# Denition
1 P3V3 Dual
2 10G_P2_ACT_N
3 P3V3 Dual
4 10G_P3_ACT_N
63
Chapter 3: Motherboard Connections
LAN Port Activity LED
JLANLED1 is the activity LED for LAN1, JLANLED2 is the activity LED for LAN2-LAN5, and
JLANLED3 is the activity LED for LAN6-LAN9.
JLANLED1
LAN Activity LED
Pin Denitions
Pin# Denition
1 P3V3 Dual
2 GLAN1_ACT_N
JLANLED2
LAN Activity LED
Pin Denitions
Pin# Pin#Denition Denition
1 2P3V3 Dual LINK0_ACT_N
3 4P3V3 Dual LINK1_ACT_N
5 6P3V3 Dual LINK2_ACT_N
7 8P3V3 Dual LINK3_ACT_N
JLANLED3
LAN Activity LED
Pin Denitions
Pin# Pin#Denition Denition
1 2P3V3 Dual LINK4_ACT_N
3 4P3V3 Dual LINK5_ACT_N
5 6P3V3 Dual LINK6_ACT_N
7 8P3V3 Dual LINK7_ACT_N
Chapter 4: UEFI BIOS
65
4.2 Main Setup
When you rst enter the AMI BIOS setup utility, you will enter the Main setup screen. You can
always return to the Main setup screen by selecting the Main tab on the top of the screen.
The Main BIOS setup screen is shown below and the following features will be displayed:
System Date/System Time
Use this option to change the system date and time. Highlight System Date or System Time
using the arrow keys. Enter new values using the keyboard. Press the <Tab> key or the arrow
keys to move between elds. The date must be entered in MM/DD/YYYY format. The time
is entered in HH:MM:SS format.
Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The
date's default value is the BIOS build date after RTC reset.
Supermicro X11SDW-4C/8C/12C/14C/14CNT/16C-TP13F
BIOS Version
This feature displays the version of the BIOS ROM used in the system.
Build Date
This feature displays the date when the version of the BIOS ROM used in the system was built.
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
66
Memory Information
Total Memory
This feature displays the total size of memory available in the system.
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
68
INT19 Trap Response
Interrupt 19 is the software interrupt that handles the boot disk function. When this feature
is set to Immediate, the ROM BIOS of the host adaptors will "capture" Interrupt 19 at bootup
immediately and allow the drives that are attached to these host adaptors to function as
bootable disks. If this feature is set to Postponed, the ROM BIOS of the host adaptors will not
capture Interrupt 19 immediately and allow the drives attached to these adaptors to function
as bootable devices at bootup. The options are and Postponed.Immediate
Re-try Boot
If this feature is enabled, the BIOS will automatically reboot the system from a specied boot
device after its initial boot failure. The options are and EFI Boot.Disabled
Port 61h bit-4 Emulation
Select Enabled to enable the emulation of Port 61h bit-4 toggling in SMM (System Management
Mode). The options are and Enabled.Disabled
Power Conguration
Watch Dog Function
If enabled, the Watch Dog timer will allow the system to reboot when it is inactive for more
than ve minutes. The options are Disabled and Enabled.
Power Button Function
This feature controls how the system shuts down when the power button is pressed. Select 4
Seconds Override for the user to power o󰀨 the system after pressing and holding the power
button for four seconds or longer. Select Instant O󰀨 to instantly power o󰀨 the system as soon
as the user presses the power button. The options are and 4 Seconds Override.Instant O󰀨
Restore on AC Power Loss
Use this feature to set the power state after a power outage. Select Power O󰀨 for the system
power to remain o󰀨 after a power loss. Select Power On for the system power to be turned
on after a power loss. Select Last State to allow the system to resume its last power state
before a power loss. The options are Stay O󰀨, Power On, and Last State.
CPU Conguration
The following CPU information will display:
• Processor BSP Revision
• Processor Socket
• Processor ID
• Processor Frequency
Chapter 4: UEFI BIOS
69
• Processor Max Ratio
• Processor Min Ratio
• Microcode Revision
• L1 Cache RAM
• L2 Cache RAM
• L3 Cache RAM
• Processor 0 Version
Hyper-Threading (ALL)
Select Enabled to support Intel Hyper-threading Technology to enhance CPU performance.
The options are Disable and Enable.
Cores Enabled
Set a numeric value to enable the number of cores. Refer to Intel's website for more
information. Enter to enable all cores.0
Execute Disable Bit (Available if supported by the OS & the CPU)
Set to Enable for Execute Disable Bit support, which will allow the processor to designate
areas in the system memory where an application code can execute and where it cannot,
thus preventing a worm or a virus from ooding illegal codes to overwhelm the processor or
damage the system during a virus attack. The options are Disable and . Refer to Intel Enable
and Microsoft websites for more information.
Intel Virtualization Technology
Use this feature to enable the Vanderpool Technology. This technology allows the system to
run several operating systems simultaneously. The options are Disable and Enable.
PPIN Control
Select Unlock/Enable to use the Protected Processor Inventory Number (PPIN) in the system.
The options are Unlock/Disable and Unlock/Enable.
Hardware Prefetcher (Available when supported by the CPU)
If set to Enable, the hardware prefetcher will prefetch streams of data and instructions from
the main memory to the L2 cache to improve CPU performance. The options are Enable
and Disable.
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
70
Adjacent Cache Prefetch (Available when supported by the CPU)
The CPU prefetches the cache line for 64 bytes if this feature is set to Disabled. The CPU
prefetches both cache lines for 128 bytes as comprised if this feature is set to Enable. The
options are and Disable. Enable
DCU Streamer Prefetcher (Available when supported by the CPU)
Select Enable to enable the DCU (Data Cache Unit) Streamer Prefetcher which will stream
and prefetch data and send it to the Level 1 data cache to improve data processing and
system performance. The options are and Disable.Enable
DCU IP Prefetcher (Available when supported by the CPU)
Select Enable for DCU (Data Cache Unit) IP Prefetcher support, which will prefetch IP
addresses to improve network connectivity and system performance. The options are Enable
and Disable.
LLC Prefetch
If set to Enable, the hardware prefetcher will prefetch streams of data and instructions from
the main memory to the L3 cache to improve CPU performance. The options are Disable
and Enable.
Extended APIC
Select Enable to activate APIC (Advanced Programmable Interrupt Controller) support. The
options are and Enable.Disable
AES-NI
Select Enable to use the Intel Advanced Encryption Standard (AES) New Instructions (NI) to
ensure data security. The options are Disable and Enable.
Advanced Power Management Conguration
Power Technology
This feature allows you to congure CPU power management settings. The options are
Disable, Energy E󰀩cient, and Custom.
*If the feature above is set to Custom, the following features will be available for
conguration:
Power Performance Tuning
This feature allows you to set whether the operating system or the BIOS controls the
Energy Performance BIAS (EPB). The options are and BIOS Controls OS Controls EPB
EPB.
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
72
Use this feature to enable or disable energy ecient turbo. The options are Enable and
Disable.
Turbo Mode
This feature will enable dynamic control of the processor, allowing it to run above stock
frequency. The options are Disable and Enable.
Hardware PM State Control
Hardware P-States
This setting allows you to select between OS and hardware-controlled P-states. Select-
ing Native Mode allows the OS to choose a P-state. Selecting Out of Band Mode allows
the hardware to autonomously choose a P-state without OS guidance. Selecting Native
Mode with No Legacy Support functions as Native Mode with no support for older hard-
ware. The options are , Native Mode, Out of Band Mode, and Native Mode with Disable
No Legacy Support.
CPU C State Control
Autonomous Core C-State
Enabling this setting allows the hardware to autonomously choose to enter a C-state
based on power consumption and clock speed. The options are and Enable. Disable
This feature must be set to Disable to be able to congure the next two features.
CPU C6 report
Select Enable to allow the BIOS to report the CPU C6 State (ACPI C3) to the operating
system. During the CPU C6 State, the power to all cache is turned o. The options are
Disable, Enable, and Auto.
Enhanced Halt State (C1E)
Select Enable to use Enhanced Halt State technology, which will signicantly reduce the
CPU's power consumption by reducing its clock cycle and voltage during a Halt state.
The options are Disable and Enable.
Package C State Control
Package C State
This feature allows you to set the limit on the C State package register. The options are
C0/C1 State, C2 State, C6 (Non Retention) State C6 (Retention) State, No Limit, and ,
Auto.
Chapter 4: UEFI BIOS
77
*If the feature above is set to Enable, the ve features below will be available
for conguration:
Interrupt Remapping
Use this feature to enable Interrupt Remapping support, which detects and controls
external interrupt requests. The options are and Disable.Enable
PassThrough DMA
Use this feature to allow devices such as network cards to access the system memory
without using a processor. Select Enable to use the Non-Isoch VT-d Engine Pass
Through Direct Memory Access (DMA) support. The options are and Disable.Enable
ATS
Use this feature to enable Non-Isoch VT-d Engine Address Translation Services (ATS)
support. ATS translates virtual addresses to physical addresses. The options are En-
able and Disable.
Posted Interrupt
Use this feature to enable VT-d Posted Interrupt. The options are and Disable.Enable
Coherency Support (Non-Isoch)
Use this feature to maintain setting coherency between processors or other devices.
Select Enable for the Non-Isoch VT-d engine to pass through DMA to enhance system
performance. The options are and Disable.Enable
Intel® VMD Technology
Note: After you’ve enabled VMD on a PCI-E slot of your choice, this PCI-E slot will be
dedicated for NVMe storage devices use only, and it will no longer support PCI-E de-
vices of other functionalities. To re-activate this slot for PCI-E use, please disable VMD.
Intel® VMD for Volume Management Device on CPU
VMD Cong for PStack0
Intel® VMD for Volume Management Device
Select Enable to use the Intel Volume Management Device Technology for this stack.
The options are and Enable. Disable
*If the feature "Intel VMD for Volume Management Device" above is set to En-
able, the following features will be available for conguration:
SuperServer E403-9D-4C/8CN/12C/14C/14CN/16C-FN13TP User's Manual
80
Aggressive Link Power Management
When this feature is set to Enable, the SATA AHCI controller manages the power usage of
the SATA link. The controller will put the link in a low power mode during extended periods
of I/O inactivity, and will return the link to an active state when I/O activity resumes. The op-
tions are and Enable.Disable
SATA Port 4
This feature displays the information detected on the installed SATA drive on the particular
SATA port.
• Model number of drive and capacity
• Software Preserve Support
SATA Port 4 Hot Plug
Set this feature to Enable for hot plug support, which will allow the user to replace a SATA
drive without shutting down the system. The options are Disable and Enable.
SATA Port 4 Spin Up Device
Set this feature to enable or disable the PCH to initialize the device. The options are
Disable and Enable.
SATA Port 4 SATA Device Type
Use this feature to specify if the SATA port specied by the user should be connected to a
Solid State Drive or a Hard Disk Drive. The options are and Solid State Hard Disk Drive
Drive.
PCH sSATA Conguration
When this submenu is selected, the AMI BIOS automatically detects the presence of the
SATA devices that are supported by the Intel PCH chip and displays the following features:
sSATA Controller
This feature enables or disables the onboard sSATA controller supported by the Intel PCH
chip. The options are and Disable.Enable
Congure sSATA as
Select AHCI to congure an sSATA drive specied by the user as an AHCI drive. Select RAID
to congure an sSATA drive specied by the user as a RAID drive. The options are AHCI
and RAID.

Produkt Specifikationer

Mærke: Supermicro
Kategori: Ikke kategoriseret
Model: SuperServer E403-9D-14CN-FN13TP

Har du brug for hjælp?

Hvis du har brug for hjælp til Supermicro SuperServer E403-9D-14CN-FN13TP stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ikke kategoriseret Supermicro Manualer

Supermicro

Supermicro X14SAE Manual

31 Marts 2025
Supermicro

Supermicro H8DGT-HF Manual

23 Februar 2025
Supermicro

Supermicro H8SGL Manual

23 Februar 2025
Supermicro

Supermicro X14DBI Manual

30 Januar 2025
Supermicro

Supermicro X14SAZ-F Manual

30 Januar 2025
Supermicro

Supermicro X10SLE-HF Manual

13 Januar 2025
Supermicro

Supermicro X10SLE-DF Manual

13 Januar 2025
Supermicro

Supermicro X10SLD-HF Manual

13 Januar 2025
Supermicro

Supermicro X10SLE-F Manual

8 Januar 2025
Supermicro

Supermicro H14DSH Manual

3 Januar 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Waterpik

Waterpik WP-490 Manual

10 April 2025
Daikin

Daikin EAVX16S18DA9WG Manual

10 April 2025
Daikin

Daikin RXYLQ40T7Y1B Manual

10 April 2025
Daikin

Daikin RXYLQ42T7Y1B Manual

10 April 2025
Daikin

Daikin ETVZ16S23EA6V7 Manual

10 April 2025
Daikin

Daikin FXMA200AXVMB Manual

10 April 2025
Daikin

Daikin FXZQ15A2VEB Manual

10 April 2025
Daikin

Daikin ETVZ16S18EA9W Manual

9 April 2025
Daikin

Daikin DSR1 Manual

9 April 2025
Simplified MFG

Simplified MFG SP18CAT120 Manual

9 April 2025
