The RF signal meter by SureCall provides accurate information of radio frequency signals. The
device can receive the RF signal from air an installed outdoor antenna or connects directly to the
field antenna. This device works with LTE, Cellular, PCS and AWS bands. The purpose of the RF
Signal meter is to assist in the installation of a Signal Booster, specifically for mapping the frequency
environment, pointing directional antennas, and maximizing signal booster coverage.
Three-Year Warranty
SureCall warrants its products for three years from the date of purchase against defects in workmanship and/or materials. Specifications are
subject to change.
Products returned by customers must be in their original, un-modified condition, shipped in the original or protective packaging with proof-of-
purchase documentation enclosed, and a Return Merchandise Authorization (RMA) number printed clearly on the outside of the shipping container.
Buyers may obtain an RMA number for warranty returns by calling the SureCall Return Department toll-free at 1-888-365-6283. Any returns received
by SureCall without an RMA number clearly printed on the outside of the shipping container will be returned to sender. In order to receive full credit,
all parts originally included in the kit packaging must also be returned.
This warranty does not apply to any product determined by SureCall to have been subjected to misuse, abuse, neglect, or mishandling that alters
or damages the product’s physical or electronic properties.
SureCall warrants to the Buyer that each of its products, when shipped, will be free from defects in material and workmanship, and will perform in
full accordance with applicable specifications. The limit of liability under this warranty is, at SureCall’s option, to repair or replace any product or
part thereof which was purchased up to as determined THREE YEARS after May 1, 2014 or TWO YEARS for products purchased before May 1, 2014,
by examination by SureCall, prove defective in material and/or workmanship. Warranty returns must first be authorized in writing by SureCall.
Disassembly of any SureCall product by anyone other than an authorized representative of SureCall voids this warranty in its entirety. SureCall
reserves the right to make changes in any of its products without incurring any obligation to make the same changes on previously delivered
products.
As a condition to the warranties provided for herein, the Buyer will prepay the shipping charges for all products returned to SureCall for repair,
and SureCall will pay the return shipping with the exception of products returned from outside the United States, in which case the Buyer will pay
the shipping charges.
The Buyer will pay the cost of inspecting and testing any goods returned under the warranty or otherwise, which are found to meet the applicable
specifications or which are not defective or not covered by this warranty.
Products sold by SureCall shall not be considered defective or non-conforming to the Buyer’s order if they satisfactorily fulfill the performance
requirements that were published in the product specification literature, or in accordance with samples provided by SureCall. This warranty shall
not apply to any products or parts thereof which have been subject to accident, negligence, alteration, abuse, or misuse. SureCall makes no
warranty whatsoever in respect to accessories or parts not supplied by it.
Limitations of Warranty, Damages and Liability
EXCEPT AS EXPRESSLY SET FORTH HEREIN, THERE ARE NO WARRANTIES, CONDITIONS, GUARANTEES, OR REPRESENTATIONS AS TO MERCHANTABI -
LITY, FITNESS FOR A PARTICULAR PURPOSE, OR OTHER WARRANTIES, CONDITIONS, GUARANTEES, OR REPRESENTATIONS, WHETHER EXPRESSED OR
IMPLIED, IN LAW OR IN FACT, ORAL OR IN WRITING.
SURECALL AGGREGATE LIABILITY IN DAMAGES OR OTHERWISE SHALL NOT EXCEED THE PAYMENT, IF ANY, RECEIVED BY CELLPHONE-MATE, INC. FOR
THE UNIT OF PRODUCT OR SERVICE FURNISHED OR TO BE FURNISHED, AS THE CASE MAY BE, WHICH IS THE SUBJECT OF CLAIM OR DISPUTE. IN NO
EVENT SHALL SURECALL BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES, HOWSOEVER CAUSED.
All matters regarding this warranty shall be interpreted in accordance with the laws of the State of California, and any controversy that cannot be
settled directly shall be settled by arbitration in California in accordance with the rules then prevailing of the American Arbitration Association,
and judgment upon the award rendered may be entered in any court having jurisdiction thereof. If one or more provisions provided herein are
held to be invalid or unenforceable under applicable law, then such provision shall be ineective and excluded to the extent of such invalidity or
unenforceability without aecting in any way the remaining provisions hereof.
Frequency Downlink
Ranges (MHz)
728-746 / 746-757 / 869-894 / 1930-1990
/ 2110-2155
Standards Supported LTE Verizon / LTE AT&T / Cellular / PCS
/ AWS
Input Impedance 50 ohm
Max Gain Shown -40 dBm
Receive Sensitivity -110 dBm
Tolerance <3 dB
DC Power 4 AAA Rechargeable Batteries
AC Power Transformer AC Input: 110V, 60Hz; DC Output: 5V
Power Consumption <1.5 Watts
RF connector SMA Female
Cable RG174
Working Time Standby: 3.5 hrs / Active: 2.5 hrs
Dimensions 6.3 x 3.3 x 1.3 inches
Weight 205g
Safety Information
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the Federal Trade Commission
(FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and radiates frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help
SC-METER-01 2017 v 1.3
Package Contents
RF Signal Meter
110 AC Power Adapter
Rubber Antenna
24” SMA to N Cable Connector
SMA-Male to F-Female Cable Connector
F-Female to F-Male Connector
4 AAA Rechargeable Batteries
www.surecall.com | 888.365.6283 | support@surecall.com
48346 Milmont Drive , Fremont, CA 94538 USA
Product Specifications:

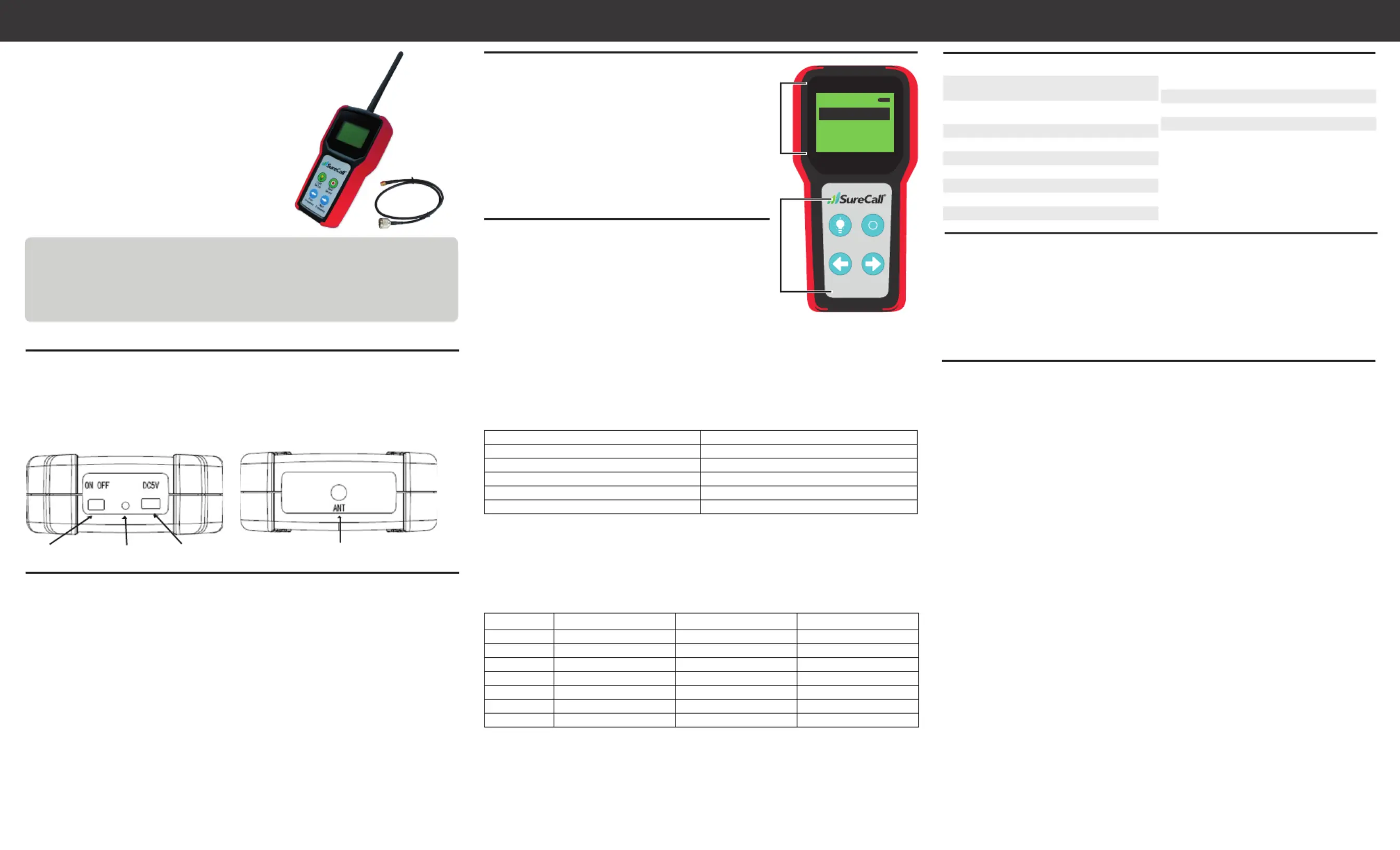

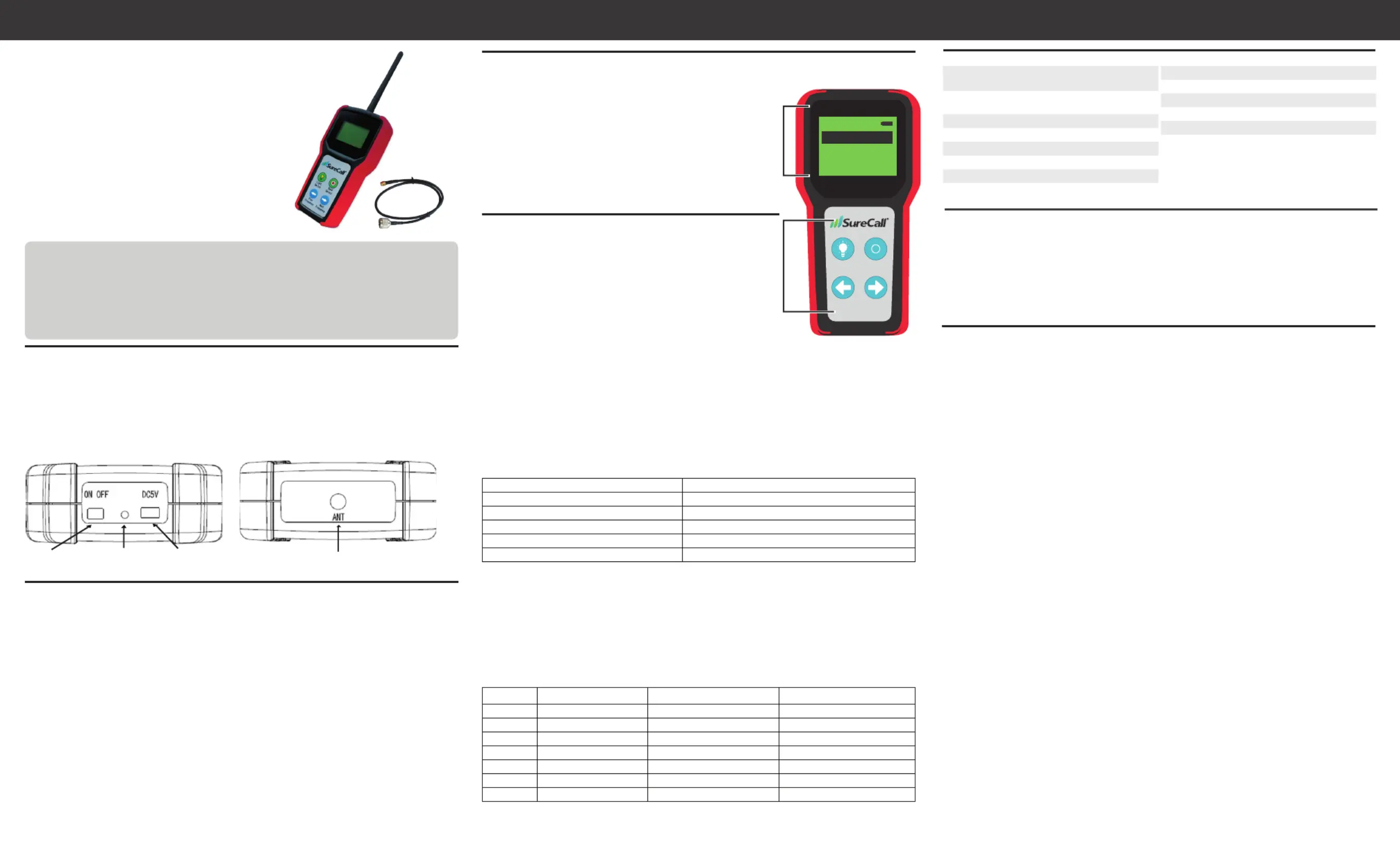

SureCall RF Signal Meter SC-METER-01 User Manual
1. Turning on and Charging the Meter
The power switch is used to turn on/othe device. The power supply interface is a mini USB interface.
You can plug the AC power supply or any power source marked DC5V into it. Make sure that the
power source can provide over 1 amp of current. The charging light is a green LED. When it is plugged
in and the power switch is OFF, the LED will continue to blink while it is being charged. If the AAA
batteries are fully charged, the LED will blink once. When the charging is finished, the LED will stay lit.
Bottom View Top View
2. Using and Installing the Antenna and Antenna Interfaces
Antenna: The included antenna is used to pick up an outside RF wireless signal to determine its
strengths and weaknesses of each band to determine an ideal location to install outside antennas, for
example. To attach, screw antenna jack clockwise at top of meter.
Antenna Interfaces: The included 9” and 24” SMA-Male to N-Male pigtail cable connectors are used
to gauge the best outside RF wireless signal for installing or adjusting a directional outside antenna.
Step 1: Attach the SMA end of either included cable connector to the SMA antenna jack on the top of
the signal meter.
Step 2: Attach the N-male end of the cable connector to the N-female cable attached to the outside
directional antenna.
WARNING: Attaching the cable connectors from the meter to a cellular amplifier can permanently
damage your signal meter. If you wish to measure signal from the meter to amplifier, contact tech
support at support@SureCall.com to find out how.
Power Charging Indicator Mini-USB Connection for SMA Antenna or Cable
3. Understanding the Screens
There are four lines of information available to users:
1. The top line displays detecting mode (see table 1, below) and
battery life
2. The second line displays detecting band
3. The third line displays detecting block in Mode-I, detecting
frequency in Mode-II and detecting band’s frequency range in
Mode-III.
4. The fourth line displays the detected dBm.
Note: Cellular signal reading is reflected in a negative number. The
lower the negative number, the stronger the signal.
4. Understanding the Keypad
There are four keys for user actions (see keypad example)
The LIGHT SWITCH button has two functions:
1. To turn the backlight ON or OFF, press quickly once.
2. To change the detection mode, press the button for a longer
period of time.
Below is a list of what the three modes represent
Mode-I Detects the power strength of one frequency block
Mode-II Detects the power strength of one frequency point with 5MHz band
Mode-III Detects the total frequency power strength of one band
Note: Mode-III is likely to be used most by consumer or first-time installers
Table 1 Downlink Bands
The Band Select button will select between downlink bands.
Band Designation Frequency Range (MHz)
LTE-AT&T 737 728 ~ 746
LTE-VERIZON 751 746 ~ 757
CELLULAR 800 869 ~ 894
PCS 1900 1930 ~ 1995
AWS 2100 2110 ~ 2155
Note: For a list of band options see following table 2.
Table 2
The Prev Frequency button will switch to the previous frequency in Mode-II or previous block in
Mode-I.
The Next Frequency” button will switch to the next frequency in Mode-II or next block in Mode-I.
“Prev Frequency” and “Next Frequency” buttons do not work in Mode-III.
Blocks CELLULAR 800 (MHz) PCS 1900(MHz) AWS 2100(MHz)
A 869 ~880 1930 ~1945 2110 ~2120
B 880 ~890 1950 ~1965 2120 ~2130
C 1975 ~1990 2130 ~2135
D 1945 ~1950 2135 ~2140
E 1965 ~1970 2140 ~2145
F 1970 ~1975 2145 ~2155
G 1990 ~1995
BLOCK: NONE
POWER: -50 dBm
MODE-I
LTE–AT&T 737
Light
Switch
Band
Select
Prev
Frequency
Next
Frequency
